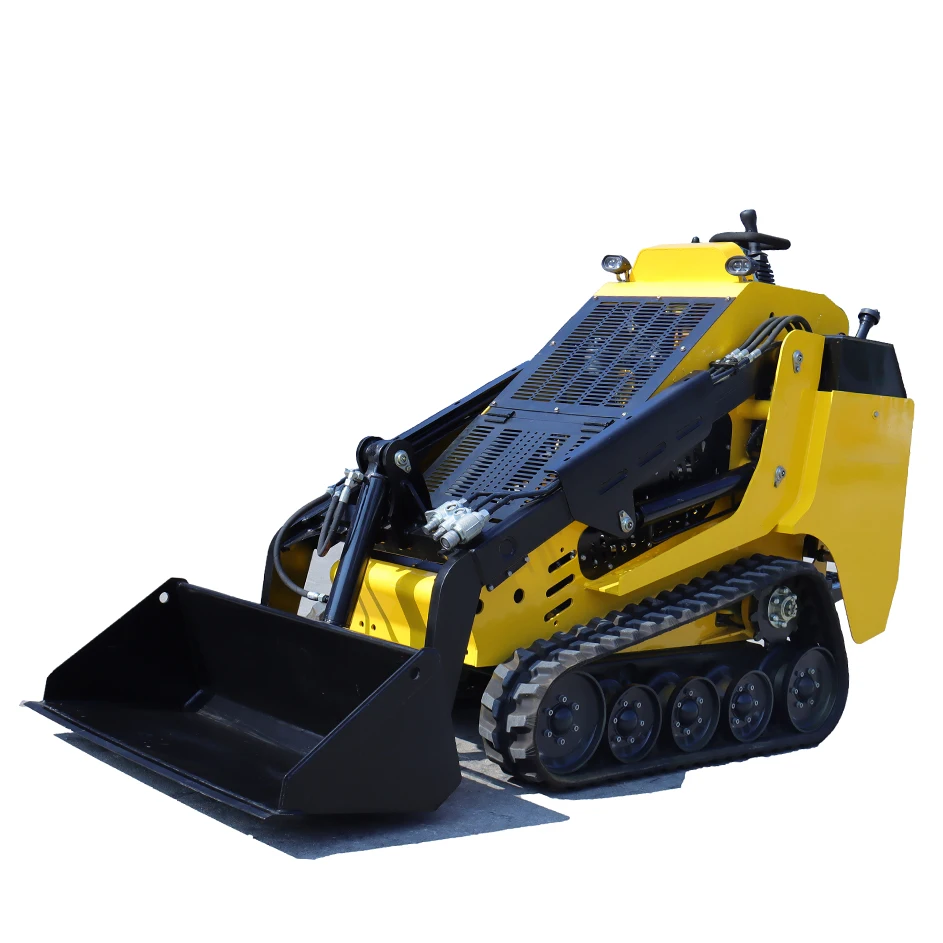

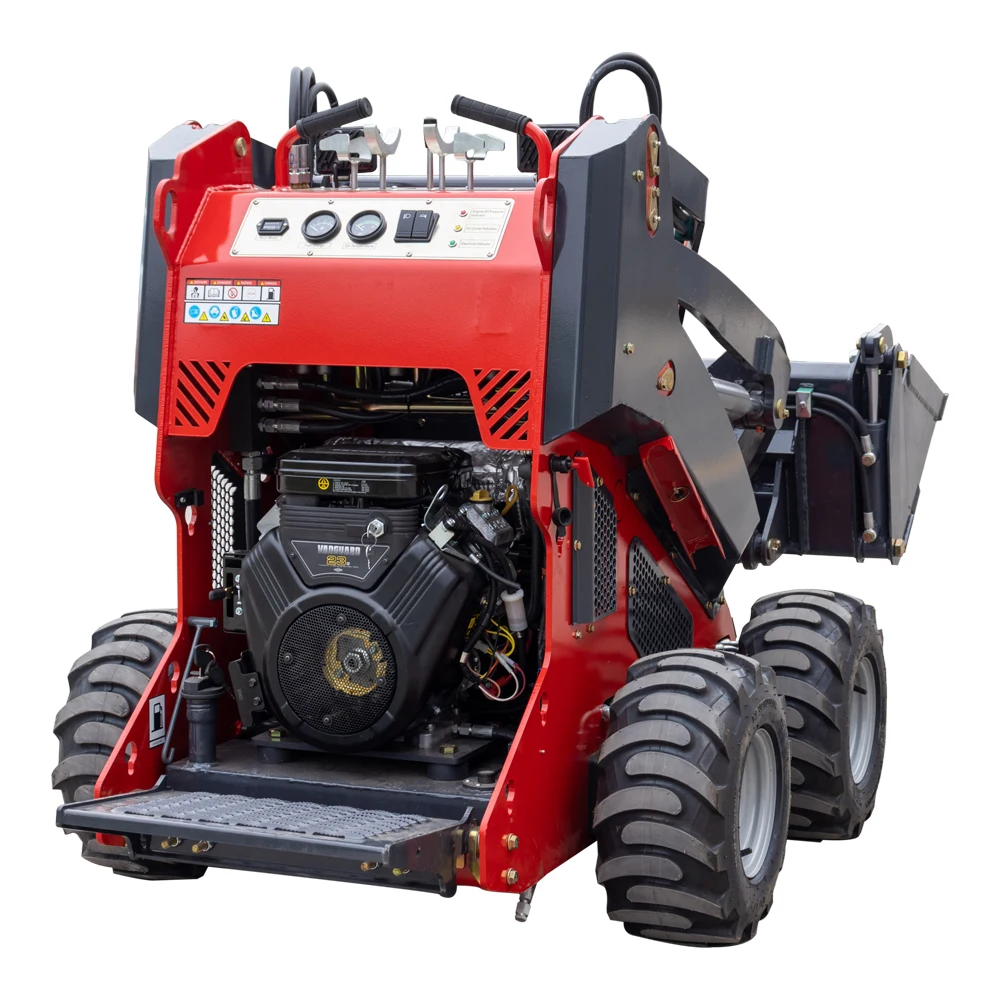

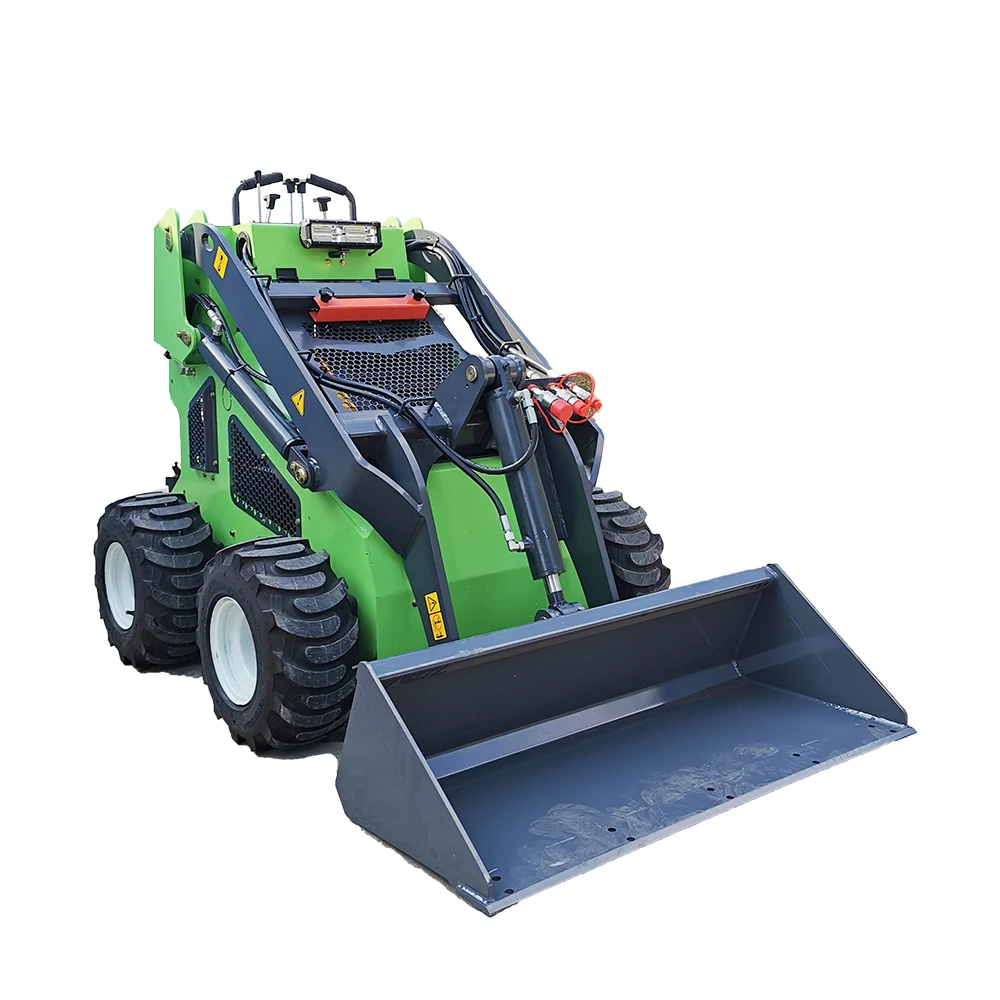

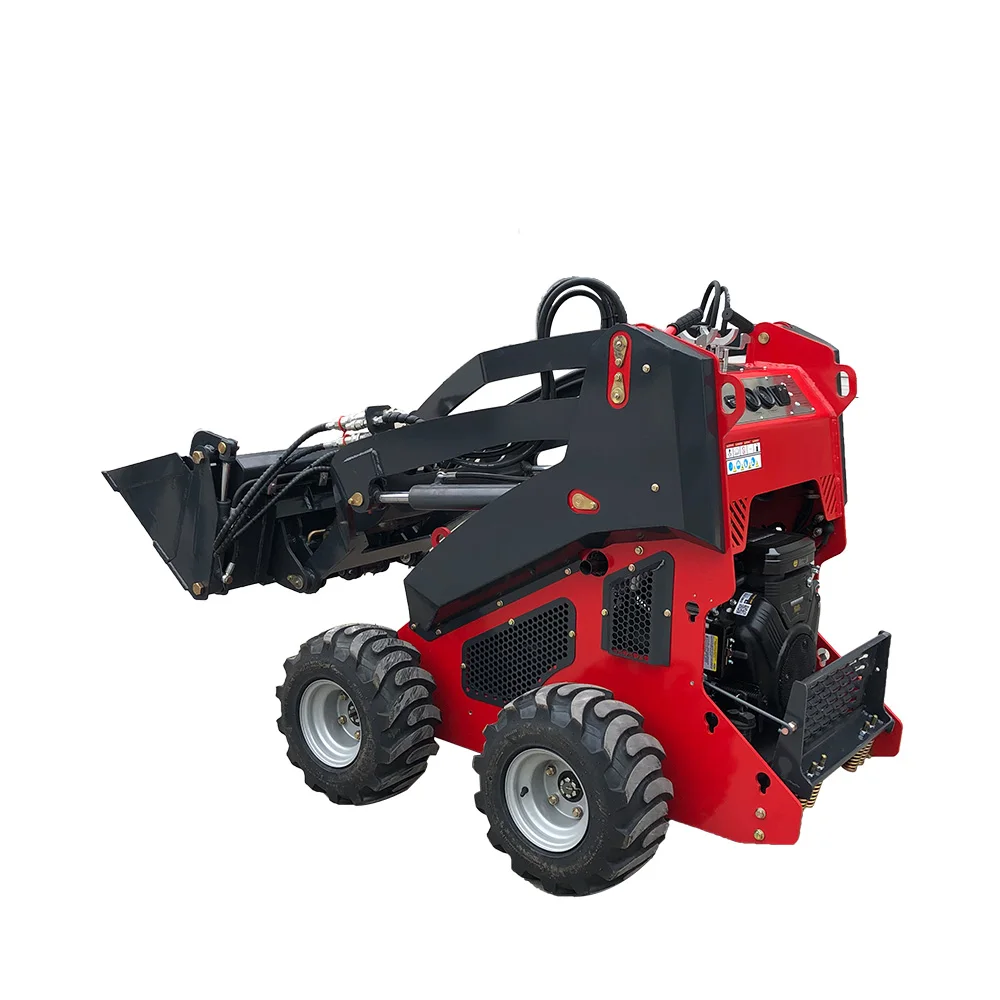

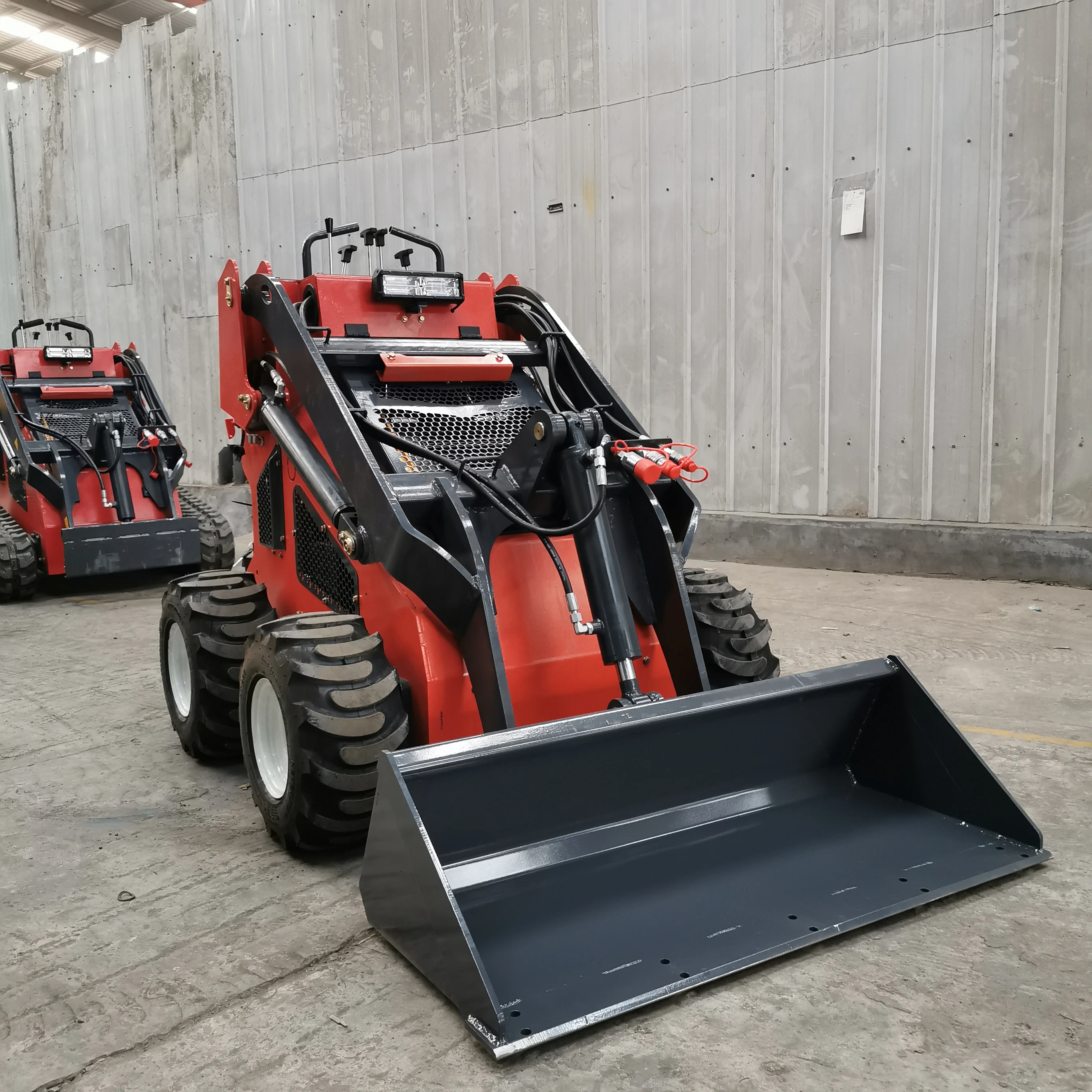

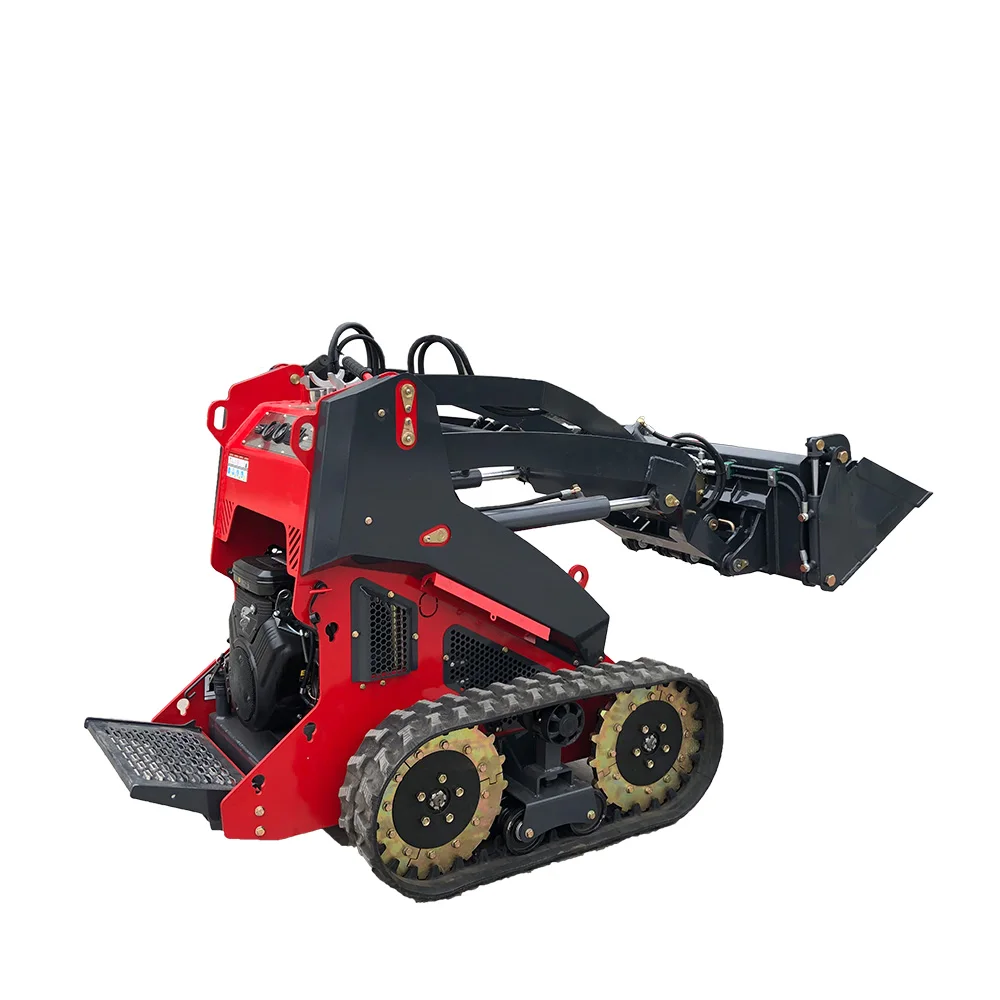

HIGHTOP HT430 mini garden tractor loader with 4 way bucket
- Category: >>>
- Supplier: Jinkung Industrial (Shandong) Corporation
Share on (1600640832035):
Product Overview
Description
Product Description
Specification
Model | HTS530 |
Item | Metric |
Max working height | 2420 mm |
Max pin height | 2099 mm |
Max dump height | 1617 mm |
The highest point discharge distance | 615 mm |
Bucket swing angle | 79° |
Bucket unloading angle | 36° |
Opening-closing angle | 43° |
Angle of departure | 30° |
Total height | 1607 mm |
The height from the ground | 300 mm |
Wheelbase | 1065 mm |
No bucket length | 2200 mm |
Total width 1033 | 1033 mm |
Bucket width | 1140 mm |
Total length（L）（with bucket） | 2752 mm |
Engine | Model | D1105-EF02 | |
Rated power | 18.2KW/25HP | ||
Rotating speed（rpm） | 3000 | ||
Noise（Db） | ≤95 | ||
Hydraulic System | Hydraulic pressure（Mpa） | 20 | ||||
Cycle time（s） | Raise | Dump | Lower | |||
3.89 | 1.6 | 3.35 | ||||
Performance parameters | Metric | |
Load weight (kg) | 300 Kg | |
Bucket capacity | 0.14 m3 | |
Max lifting power | 1258Kg | |
speed | 0-8Km/h | |
Operating weight | 1775kg | |

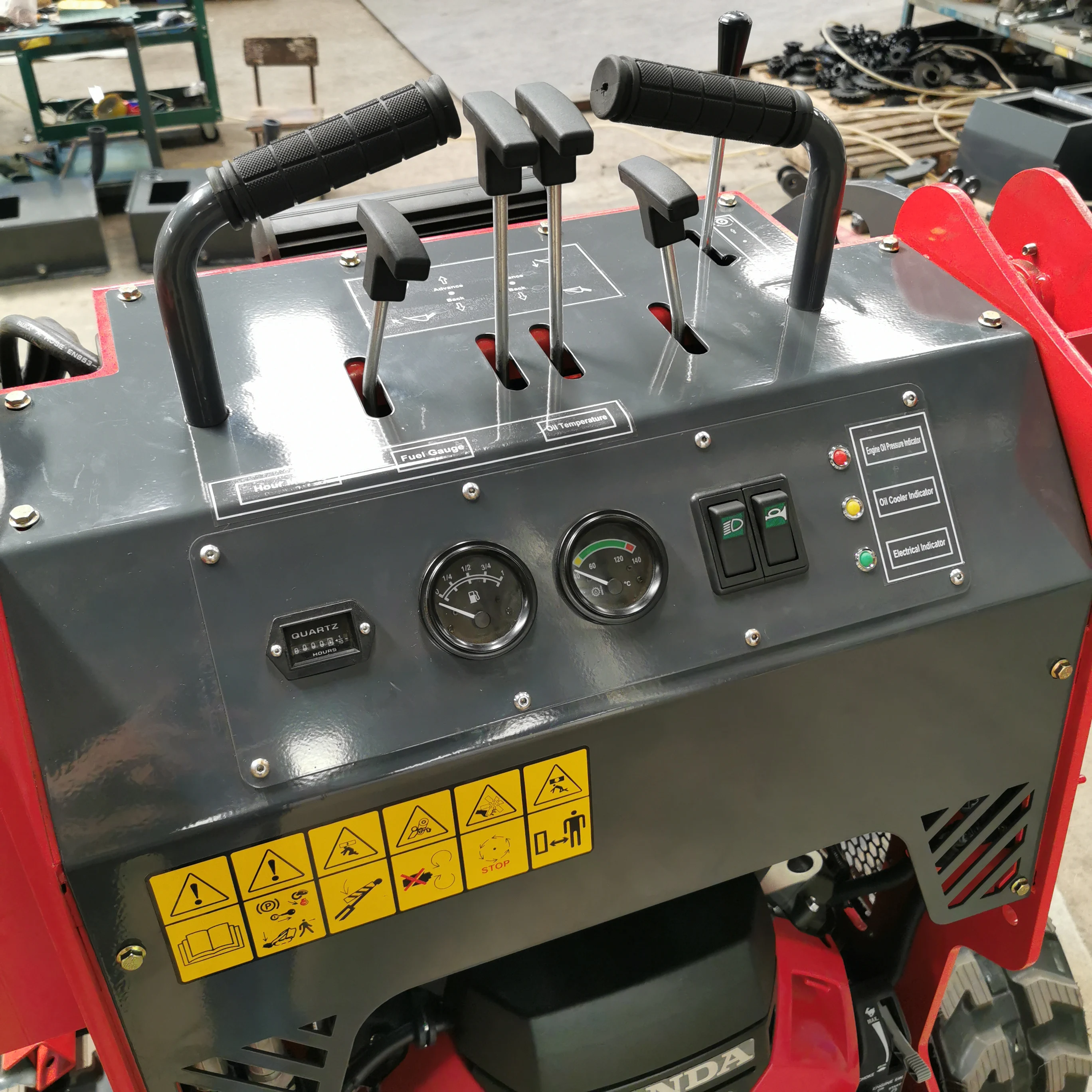

Operating Type | Hydraulic joystick |
Main pump | Qty: 2+1 |
Flow of main pump | 67.2L/min |
Valve | Qty :2 |

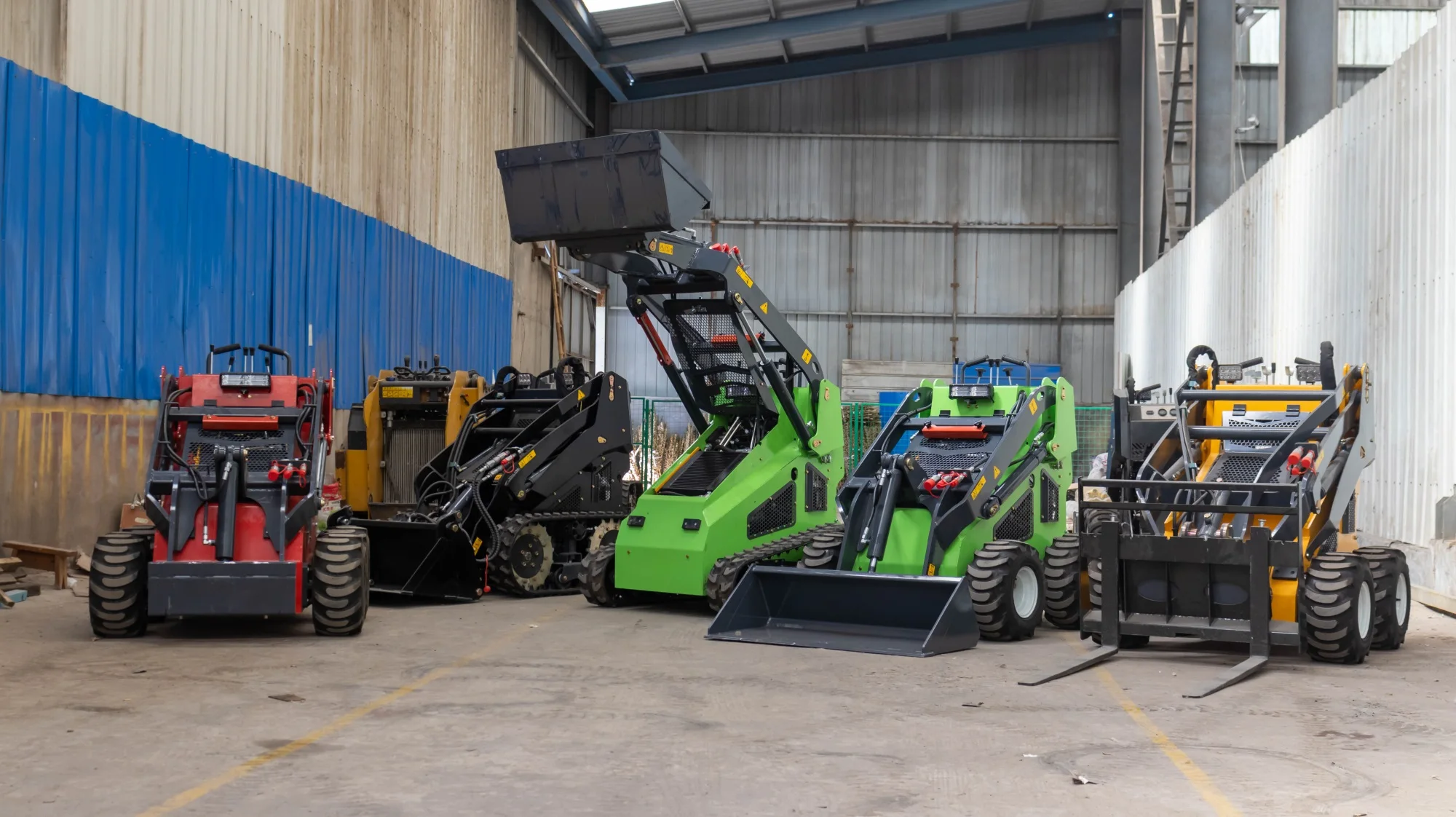

Other Models
HTS360
HTS430
HTS450
Accessories

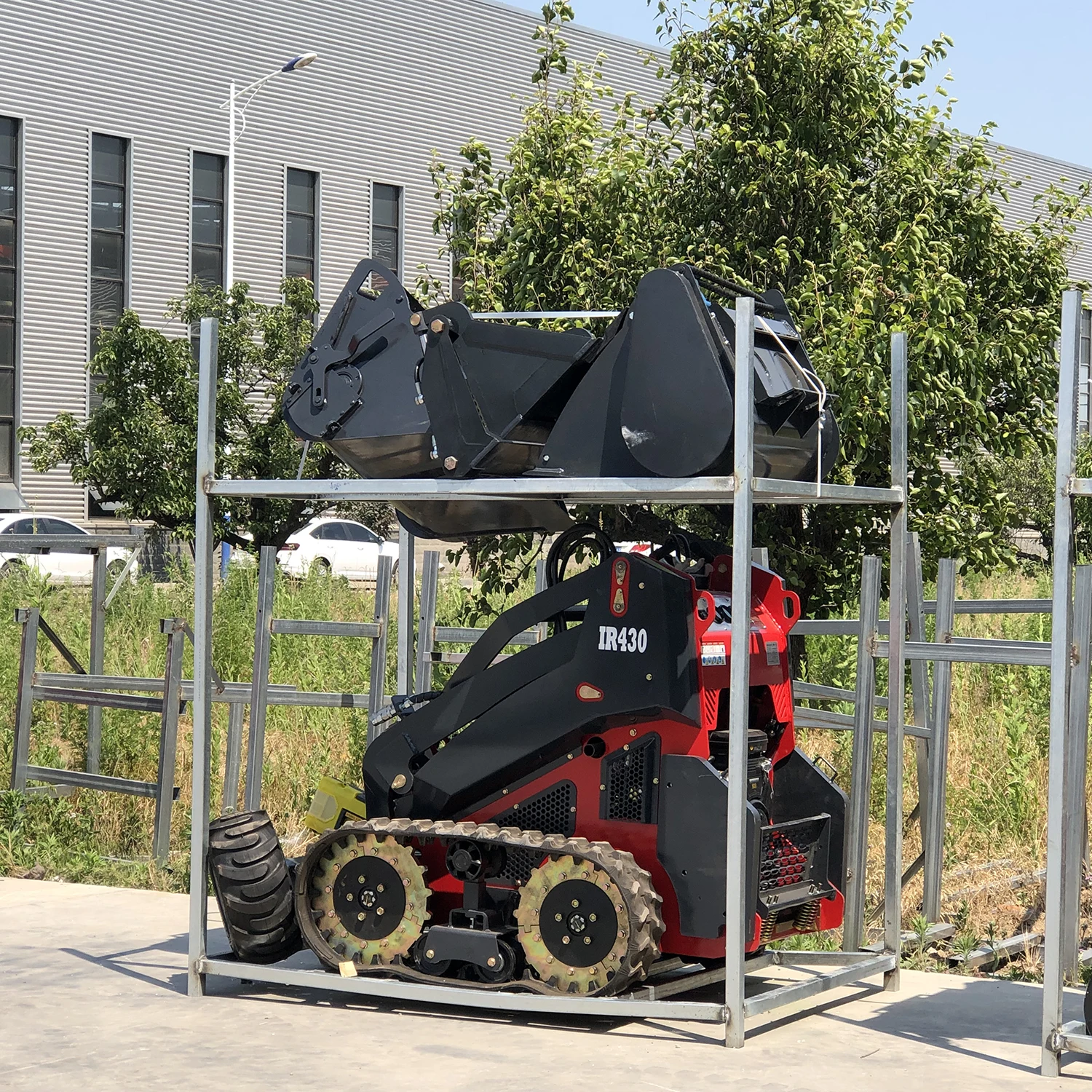

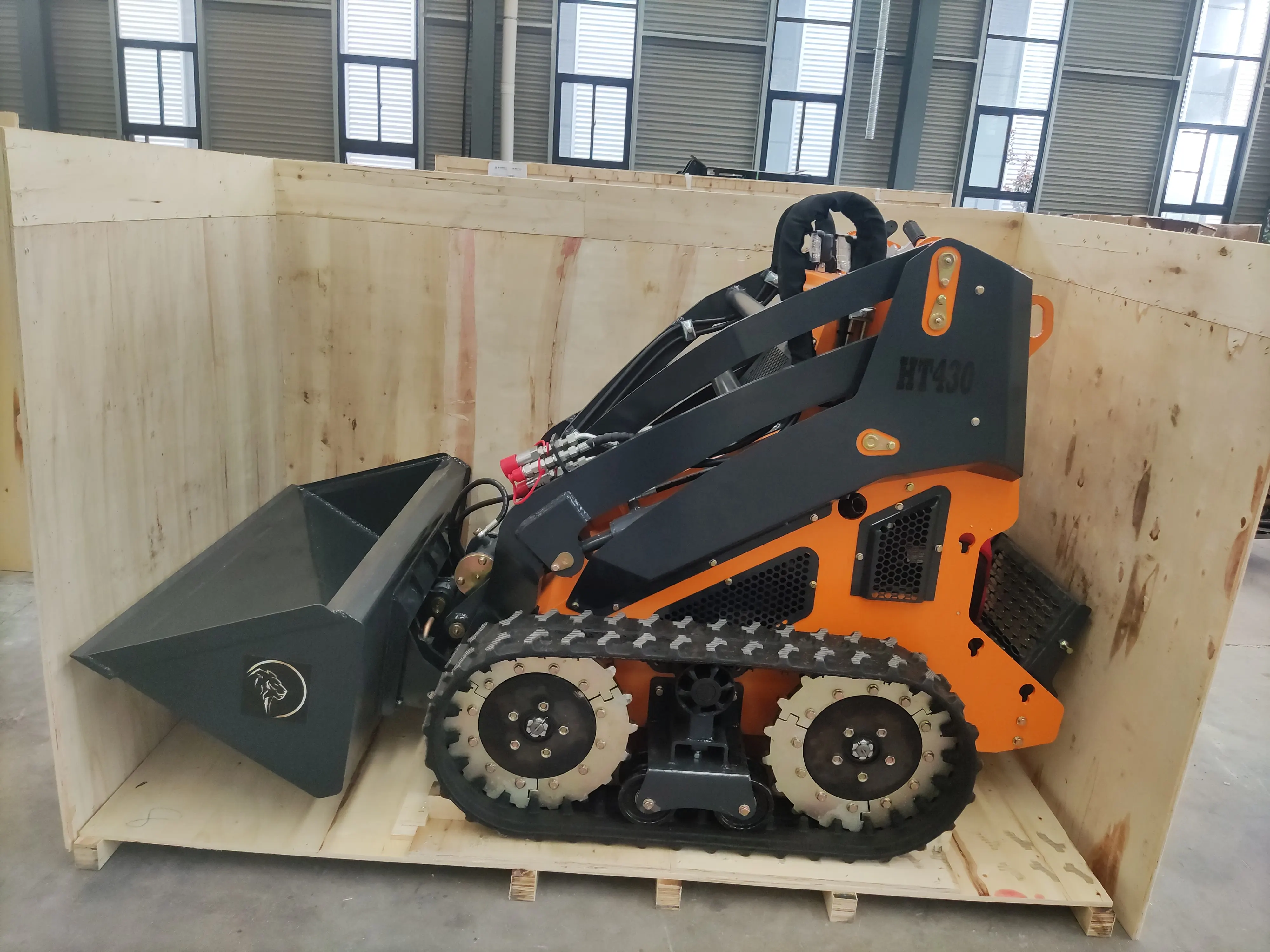

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
