Description: Also known as flange connector, it is widely used for fastening the joints of heavy-duty large-diameter gas transmission and infusion rigid pipes.
Application: It is applicable to the connection of various pipelines in industry; In the automotive industry, it is applied to the connection of the outlet end of the turbocharger and the interface connection of the middle section of the exhaust system. Since the upgrading from national five to national six, there are higher requirements for the leakage rate of the whole pipeline of the exhaust system. Therefore, the traditional bolt connection method is gradually replaced by this v-clamp connection method.
Advantage: The V-shaped groove can be manufactured according to the specifications of the main engine factory and can be customized, or it can be made of alloy materials that operate in harsh environments.
Production Detailed Description

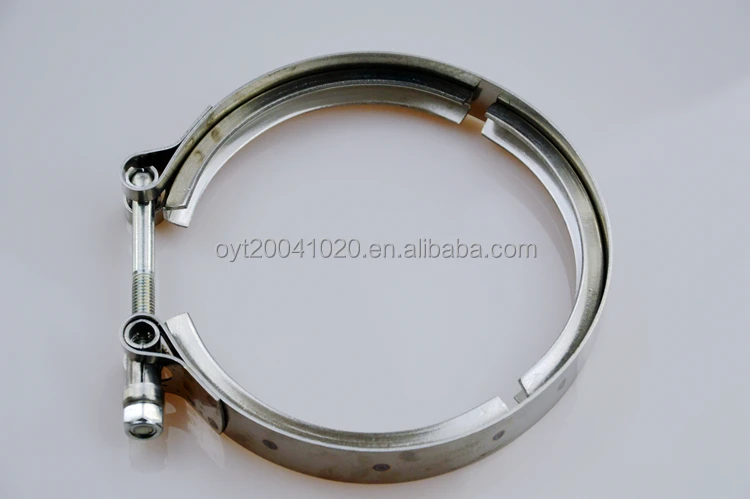

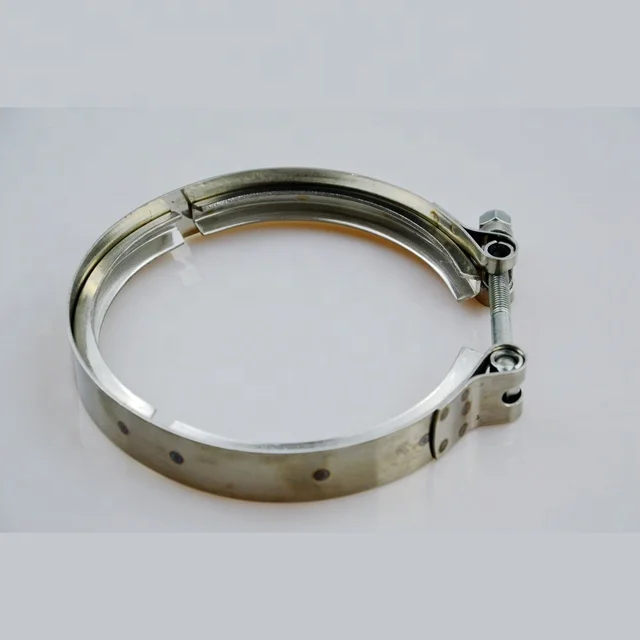

300 series stainless steel clamp and flanges using v band bar latch clamps
304 stainless steel metal or carbon steel galvanized
102-150 mm Nominal Diameter 19mm band width M6 screw 12NM torque
pull together and connect two circular flanges and provide lighter easier maintenance and requires less installation space and allow the mating pipes to be rotated to the correct location
ODM & OEM
25 PCS / 50 PCS / 100 PCS / 200 PCS one carton; 48 cartons / 192 cartons / 200 cartons; 0.3~0.8 Tons one pallet
normally,30% deposit by T/T,40% paid before loading on truck about to leave factory by T/T and the remaining 30% of the balance shall be paid off with seeing the copy of the bill of lading at sight by T/T.
typical applications include exhaust systems, aerospace, automotive, ducting / air conditioning, materials handling, marine, power generation, food industry and a variety of industrial uses.
Anhui Jingke electromechanical Co., Ltd. was established in 2018 (its predecessor was Wenzhou Jingke Hardware Products Co., Ltd. established in 2011). It is a professional industrial and trade company engaged in the development, production and sales of hardware products, automobile and motorcycle parts, such as metal clamps; Automobile cigarette lighter, standby power supply assembly and fuel pump; Motorcycle relay, electric fuel injection pump. The company has a wide range of products. In order to meet the needs of customers, the company has introduced advanced domestic and foreign experimental equipment, including Rockwell hardness tester, Vickers hardness tester, spectrometer, tensile testing machine, salt spray test chamber, hydraulic explosion test bench, cigarette lighter test bench, clamp pulse test machine, oil pump performance test bench, relay performance test bench and other high-precision professional testing equipment. It has an advanced technical research and development team. The company is located in the economic and Technological Development Zone of Chuzhou City, Anhui Province, covering an area of 20000 square meters, with a plant area of 15000 square meters. It has more than 350 employees, including 12% of management personnel and 10% of technical person.
1) Fast and efficient problem solving
2) Customer first service attitude
3) On time delivery
4) Accurately make samples
5) Provide competitive prices
6) Offer OEM&ODM services
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 7-15 days normally
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products according to our drawings and material we want?
Yes, if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products through our test equipment before shipment and intact product packaging ensured.
F) Delivery time?
Normally it takes 15-30 days.
G) What's is your payment term?
Normally,30% deposit by T/T,40% paid before loading on truck about to leave factory by T/T and the remaining 30% of the balance shall be paid off with seeing the copy of the bill of lading at sight by T/T.
H) How to guarantee after-sales service?
Maintain friendly and efficient contact.
