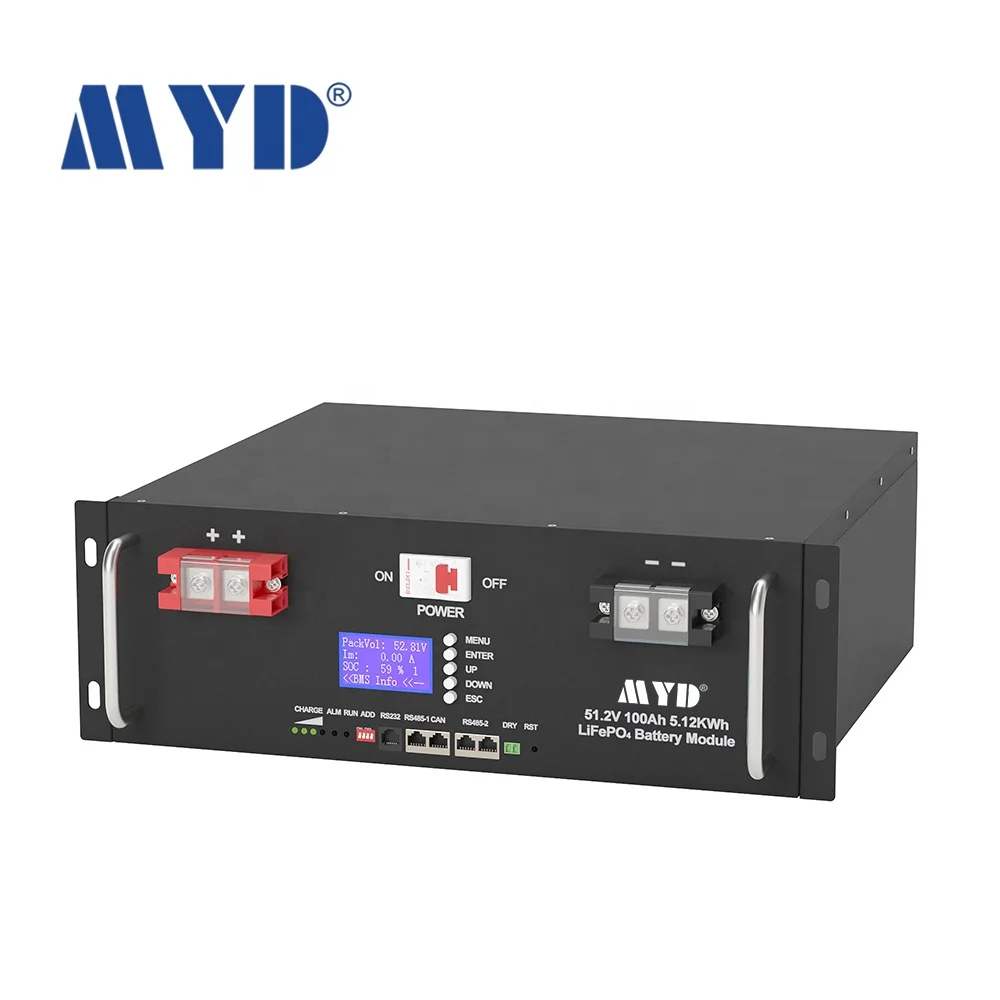

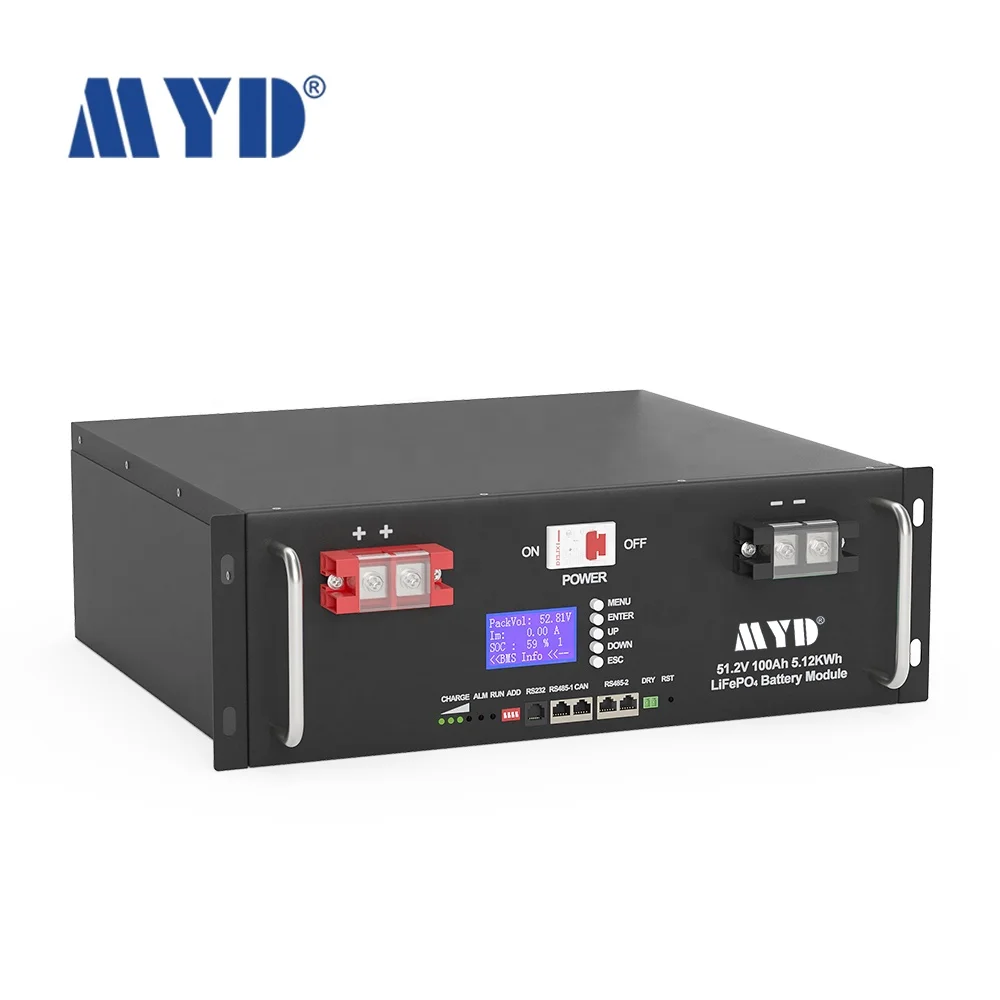

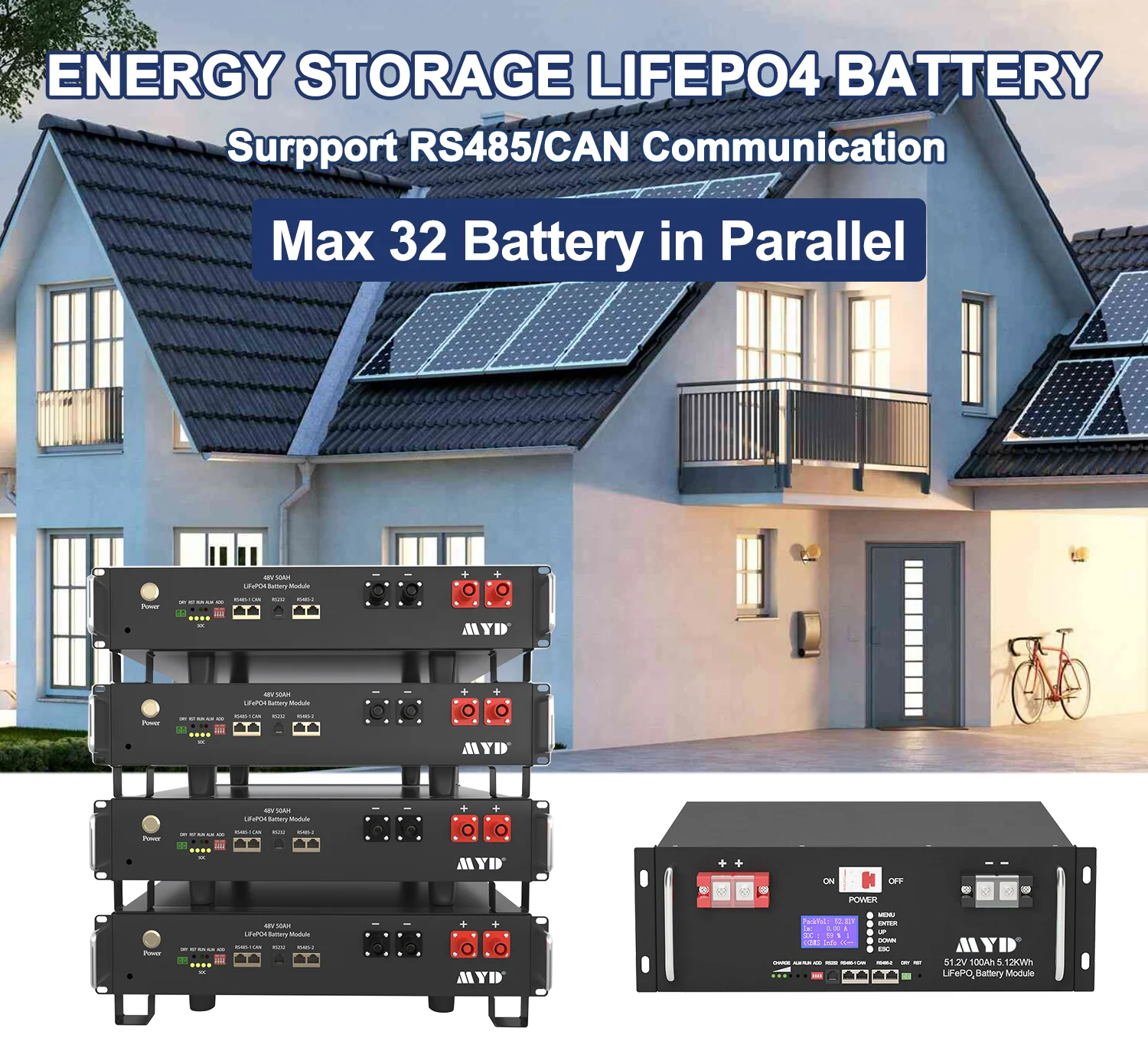

48 Volt Phosphate Deep Cycle Lipo Lifepo4 48V 100AH (5kwh) Lithium ion Li ion Telecom Battery Pack for Solar System
- Category: >>>
- Supplier: MYD New Energy Technology Limited
Share on (1600640875934):
Product Overview
Description
Matching Inverter
Precautions
Basic parameters | MYD48100-3U | MYD48100-4U | MYD48200-4U |
Nominal Voltage(V) | 48 | 48 | 48 |
Nominal Capacity(Wh) | 5120 | 5120 | 10240 |
Dimension (mm) | 442*480*130 | 430*445*177 | 620*445*177 |
Weight (Kg) | 40 | 46.8 | 84 |
Discharge Voltage (V) | 45 ~ 54 | 45 ~ 54 | 45 ~ 54 |
Charge Voltage (V) | 52.5 ~ 54 | 52.5 ~ 54 | 52.5 ~ 54 |
Max Discharge Current (A) | 100 | 100 | 120 |
Max Charge Current (A) | 100 | 100 | 120 |

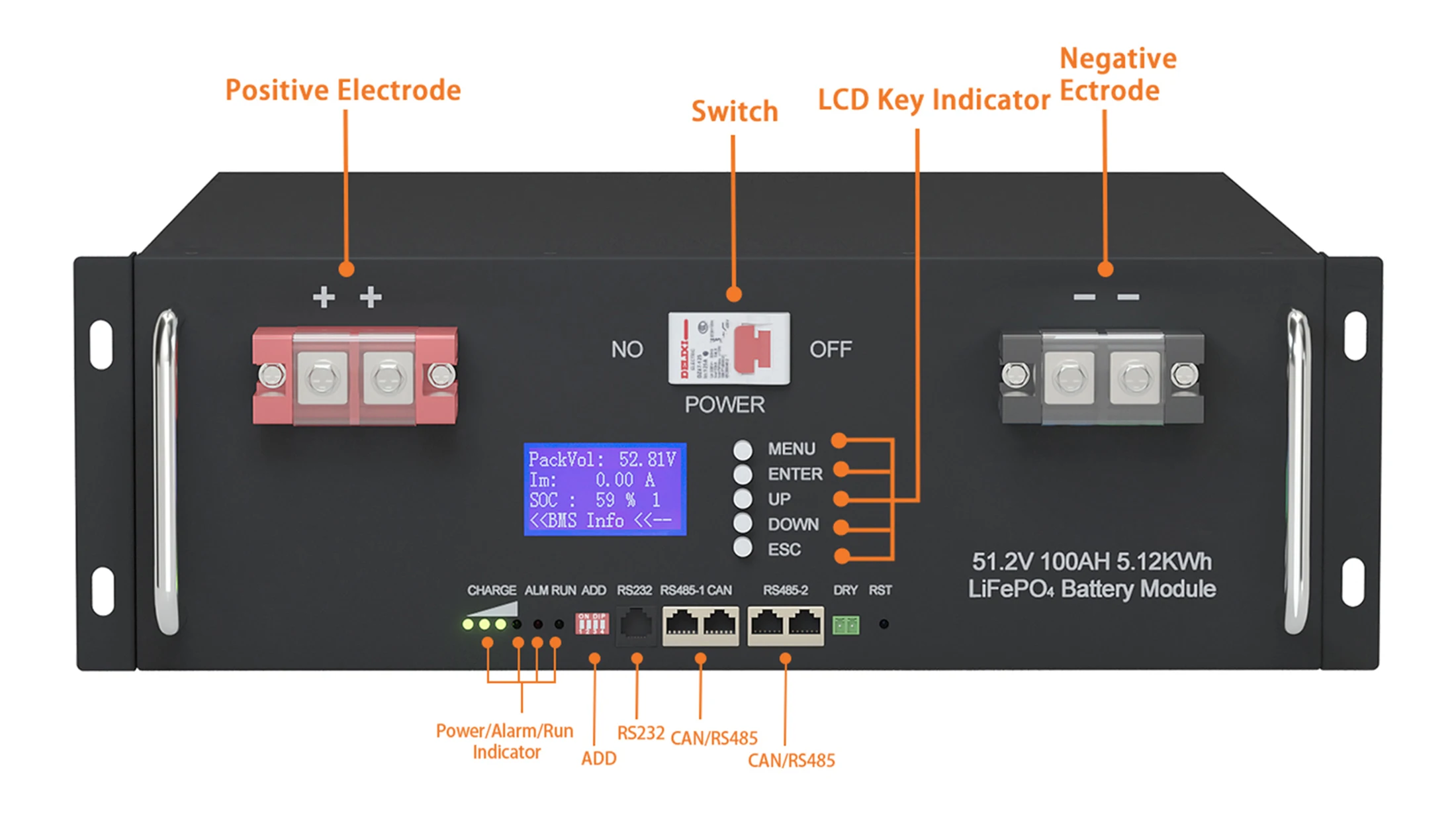

Communication | RS232,RS485,CAN | RS232,RS485,CAN | RS232,RS485,CAN |
Charging Temperature | 0°C~50°C | 0°C~50°C | 0°C~50°C |
Discharging Temperature | -20°C~55°C | -10°C~50°C | -10°C~50°C |
Shelf Temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C |
Certification | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 |
Design life | 20+ Years(25°C/77°F) | 10+ Years(25°C/77°F) | 10+ Years(25°C/77°F) |
Cycle Life | >6000 ( 80% ) | >4500 ( 90% ) | >4500 ( 90% ) |
Product Performance

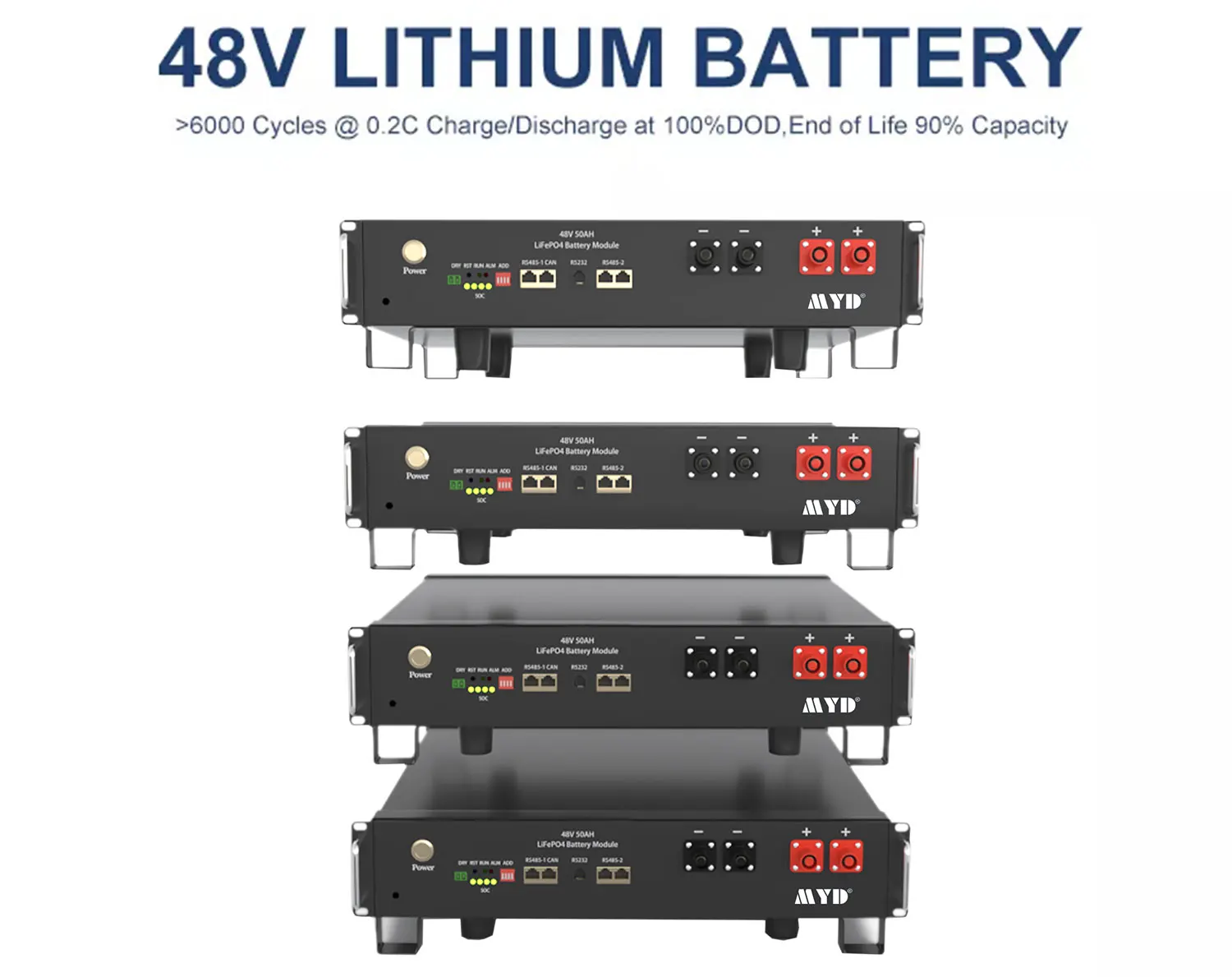

• Vertical industry integration ensures more than 6000 cycles with 80% .
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).

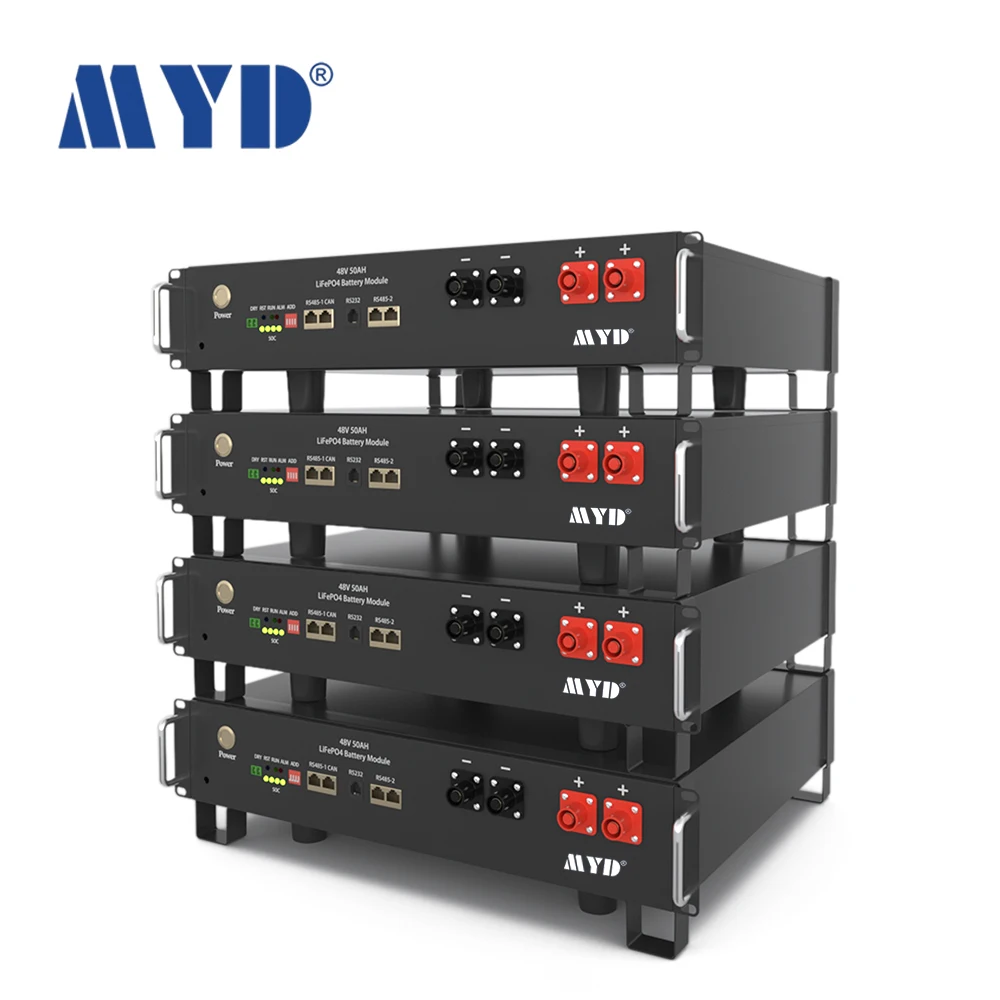

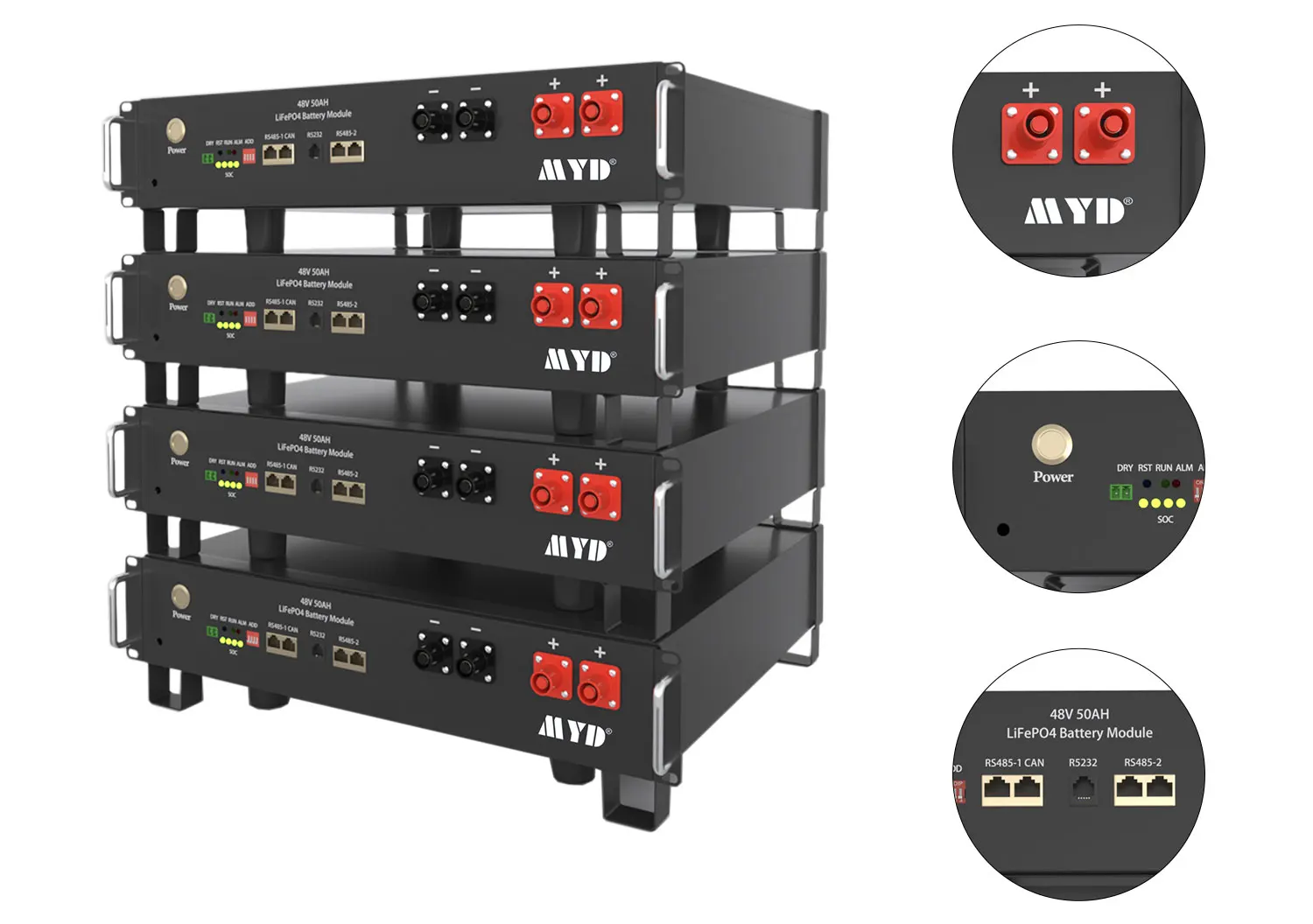

• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).
• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.
