Single phase to three phase inverter 3phase off grid 10kw 3 phase hybrid inverters without batteries for industrial use
- Category: >>>
- Supplier: COREPLUS INDUSTRIAL COMPANY LIMITED
Share on (1600640910499):
Product Overview
Description
Product Description

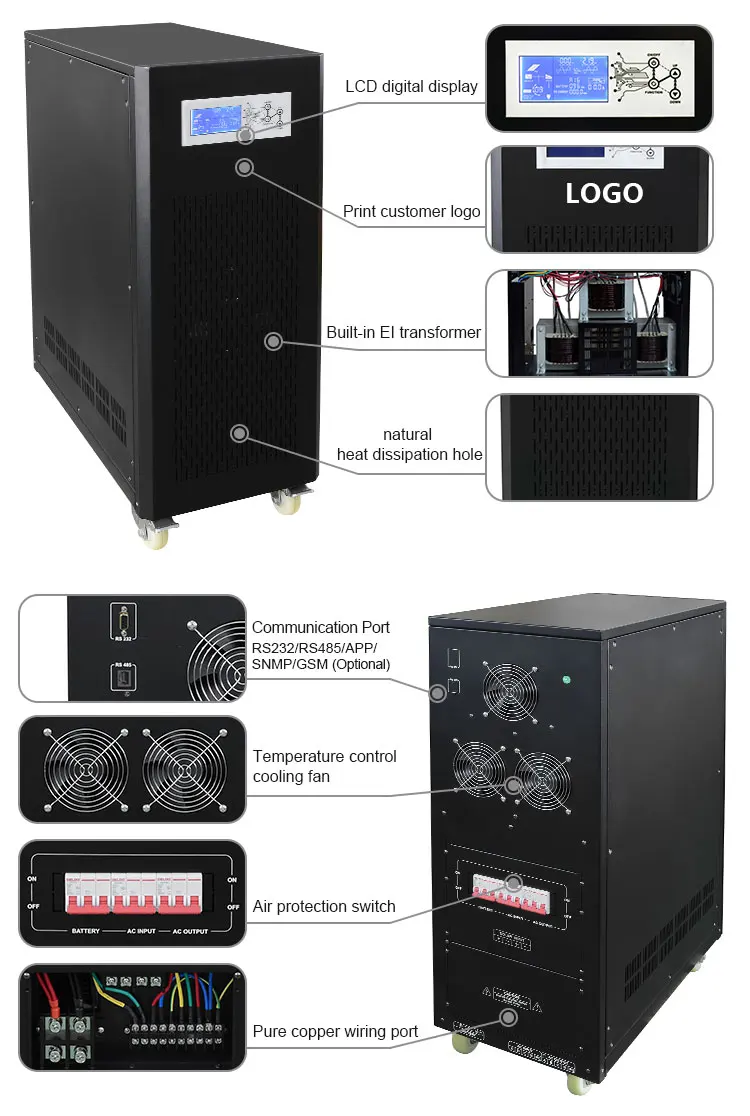

Product Feature
1. Pure sine wave output.
2. Low DC voltage, saving system cost.
3. Built-in PWM or MPPT charge controller.
4. AC charge current 0-45A adjustable.
5. Wide LCD screen, clearly and precisely shows icon data.
6. 100% imbalance loading design, 3 times peak power.
7. Setting different working modes based on variable usage requirements.
8. Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS) (Optional)
10KVA~30KVA:
Product Parameters
| Specification | |||||||
| Model: HDSX | 80248/96/192 | 10348/96/192 | 12348/96/192 | 16396/192 | 20396/192 | 24396/192 | |
| Rated Power | 10KVA/ 8KW | 12.5KVA/ 10KW | 15KVA/ 12KW | 20KVA/ 16KW | 25KVA/ 20KW | 30KVA/ 24KW | |
| Peak Power(20ms) | 24KVA | 30KVA | 36KVA | 48KVA | 60KVA | 72KVA | |
| Start Motor | 5HP | 6HP | 7HP | 10HP | 10HP | 15HP | |
| Battery Voltage | 48/96/192VDC | 96/192VDC | |||||
| Size(L*W*Hmm) | 725*365*1010 | ||||||
| Packing Size(L*W*Hmm) | 785*425*1135 | ||||||
| N.W.(kg) | 112 | 122 | 134 | 160 | 176 | 189 | |
| G.W.(kg)(Wooden Packing) | 136 | 146 | 158 | 184 | 200 | 213 | |
| Installation Method | Tower | ||||||
| Parameter | |||||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | |||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||
| AC Input Frequency Range | 45Hz-55Hz(50Hz)/ 55Hz-65Hz(60Hz) | ||||||
| Max AC charging current | 0-45A(Depending on the model) | ||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Phase | 3/N/PE | ||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| Output waveform distortion | Linear load≤3% | ||||||
| Efficiency(AC Mode) | >99% | ||||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||||
| No load loss(Battery Mode) | ≤2.5% rated power | ||||||
| No load loss(AC Mode) | ≤2%rated power( charger does not work in AC mode) | ||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||
| Phase | 3/N/PE | ||||||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | |||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements be set through the operation panel) | ||||||
| Protection | Battery undervoltage alarm | 11V(Single battery voltage) | |||||
| Battery undervoltage protection | 10.5V(Single battery voltage) | ||||||
| Battery overvoltage alarm | 15V(Single battery voltage) | ||||||
| Battery overvoltage protection | 17V(Single battery voltage) | ||||||
| Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | ||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Temperature protection | >90°C(Shut down output) | ||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||
| Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | |||||
| Charging current | PWM: 10A-60A(48V System); 50A/100A(96V System); 50A/100A(192V System) MPPT: 10A-100A(48V System); 50A/100A(96V System) | ||||||
| PV Input Voltage Range | PWM: 60V-88V(48V System); 120V-176V(96V System); 240V-352V(192V System) MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System) | ||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 100V(48V System); 200V(96V System); 400V(192V System) MPPT: 150V(48 System); 300V(96V System); 450V(192V System) | ||||||
| PV Array Maximum Power | 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/ 2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A); | ||||||
| Standby loss | ≤3W | ||||||
| Maximum conversion efficiency | >95% | ||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD | ||||||
| Thermal method | Forced air cooling | ||||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||||
| Environment | Operating temperature | -10℃~40℃ | |||||
| Storage temperature | -15℃~60℃ | ||||||
| Noise | 2000m(More than derating) | ||||||
| Elevation | ≤65dB | ||||||
| Humidity | 0%~95% ,No condensation | ||||||
Product Uses
Packing & Shipping
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
FAQ
Q1: Do you support Ready To Ship OEM&ODM?
A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.\\
Q2. What is our advantage ?
A2.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Pass ISO9001.
Q3. How can we guarantee quality?
A3. Always a pre-production sample before mass production; and 38 quality inspections before packing. All of our products have passed certification of CE,CCC,UL PSE and RoHS. Supply MSDS shipping documents.
Q4. What can you buy from us?
A4. Solar tied inverter, Solar off grid hybrid inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, Battery charger, Solar lighting system, Power converter and so on.
Q5. How to select a suitable products?
A5. Visit our website and do not hesitate to contact with our sales, we will supply free technology info and competitive price.
