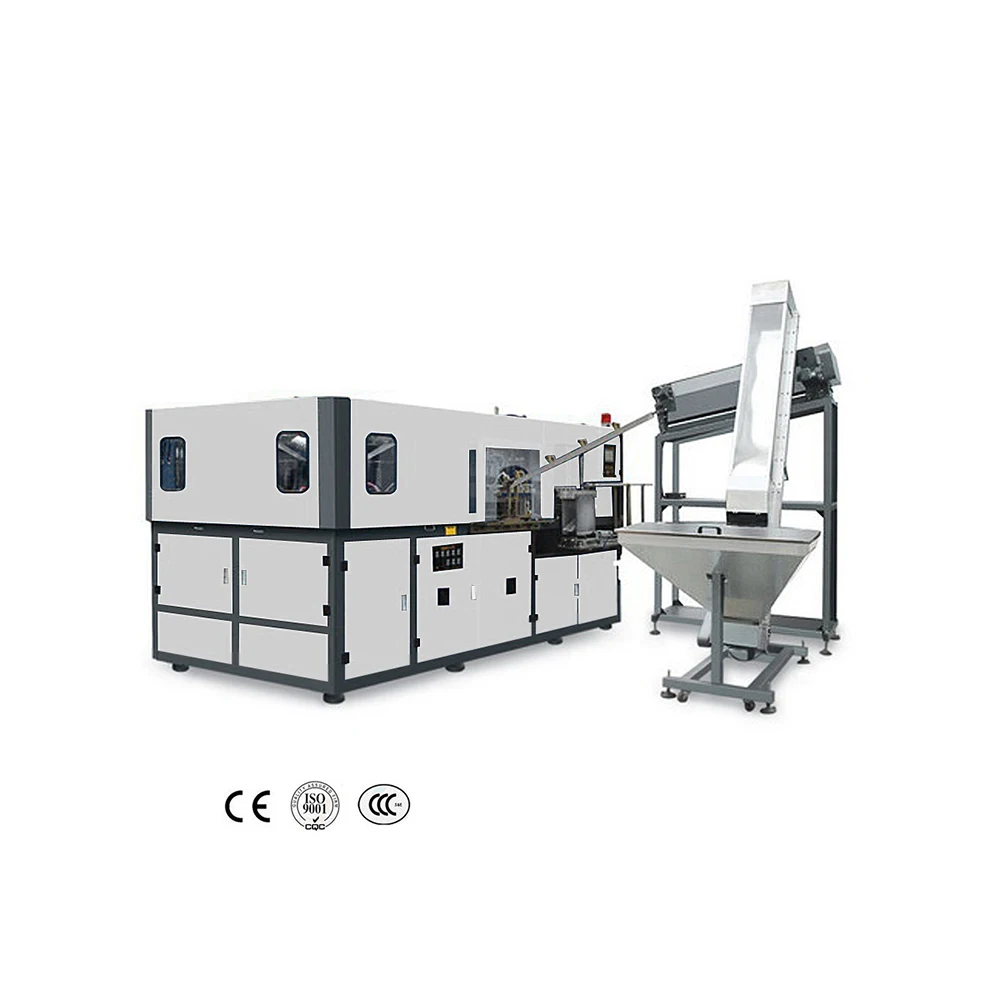

J & Ben full automatic 4 cavity pet bottle blowing machine for bottles
- Category: >>>
- Supplier: Shanghai Jinben Industrial Co. Ltd.
Share on (1600640924937):
Product Overview
Description
>> Products Description
/ APPLICATION /

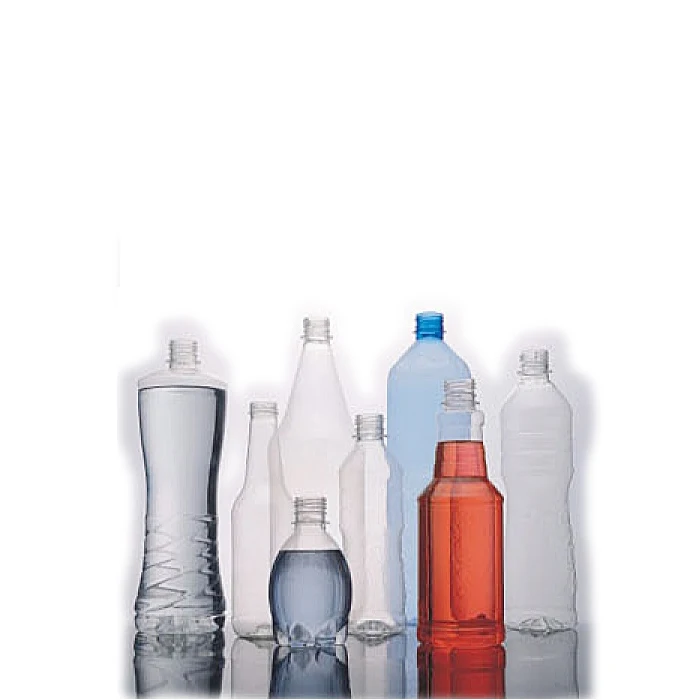

Our bottle blowing machine with CE is widely application to make hot-filling bottles, mineral water bottles, carbonated drinking bottles, energy drink bottles, milk/juice/oil bottles, medical bottles, cosmetic bottles and so on. welcome to contact us for more information.
Model(V1) | HQ2-2L-2000 | HQ4-2L-4000 | HQ6-2L-6000 | ||
Capacity（machine) | 2000-2500 PCS/H | 3000-4000 PCS/H | 5000-6000 PCS/H | ||
Max.container volume | 2L | ||||
Capacity（mold) | 2 cavity | ||||
Max.neck diameter | 15-38mm | ||||
Max.bottle diameter | 106mm | ||||
Max.bottle height | 330mm | ||||
Working power | 15 kW | 25 kW | 35 kW | ||
Max.power | 32 kW | 72 kW | 108 kW | ||
Machine dimension | 2800*1700*2100 mm | 4500*1900*2100 mm | 4800*1900*2100 mm | ||
Machine weight | 1800 kg | 2800 kg | 3200 kg | ||
1.Single Servo(automatic)
Control moving preform
2.Both Servo(automatic)
Control moving preform and mode closing or stretching
3.Full Servo(automatic)
Control moving preform, and mode closing and stretching and Loading preform.
4.Slide type(automatic)
Economical for big bottle blowing
5.Pneumatic type(automatic)
Economical for less than 1.5L
6.Semi automatic
Put the preform by manual, take preform and bottle by manual
>> Details Images
>>Recommend Products
>>Why Choose Us
>>Customer feedback
>> Our Service
>> Packing & Delivery
>> FAQ
Q: How Much To Bulid A Water/Milk/Juice production line ? A: It is according to your capacity and your budget . we will arrange reasonable line for you .
Q: Do You Support Overseas Installation ?
A: Yes. We have professional installtion team that can provide overseas installation and repair services.
Q: What Is the Warranty Time ?
A: 1 years. but our services is life-long
Q: How should i do if meet some trouble while using?
A: Don't worry about that, our professional solution and video will send to you immediately.
Q: What about payment term?
A: T/T usually. L/C we also can do
Q: What products does your company offer by yourself?
A: We are specialized in water/beverage/milk production line, Plate/tubular sterilizer, water treatment equipment,bottle blowing machine, bottle filling machine etc.
Q: Do You Support Overseas Installation ?
A: Yes. We have professional installtion team that can provide overseas installation and repair services.
Q: What Is the Warranty Time ?
A: 1 years. but our services is life-long
Q: How should i do if meet some trouble while using?
A: Don't worry about that, our professional solution and video will send to you immediately.
Q: What about payment term?
A: T/T usually. L/C we also can do
Q: What products does your company offer by yourself?
A: We are specialized in water/beverage/milk production line, Plate/tubular sterilizer, water treatment equipment,bottle blowing machine, bottle filling machine etc.
