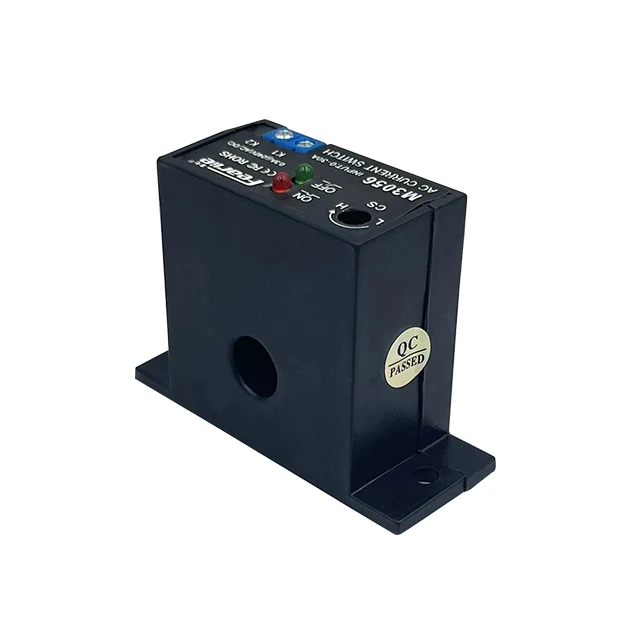

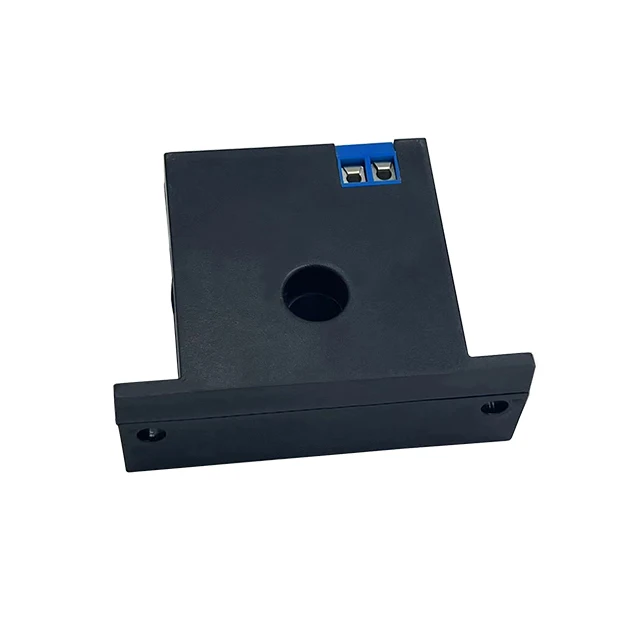

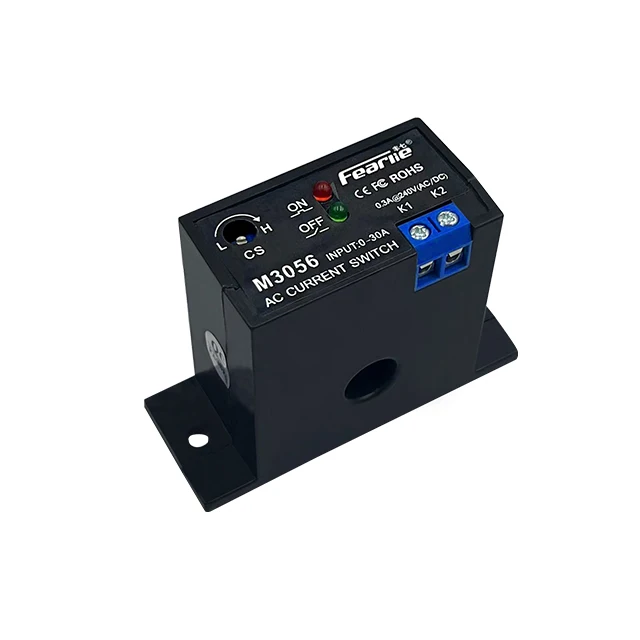

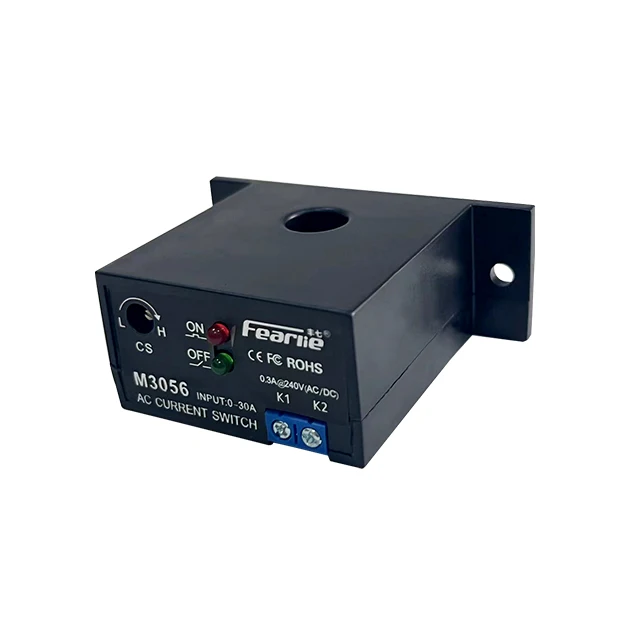

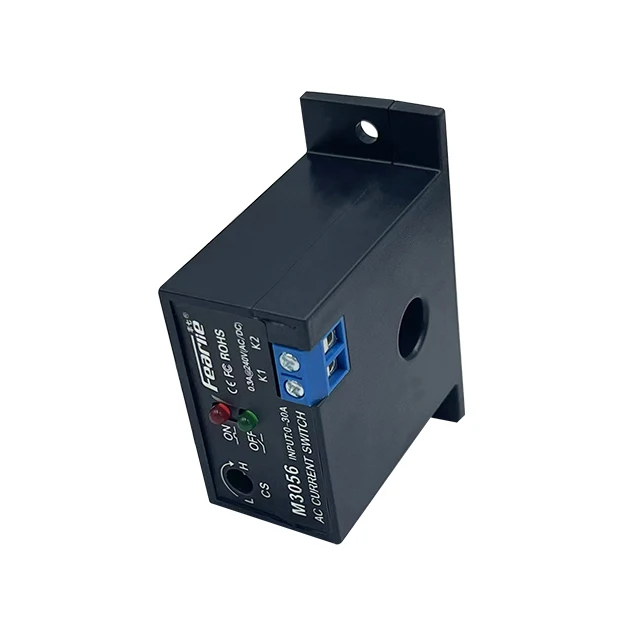

normally closed motor or fan overload protect solid core type current sensing switch relay switch
- Category: >>>
- Supplier: Guangdong Fengli Electronics Co. Ltd.
Share on (1600640929196):
Product Overview
Description
Feature:
1. Self-powered, no external power supply required.
2. Input current 0.2-30A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube non-contact electronic switch.
5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level.
6. Straight-through structure design, isolation withstand voltage up to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
2. Input current 0.2-30A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube non-contact electronic switch.
5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level.
6. Straight-through structure design, isolation withstand voltage up to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
Advantage:
> Mutual inductance current monitoring, safe isolation of input and output, self-powered
> The monitored current range is within 30A, and the monitoring setpoint can be set at any point within this range.
> Non-contact electronic switch, fast response speed, no limit on the number of turn on-turn offs.
> The shell is made of fireproof material ABS.
> The monitored current range is within 30A, and the monitoring setpoint can be set at any point within this range.
> Non-contact electronic switch, fast response speed, no limit on the number of turn on-turn offs.
> The shell is made of fireproof material ABS.
PRODUCT SPECIFICATIONS
Model No. | M3050 | M3056 | M3080 | M3086 | |||
Type | Normally open | Normally closed | Normally open | Normally closed | |||
Setpoint Range | 0.2-30A | 1-200A | |||||
Core Type | Solid-core/Split-core | NO/NC | NO/NC | NO/NC | |||
Power Supply | None, self-powered | None, self-powered | None, self-powered | None, self-powered | |||
Output Rating | 0.3A/240V AC DC | 0.3A/240V AC DC | 0.3A/240V AC DC | 0.3A/240V AC DC | |||
Off-state Leakage | <0.1MA | <0.1MA | <0.1MA | <0.1MA | |||
Response Time | <200MS | <200MS | <200MS | <200MS | |||
Hysteresis | <1% | <1% | <1% | <1% | |||
Overload | 200% | 200% | 200% | 200% | |||
Environmental | -20 to 50°C 0–95% RH, non-condensing | ||||||
Listings | UL(For some models only ,need to be confirmed when ordered) CE | ||||||

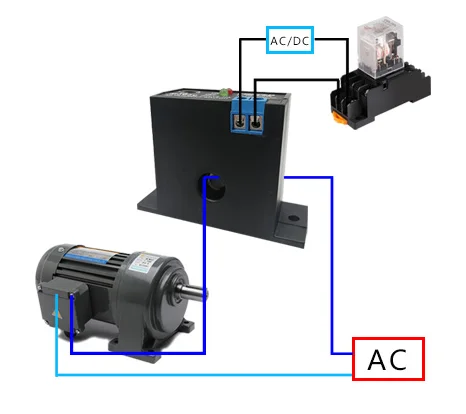

WIRING DIAGRAM
Wiring explained:
Input:0.2-30A
Output rating：0.3A@240V AC/DC
Normally open:
When the current through the perforated line is greater than the set value, the output terminal is connected When the current through the perforated line is less than the set value, the output terminal is disconnected
Normally closed:
When the current through the perforated line is greater than the set value, the output terminal is disconnected When the current through the perforated line is less than the set value, the output terminal is connected

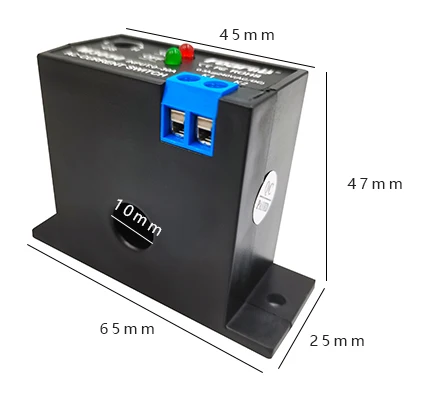

Dimensions:65*25*47MM
Application examples： 1. Linkage switch between two devices
2. Whether the monitoring equipment is working properly
3. Send a witch signal to PLC
4. Give the switch signal when the current is overloaded
2. Whether the monitoring equipment is working properly
3. Send a witch signal to PLC
4. Give the switch signal when the current is overloaded
