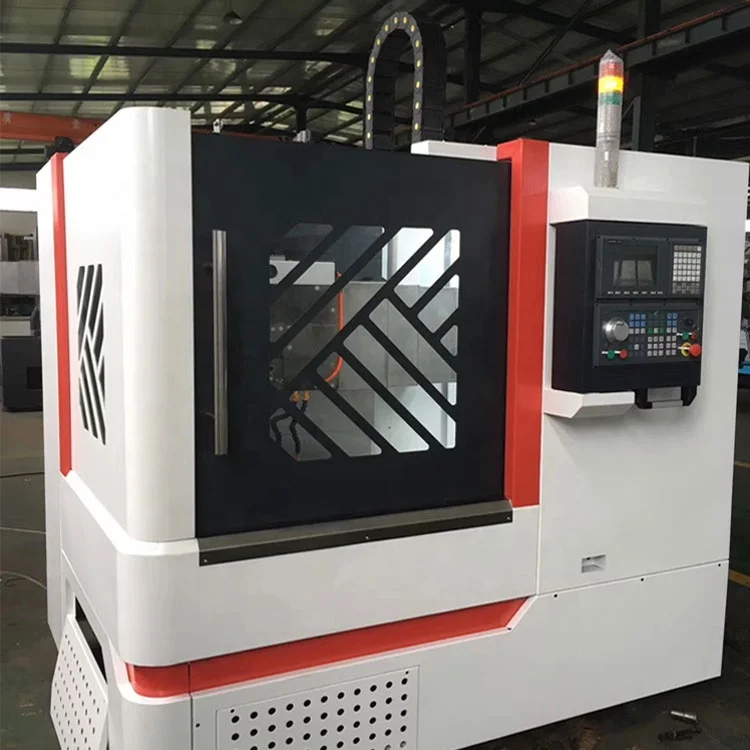

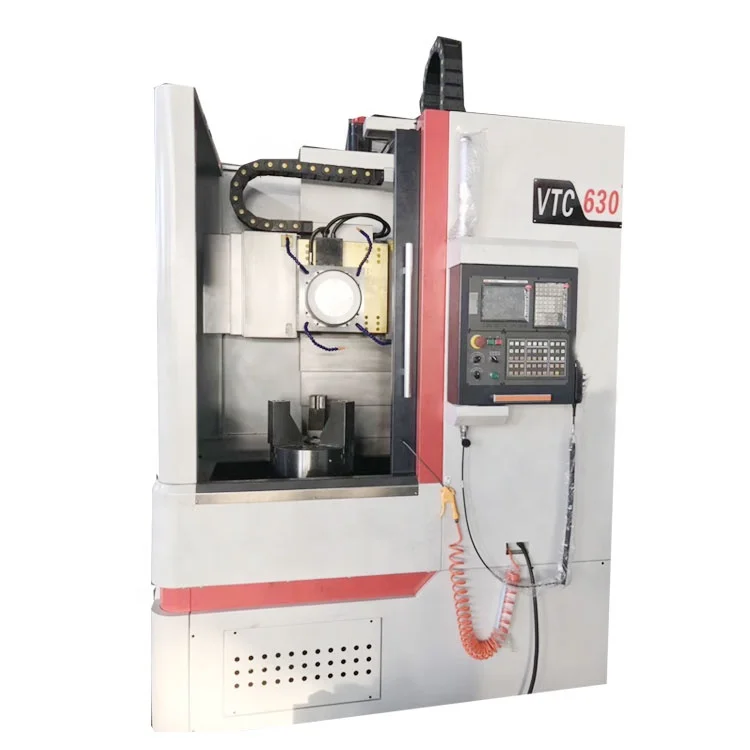

vertical cnc lathe VTC630 cnc lathe automatically metalworking cnc machine tool
- Category: >>>
- Supplier: Shandong Jiucheng Machine Tool Co. Ltd.
Share on (1600641667656):
Product Overview
Description
SPECIFICATION | UNIT | VTC630 |
Max swing diameter over bed | mm | 630 |
Max swing diameter over cross slide | mm | 500 |
Spindle speed range | rpm | 50-1000 |
Spindle nose | - | A2-8 |
Max.torque of spindle | NM | 355 |
Hydraulic chuck diameter | mm | 400 |
Max. tool post travel (vertical) | mm | 550 |
Max. tool post travel (horizontal) | mm | 300 |
Distance between tool post and chuck surface | mm | 100-650 |
X axis rapid traverse | mm/min | 15000 |
Z axis rapid traverse | mm/min | 12000 |
Cutting feed speed | mm/min | 0.1-1000 |
X axis motor power | kw | 2.4 |
X axis motor torque | NM | 15 |
Z axis motor power | kw | 2.4 |
Z axis motor torque | NM | 15 |
Tool size | mm | 25*25 |
Main motor power | kw | 7.5/11 |
Machine weight | kg | 4800 |
Overall dimension | mm | 2200*1960*2500 |
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.

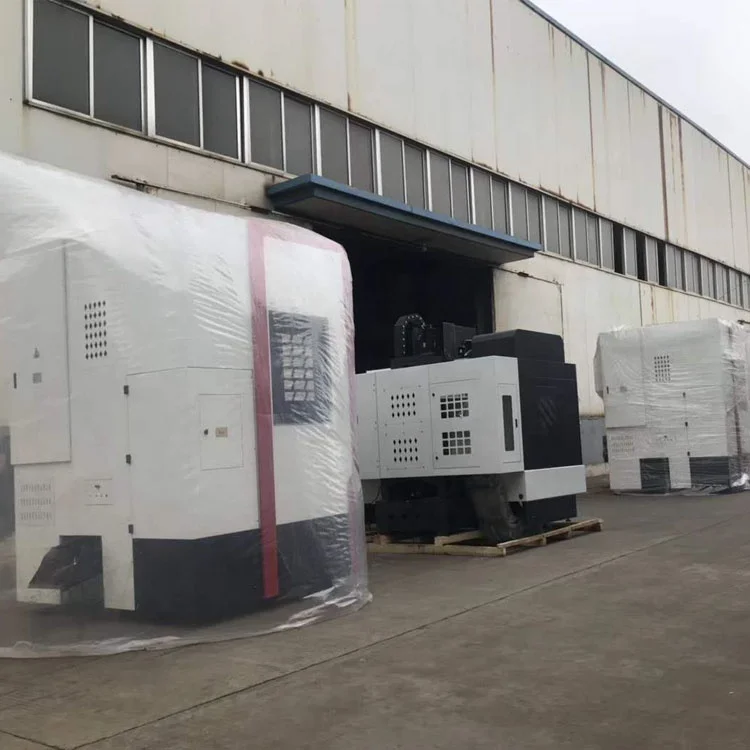

Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
