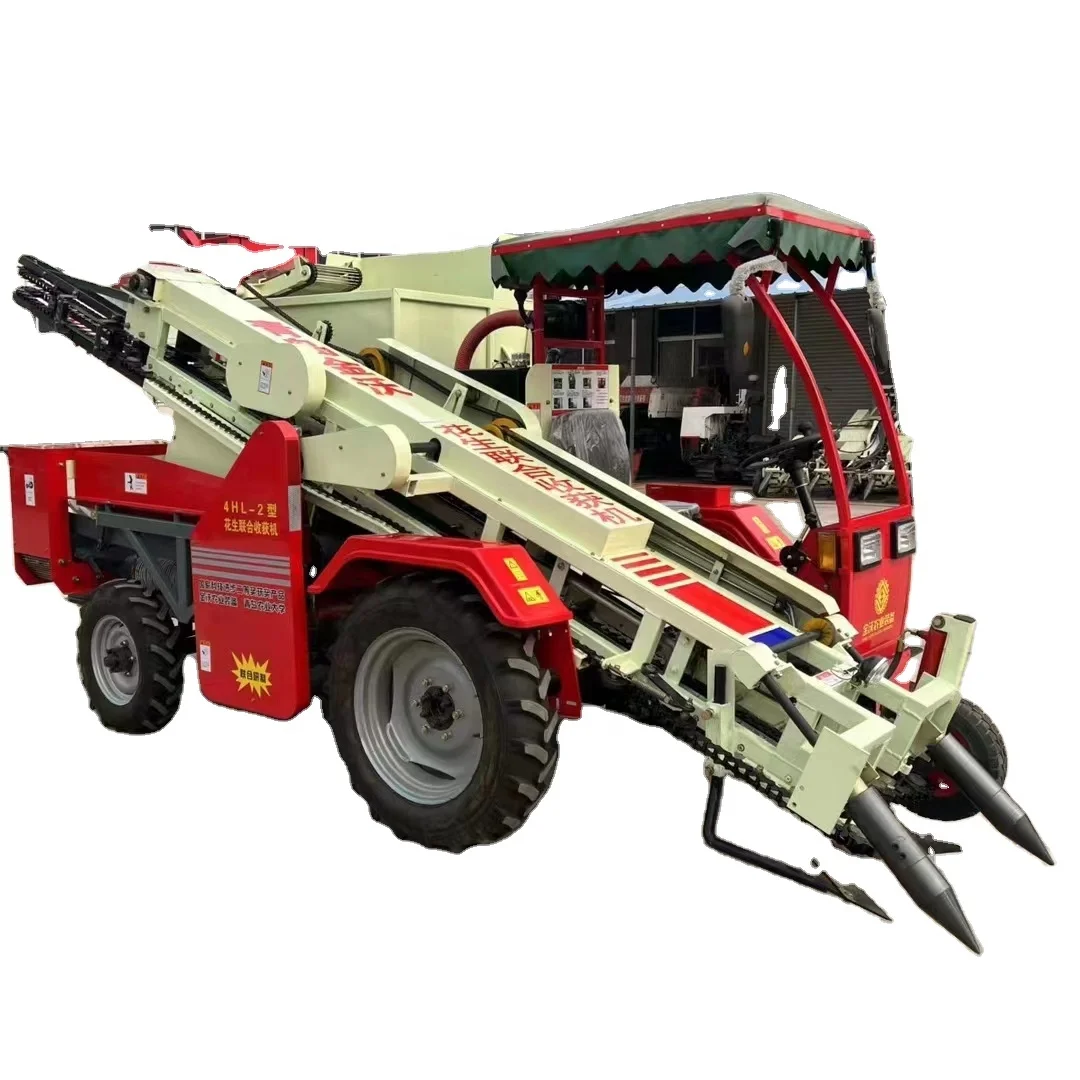

peanut picker machine Groundnut combine harvester machine

Share on:

Price in USD:Details


Product Overview


peanut picker machine Groundnut combine harvester machine


Main optimization:
1.Increase the length of the picking roller, reduce the speed of the picking roller,
picking cleaner, lower crushing rate

2. Lengthen and widen the vibrating screen, cleaning large area, better effect

3. Hydraulic deep limiting wheel, easier operation

4. Adopt prefiltration + air filtration, the air filtration effect is better

5. Large aperture low temperature radiator, better heat dissipation effect

6. power is bigger, rised to 40hp


item namepeanut groundnut combine harvester
suitable seedspeanut, groundnut
functionwith digging, separation, fruit picking, collecting functions in one machine
overall size4850*1950*2270mm
Fuel Oil Consumption≤249g/kw.h
dig depth100-200mm
Rated Power29.5kw/40hp
fuel consumption25.8kg/ha.
work width600mm
row number2
suitable peanutriding planting type peanut,one ridge 2 rows
ridge height10±5cm
ridge to ridge space80±5cm
ridge width/row space25±5cm
structure typewheel type self propelled half-feed
container load qty1unit/20GP, 3units/40HQ
grain unloading Hydraulic dump
picking rate>98%
loss rate<1.5%
dirt rate<4%
damage rate<0.5%
