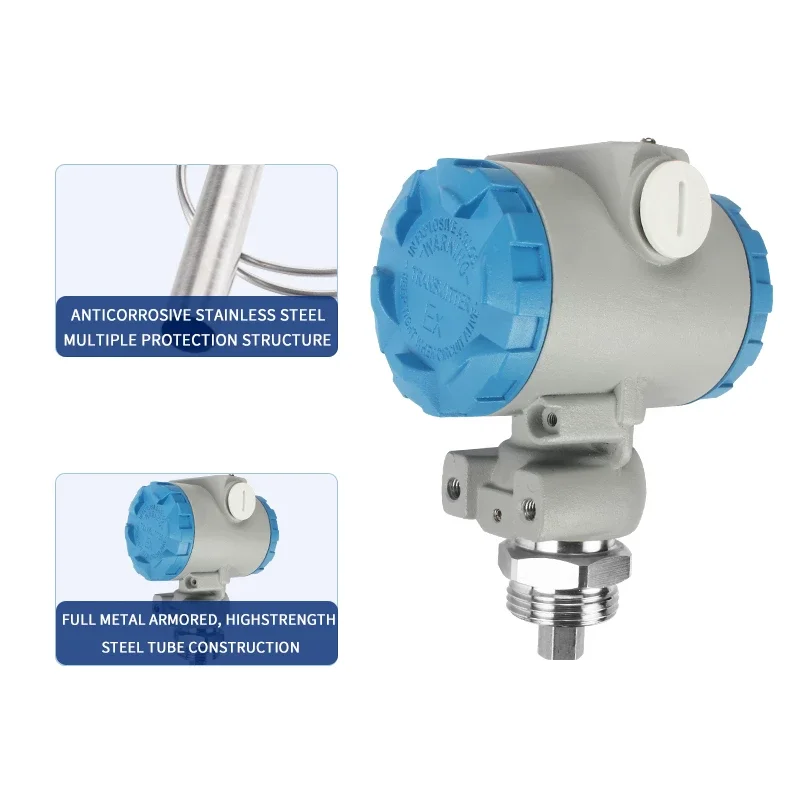

Capacitive fuel tank oil level sensor level range 1m 2m 5m range 4 20mA 0 10V 0 5V
- Category: >>>
- Supplier: Anhui Qidian Automation Technology Co. Ltd.
Share on (1600641836341):
Product Overview
Description
Product Description

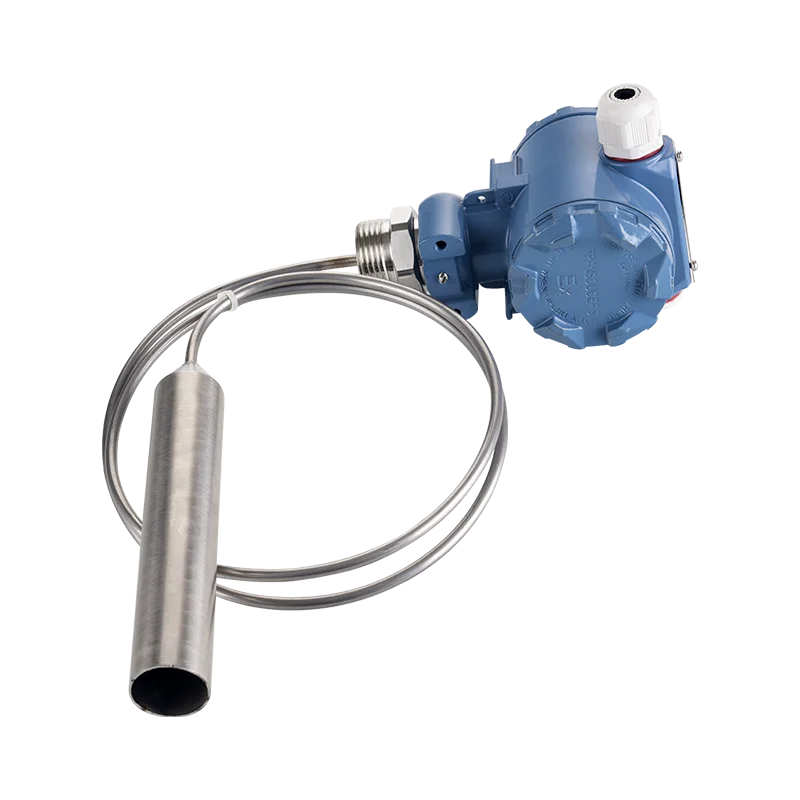

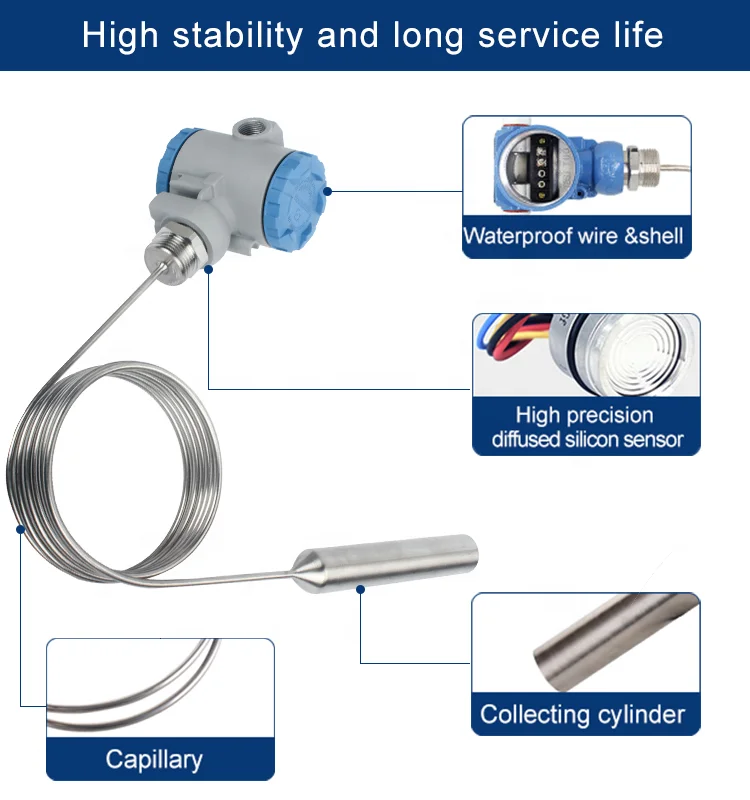

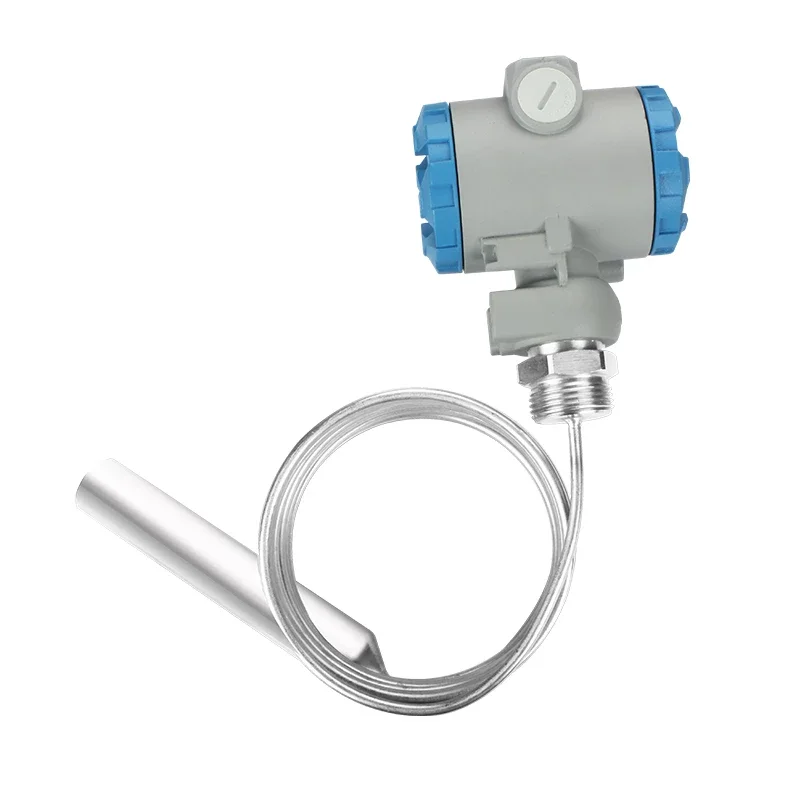

QDY60B Gas collector liquid level transmitter is composed of stainless steel gas collector,stainless steel capillary and junction box.The sensor and signal processing circuit are built in the junction box,Put the gas collecting cylinder into measured liquid,to collect pressure signals.The liquid level pressure signal is transmitted to the sensor through stainless steel capillary,thus avoiding the direct contact between sensor and measured liquid.This transmitter is used for high temperature and corrosive liquids.Features
* Collector type liquid level probe
* Diffused silicon piezoresistive sensor
* Probe input measurement, easy to install
* Excellent long term stability
* Measuring high temperature media

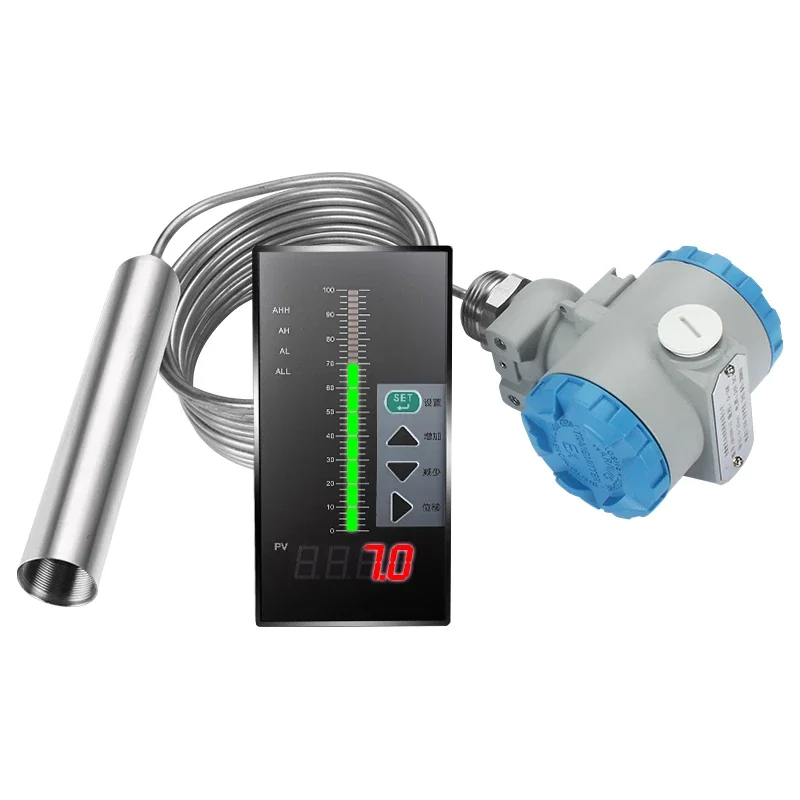

*LED, LCD display is optional
* Choose stainless steel material, suitable for a variety of occasions
* CE RoHs certificate
* Collector type liquid level probe
* Diffused silicon piezoresistive sensor
* Probe input measurement, easy to install
* Excellent long term stability
* Measuring high temperature media
*LED, LCD display is optional
* Choose stainless steel material, suitable for a variety of occasions
* CE RoHs certificate

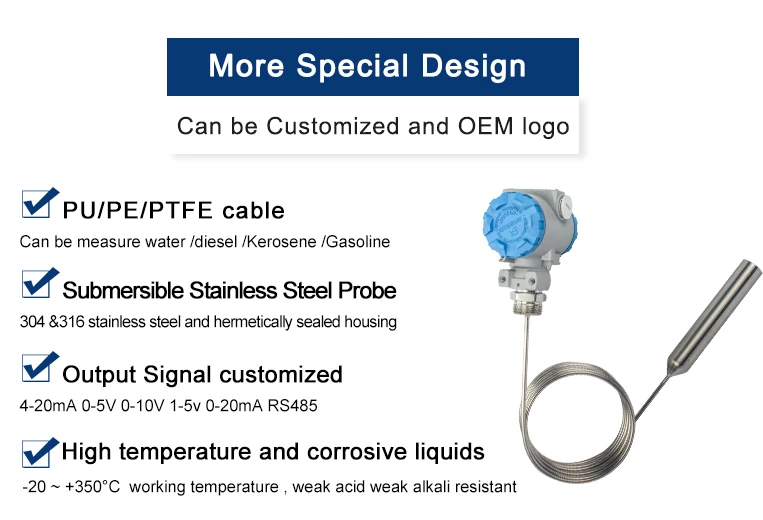

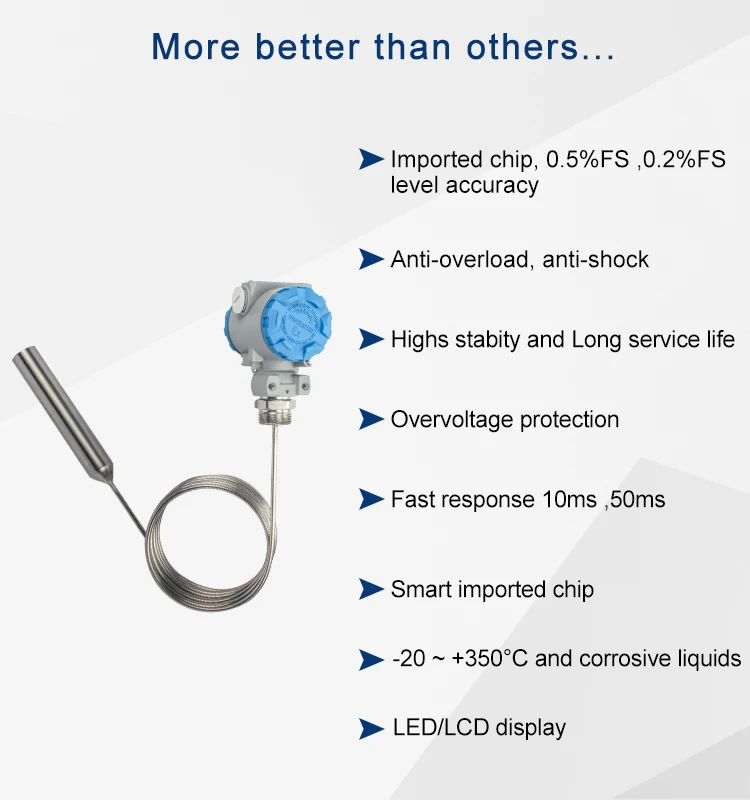

Product features

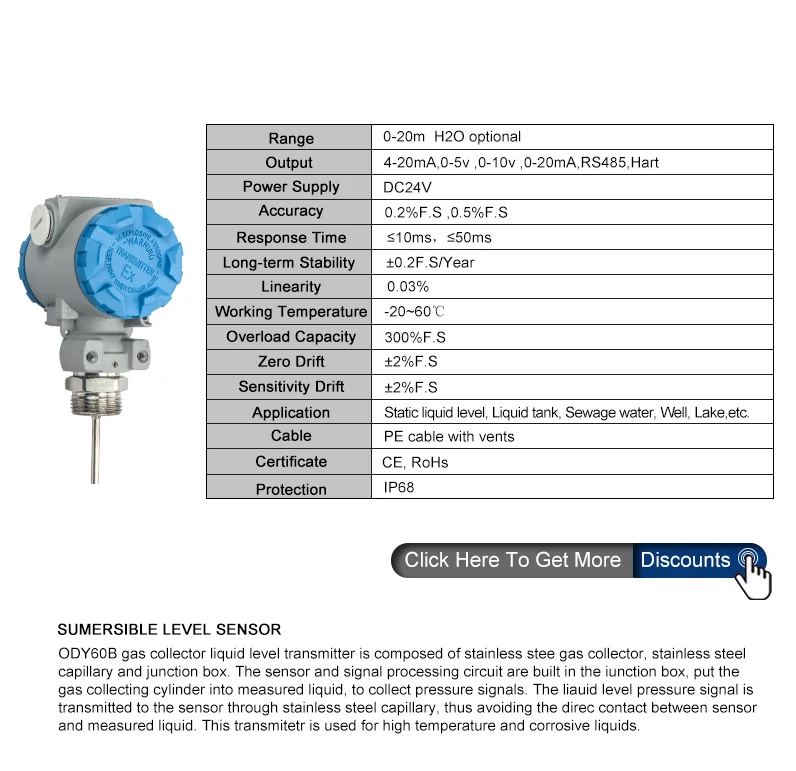

Product Paramenters
Model | QDY60B |
Measuring Range | 0~0.5~20m |
Power supply | 12~36VDC (Standard 24VDC) |

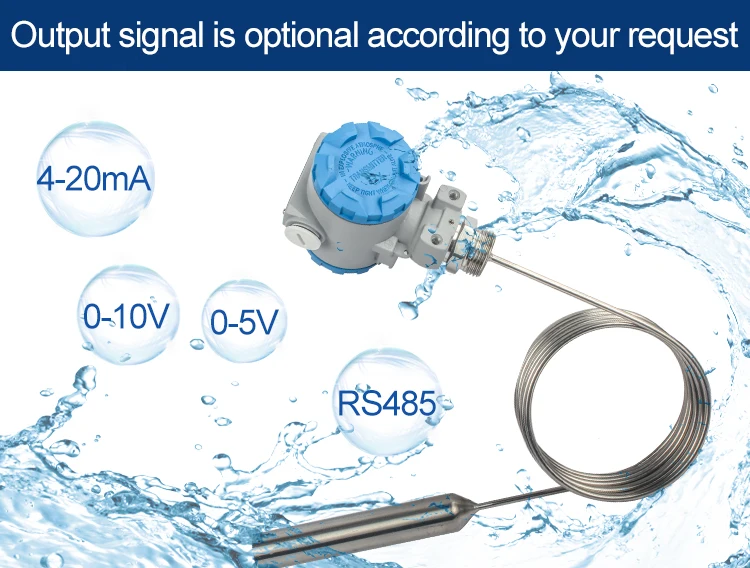

Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
Accuracy | 0.2%F.S; 0.5%FS |
Response Time | ≤50ms (up to 90%FS) |
Long-term Stability | ±0.2F.S/Year |
Medium Temperature | 0~300℃ |
current consumption | 30mA (24VDC) |
Working Temperature | -20~60℃ |
Overload Capacity | 300%F.S |
Ceritificate | CE,RoHs |
Protection | IP68 |

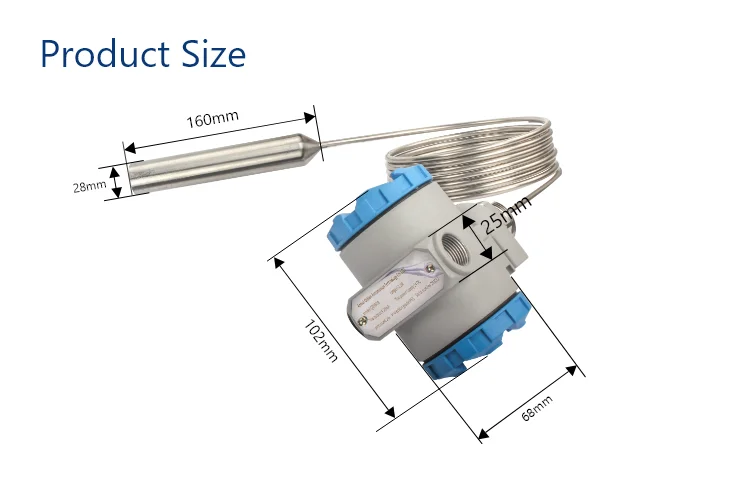

Product Size

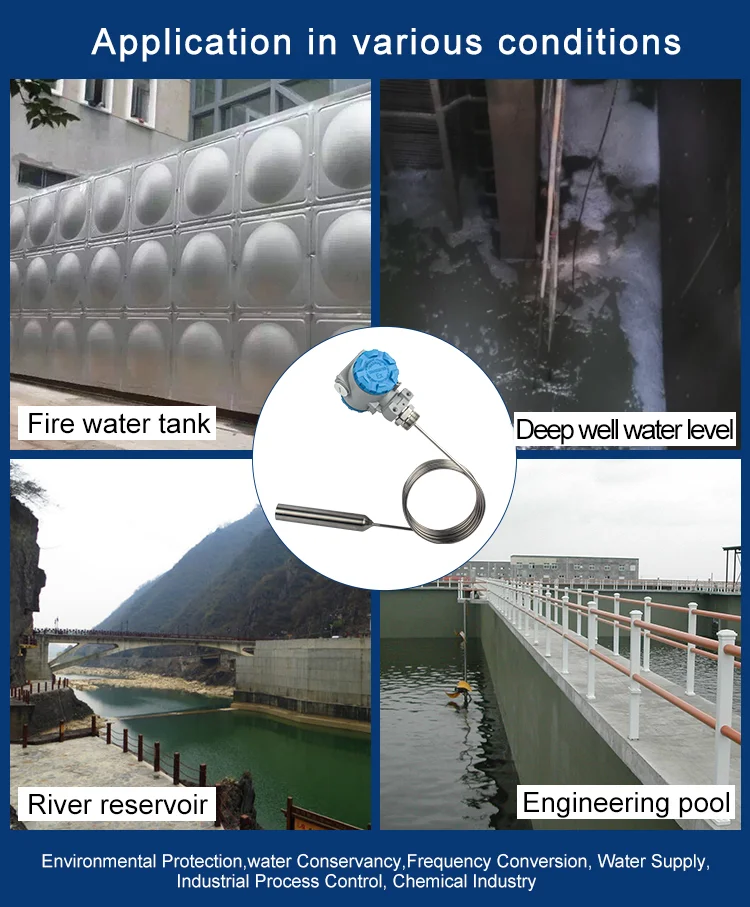

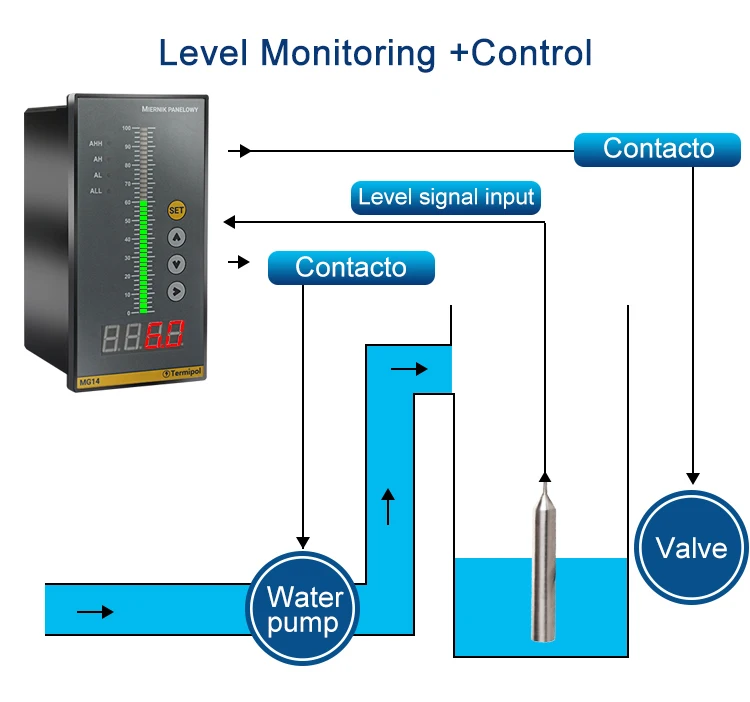

Applications

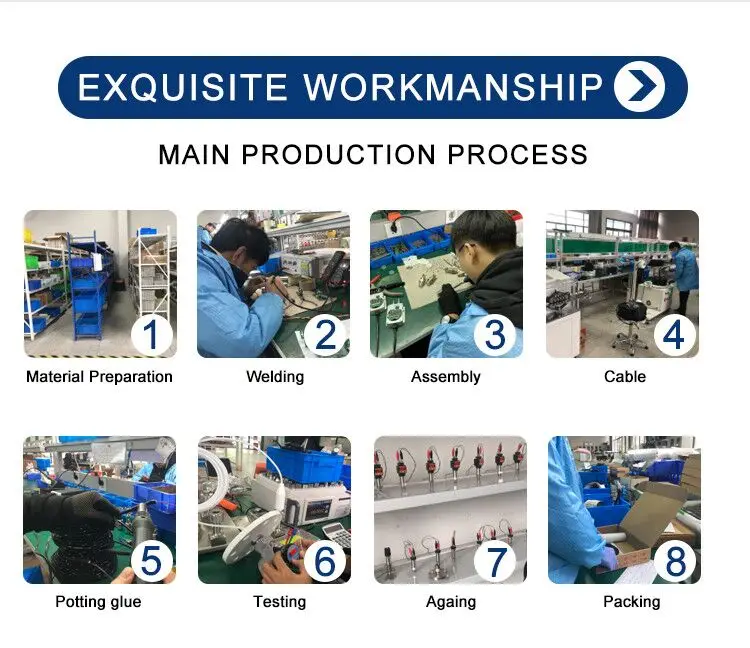

Company Profile
