  • Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф
Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК-дисплей 4 канальный цифровой осциллограф

Dso4254c,250 МГц полоса пропускания 7 дюймов Tft ЖК дисплей 4 канальный цифровой осциллограф

Share on (1600642042614):


Price:452,73 $ - 474,39 $

Quantity:


Product Overview

Description















Product Description

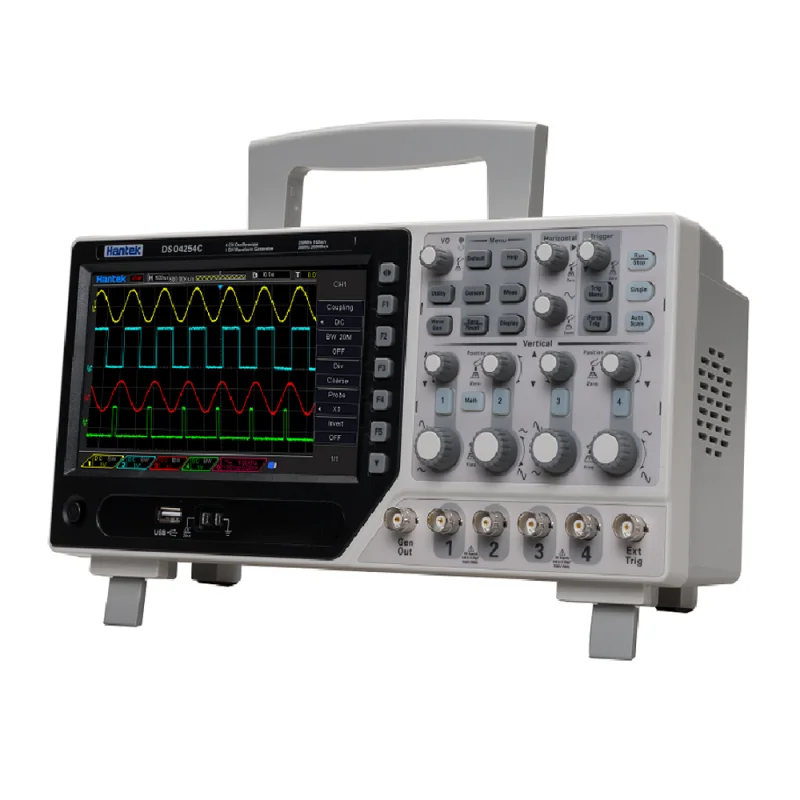

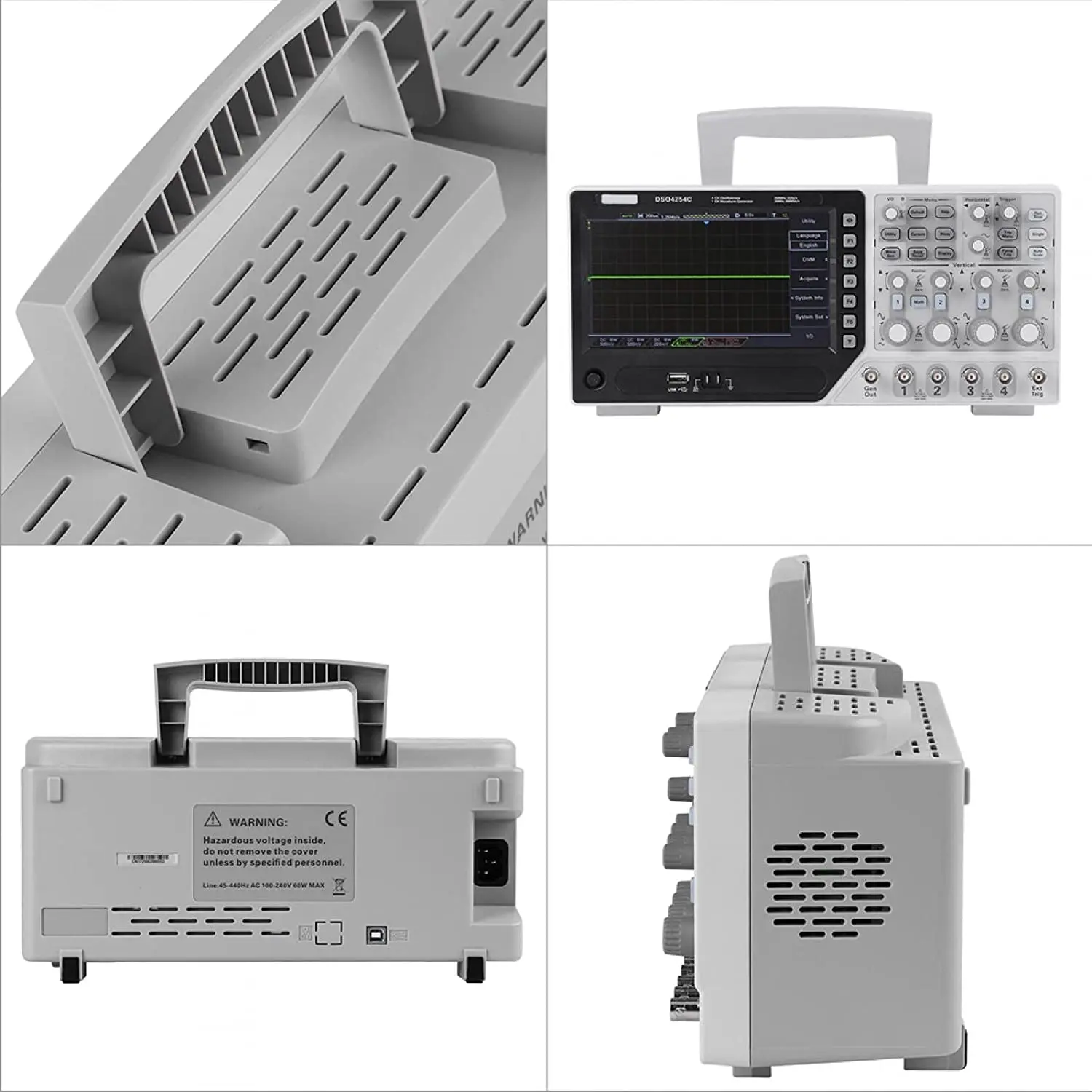

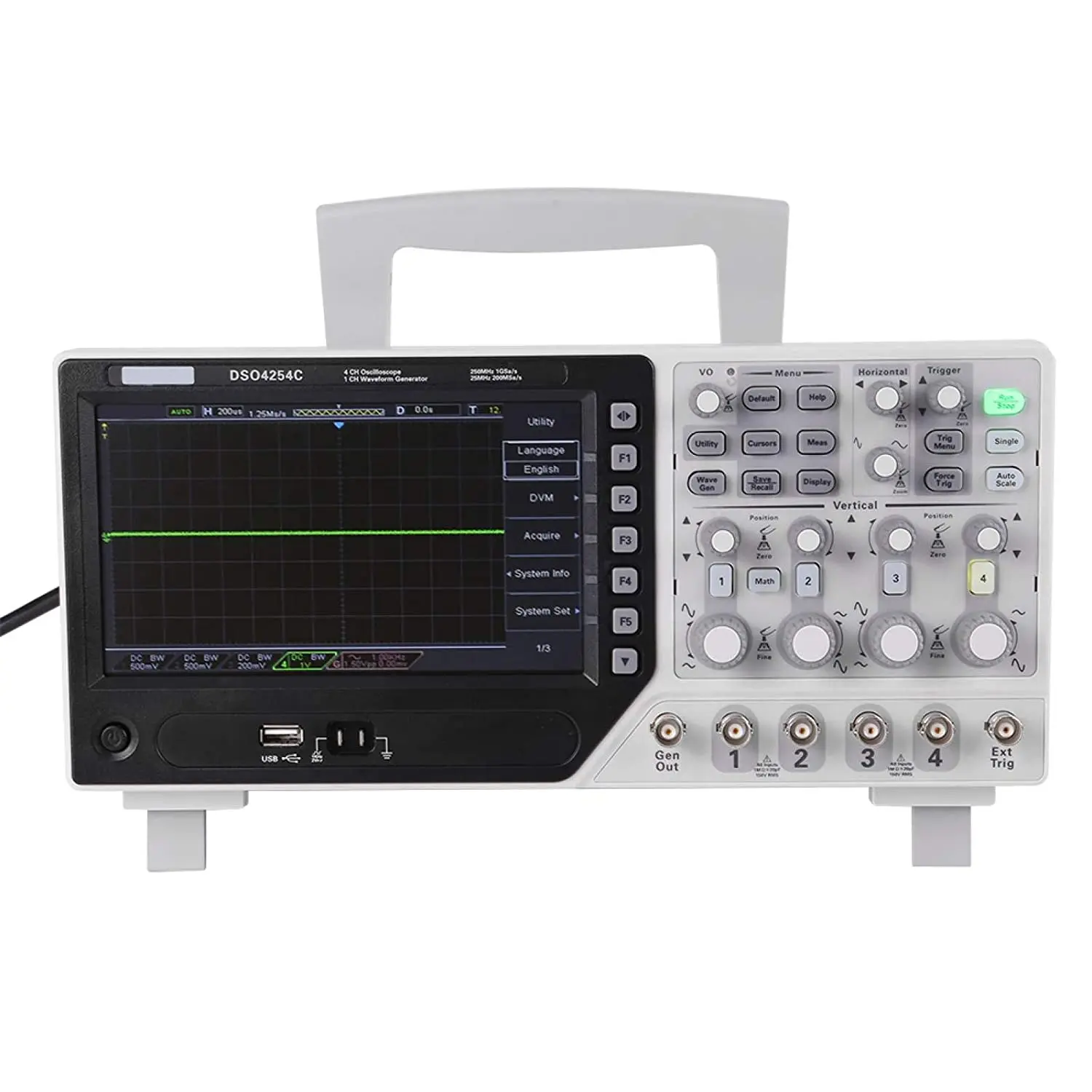

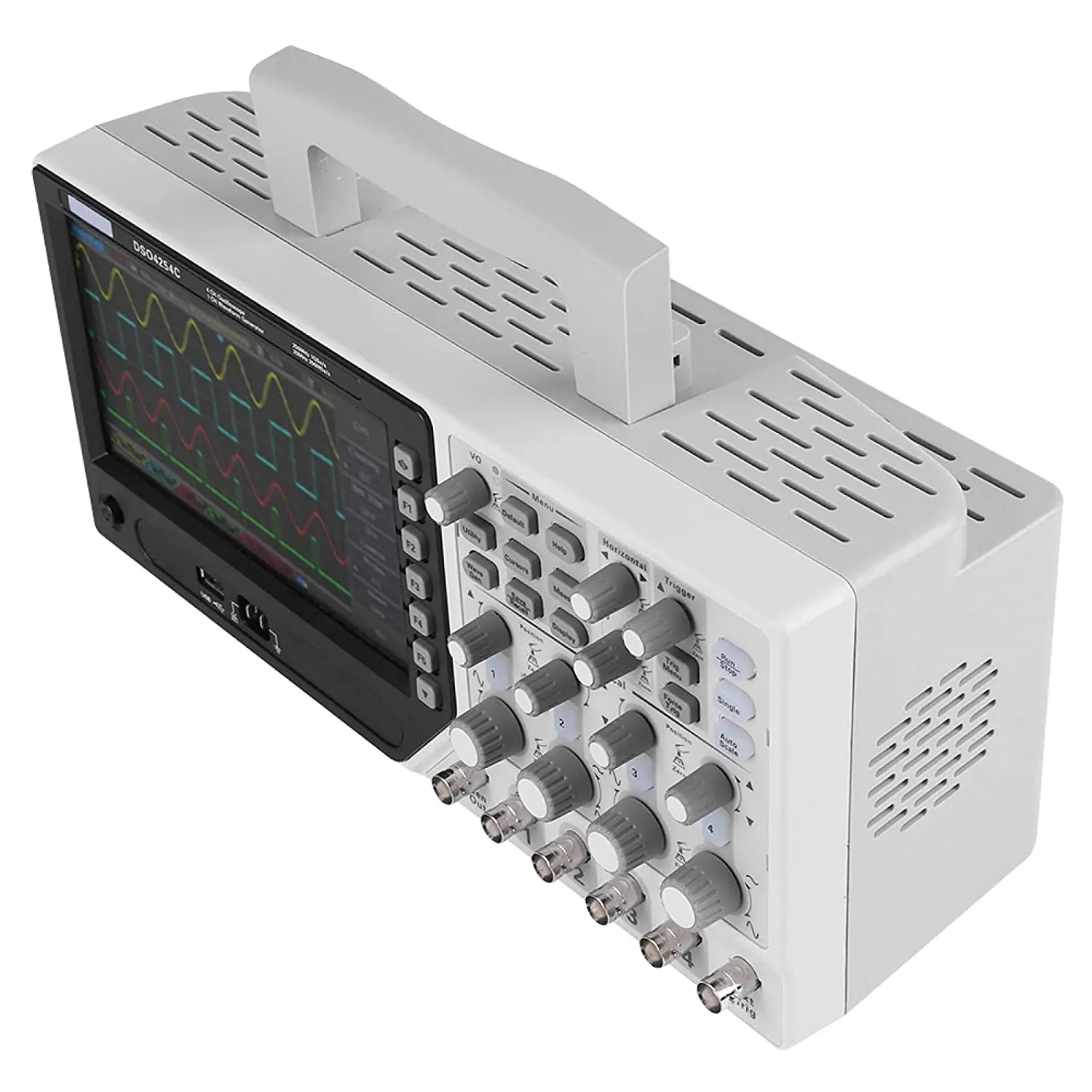

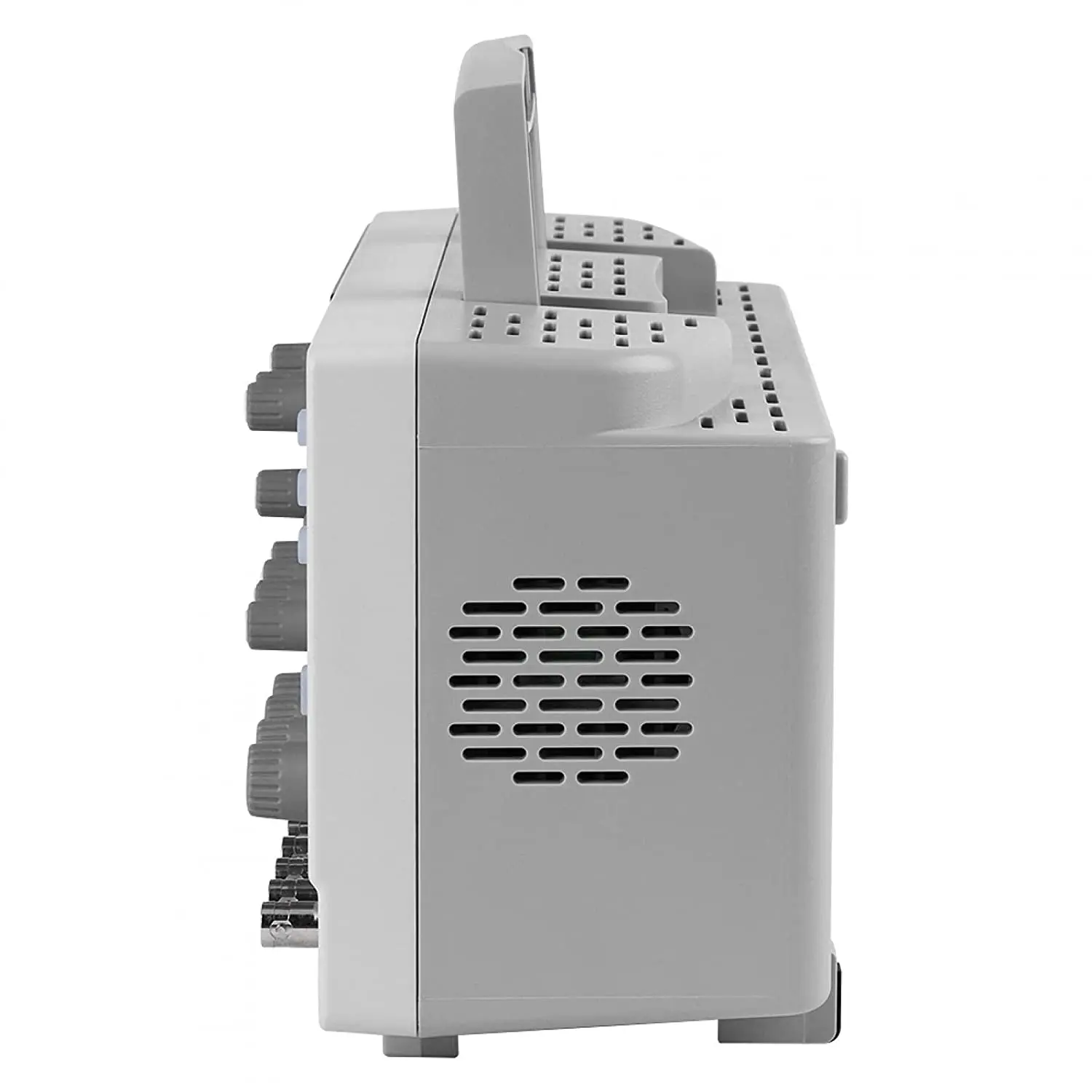

Dso4254c,250mhz Bandwidth 7 Inch Tft Lcd 4 Channel Digital Oscilloscope

* 4 channel oscilloscope+EXT+DVM+auto range function
* Build in 25MHz arbitrary waveform generator
* 250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate
* Over 32 types of auto measurement function
* Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc
* Decode Type:I2C,SPI,
* Support avariety of SCPI remote control command
* Support optional:RS232,LAN,touch screen,WIFI and SD card storage



Model
DSO4254C
DSO4204C
DSO4104C
DSO4084C
Bandwidth
250MHz
200MHz
100MHz
80MHz
Horizontal
Sample Rate Range
1GS/s
Waveform Interpolation
(sin x)/x
Record Length
Maximum 64K samples per single-channel;
Maximum 32K samples per dual-channel (4K, 32K optional)
SEC/DIV Range
2ns/div~100s/div
1, 2, 5 sequence
Sample Rate and
Delay Time Accuracy
±50ppm
Delta Time Measurement Accuracy
(Full Bandwidth)
Single-shot, Normal mode
± (1 sample interval +100ppm × reading + 0.6ns)
>16 averages
± (1 sample interval + 100ppm × reading + 0.4ns)
Sample interval = s/div ÷ 200
Vertical
AD Converter
8-bit resolution,
each channel sampled simultaneously
VOLTS/DIV Range
500μV/div to 10V/div at input BNC
Position Range
500μV/div~20mV/div, ±400mV
50mV/div~200mV/div, ±2V
500mV/div~2V/div, ±40V
5V/div~10V/div, ±50V
Selectable Analog Bandwidth Limit, typical
20MHz
Low Frequency Response (-3db)
≤10Hz at BNC
Rise Time at BNC, typical
DSO4254C
DSO4204C
DSO4104C
DSO4084C
<1.4ns
≤1.8ns
<3.5ns
≤4.4ns
DC Gain Accuracy
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes
Normal, Peak Detect, Average and HR
Acquisition Rate, typical
Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement)
Single Sequence
Acquisition Mode
Acquisition Stop Time
Normal, Peak Detect
Upon single acquisition on all channels simultaneously
Average
After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128







Company Profile




Certifications




Product packaging




FAQ


Are you manufacturer ?
Yes, we are manufacturer.
How long is your delivery time?
Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
If the products can't work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.
What is the warranty?
1-3 months to replace new items for free.
1-2 years repairing free according to different products.
Do you accept OEM design?
Yes, we do. We can design according to your requirement, MOQ usually 2-10.
Do you accept pay 30% in advance?
Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.
What payment terms you accept?
We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD).
