Factory Original Package Uses Miller Paper Collating Punching Binding Video Tutorial Machine

Share on (1600642195035):


Price:$9,999.00

Quantity:


Product Overview

Description








Billing Offset press, Digital Offset Press, Offset Printing Press

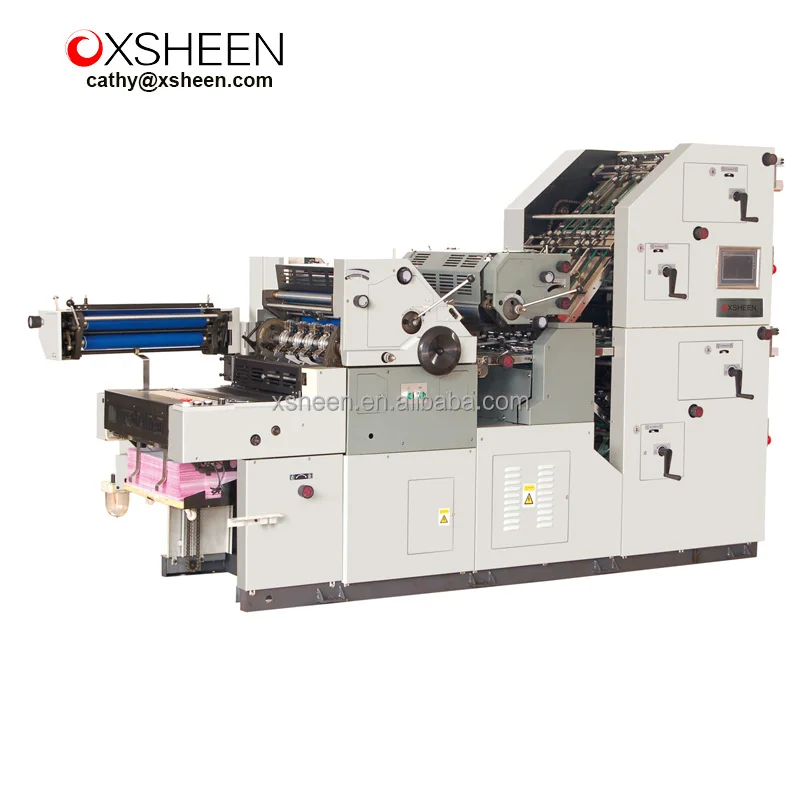

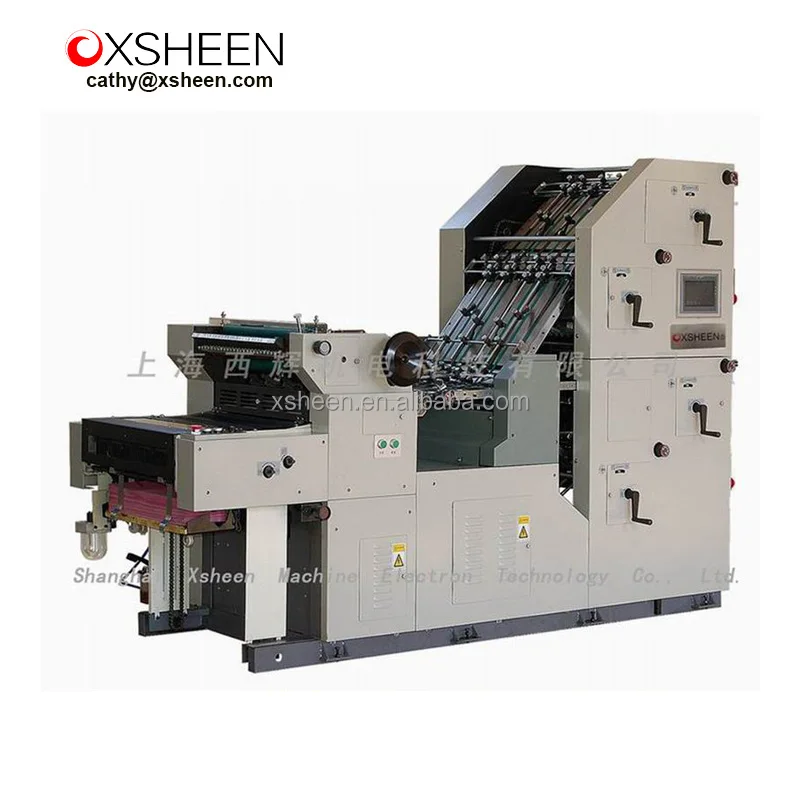

Description of billing offset press:

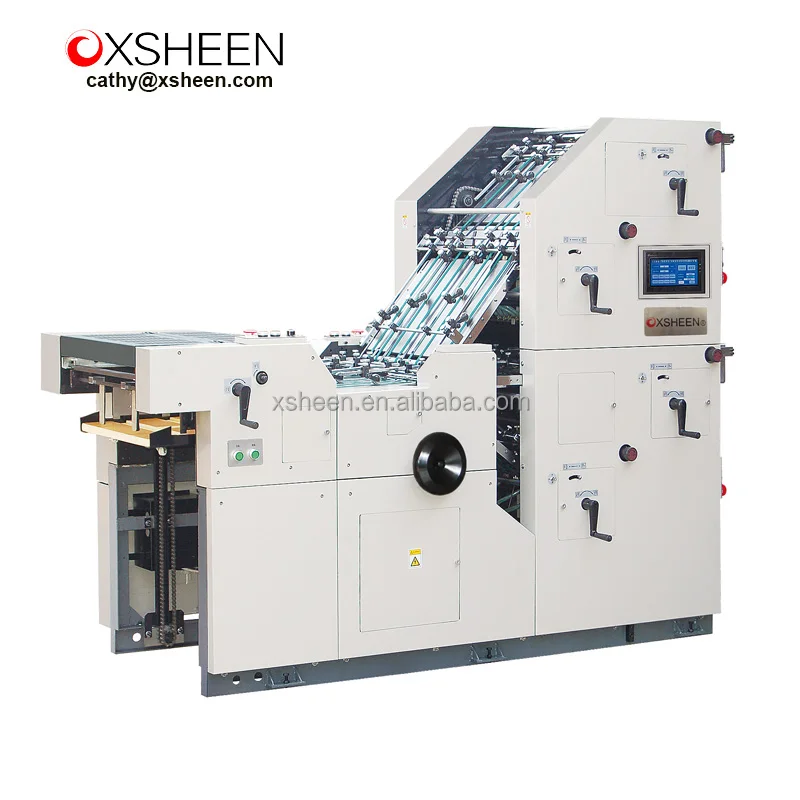

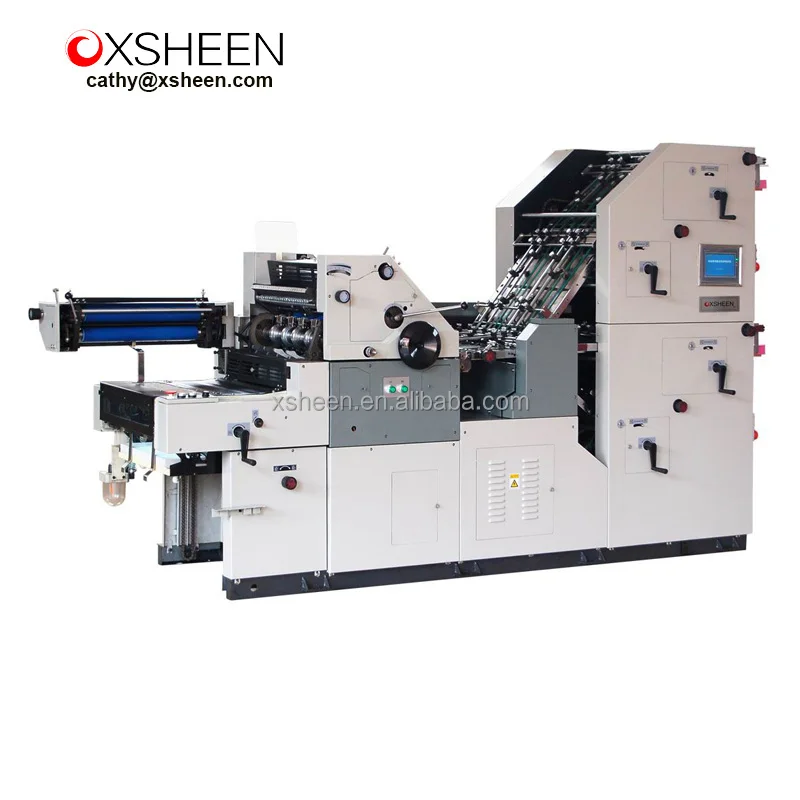

Multifunctional printing machine is the new product which designed and manufactured by XSHEEN Machinery Co., Ltd. It could do printing, number printing, and paper collator works at one time. Via the transfer system, the paper from four paper feeding section was fed to the former regulations, pull regulation to make the accurately position, and then complete the continuous printing, number print, creaser and perforating process, one set bill with numbers and single print could be completed immediately.

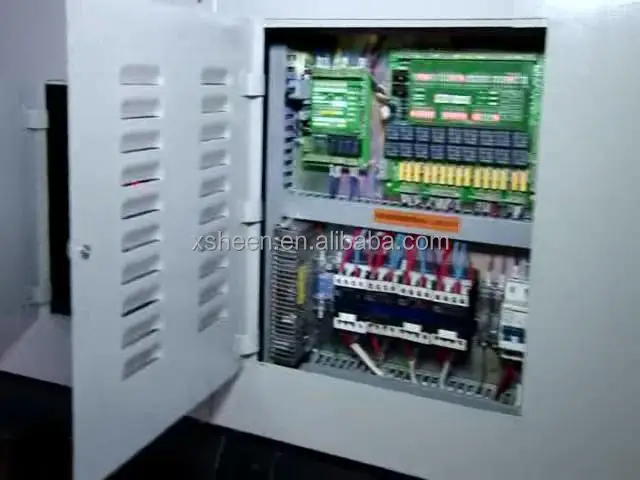

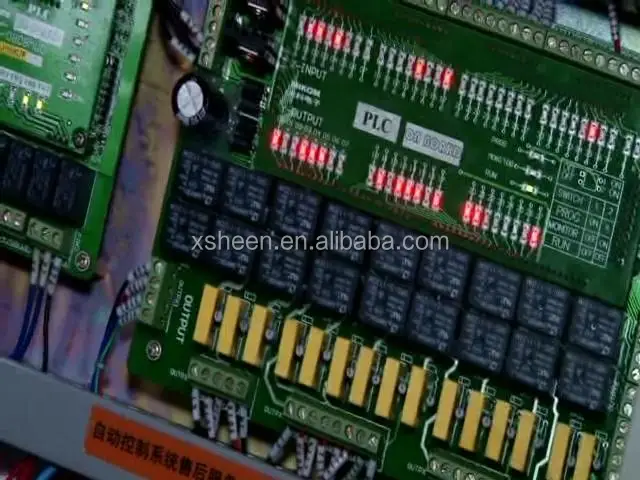

This product is controlled by a microcomputer; the program can be set according to the different printing requirements, page collator with the paper printing, page collator with number code printing etc.
It is the most advanced of sheet fed multifunction bills presses machine.

Features of billing offset press:
1.The high degree of automation, adopt printing "key" operation, effectively improve the work efficiency.
2. Reasonable structure design, low machine height, easy to operate, large amount could be loaded at one time.
3. Adopt microcomputer control, human-machine interface touch screen. Paper feed and number code dial controlled by pneumatic components, fully ensure a stable and reliable machine operation.
4. Precise detection by ultrasonic, to avoid double sheets, paper jam etc.
5. Automatic oil supply system, the vertical and horizontal perforating blade could be adjusted accordingly.
6. The angle of every paper feeding unit is small, ensure the paper delivery smoothly.
7. The double numbering, collating and printing machine can realize skipping bill edge printing function (same bill no. different bill edge content).
8. Double colors print and double number codes print system are the options.







Product Description
















Specification








































Type


XH47/56-4PY


Max. paper size


470×365mm/560×400mm


Min. paper size


210×150mm


Paper weight


30-157g/m2


speed


2000-5000sheets


Motor power


Main motor: 1.1kw/220v
Pump motor: 0.55kw/220v×4sets


Machine size


2200×935×1680mm


Net Weight


550kg/650kg


















































Type


XH47AN-4PC


Max. paper size


470×365mm


Min. paper size


210×150mm


Paper weight


30-157g/m2


Number of ink rollers


6pcs ink rollers(2pcs form ink rollers)


speed


2000-5000sheets


Min. space between codes


Vertical number: Vertical: 71mm,
horizontal: 48mm, gripper: 25mm


Motor power


Main motor: 1.1kw/220v
Pump motor: 0.55kw/220v×4SETS


Machine size


2200×935×1680mm


Weight


600kg











































































Model


XH47ANP-4PC


XH56ANP-4PC


Maximum printing area


450*345mm


544*375mm


Maximum sheet size


460*365mm


560*390mm


Minimum sheet size


210*210mm


250*210mm


Paper type


28-157g/sqm


28-157g/sqm


Ink roller


10 pcs rollers of host system (2 pcs form inking rollers)
6 pcs rollers of NP system (one set) (2 pcs form rollers)


Water roller


4 pcs(1 pcs form roller)


Registration agencies


Wheel roller type side pull


Printing speed


2000-6000sheets / hour


Minimum space between the number codes


Vertical Number :
vertical:71mm , horizontal : 48mm , gripper :25mm
Horizontal Number :
vertical: 47mm , horizontal: 60mm, gripper: 25mm


Power


Main motor: 1.5KW/220V
Pump motor: 0.55KW/220V *4


Dimension


2600*935*1680mm


2800*980*1780mm


Weight


1800kg


1980kg











































































Type


XH47ANPS-4PC


XH56ANPS-4PC


Max. paper size


460*365mm


560*390mm


Max. printing area


450*345mm


544*375mm


Min. paper size


210*210mm


250*210mm


Paper weight


28-157g/sqm


28-157g/sqm


No. of ink rollers


Main system :10pcs ink rollers (2pcs form ink rollers)
NP system: 6pcs ink rollers(2pcs form ink rollers)(one set)


No. of dampening rollers


4pcs(1pc form dampening roller)


Registering mechanism


Wheel roller type side pull


Printing speed


2000-6000 sheets/hour


Min. space between codes


Vertical Number: vertical: 71mm,horizontal:48mm,gripper:25mm
Horizontal Number: vertical:47mm,horizontal:60mm, gripper:25mm


Motor power


Main motor:1.5KW/220V Pump motor:0.55KW/220V *4SETS


Machine size


2900*935*1680mm


2900*1035*1680mm


Weight


1900kg


2000kg
