Pallet changer V Shape minilogy up to 50 pallet/h for boxes pharma, food and beverage company
- Category: Other Material Handling Equipment >>>
- Supplier: TOPPY S.R.L.
Share on (1600642279445):
Product Overview
Description
V-Shape Minilogy
Pallet Trasnfer System V-Shape Minilogy
Fully automatic operating cycle;
Performance up to 50 pallets / h;
Customizable logistic line;
Changes the pallet by tilting the load;
Ideal for many types of products;
Equipped with three pallet dispensers;
Safely applies pressure to the products.
Performance up to 50 pallets / h;
Customizable logistic line;
Changes the pallet by tilting the load;
Ideal for many types of products;
Equipped with three pallet dispensers;
Safely applies pressure to the products.
Product Description

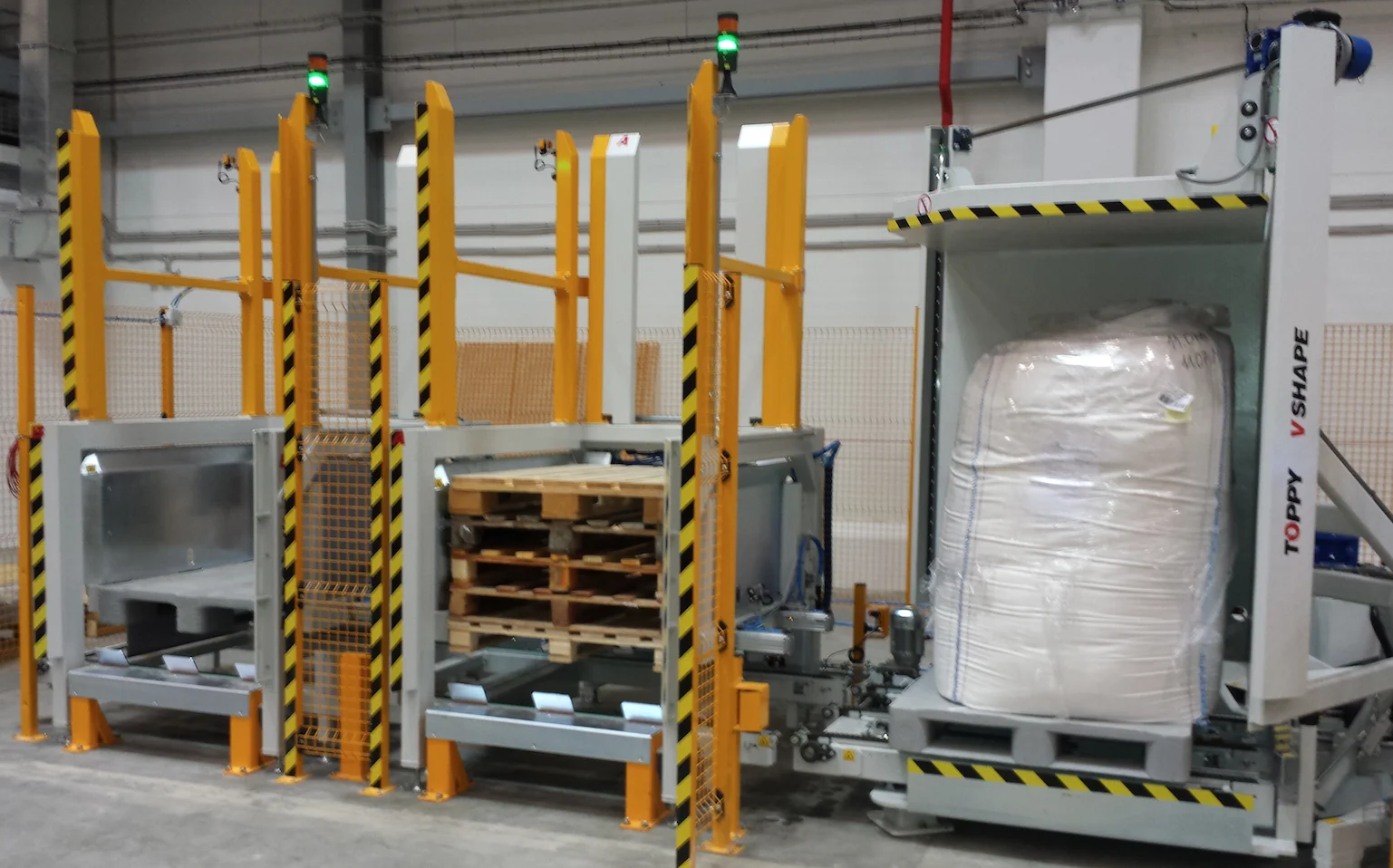

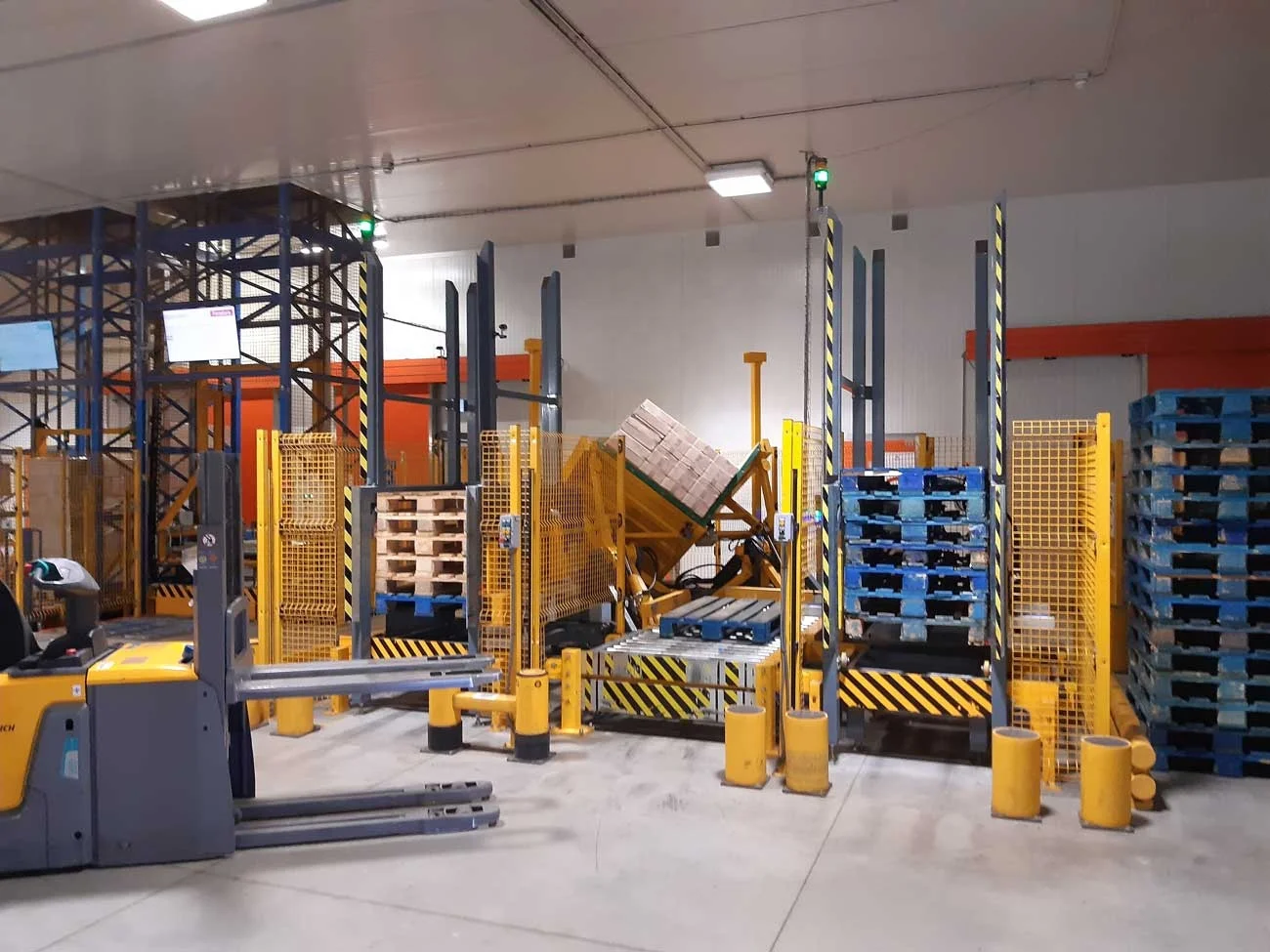

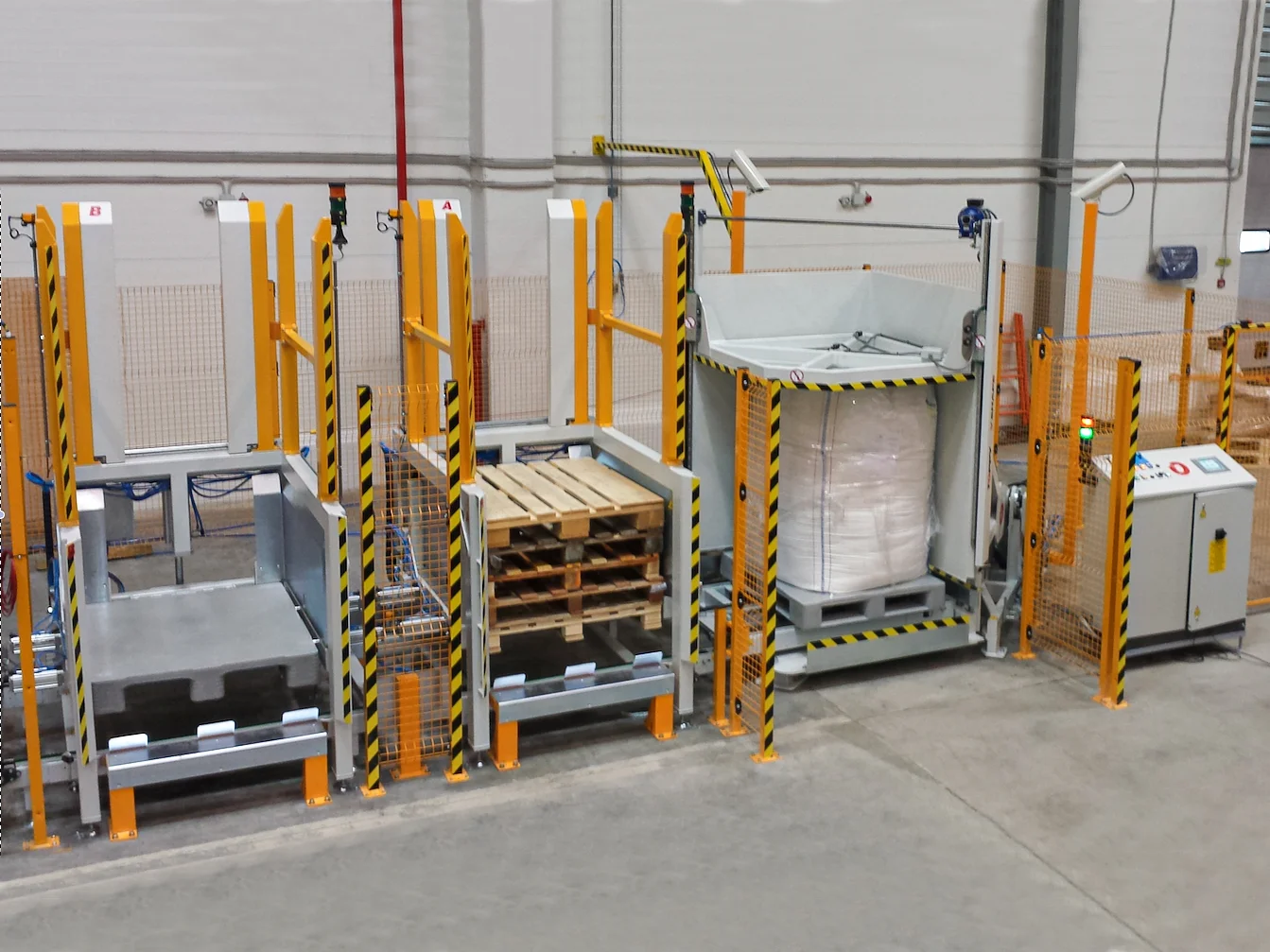

Description of the inline pallet changer “V-SHAPE MINILOGY”
The system guarantees productivity of 50 pallets per hour.

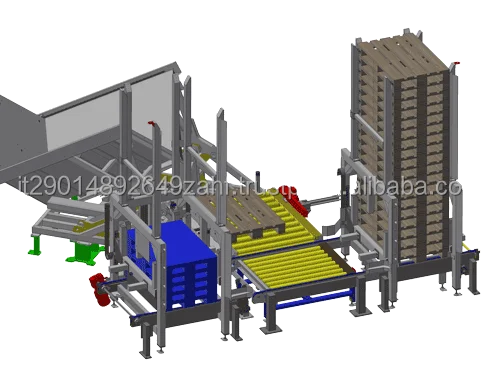

The V-Shape is an automatic pallet changer and logistics system equipped with a conveyor placed on the platform, a pallet dispenser (suitable for all types of pallets), and a roller conveyor. The pallet dispenser is equipped with chain conveyors for the collection and delivery of pallets. In addition, the system is equipped with a chain conveyor leading the pallet to the “Toppy V-Shape” machine, for automatic pallet replacement.
Every pallet dispenser is able to manage all the different types of pallets with a maximum capacity of 15 units.
This logistics system guarantees a faster pallet change than the stand-alone machine due to the pallet warehouses that are equipped with conveyors for the collection and delivery of wooden and plastic pallets.
The automatic pallet changer is equipped with an adaptive centering system with sonar measurement that allows the goods to be centered inside the new pallet while compensating for the difference in the size of the two pallets (if they are different). The security of the system is guaranteed through the use of a perimeter of metal meshes and man photocells for access control.
How does the pallet change operation take place?
Below we describe the logistics system phases needed to replace a wooden pallet with a plastic pallet. Vice versa, the operation can be managed via PLC with adequate programming.
The operating logic of the system is illustrated below:
1. The product is loaded directly on the “Toppy V‐Shape” pallet changer through forklift.
2. The “Toppy V‐Shape” closes the upper platform and, at the same time, turns the load 120°. The load steadiness is guaranteed by the machine’s “Toppy VShape” structure. At this moment, the sonar measures the product, that measurement will be processed, and the load will be centered.
3. The load platform is driven to 0°, taking back to initial level the pallet to be replaced.
4. Through the lowered chain conveyor, placed on the platform, the pallet is removed and loaded onto the chain conveyor, then taken to the pallet stacker and, finally, stacked.
5. The other pallet stacker in the meanwhile has prepared the pallet to be changed, that will be delivered to the chain conveyor and, from there, to the pallet changer “Toppy V‐Shape”.
6. The centering system places the pallet through electric cylinders since it is centered on the product.
7. The “Toppy V-Shape” takes the pallet to 120°, in contact with the product, after which pallet and product are led back to the floor level, ready to be picked up.
SECURITY SYSTEM
The MEKKANO gate combines with the components for the EASY BARRIER perimeter protection overcoming the limits of welded framing.
Using the pre-painted elements and original connecting systems with screw fastening, it is possible to assemble gates of different width in a rapid and clean way, making them ready to be installed. With the same elements, the MEKKANO gate can be prepared in the right or left configuration, with outward or inward opening.
All the configurations of the gate can be obtained either for the version with the upper support or without it. The high strength of the connecting elements makes the structure as rigid as a classic welded frame.
The V-Shape is an automatic pallet changer and logistics system equipped with a conveyor placed on the platform, a pallet dispenser (suitable for all types of pallets), and a roller conveyor. The pallet dispenser is equipped with chain conveyors for the collection and delivery of pallets. In addition, the system is equipped with a chain conveyor leading the pallet to the “Toppy V-Shape” machine, for automatic pallet replacement.
Every pallet dispenser is able to manage all the different types of pallets with a maximum capacity of 15 units.
This logistics system guarantees a faster pallet change than the stand-alone machine due to the pallet warehouses that are equipped with conveyors for the collection and delivery of wooden and plastic pallets.
The automatic pallet changer is equipped with an adaptive centering system with sonar measurement that allows the goods to be centered inside the new pallet while compensating for the difference in the size of the two pallets (if they are different). The security of the system is guaranteed through the use of a perimeter of metal meshes and man photocells for access control.
How does the pallet change operation take place?
Below we describe the logistics system phases needed to replace a wooden pallet with a plastic pallet. Vice versa, the operation can be managed via PLC with adequate programming.
The operating logic of the system is illustrated below:
1. The product is loaded directly on the “Toppy V‐Shape” pallet changer through forklift.
2. The “Toppy V‐Shape” closes the upper platform and, at the same time, turns the load 120°. The load steadiness is guaranteed by the machine’s “Toppy VShape” structure. At this moment, the sonar measures the product, that measurement will be processed, and the load will be centered.
3. The load platform is driven to 0°, taking back to initial level the pallet to be replaced.
4. Through the lowered chain conveyor, placed on the platform, the pallet is removed and loaded onto the chain conveyor, then taken to the pallet stacker and, finally, stacked.
5. The other pallet stacker in the meanwhile has prepared the pallet to be changed, that will be delivered to the chain conveyor and, from there, to the pallet changer “Toppy V‐Shape”.
6. The centering system places the pallet through electric cylinders since it is centered on the product.
7. The “Toppy V-Shape” takes the pallet to 120°, in contact with the product, after which pallet and product are led back to the floor level, ready to be picked up.
SECURITY SYSTEM
The MEKKANO gate combines with the components for the EASY BARRIER perimeter protection overcoming the limits of welded framing.
Using the pre-painted elements and original connecting systems with screw fastening, it is possible to assemble gates of different width in a rapid and clean way, making them ready to be installed. With the same elements, the MEKKANO gate can be prepared in the right or left configuration, with outward or inward opening.
All the configurations of the gate can be obtained either for the version with the upper support or without it. The high strength of the connecting elements makes the structure as rigid as a classic welded frame.
What is your need?
1. FROM WOODEN PALLET TO PLASTIC PALLET: In many companies, there must be a separation between the goods reception area, where the shipping pallet generally made of woods are stopped, to the “white area” of the warehouse, where sanitized pallets (aluminum or plastic) are used. In our range of production there is also multiple dedusting cabins able to decontaminate the
products and the air in order to maintain the certified environment.
2. SAVINGS AND AUTOMATIC: For companies with large numbers of pallets to handle, we usually recommend automatic solutions, able to perform with many pallets every hour. Our system reduces the number of operators required for the production process and therefore the cost of labor.
3. STANDARDIZATION OF THE INTERNAL PALLET and CENTERING PRODUCTS: Modern production processes increasingly need to standardize all pallets that move products during the production cycle and often also in warehouse, which are usually automated.
Our pallet changers system can suit perfectly because they are able to handle heavy goods and / or fragile products whatever is the incoming pallet, replace it with a used one and center the product. It’s also possible to carry our automatic packaging operations.
4. SHIPPING with SLIP SHEET WITHOUT PALLET: It’s essential to save on the transport cost of the shipment of finished products.
The pallet represents an important cost for those with a high flow of outgoing products. In addition, without the use of the pallet in the shipment, companies greatly increase the number of products that can be stowed. Our Inverter pallet changer placed at the end of the production process, are able to insert automatically a slipsheet under the load, which will be ready for shipment without the pallet. The pallet stackers will automatically stack all the pallets removed.
5. SAFETY and WORK REDUCTION FOR OPERATORS: Our Pallet Inverter significantly increase safety within the process, as the manual work of operators is seriously reduced. Our pallet Inverter systems are very safe as they are equipped with advanced safety systems. The access to dangerous areas is controlled by doors with sensors, photocells or laser scanners in order to prevent dangerous cycles.
6. PICKING & AGV: We offer a logistics line able to automate the composition of the load. The pallet management is automated with the AGV system, in order to facilitate the operator in the composition of the load.
7. CLEANING, DEDUSTING AND SANITIZING: In the production range with our pallet inverter can be implemented a sanitization or dedusting system. We usually supply these systems to companies that need to separate the “white” area from the “grey”. Where necessary, there are inserted few particle counters in order to check the cleanliness and sanitization of the air before opening the doors. The main objective is to avoid that too high numbers of particles remain suspended in certified atmospheres of UNI EN ISO 14644-1 certified environments (Federal Standard 209D, 209E in the United States).
products and the air in order to maintain the certified environment.
2. SAVINGS AND AUTOMATIC: For companies with large numbers of pallets to handle, we usually recommend automatic solutions, able to perform with many pallets every hour. Our system reduces the number of operators required for the production process and therefore the cost of labor.
3. STANDARDIZATION OF THE INTERNAL PALLET and CENTERING PRODUCTS: Modern production processes increasingly need to standardize all pallets that move products during the production cycle and often also in warehouse, which are usually automated.
Our pallet changers system can suit perfectly because they are able to handle heavy goods and / or fragile products whatever is the incoming pallet, replace it with a used one and center the product. It’s also possible to carry our automatic packaging operations.
4. SHIPPING with SLIP SHEET WITHOUT PALLET: It’s essential to save on the transport cost of the shipment of finished products.
The pallet represents an important cost for those with a high flow of outgoing products. In addition, without the use of the pallet in the shipment, companies greatly increase the number of products that can be stowed. Our Inverter pallet changer placed at the end of the production process, are able to insert automatically a slipsheet under the load, which will be ready for shipment without the pallet. The pallet stackers will automatically stack all the pallets removed.
5. SAFETY and WORK REDUCTION FOR OPERATORS: Our Pallet Inverter significantly increase safety within the process, as the manual work of operators is seriously reduced. Our pallet Inverter systems are very safe as they are equipped with advanced safety systems. The access to dangerous areas is controlled by doors with sensors, photocells or laser scanners in order to prevent dangerous cycles.
6. PICKING & AGV: We offer a logistics line able to automate the composition of the load. The pallet management is automated with the AGV system, in order to facilitate the operator in the composition of the load.
7. CLEANING, DEDUSTING AND SANITIZING: In the production range with our pallet inverter can be implemented a sanitization or dedusting system. We usually supply these systems to companies that need to separate the “white” area from the “grey”. Where necessary, there are inserted few particle counters in order to check the cleanliness and sanitization of the air before opening the doors. The main objective is to avoid that too high numbers of particles remain suspended in certified atmospheres of UNI EN ISO 14644-1 certified environments (Federal Standard 209D, 209E in the United States).
What products can it handle?
This automatic pallet inverter can handle many types of products. Listed, are some examples: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc
This automatic pallet inverter can handle many types of products. Listed, are some examples: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc
Specification
Condition | New |
Applicable Industries | Food & Beverage Factory, warehouse, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Place of Origin | Italy |
FAQ
1.Can “TOPPY V-SHAPE inline” be customized for special applications?
Yes, absolutely, we are able to customize inline system according to the customer’s needs.
2.Which products are suitable for this device?
This automatic pallet inverter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big
boxes, barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
boxes, barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood ,
plastic, aluminium, iron, etc.)
plastic, aluminium, iron, etc.)
4.How does the pallet change take place?
The operation takes place by tilting the load at 120°.
5.How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
6.How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
7.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Pallet change logistics systems are required to automate consistent flows of goods on pallet. In order to manage large quantities of goods and to reduce personnel costs, we usually recommend our logistics lines.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Pallet change logistics systems are required to automate consistent flows of goods on pallet. In order to manage large quantities of goods and to reduce personnel costs, we usually recommend our logistics lines.
