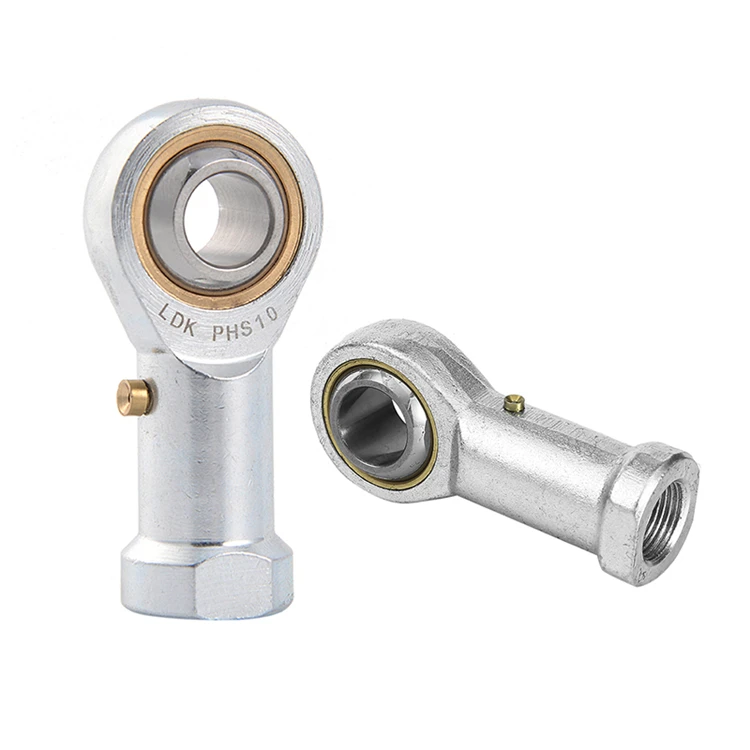

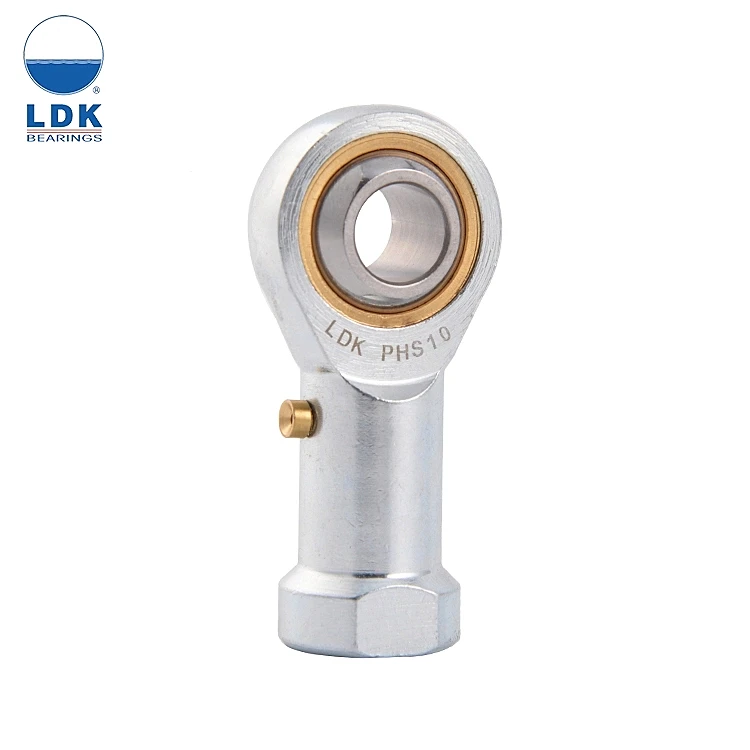

LDK bearing manufacturer PHS3 metric carbon steel female thread m3 rod ends
| Bearing No. | Dimensions(mm) | Ball dia | a0 mis. angle | Load ratings (KN) | weight ≈Kg | |||||||||||||
| d H7 | B | C1 | d1 | d2 | d3-6H | h1 | L3 | (L4) | L5 | d4 | d5 | sw | Dynamic | Static | ||||
| PHS3 | 3 | 6 | 4.5 | 5.1 | 12 | M3 | 21 | 10 | 27 | 3 | 7 | 9 | 7 | 7.93 | 14 | 1.8 | 4.5 | 0.006 |
| PHS4 | 4 | 7 | 5.25 | 6.5 | 14 | M4 | 24 | 12 | 31 | 4 | 7.8 | 9.5 | 8 | 9.52 | 13 | 2.2 | 5.6 | 0.013 |
| PHS5 | 5 | 8 | 6 | 7.7 | 16 | M5 | 27 | 11 | 35 | 4 | 9 | 11 | 9 | 11.11 | 13 | 2.5 | 6.6 | 0.016 |
| PHS6 | 6 | 9 | 6.75 | 8.9 | 18 | M6 | 30 | 13 | 39 | 5 | 10 | 13 | 11 | 12.7 | 13 | 3.2 | 8.1 | 0.025 |
| PHS8 | 8 | 12 | 9 | 10.3 | 22 | M8 | 36 | 16 | 47 | 5 | 12.5 | 16 | 14 | 15.87 | 14 | 5.4 | 12.6 | 0.043 |
| PHS10 | 10 | 14 | 10.5 | 12.9 | 26 | M10 | 43 | 20 | 56 | 6.5 | 15 | 19 | 17 | 19.05 | 12.9 | 7.5 | 16.6 | 0.072 |
| PHS10F1 | 10 | 14 | 10.5 | 12.9 | 26 | M10x1.25 | 43 | 20 | 56 | 6.5 | 15 | 19 | 17 | 19.05 | 12.9 | 7.5 | 16.6 | 0.072 |
| PHS12 | 12 | 16 | 12 | 15.4 | 30 | M12 | 50 | 23 | 65 | 6.5 | 17.5 | 22 | 19 | 22.22 | 13 | 10 | 22 | 0.107 |
| PHS12/F2 | 12 | 16 | 12 | 15.4 | 30 | M12X1.25 | 50 | 23 | 65 | 6.5 | 17.5 | 22 | 19 | 22.22 | 13 | 10 | 22 | 0.107 |
| PHS14 | 14 | 19 | 13.5 | 16.8 | 34 | M14 | 57 | 27 | 74 | 8 | 20 | 25 | 22 | 25.4 | 16 | 13 | 27.8 | 0.160 |
| PHS14F1 | 14 | 19 | 13.5 | 16.8 | 34 | M14x1.5 | 57 | 27 | 74 | 8 | 20 | 25 | 22 | 25.4 | 16 | 13 | 27.8 | 0.160 |
| PHS15 | 15 | 20 | 14 | 18.1 | 36 | M14 | 61 | 30 | 79 | 8 | 21 | 26 | 22 | 26.98 | 16 | 14.5 | 29 | 0.186 |
| PHS16 | 16 | 21 | 15 | 19.3 | 38 | M16 | 64 | 32 | 83 | 8 | 22 | 27 | 22 | 28.58 | 15 | 16 | 34.5 | 0.210 |
| PHS16F1 | 16 | 21 | 15 | 19.3 | 38 | M16X1.5 | 64 | 32 | 83 | 8 | 22 | 27 | 22 | 28.58 | 15 | 16 | 34.5 | 0.210 |
| PHS17 | 17 | 22 | 16 | 20.6 | 40 | M16x1.5 | 67 | 34 | 87 | 10 | 24 | 31 | 27 | 30.16 | 14 | 18 | 36 | 0.259 |
| PHS18 | 18 | 23 | 16.5 | 21.8 | 42 | M18X1.5 | 71 | 35 | 92 | 10 | 25 | 31 | 27 | 31.75 | 15 | 19.5 | 40.8 | 0.295 |
| PHS20 | 20 | 25 | 18 | 24.3 | 46 | M20x1.5 | 77 | 39 | 100 | 10 | 27.5 | 34 | 30 | 34.92 | 14 | 23 | 46.5 | 0.380 |
| PHS22 | 22 | 28 | 20 | 25.8 | 50 | M22X1.5 | 84 | 42 | 109 | 12 | 30 | 37 | 32 | 38.1 | 15 | 29 | 52.6 | 0.490 |
| PHS25 | 25 | 31 | 22 | 29.5 | 60 | M24x2 | 94 | 48 | 124 | 12 | 33.5 | 42 | 36 | 42.86 | 15 | 40.5 | 74.1 | 0.750 |
| PHS28 | 28 | 35 | 24 | 32.29 | 66 | M27x2 | 103 | 53 | 136 | 12 | 37 | 46 | 41 | 47.63 | 15 | 46.1 | 88.7 | 0.950 |
| PHS30 | 30 | 37 | 25 | 34.8 | 70 | M30x2 | 110 | 56 | 145 | 15 | 40 | 50 | 41 | 50.8 | 17 | 54.3 | 94.0 | 1.130 |
TS16949 certification economic PHS steel rod end joint bearing Characteristic:
Ball: AISI 52100 bearing Steel, heat treated, HRC58-64; Precision ground, polished
Body: Carbon steel,clear Zinc plated.
Race: Brass
Sliding contact surfaces: Steel/Brass
