CATL Lithium Iron Phosphate Battery Pack ESS On Grid Hybrid Solar Inverter Energy Storage System Solution
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600642345569):
Product Overview
Description
Products Description
• Flexibility Configuration:
5.1kWh/10.2kWh/20.4kWh
• Long Duration:
≥10000cycles (Lab enviroment)
• High conversion efficiency:
Battery/Grid conversion efficiency up to 94%
• CATL LiFePO4 Battery cell:
Safety and 0 cobalt & nickel
• Easy installation

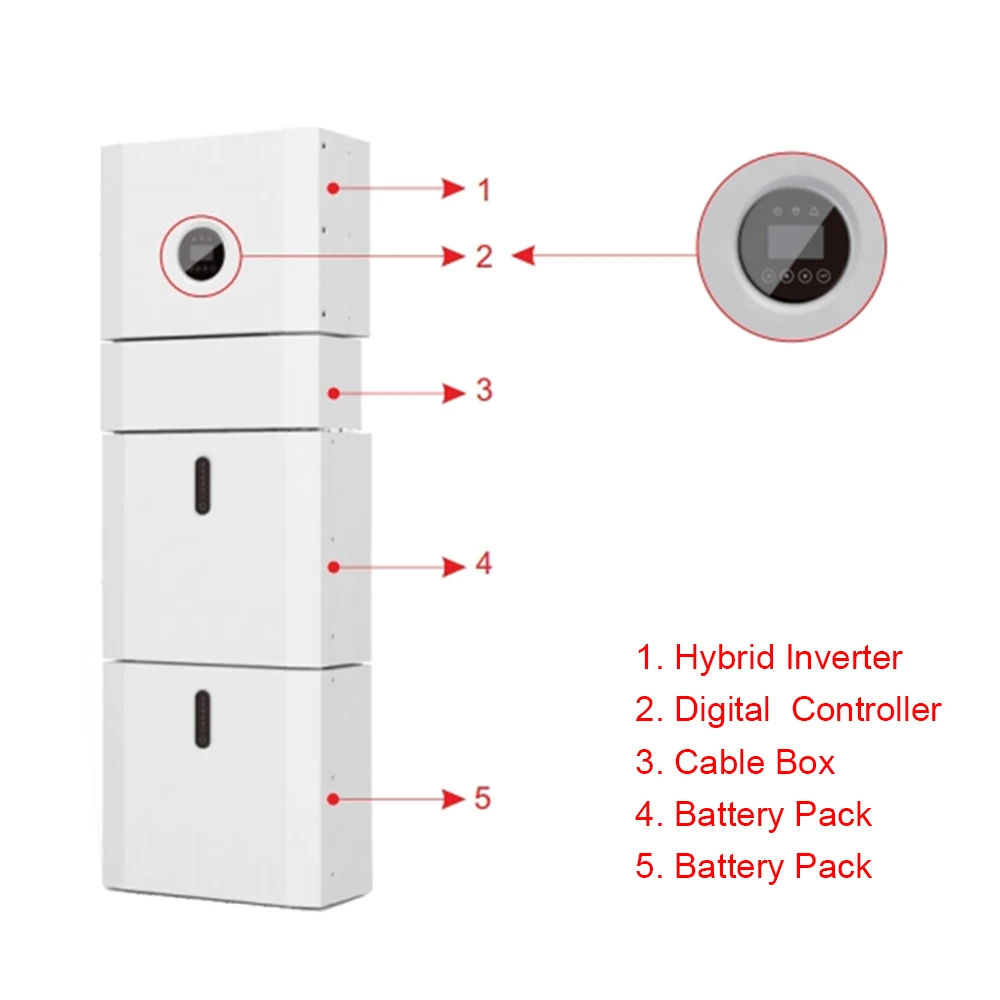

This all in one energy storage system is designed by three parts: Hybrid inverter, cable box and battery pack. The appearance is simple and elegant.
Saving 50% installation time: Installation in half an hour, wiring in one hour. Quick plug connection design ,free from on-site
wire.
Minimum cover: 0.6M*0.25M (0.15 square meter)
Saving 50% installation time: Installation in half an hour, wiring in one hour. Quick plug connection design ,free from on-site
wire.
Handled and install by single person: One module is less than 50kg, which can be handled and installed by single person.
10,000 Cycles Battery, 5 Years Product Warranty, 10 Years Performance Warranty.
KSTAR energy storage solution BluE Series is the optimal choice for hybrid systems,which is designed with CATL Battery Solution + KSTAR Inverter Solution.
The all-In-one single phase storage solution is safe, reliable and higher yields. The energy storage system is produced by the joint venture CATL-KSTAR.
Products Specification

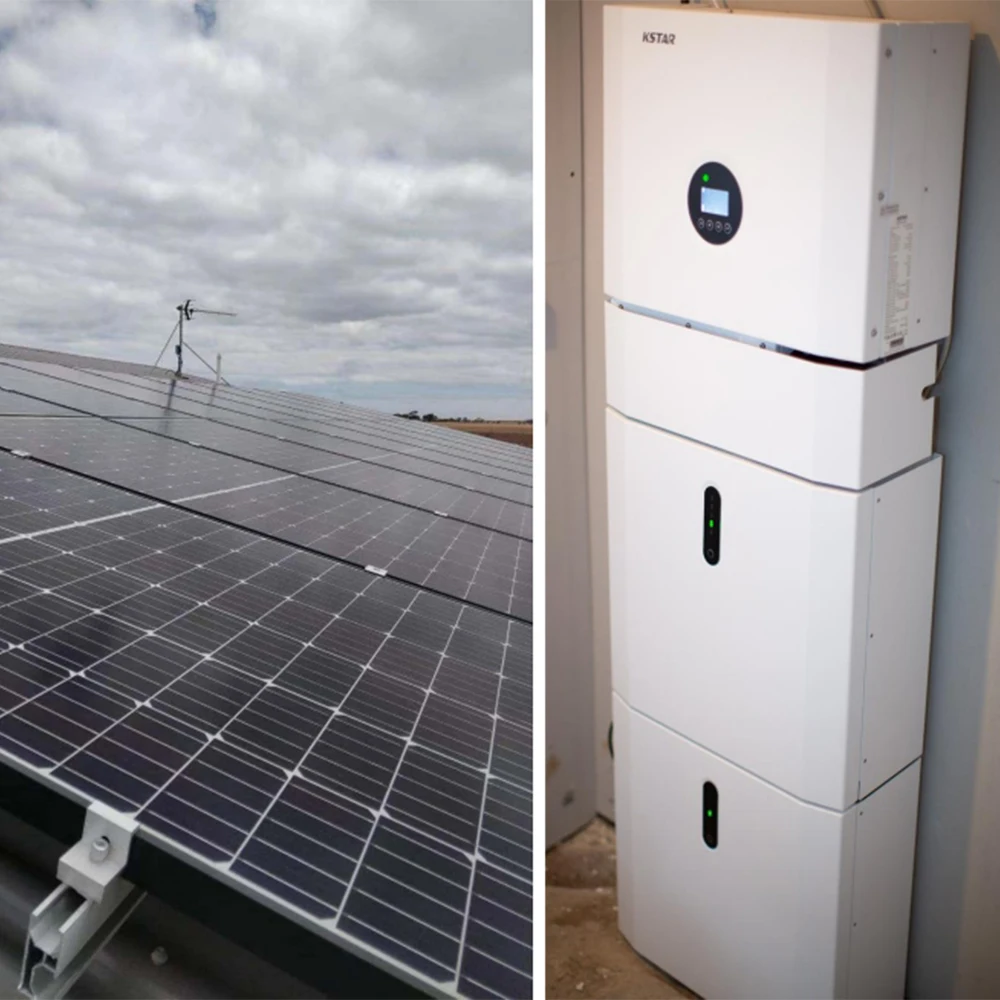

Cooperation Case
ESS | BLuE-S 5000D + 10.2kWh |
Solar System | 6.6kw - 330W Seraphim Half |
Location | Ireland |
Self-consumption | • In daytime, the solar system will support the load a nd charges the battery • In nighttime, the battery will support the load via the hybrid inverter. |
Off-grid | • The solar panel and battery will support the loads when the power is outage. |
Certifications
Certification & Standard
Battery:
Cell: IEC 62619,UL1973,UL9540A,UN38.3
Pack: IEC 62619,UN38.
Hybrid Inverter:
Grid Regulation: AS/NZS 4777.2, VDE-AR-N4105, VDE0126-1-1
Safety Regulation: IEC/EN 62109-1&2, IEC62040-1
EMC: EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4,EN61000-4-16, EN61000-4-18, EN61000-4-29
