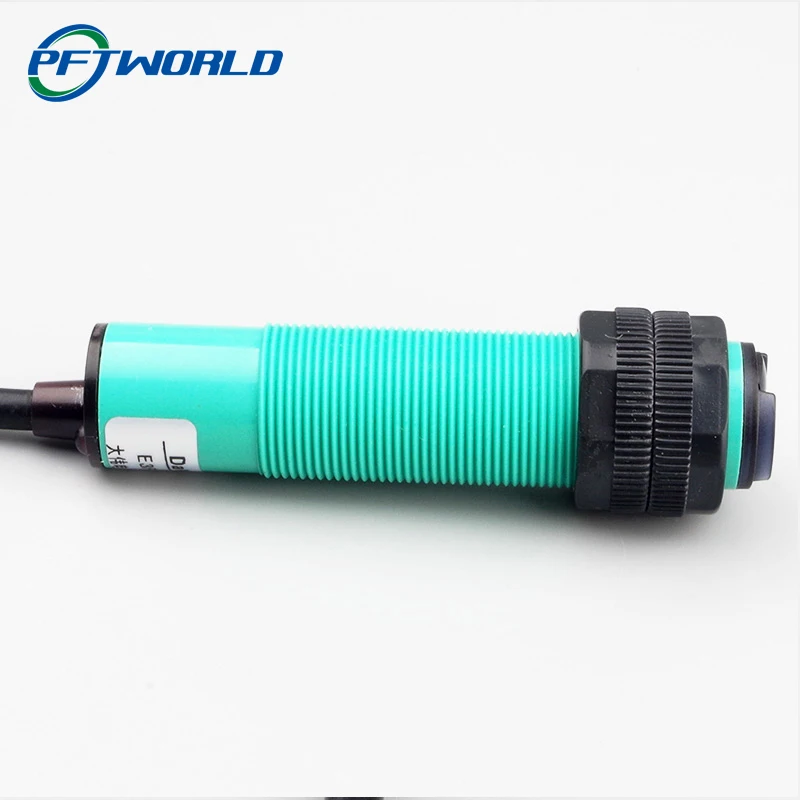

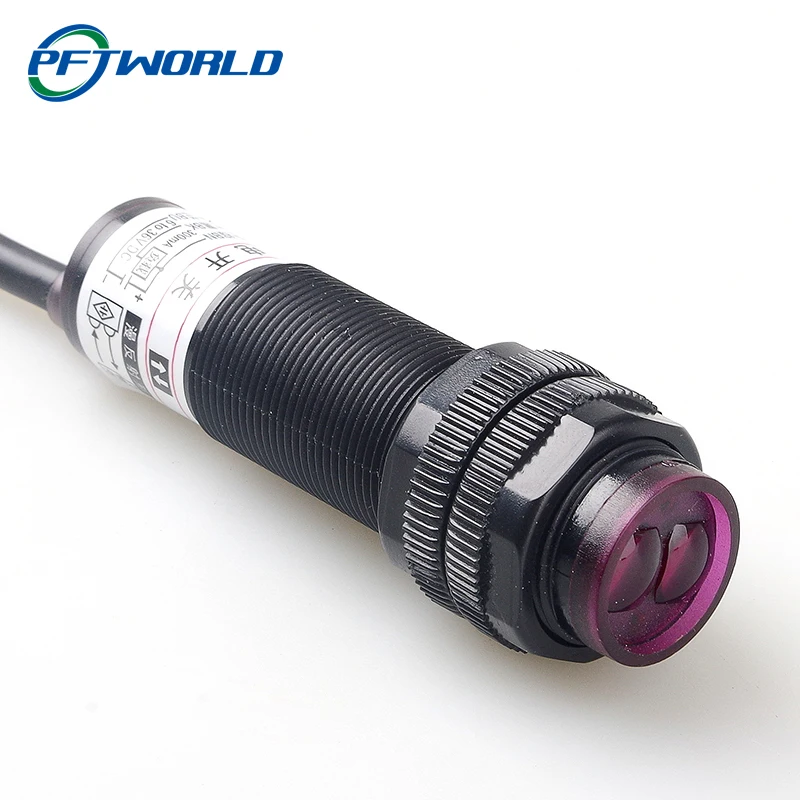

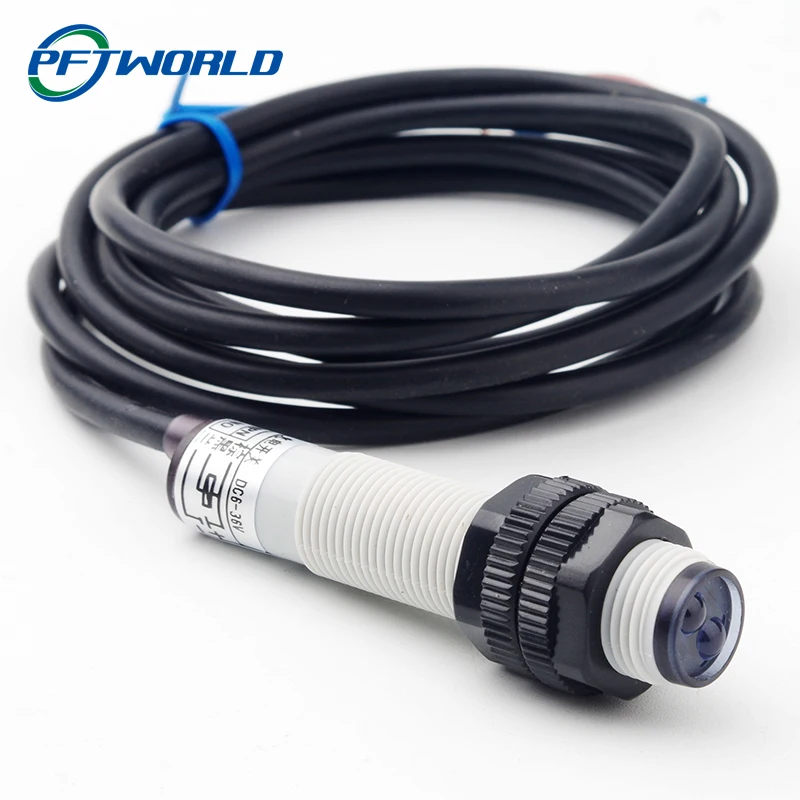

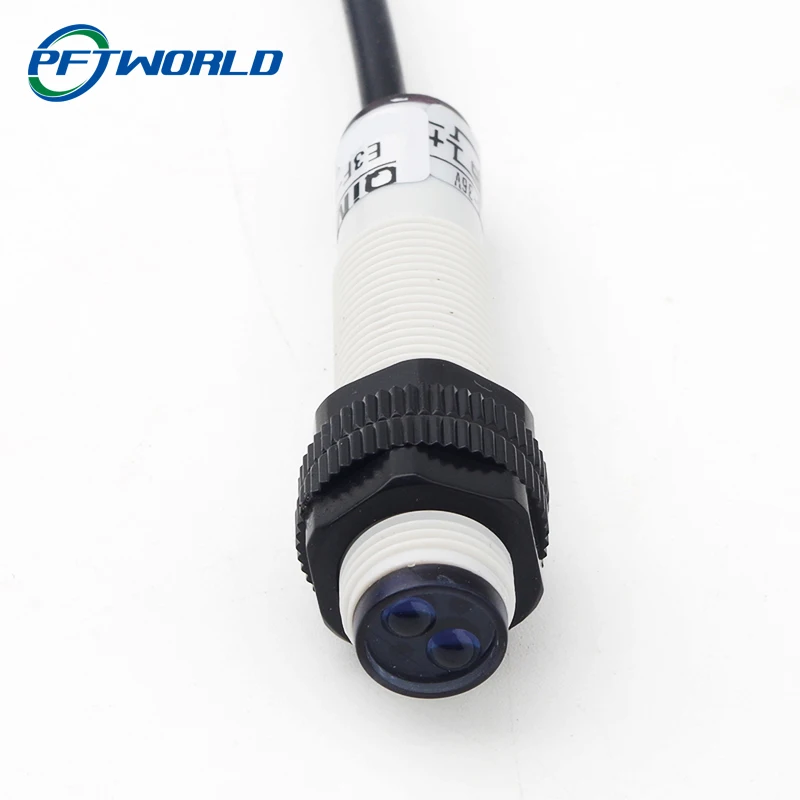

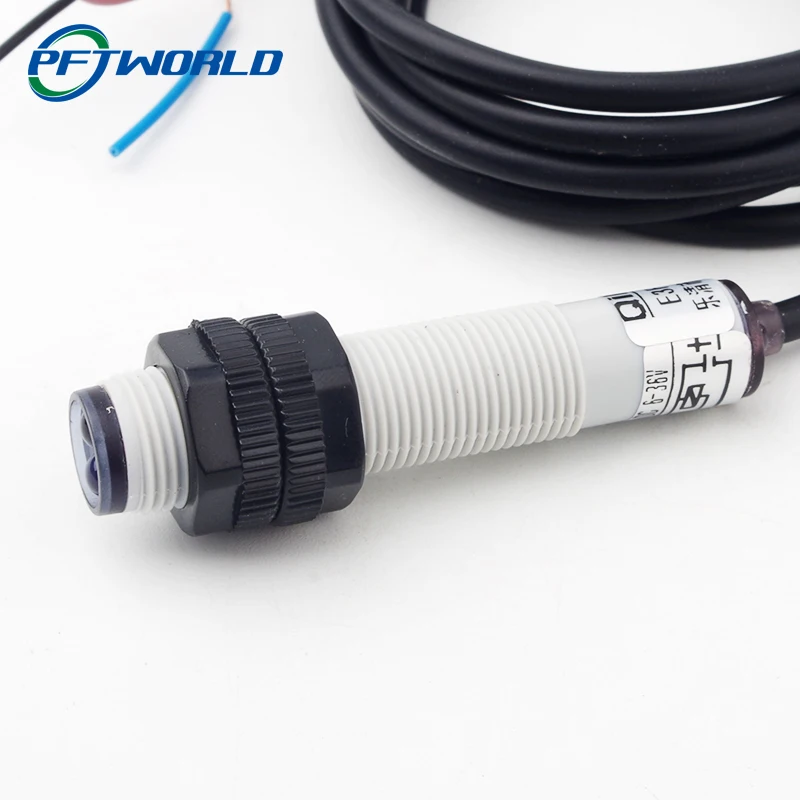

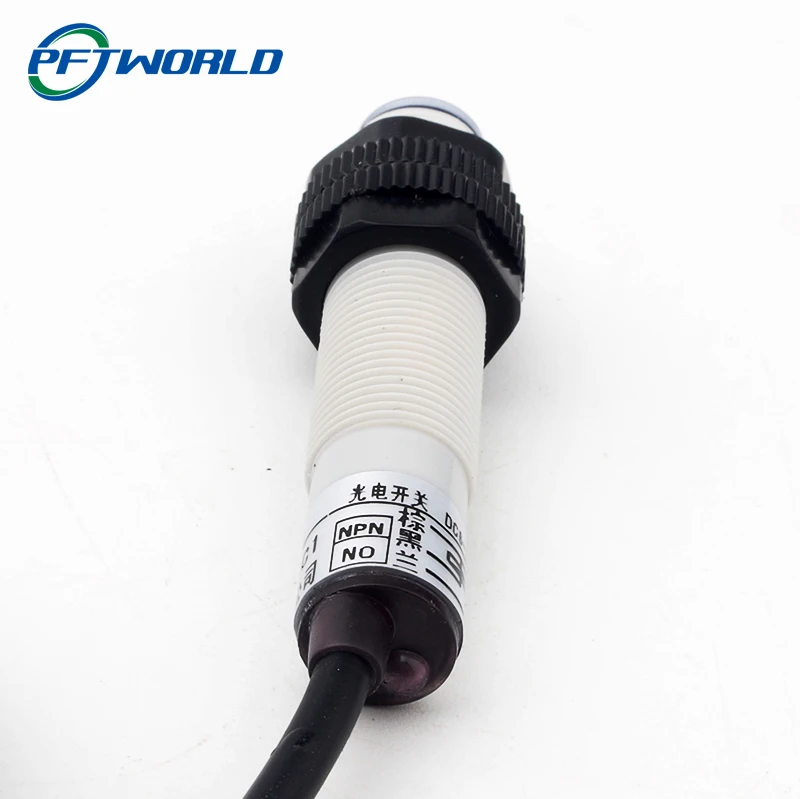

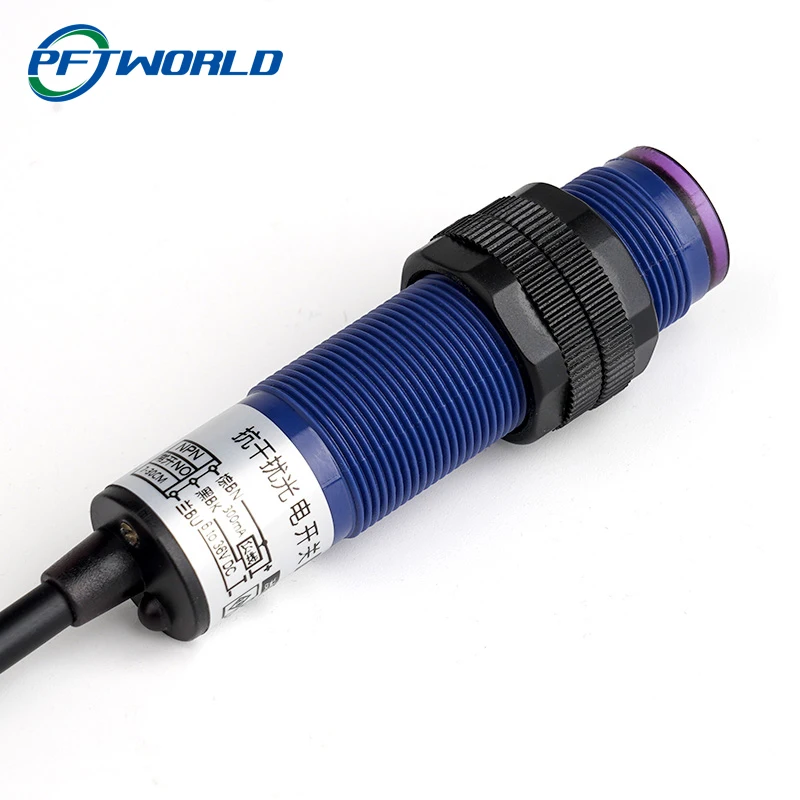

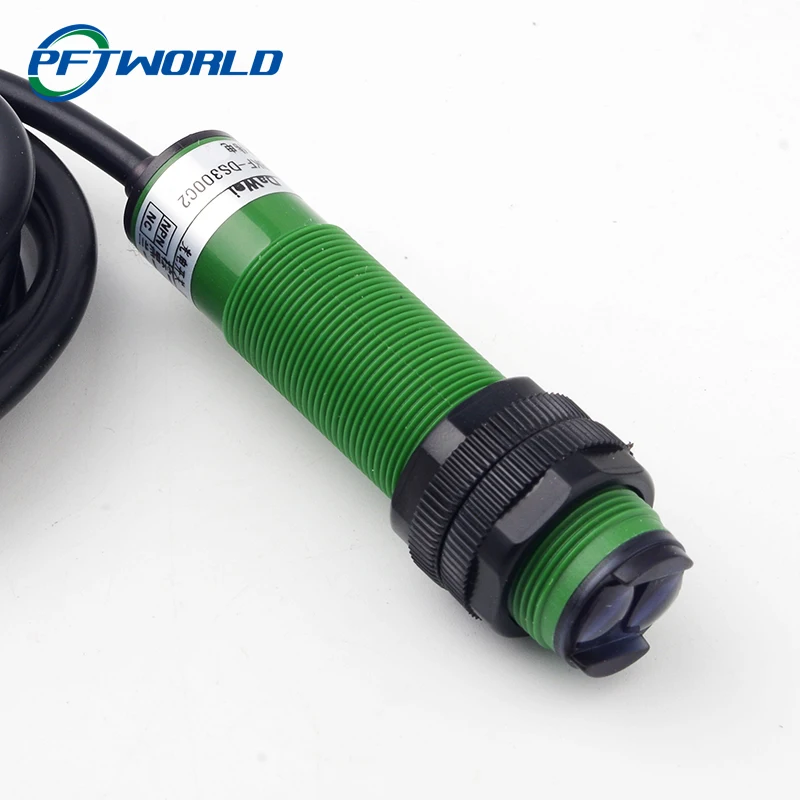

E3F1 Ds5C4 M12 Infrared Sensing Photoelectric Switch Plastic Tube Diffuse Reflective Sensor Npn photoelectric Proximity Sensor
- Category: >>>
- Supplier: Shenzhen Perfect Precision Product Co. Ltd.
Share on (1600642949916):
Product Overview
Description
E3F-DS5C4 / E3F-DS10C4 /
E3F-DS30C4 / E3F-DS50C Series
E3F-DS100C4 / E3F-DS300C4 /
E3F-R2C1 Series

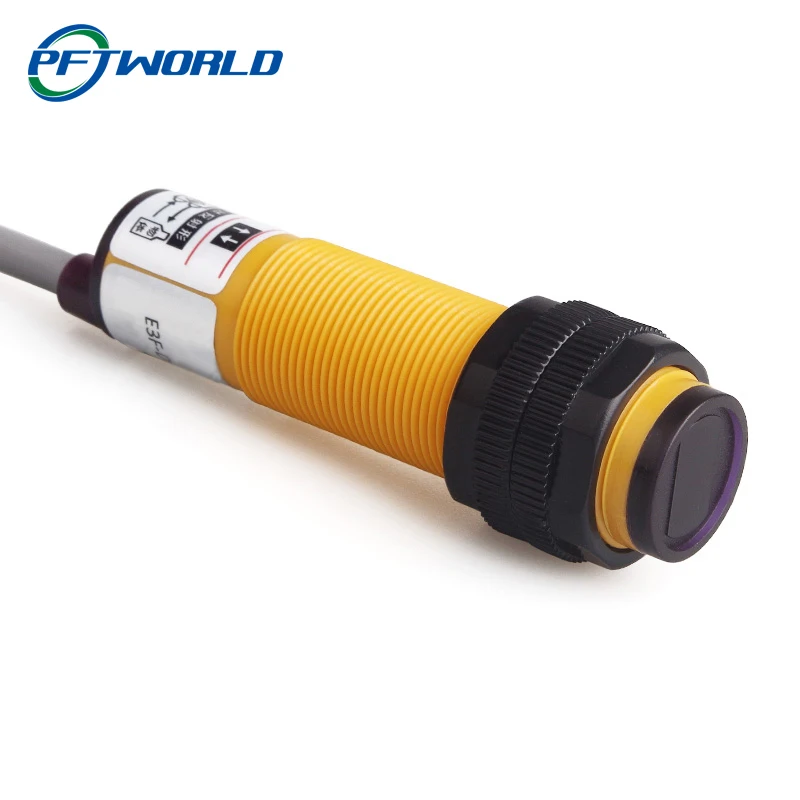

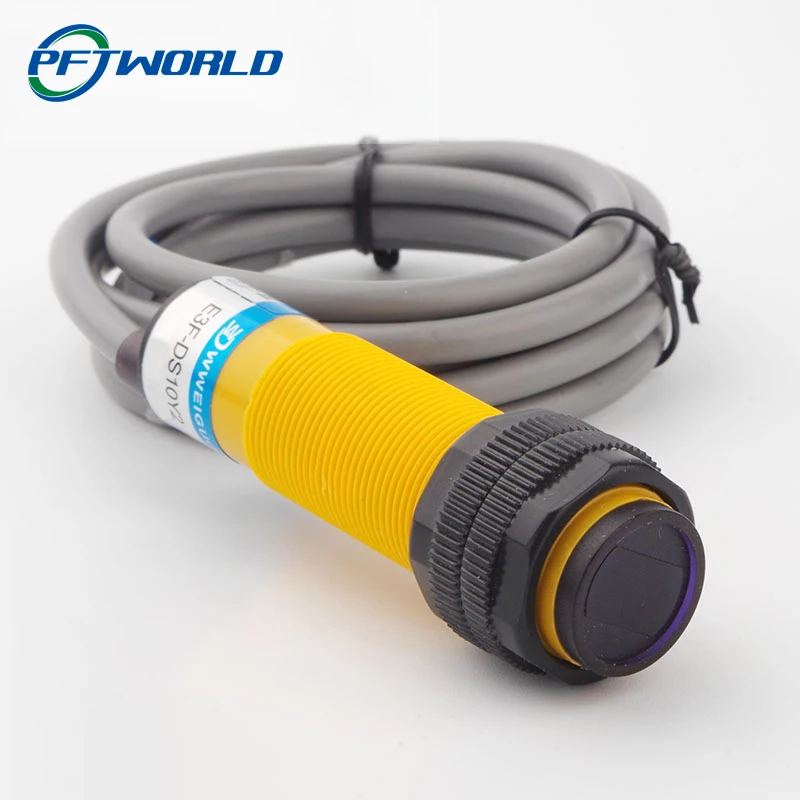

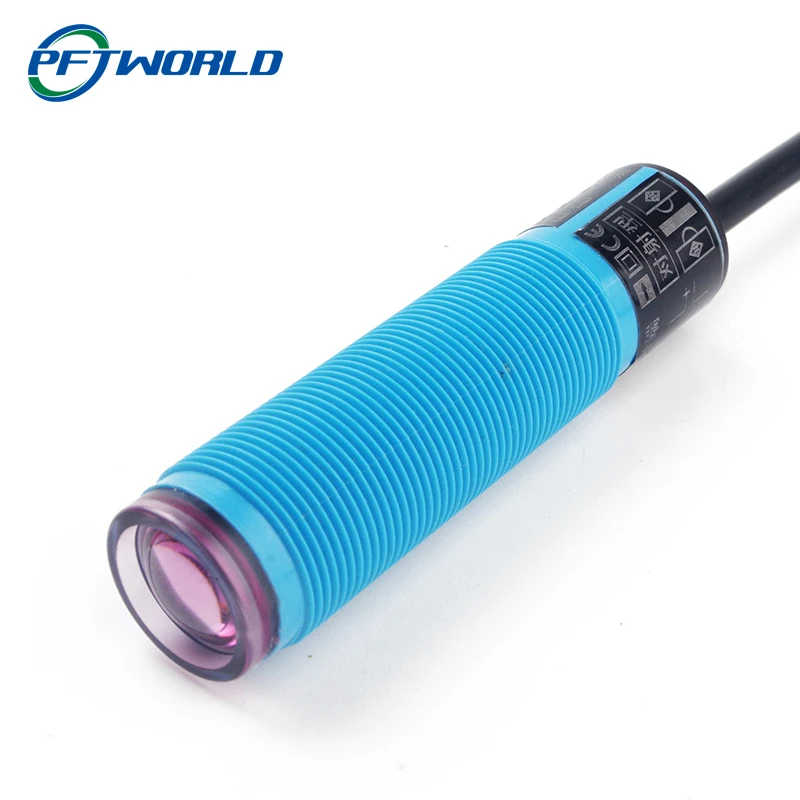

Photoelectric sensor series

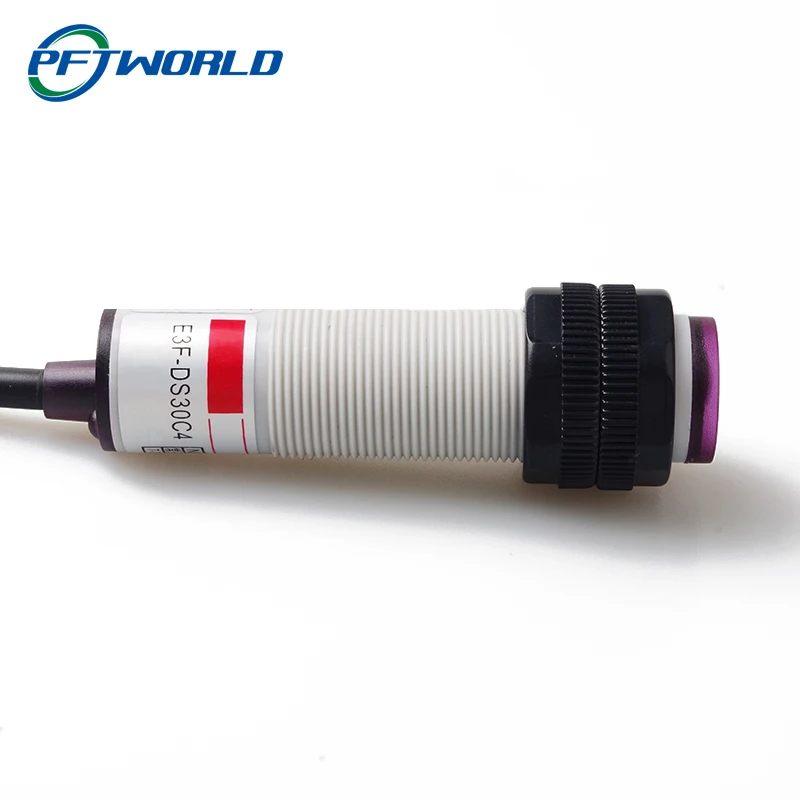

Detection Method | Light Source | Detection Distance | NPN | PNP |
Diffuse Reflection | Infrared light | 1-5cm | E3F-DS5C4 | E3F-DS5P4 |
3-16cm | E3F-DS10C4 | E3F-DS10P4 | ||
7-30cm | E3F-DS30C4 | E3F-DS30P4 | ||
10-100cm | E3F-DS100C4 | E3F-DS100P4 | ||
20-300cm | E3F-DS300C4 | E3F-DS300P4 | ||
Fire At Each Other | 5m | E3F-5DN1(5DL) | E3F-5DP1(5DL) | |
Specular Reflection | 3m | E3F-R2C1 | E3F-R2C1 |
Model | E3F-DS30C |
Reflective Form | Diffuse reflection |
Inductive Distance | 7-30CM adjustable (using white A4 paper as reference) |
Triode Form | NPN |
Action State | Normally open NO |
Input Voltage | DC6-36V |
Lineament | DC 3-wire |
Pointing Angle | Projection angle 3-5° |
Standard Detection Distance | Non-transparent objects over 1mm (e.g. colorless glass) |
Light Source (Wavelength) | Infrared luminescence (950) |
Current Consumption | Less than 1.5W |
Service Life | 2 million times |
Response Time | Less than 2MS |
Sensitivity Adjustment | Tail adjuster (clockwise: farther away Counterclockwise: closer) |
Ambient Illumination | Subject to light surface illumination incandescent lamps affect distance attenuation |
Ambient Temperature | Operating: -25°C `~ 80°C Storage: -40°C ~ 80°C |
Ambient Humidity | Operating: 35% ~ 80% Storage: 35% ~ 95% |
Insulation Resistance | More than 20MΩ |
Protective Structure | IEC Specifications IP65 |
Strongly Affect | 10~55HZ Dual amplitude 1.5MM X,Y,Z, each side 2H |
Thread Length | Wire lead type (wire length 1.2M) |
Material | Housing:ABS Lens: Methacrylate Knob: POM Cable: PVC |
