5ton road rollers drum engineering & construction machinery roller compactor for sale

Share on:


Price:$3,500.00 - $9,999.00
Price in USD:Details

Quantity:


Product Overview

Description





Product Description




Specification




Model
ST2000
ST3000
ST4000
ST5000
Operating Weight
2000 kg
3000 kg
4000 kg
5000 kg
Static linear load
110/105 N/cm
106/94 N/cm
135/120 N/cm
155/140 N/cm
Dimensions



Size
2445*1050*2255 mm
2400*1355*2630 mm
2480*1370*2630 mm
2850*1580*2680 mm
Turning radius
2955/4005 mm
2405/3760mm
2405/3760 mm
4380 mm
Drum size
630*900 mm *2
630*1200 mm*2
720*1200 mm*2
900*1400mm*2
Wheel base
1565 mm
1650 mm
1650 mm
1950 mm
Engine




Model
Changchai/Yanmar/Kubota
Changchai/Yanmar/Kubota
Changchai/Yanmar/Kubota
Changchai/Yanmar/Kubota
Power
 12/18.6/19.9KW
28.5/33KW
28.5/33KW
36/34.5/33.6 KW
Rating speed
3600 rpm
3600 rpm
3600 rpm
3600 rpm
Driving Character Istics




Walking speed
0-8Km/h
0-10 Km/h
0-10 Km/h
0-12 Km/h
Climbing ability
35 %
35 %
40 %
40 %
Steering




Steering mode
Hydraulic steering
Hydraulic steering
Hydraulic cylinder, articulated steering
Hydraulic cylinder, articulated steering
Steering system
Swing articulated
Swing articulated
Swing articulated
Swing articulated
Exciter System




Vibrating drum
Front+Rear
Front+Rear
Front+Rear
Front+Rear
Driving Form
Hydraulic motors
Hydraulic motors
Hydraulic motors
Hydraulic motors
 Frequency
65 HZ
65 HZ
65 HZ
65 HZ
Amplitude
0.5 mm
0.5 mm
0.5 mm
0.5 mm
Centrifugal force
30 KN*2
35 KN*2
40 KN*2
45 KN*2
Sprinkler System




Type of sprinkling
Pressure
Pressure
Pressure
Pressure
Capacities



Hydraulic oil
45 L
46 L
48 L
60 L
Fuel
36 L
42 L
44 L
45 L
Water
140 L
140 L
180 L
180 L

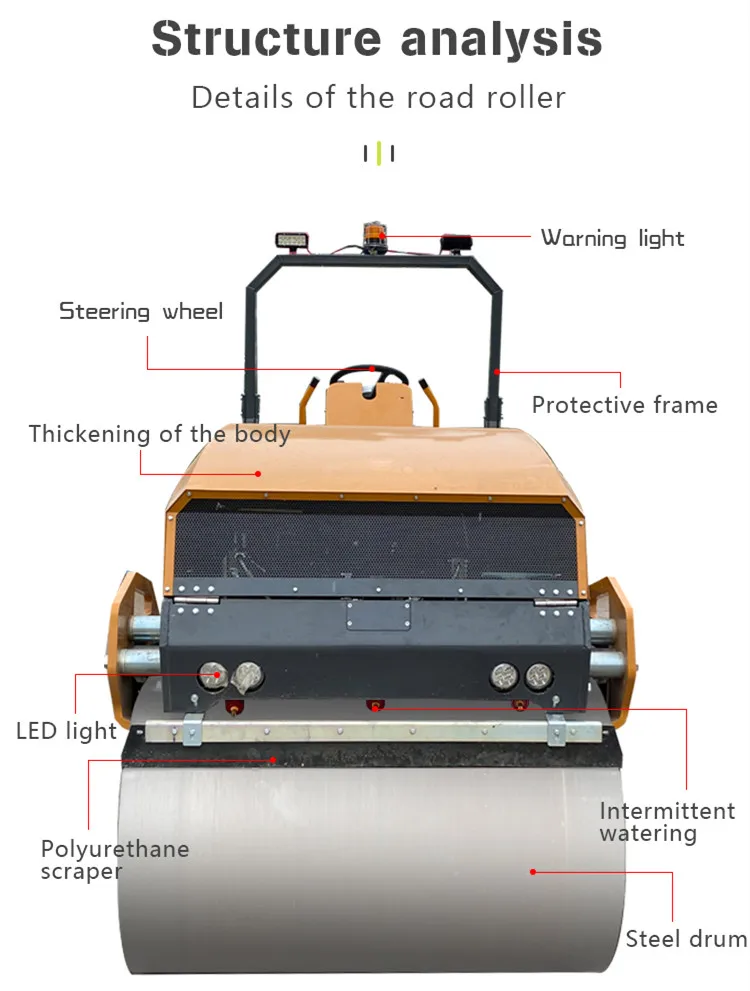

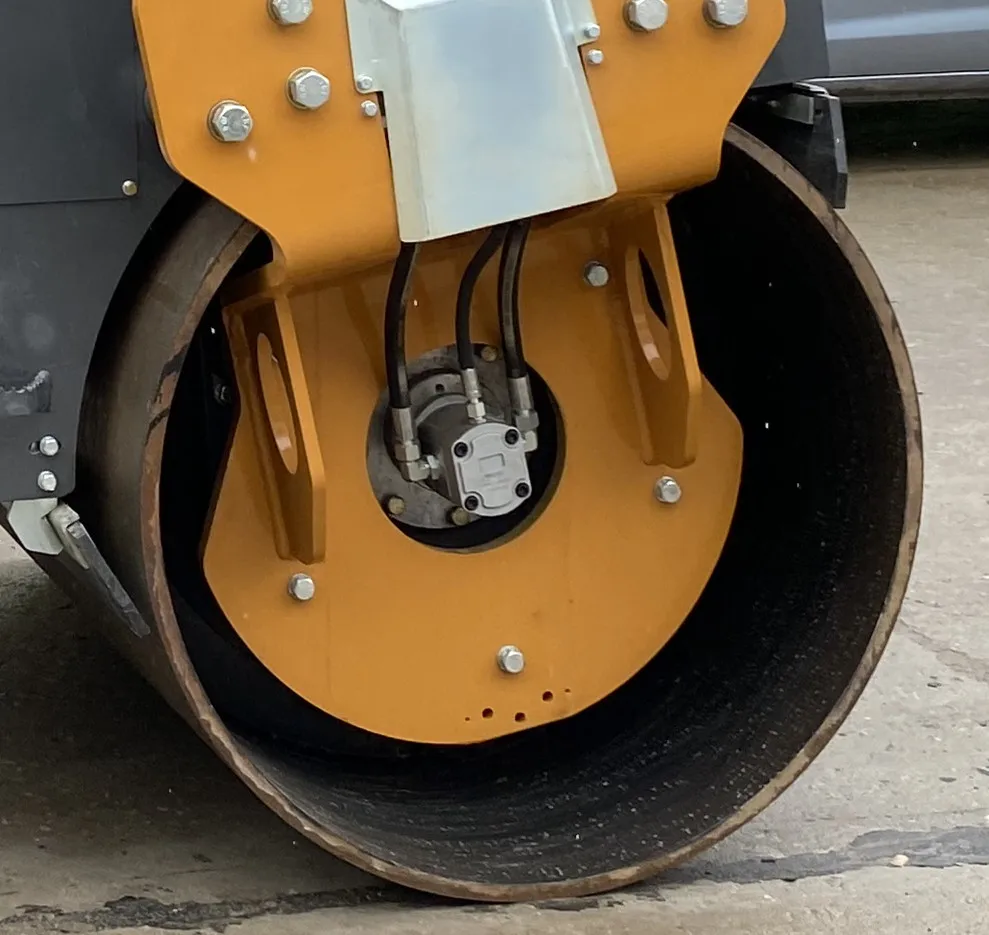

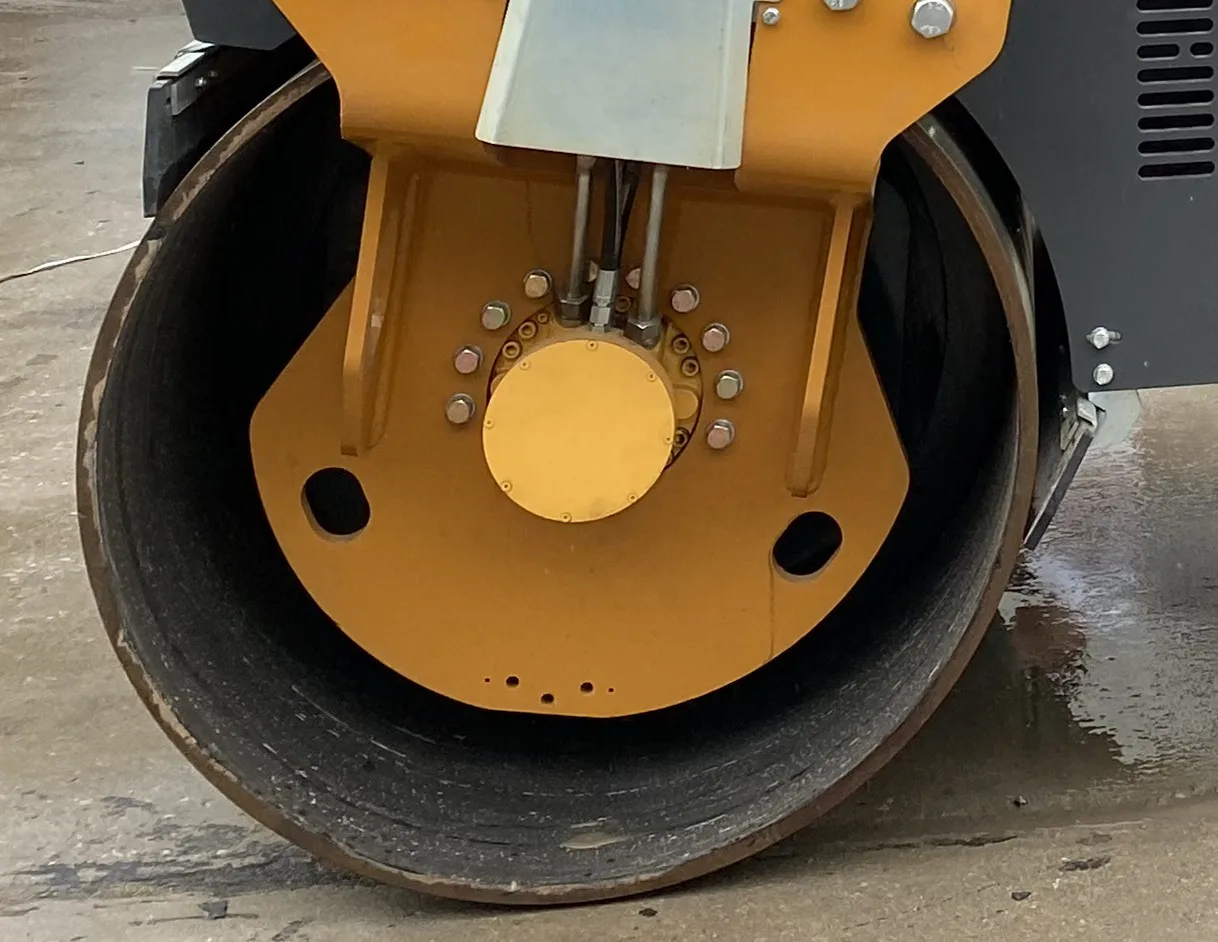

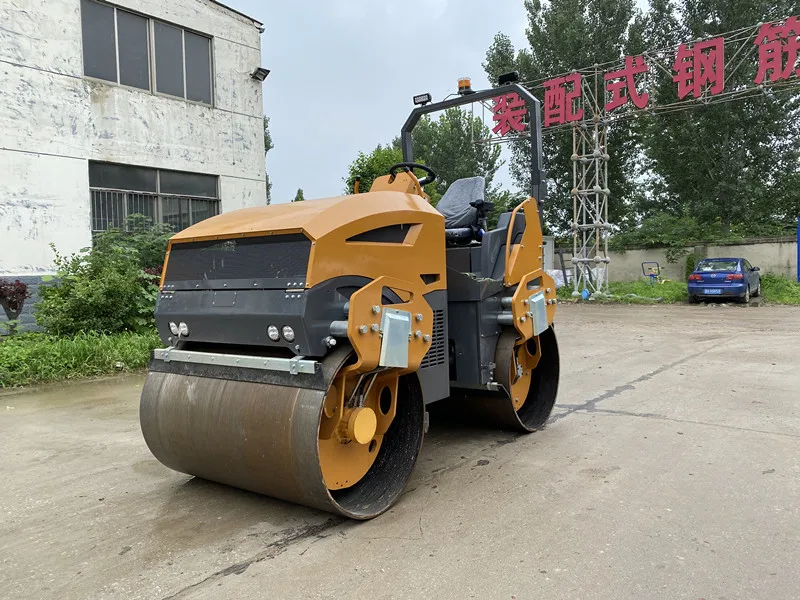

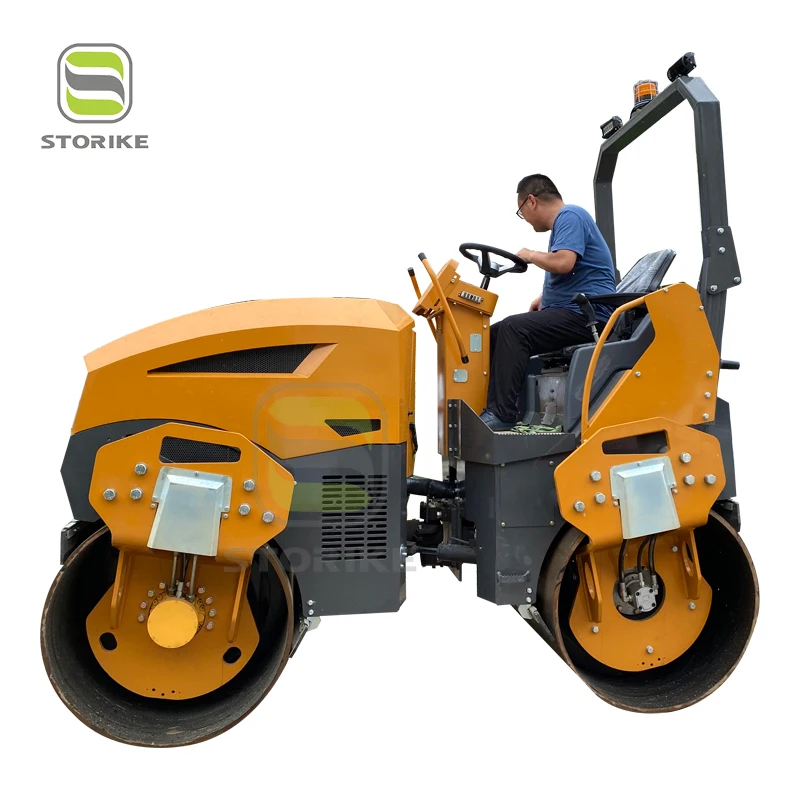

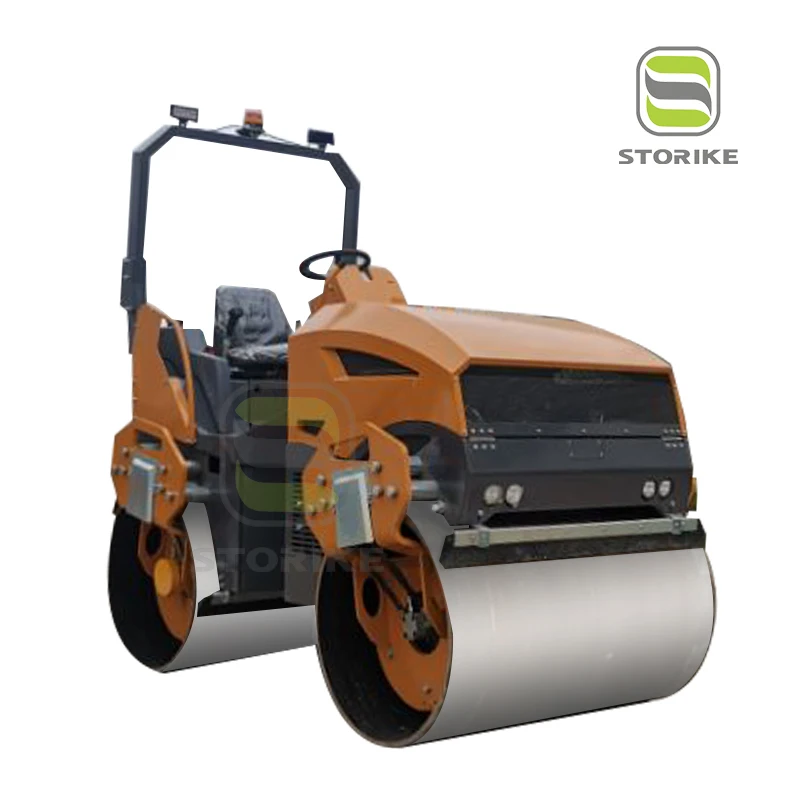

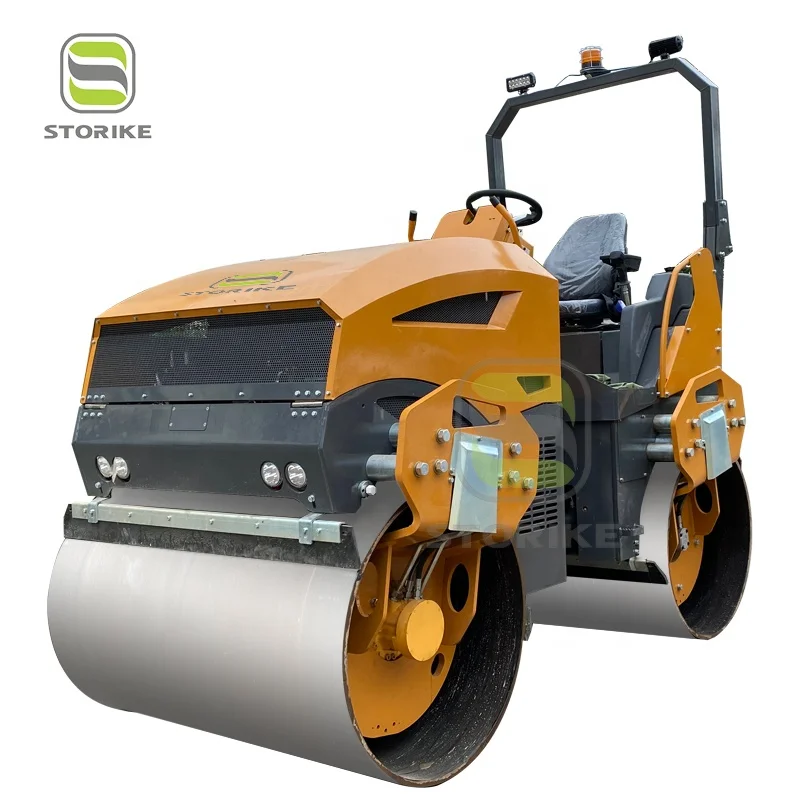

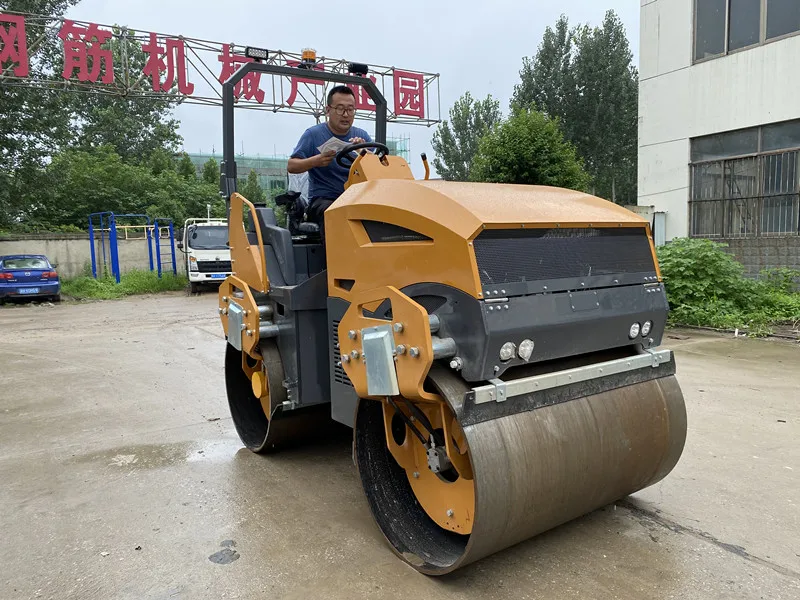

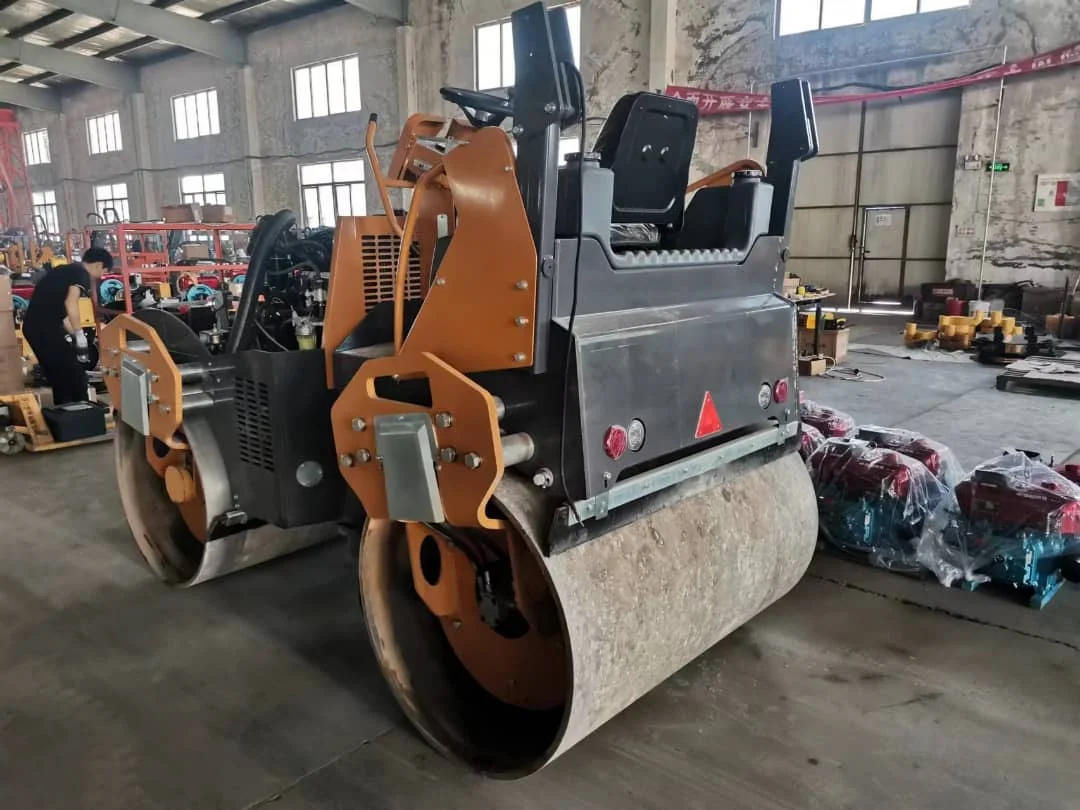

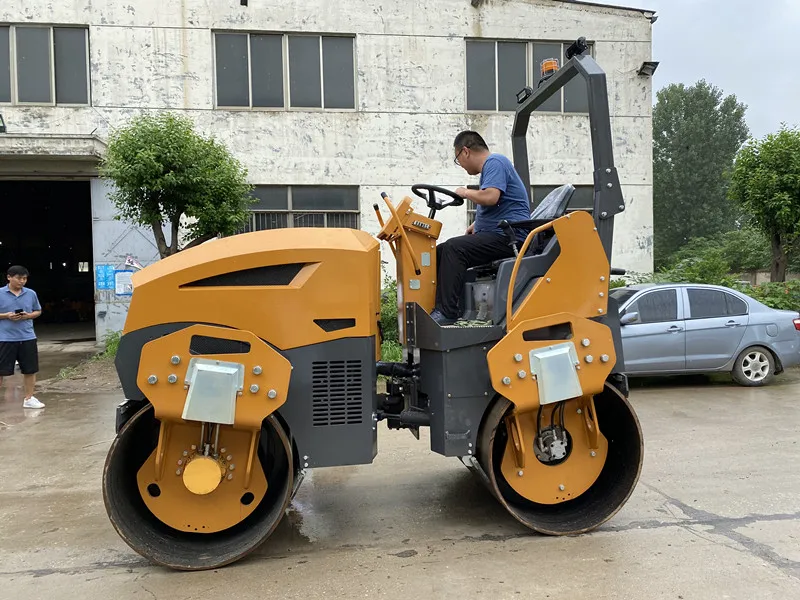

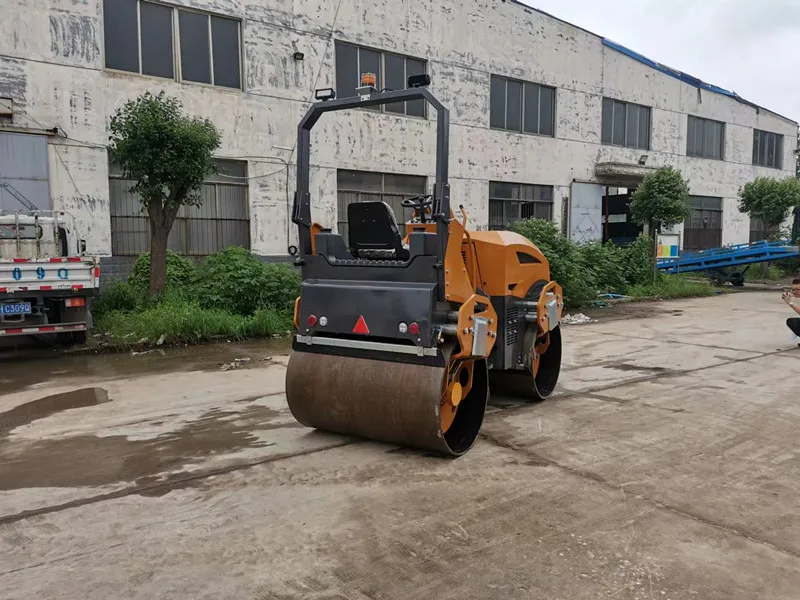

Details Images

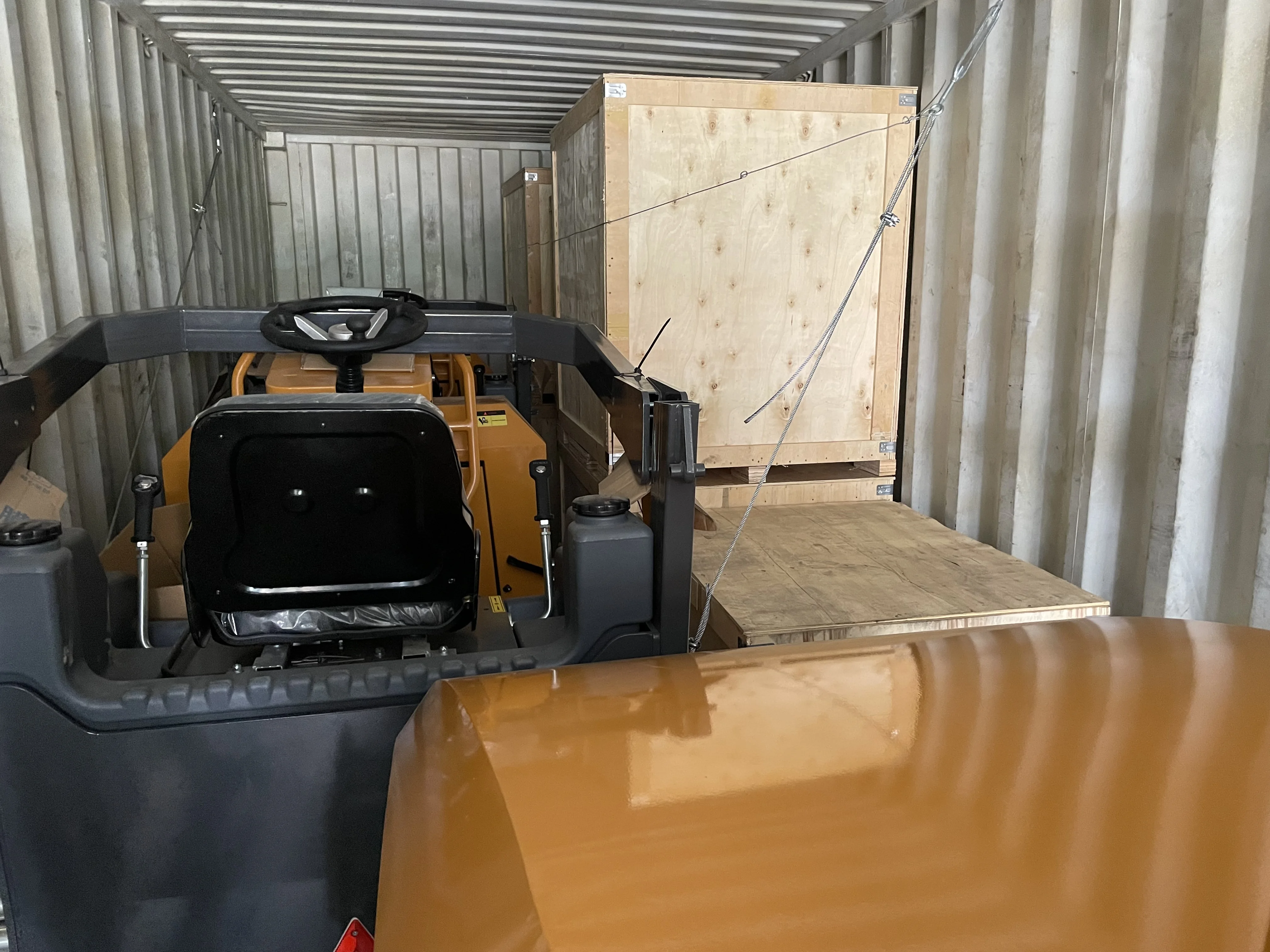

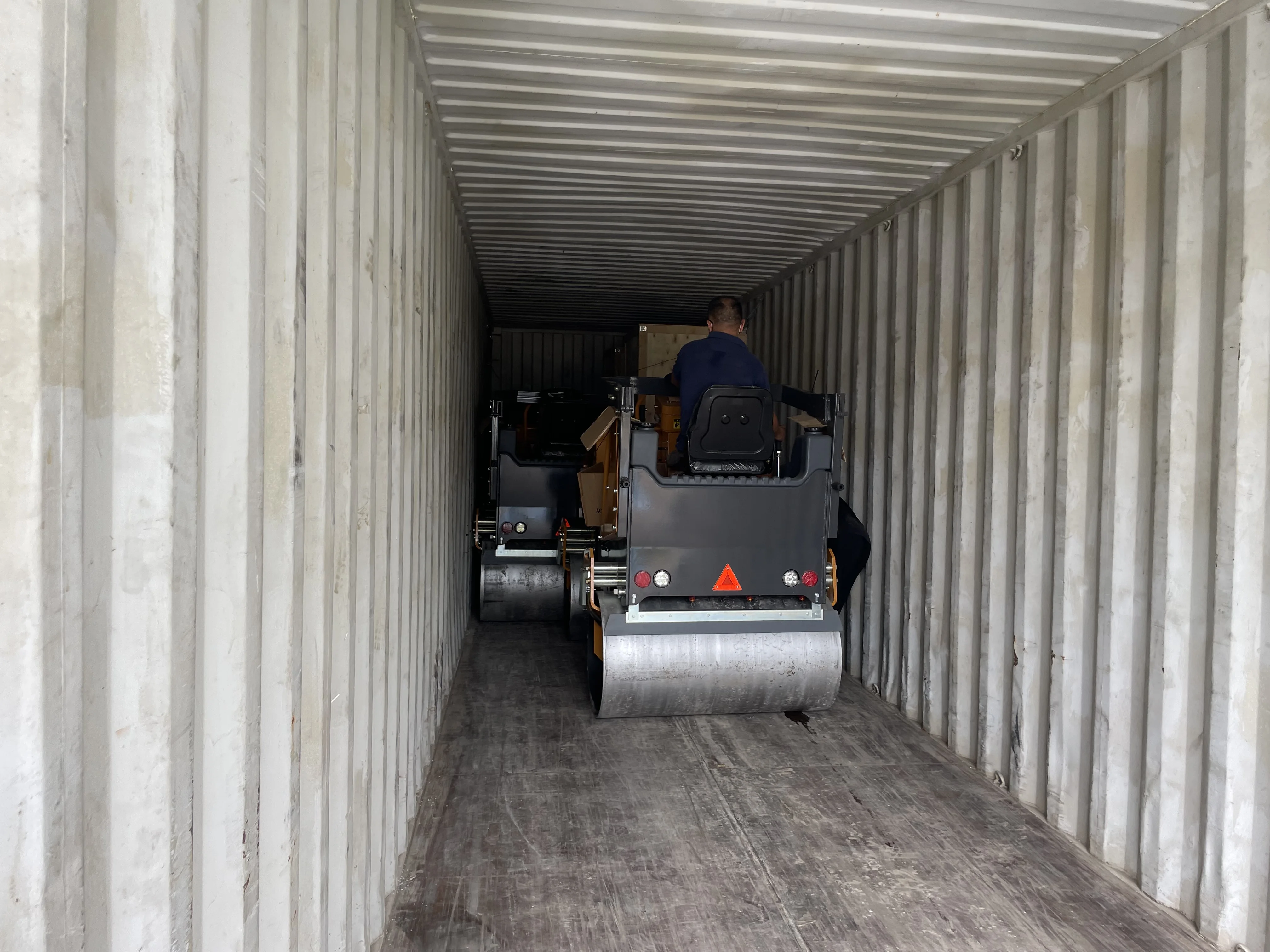

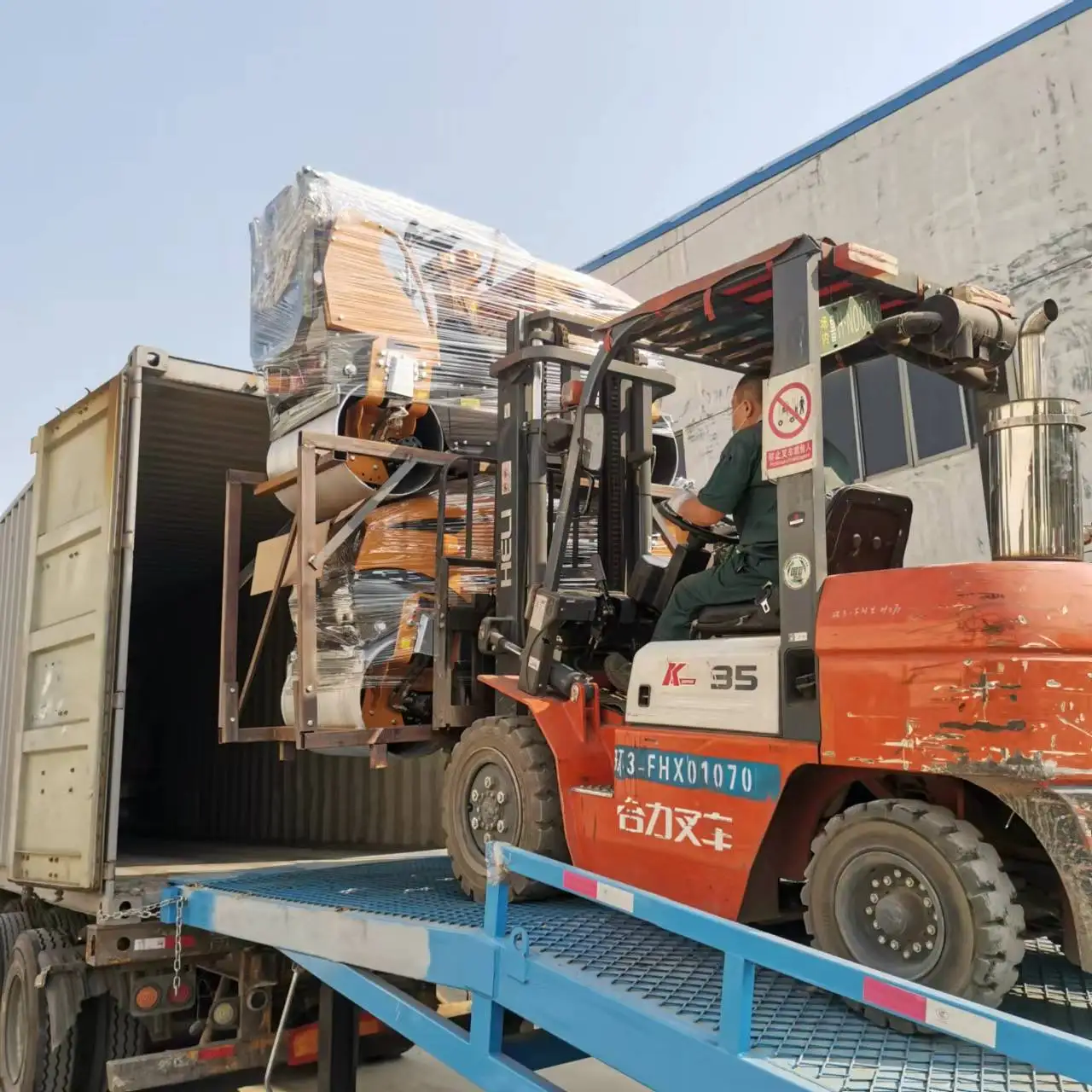

Packing & Delivery

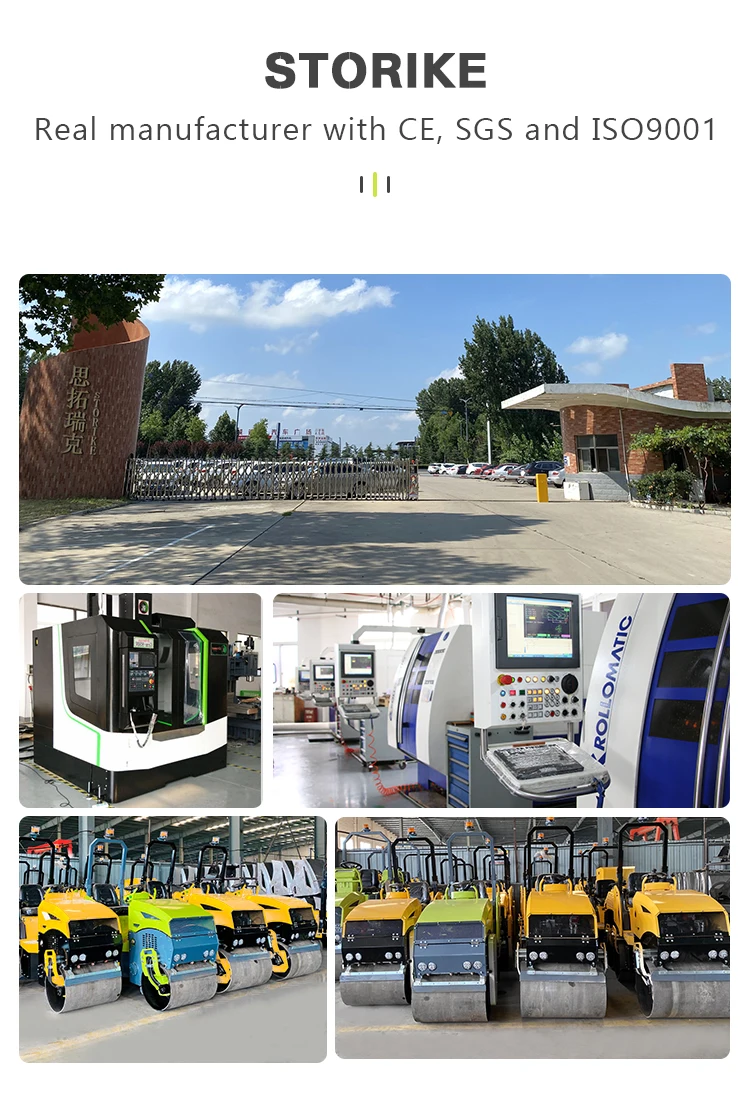

Company Profile






Shandong Storike Engineering Machinery Co., Ltd. was one of the top three small road roller manufacturer in China, located in Jining city, Chinese construction machinery production base. Our company was established in 2011, covered an area of 6,000 square meters with 100,000 units annual output, had rich experience in production and sales. We have 5 major categories: compaction machinery, mobile lighting machinery, concrete machinery, pavement maintenance machinery and hydraulic machinery. Road roller, mobile lighting tower, concrete scarifier, and hydraulic equipment was our hot-selling product.
Our company has passed ISO9001 and SGS certification, and some products got CE certificate. Products were exported to more than 50 countries and regions such as USA, Canada, Columbia, Philippines, India and etc. For the domestic market, we have distributors in every area of China.
"Integrity, tolerance, innovation, service" is our philosophy. STORIKE believed that Integrity is the foundation of all cooperation. Tolerance is the prerequisite for solving problems. Innovation is the tool for development. Service is the foundation for creating value.
We also do ODM and OEM for trading companies. Welcome friends from all over the world to our company for visiting and cooperation.
