Best Mini Slant Bed CNC Lathe Automatic Machine Tool Price From China Supplier

Share on (1600643107979):


Price:$20,000.00 - $26,900.00

Quantity:


Product Overview

Description



Product Description






Specification


Specification
CK32
CK36
CK40
CK50
Max swing over bed
320mm
360mm
400mm
500mm
Max swing over slide
160mm
160mm
220mm
320mm
Max processing length
350mm
350mm
450mm
550mm
Max cutting diameter
200mm
254mm
360mm
420mm
Max bar diameter
40mm
55mm
55mm
80mm
Spindle speed
3500
4000
3500
2500
Spindle nose ISO form
A2-5
A2-5
A2-5
A2-8
Through hole diameter
41mm
56mm
56mm
56mm
Chuck diameter
160mm
200mm
200mm
250mm
Motor power(servo)
3.7kw
3.7/5.5kw
3.7/5.5kw
5.5/7.5/11kw
Body structure
30°(integrated)
30°(integrated)
45°(integrated)
45°(integrated)
X axis travel
200mm
200mm
210mm
260mm
Z axis travel
350mm
350mm
450mm
550mm
X/Z axis rapid speed
24/24 m/min
24/24 m/min
24/24 m/min
24/24 m/min
Type

63-8T
80-8T
100-8T
Tool size
20*20mm
20*20mm
20*20mm
25*25mm
Tailstock sleeve diameter

52mm
52mm
75mm
Tailstock sleeve travel

60mm
60mm
100mm
Tailstock sleeve taper

MT4
MT4
MT4
Processing precision
IT6
IT6
IT6
IT6
Reposition precision
X:0.006, Z:0.008
X:0.006, Z:0.008
X:0.006, Z:0.008
X:0.006, Z:0.01
Roughness
Ra.≤0.8
Ra.≤0.8
Ra.≤0.8
Ra.≤1.25
Weight
2200kg
2700kg
3500kg
3700kg
Dimension
1.6*1.4*1.6m
1.8*1.6*1.6m
2.8*1.6*1.6m
3.1*1.8*1.8m

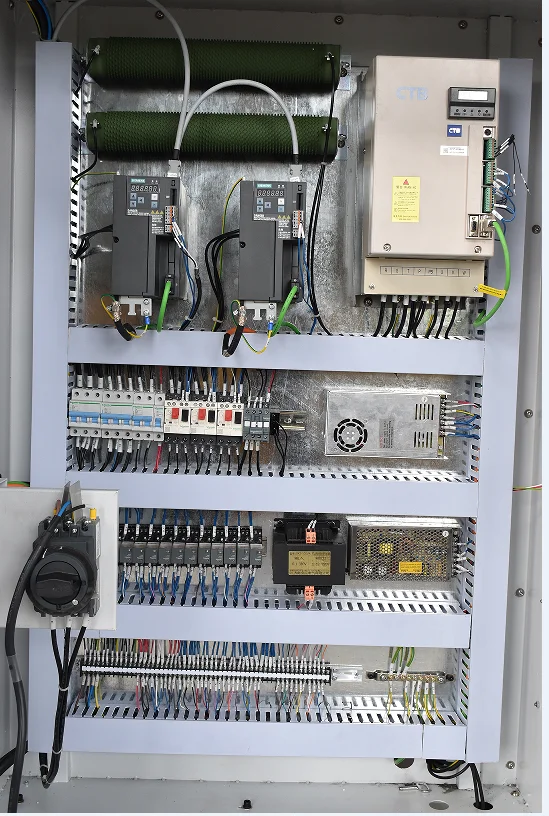

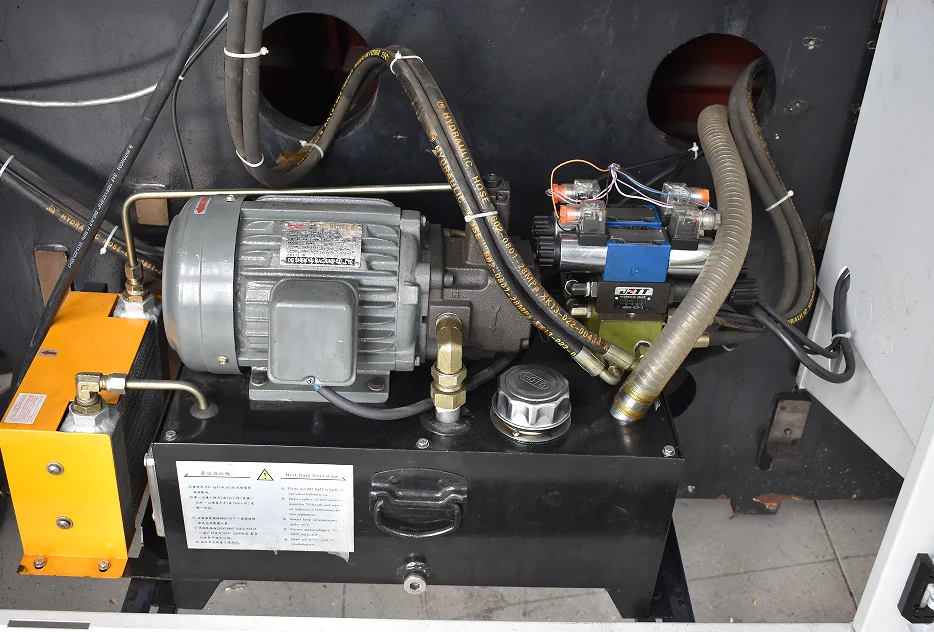

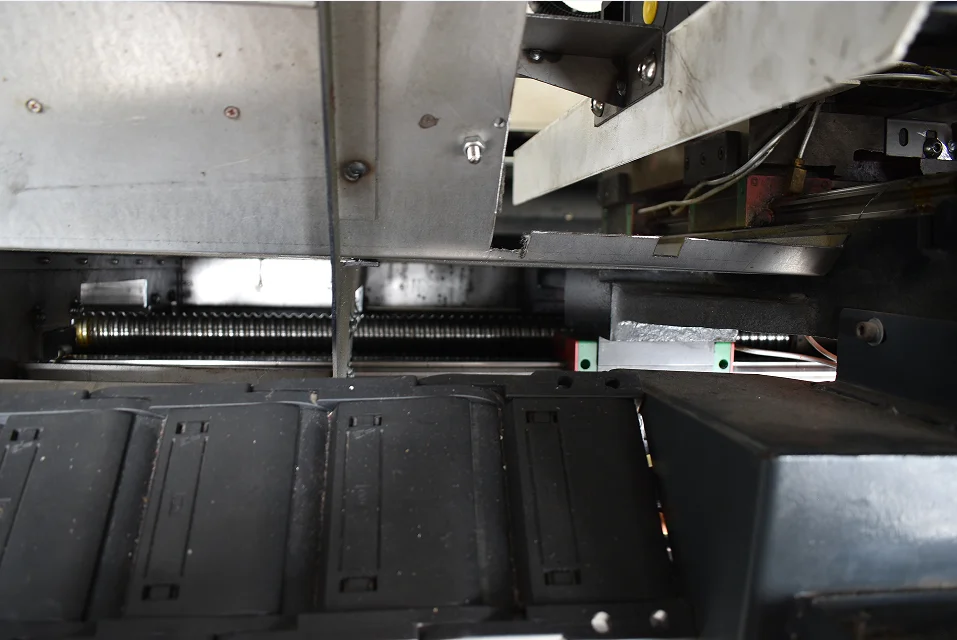

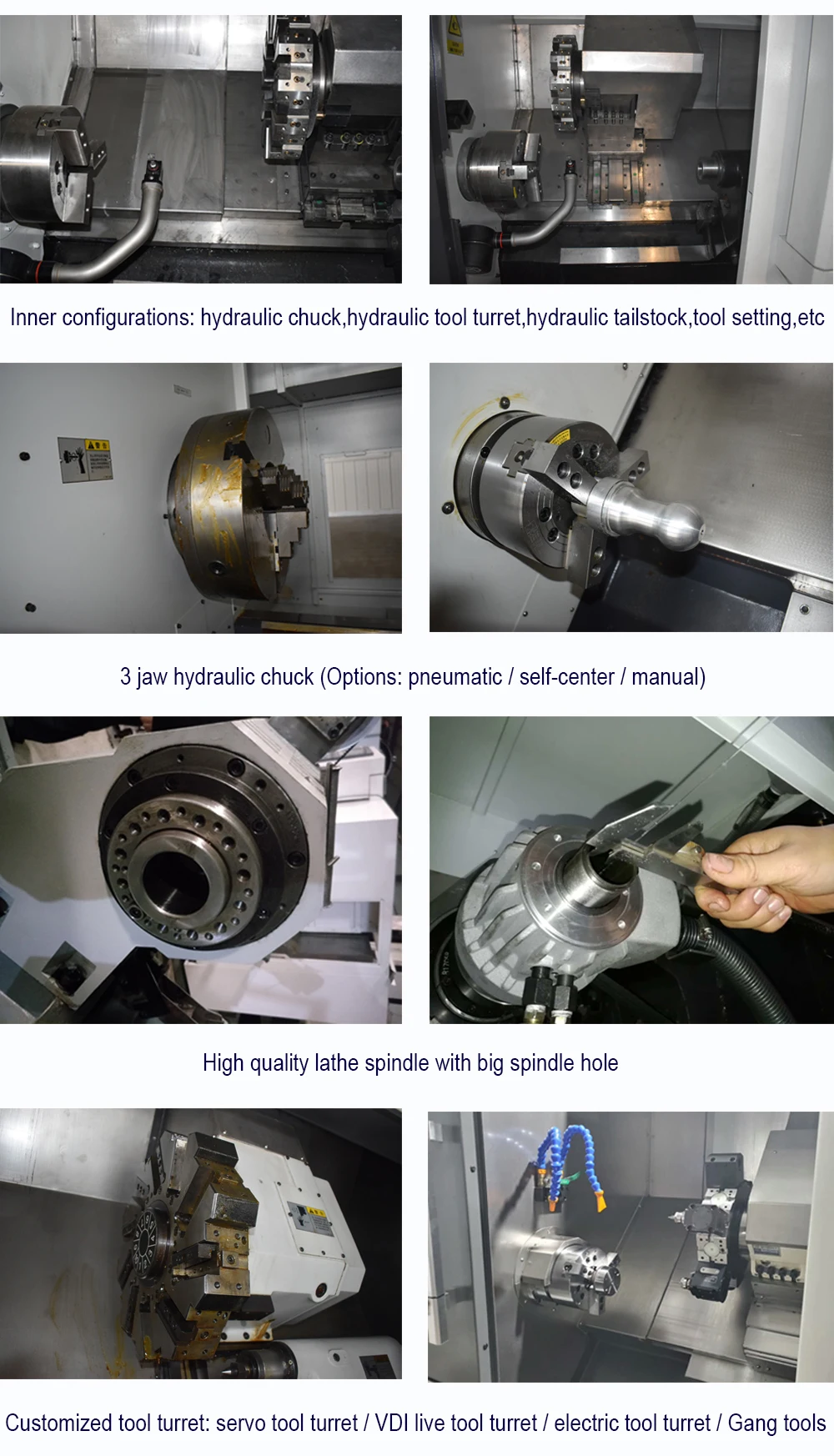

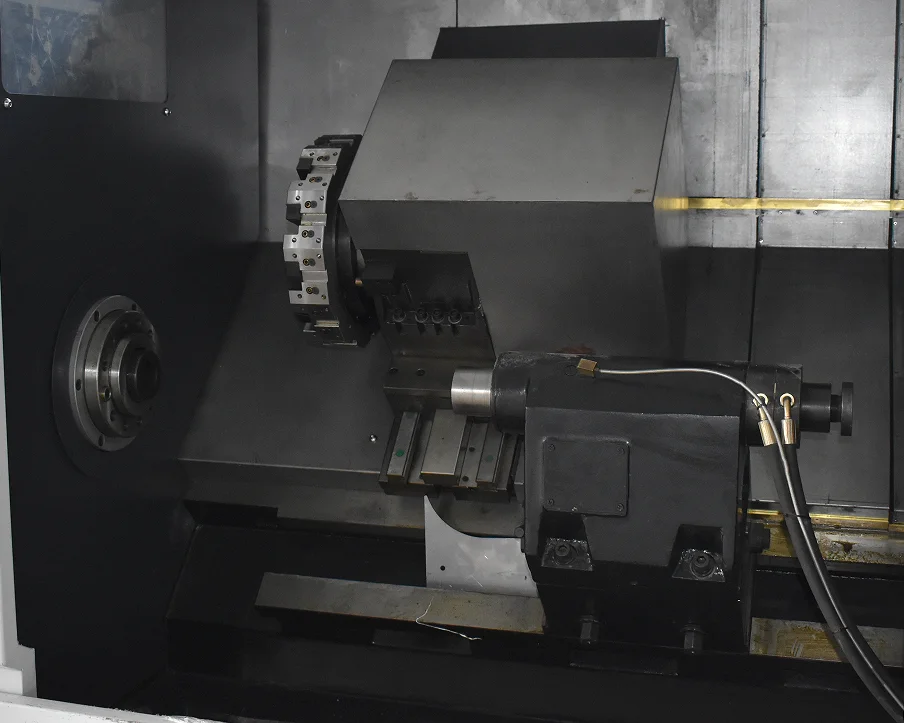

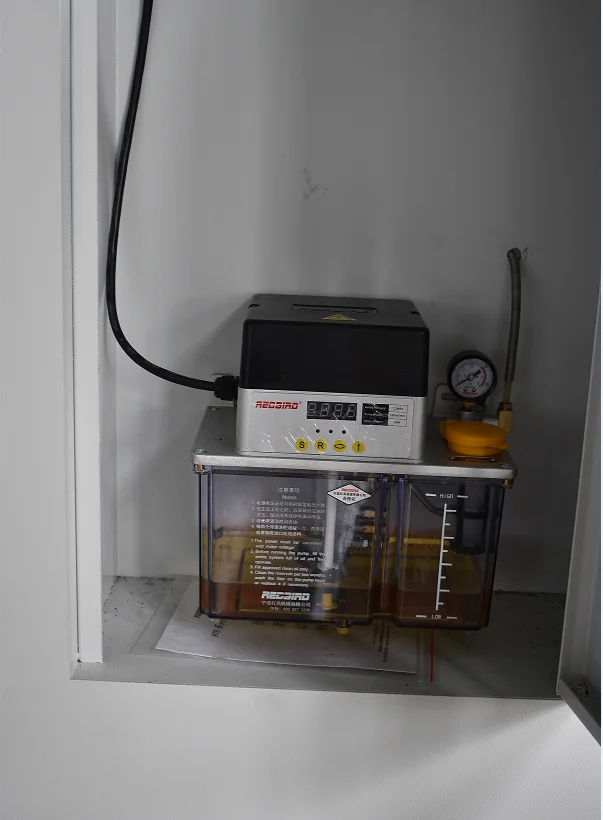

More Details Images






Packing & Delivery




Company Profile


Ji'nan Sunligh CNC equipment Co.,Ltd. is located in Shanghe District, Jinan City, Shandong Province. It was established in 2018. It acquired 63.18 mu of land through double recruitment and double introduction, with a total investment of 150 million. At present, it has built a workshop of more than 10,000 square meters. And It is a CNC machine tool enterprise integrating production, processing and sales.
The company specializes in the production of horizontal/vertical/gantry machining centers, flat-bed lathes, slant bed CNC lathes, CNC vertical lathes and other CNC machine tools, and also undertakes the finishing of various metal products and accessories. The company has excellent production equipment, advanced and reasonable technology, complete testing methods and strong technical force. The main machine tool accessories are imported from Taiwan, Japan, Germany and other countries and regions.
At present, the company's products occupy a large share in the domestic market and have a high reputation. It has established a sales and maintenance service network in various provinces and cities, and the service method is fast and efficient. In foreign countries, our products have been sold to the Americas, Southeast Asia, Russia and the Middle East and other regions, and have been well received by foreign users.
The company always adheres to customer needs and satisfaction as the core, adhering to the service tenet of "honesty and trustworthiness, customer first, pursuit of excellence", and is committed to providing high-quality, cost-effective CNC machine tools and metal accessories for domestic and foreign customers. Warmly welcome new and old customers and friends at home and abroad to visit our company and sincerely look forward to cooperating with you.






FAQ



1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.

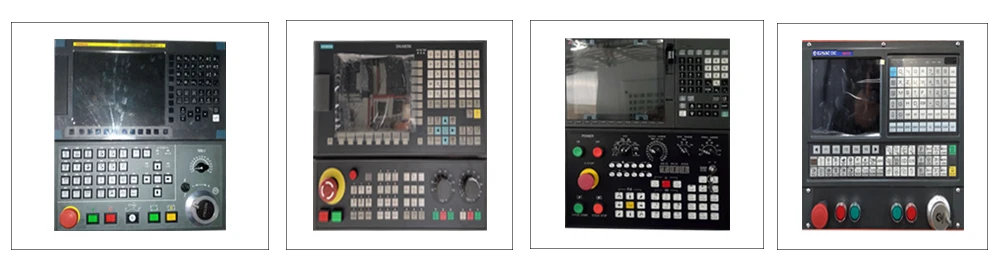

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.

3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.

4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions

5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine.
