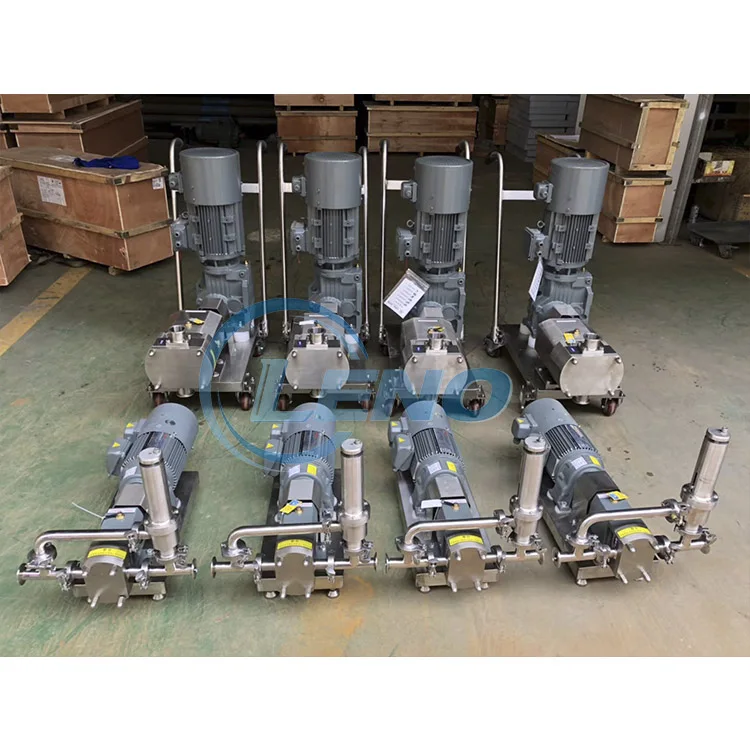

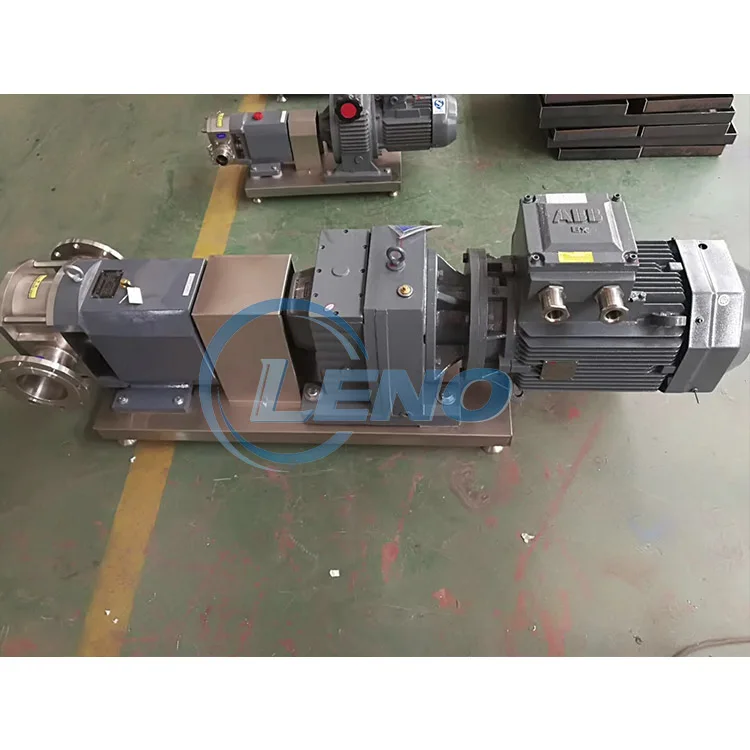

LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric
LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric

LENO Food Grade Rator Lobe Liquid Fruit Juice Transfer Pump By Electric

Share on (1600643145120):


Price:$880.00 - $890.00

Quantity:


Product Overview

Description





Products Description

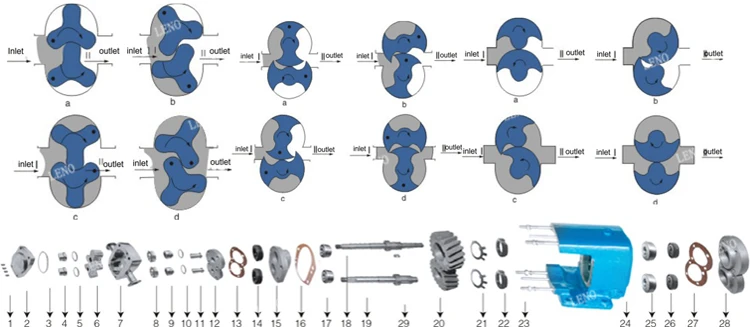

Operation Principle
Rotor pump is also named rotary lobe pump, three-lobe pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a, only housing I is filled with medium. when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transpor-ted continuously.


Application:
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.


Profile type
Sanitary stainless steel rotor rotary lobe pump for syrup shampoo chocolate viscosity
material
SS304 or SS316L
Capacity
0-100T (Customized)
Pressure
0-8bar
Viscosity
1-1000000pas
rotors type
butterfly rotors/Trefoil rotor
temperature
0-200 celsius degree
relief valve
NO
0-3bar
mechnical seal type
Sinlge mechanical seal
Double flushed mechanical seal
connection type
Clamp
Union
Flange
Inlet outlet direction
Left and right or Up and down
Jacket
No
hotwater
motor type
Normal
Planetary
inverter
Speed
0-1000RPM




Technical Parameters
Model
Capacity/Per centum rotate (L)
Speed(RPM)
Flow(L/H)
Power(KW)
LNP-3R
3L
100-500
300-800
0.55
LNP-6R
6L
100-500
650-1600
0.75
LNP-8R
8L
100-500
850-2160
1.5
LNP-12R
12L
100-500
1300-3200
2.2
LNP-20R
20L
100-500
2100-5400
3
LNP-30R
30L
100-500
3200-6400
4
LNP-36R
36L
100-500
3800-7600
4
LNP-52R
52L
100-500
5600-11000
5.5
LNP-66R
66L
100-500
7100-14000
7.5
LNP-78R
78L
100-500
9000-18000
7.5
LNP-100R
100L
100-500
11000-22000
11
LNP-135R
135L
100-500
15000-30000
15
LNP-160R
160L
100-500
17000-34000
18.5
LNP-200R
200L
100-500
21600-43000
22
We can customize the equipment according to customer requirements.

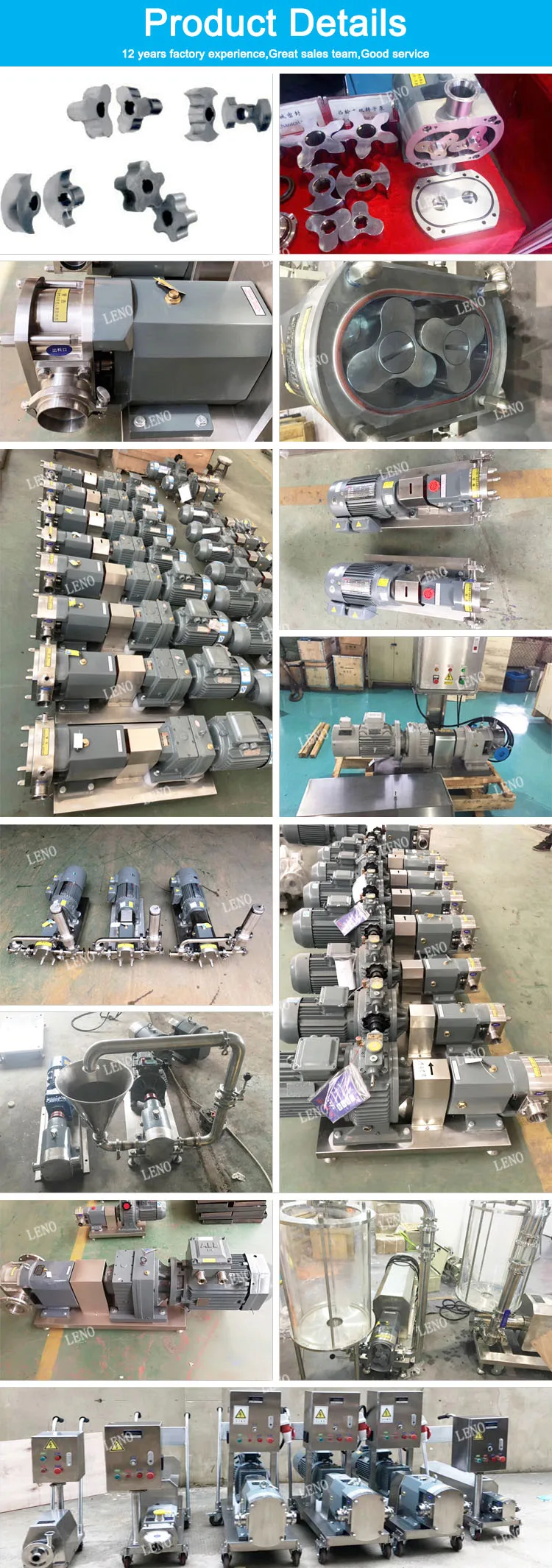

Details Images
