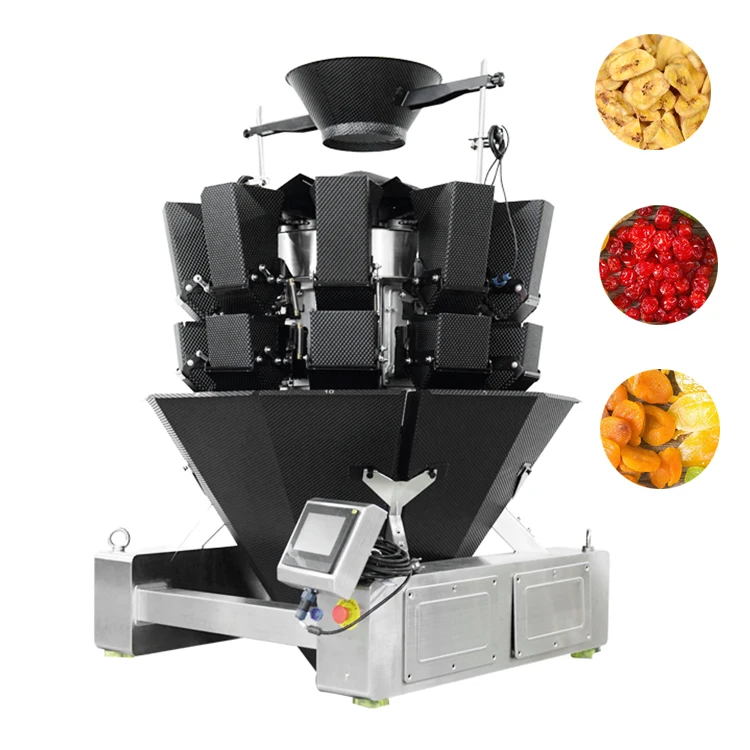

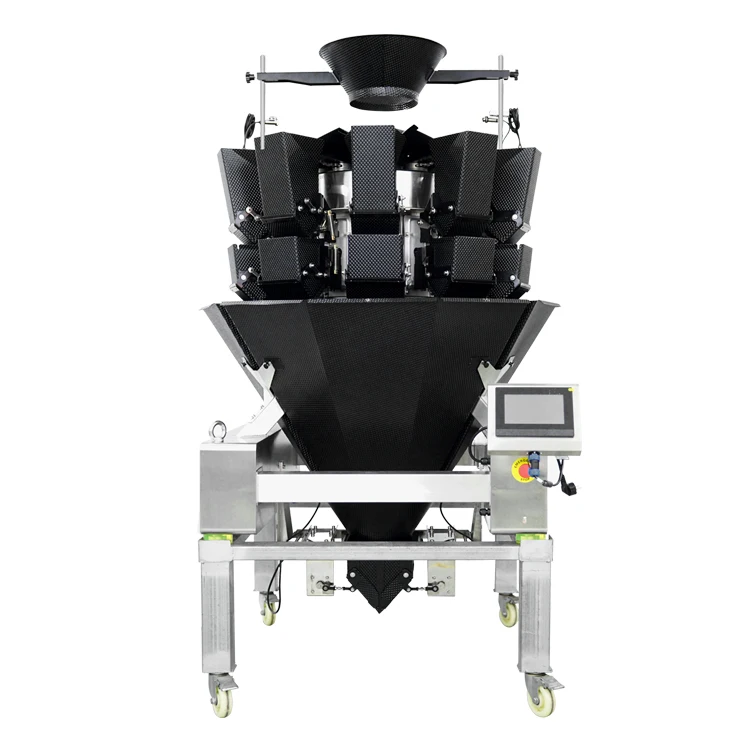

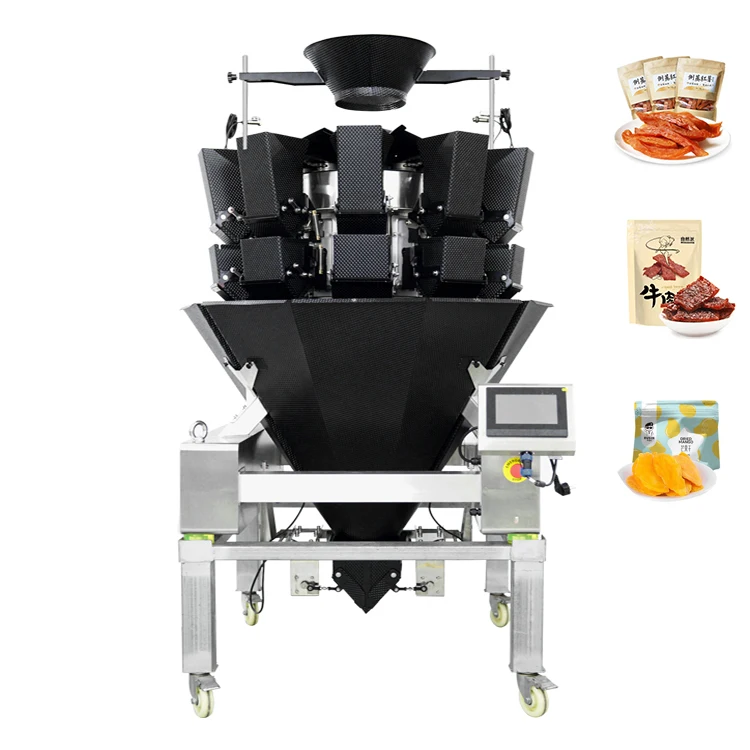

multi function food packaging machine noodle chocolate beens multihead weigher packing machine
- Category: >>>
- Supplier: Zhongshan Combiweigh Automatic Machinery Co. Ltd.
Share on (1600643176239):
Product Overview
Description
Products Description
Application

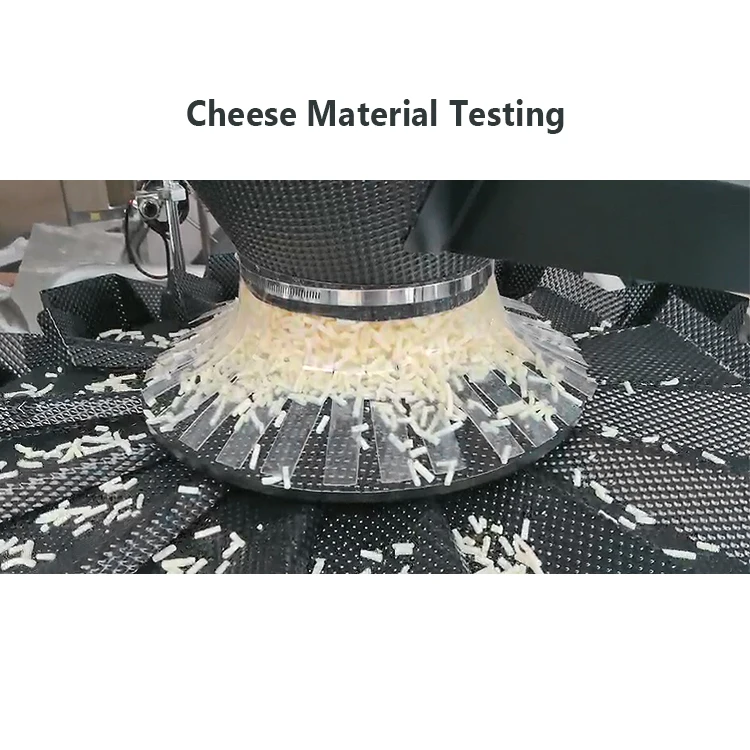

It is suitable for weighing of soft and stickymaterial, such as cheese, jelly candy, cottoncandy,preservedfruits,candied fruit,etc.Speed-adjustable rotating top cone, suitable for different product feeding.
Can better let sticky products slide down to the feed hoppers and the weigh hopper;
High speed staggered dumping function, and effectively prevent blocking materials;
Mold hoppers can be change with each other;
Modular control system, AD cards no need Number, can be interchangeable;
The software versatility, strong compatibility, different weighers using the same control system;

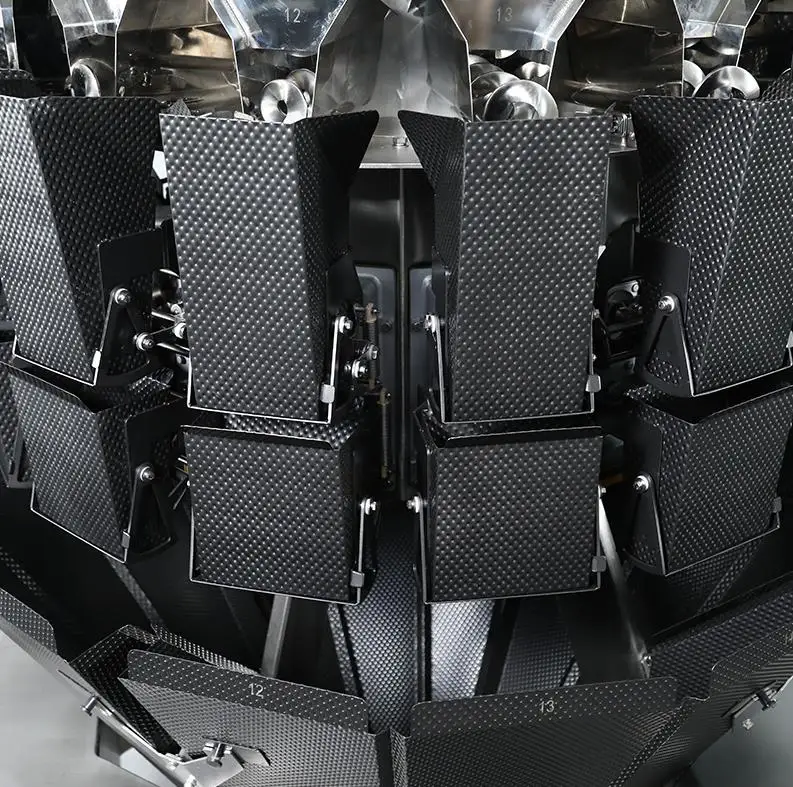

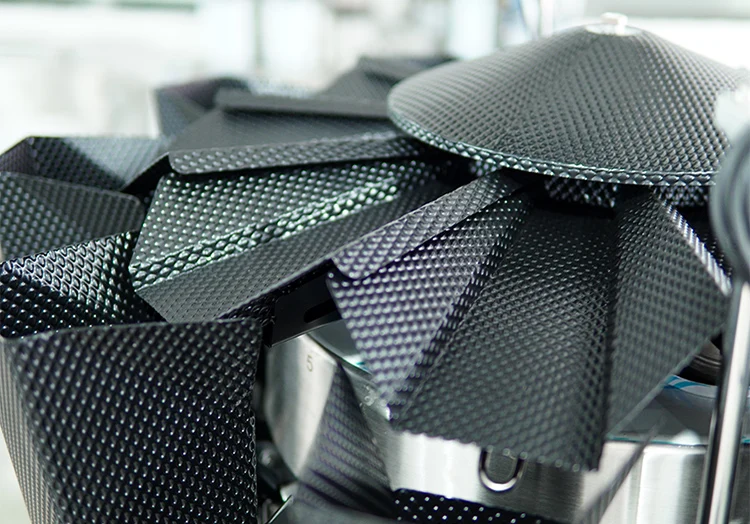

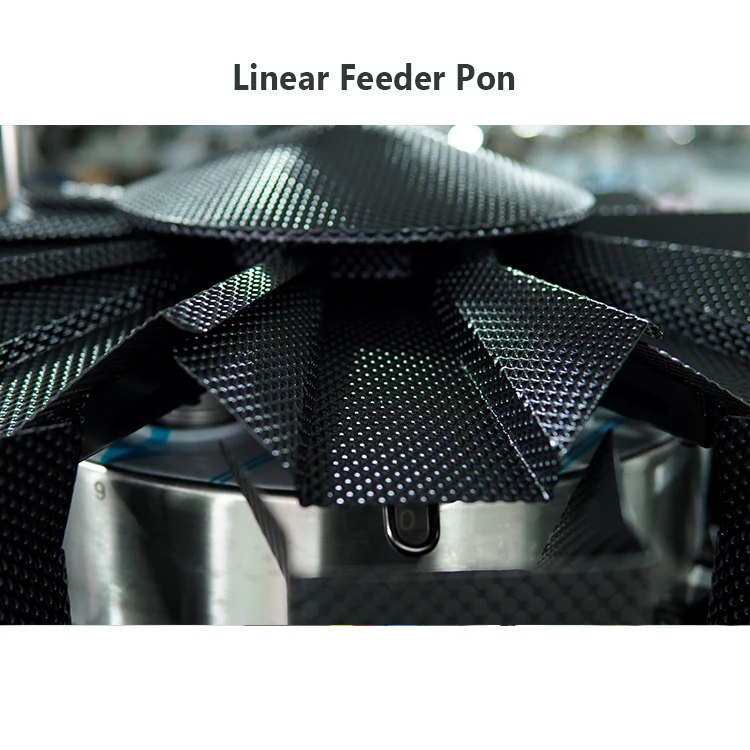

Dimple plates can avoid the sticky products from sticking in the feed hopper or weigh hopper.
Spray Teflon on the part in contact with the food can double guarantee that the material will not stick in the hopper.

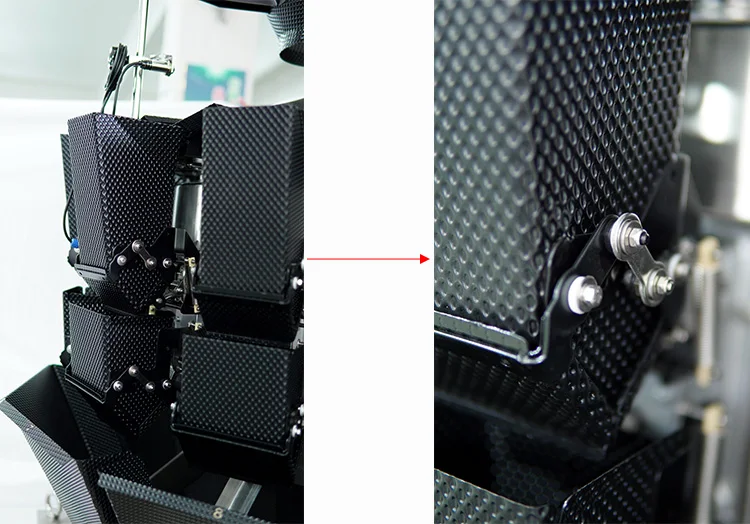

Scraping hoppers can prevent the food from sticking on the door of the hopper.
Product Parameter
Model | CBW-1A10(25) |
Single Weighing range | 10-1000 g |
Avg. Accuracy | 0.5~2 g |
Max.speed wpm | 60 wpm |
Control panel | 7 inch color touch screen |
Hoppers Volume | 2.5L (double-door), dimple plate |
Construction material | 304 Stainless Steel |
Driving system | Step Motor |
Control system | Modular control system |
Power requirement | AC 220V/110V ±10% 50Hz(60Hz)1KW |
Options | plain plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device/9.7’touch screen |

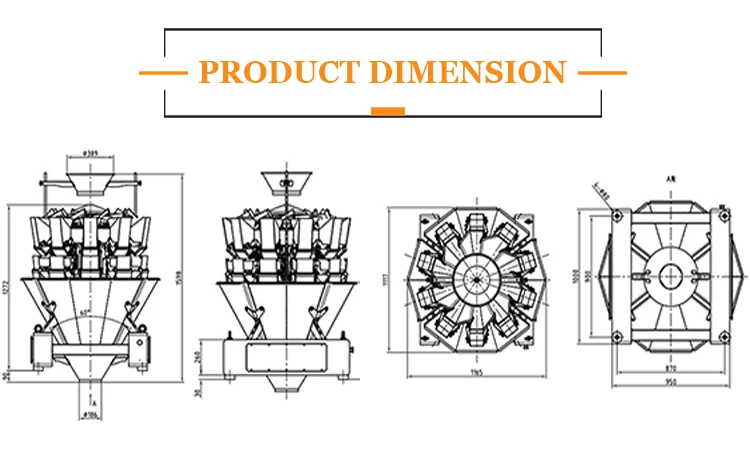

Packaging dimension (mm) | L1590*W1040*H1290mm |
Our Advantages
Drive boards
Independent drive board for each weight unit.
Modular AD cards
Modular AD cards are no need number by manual;
it can be changed with each other directly, even between different weighers.
Touch screen
Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.
Optional Products
Z-type bucket conveyor
It can elevated the materials to the multihead weigher. It is more suitable for small granule, such as, rice, sugar, beans, candies, etc.
Inclined conveyor
It can elevated the materials to the multihead weigher. It is usually suitable for big materials, such as, meat balls, potatoes, etc.
Working platform
It is easy for people to observe the operation of the multihead weigher and it is easy to clean the machine on the platform.
Take-away conveyor
Transfer the finished product out.
About Us
FAQ
Q: ls Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including working, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
