China Single Phase 30A 72*72 96*96 96*48 48*48 LED digital AC Panel Meter Ammeter
Digital panel meters are used in many automation and process control applications for industrial monitoring and control, with the features of high precision, good stability, direct reading, strong anti-interference ability, nice appearance and easy to install. It is important to monitor and control variables such as current, voltage, power, frequency, ect. A digital panel meter can perform these functions and more.



Dimension (unit: mm)
| Shape | Panel dimension | Case dimension | Cutout hold dimension | ||||
| W | H | W | H | D | W | H | |
| 120x120 Square | 120 | 120 | 110 | 110 | 83 | 112 | 112 |
| 96x96 Square | 96 | 96 | 90 | 90 | 83 | 92 | 92 |
| 80x80 Square | 80 | 80 | 74 | 74 | 83 | 76 | 76 |
| 72x72 Square | 72 | 72 | 66 | 66 | 83 | 68 | 68 |
| 48x48 Square | 48 | 48 | 44 | 44 | 73 | 45 | 45 |
Installation

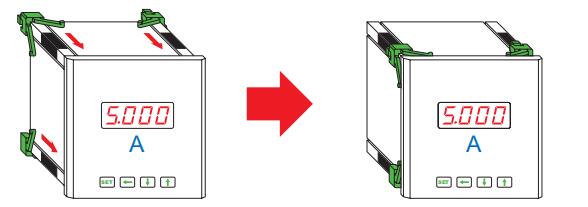

Choose the corresponding hole cutout dimension from the table above, make a hole in the installation screen, insert the instruments into the hole, place the four clamping pieces into the clamping holder and push and tighten them by hand.

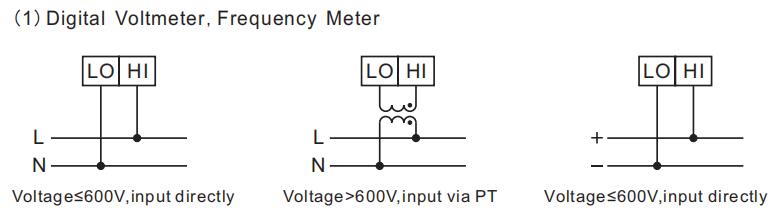

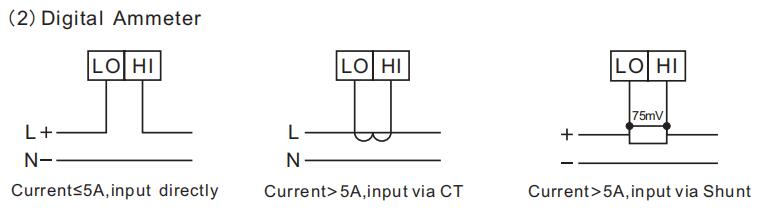

Connection

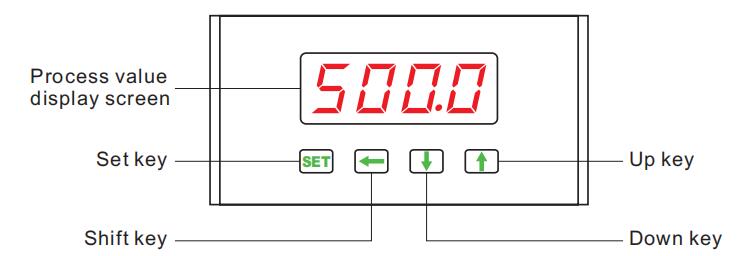

Panel Description

1. Two clamping kits for flush mounting, user can complete the installment easily without tool.
2. A complete operating instruction manual included with each meter.
