JCW 2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery
JCW-2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery

JCW 2TC Super mute wire stripping and crimping machine semi automatic rj45 cable machinery

Share on (1600643434976):


Price:

Quantity:


Product Overview

Description







Model

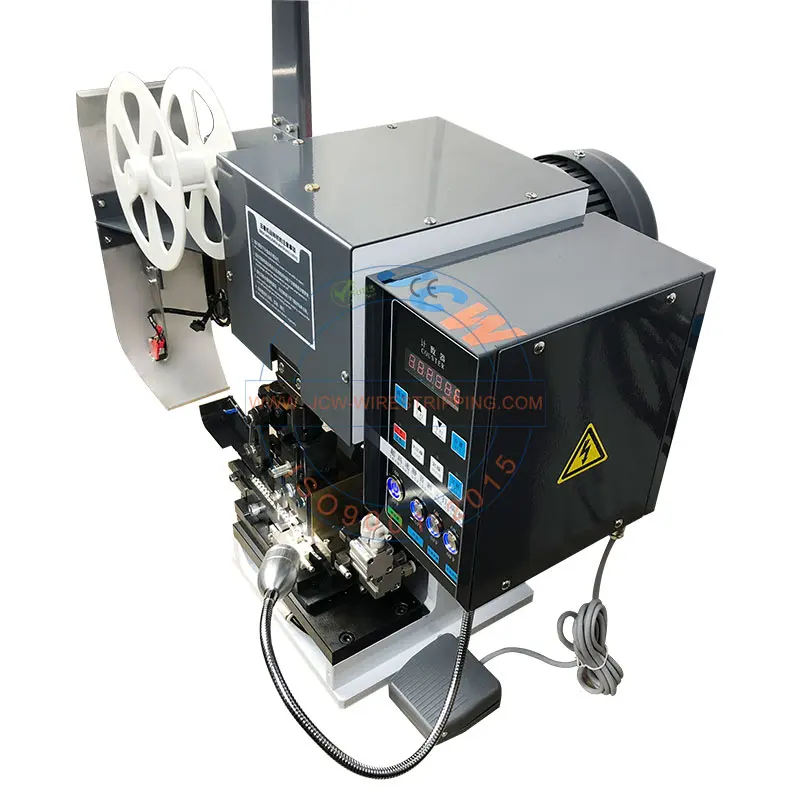

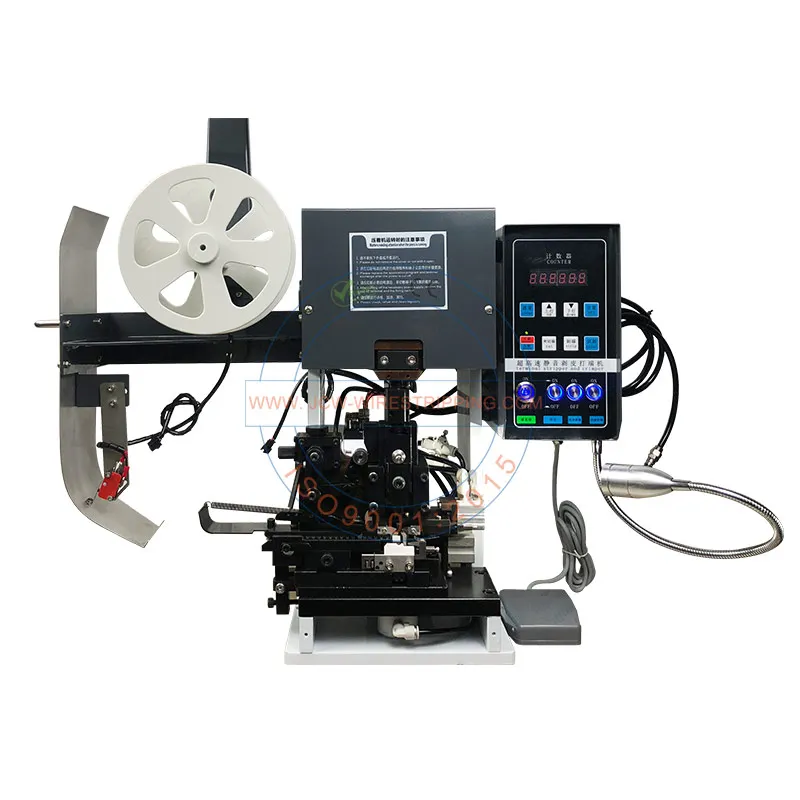

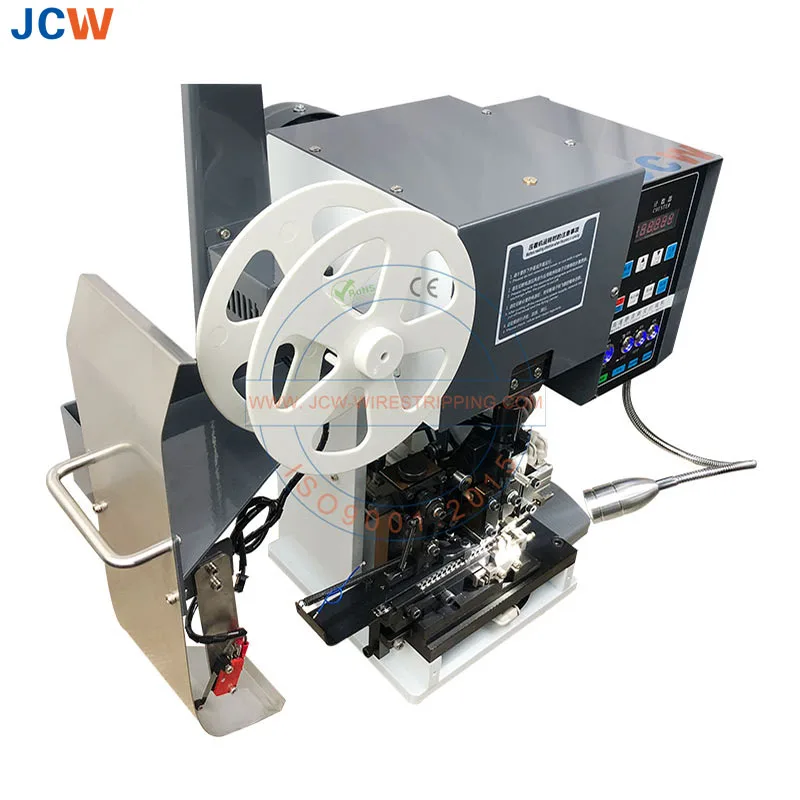

JCW-2TC Automatic Wire Stripping and Crimping Machine
Function

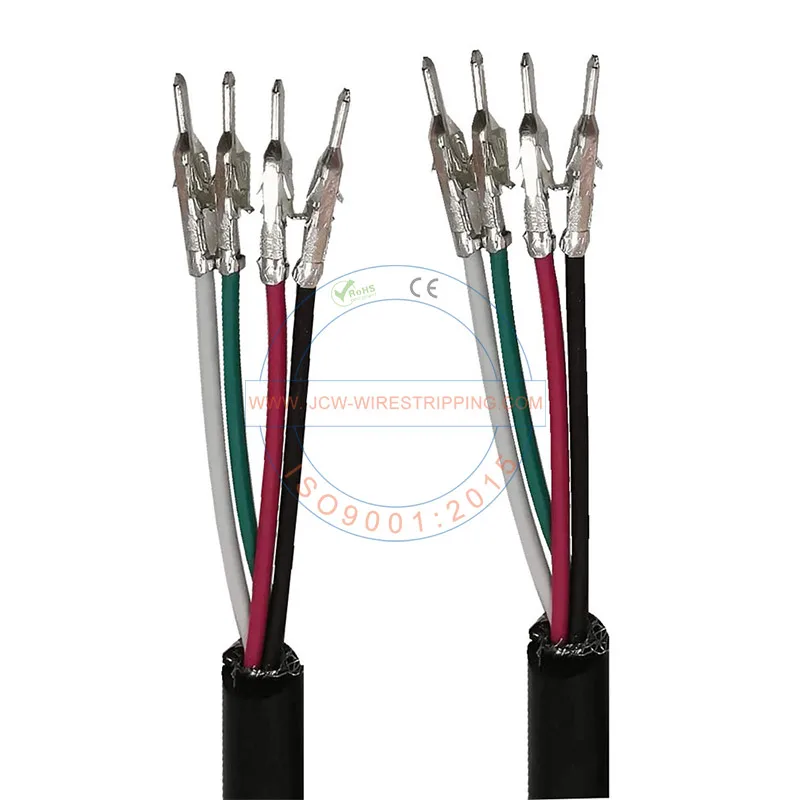

Single wire, Multiconductor cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal
Raw material
PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force
1.5 tons [ 2 tons on request ]
Conductor cross-sections
0.03 - 0.75 mm² [ AWG 32 - 18 ] [ 2 mm² on request ]
Stripping length
1 - 10 mm
Stroke
30 mm
Rated power
450 W
Power supply
AC 220 V ± 10%, 50 / 60 Hz
Air supply
0.3 - 0.6 MPa ( clean and dry air )
Dimensions
L 600 x W 400 x H 850 mm
Weight
68 KG
CE-Conformity
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.







Side-feed terminal

1.5 tons crimping force

2 tons and 3 tons on request

Wire range AWG 32 - 18 [ Customizable ]
Extendable to AWG 14 [ Customizable ]

Effective solution for ultra-fine wires

Semi-automatic wire stripping and terminal crimping machine,all finish in one cycle.
