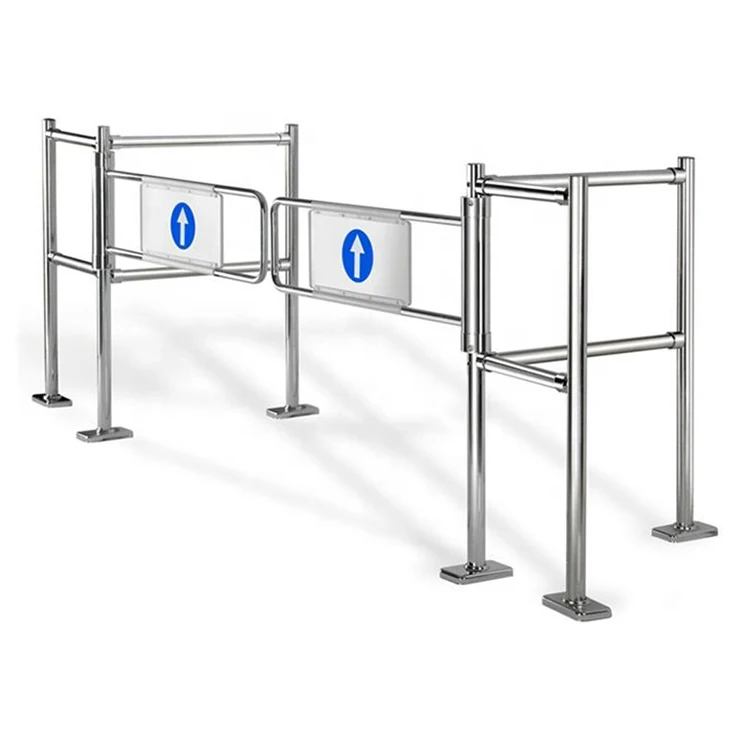

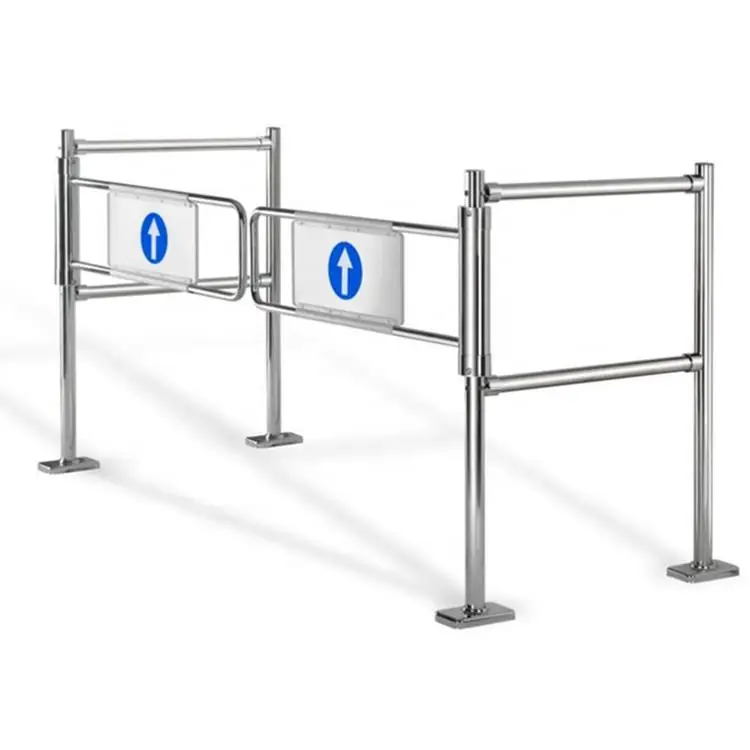

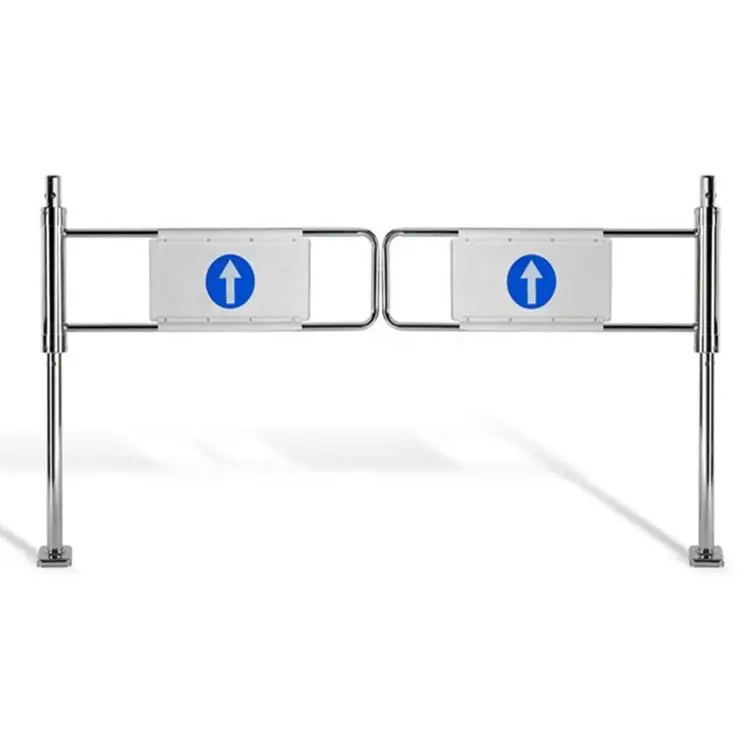

Security Barrier Supermarket Entrance Access Control System Manual Swing Gate
- Category: >>>
- Supplier: Shanghai Suyuan Commercial Equipment Co. Ltd.
Share on (1600643446169):
Product Overview
Description
Product Information
Security Barrier Supermarket Entrance Access Control System Manual Swing Gate | ||
Brand Name | OEM | |
Material | Stainless steel | |
Open Style | Swing | |
Surface treatment | Mirror chrome | |
Power supply voltage | AC220 ± 10%V, 50HZ | |
Mechanical Gate
This mechanical gate offers an extremely effective yet economical access security solution. As reliable as it is practical, the mechanical gate is designed to be used in areas to positively indicate the entrance/exit flow and particularly suited where maximum security is not required.
This mechanical gate offers an extremely effective yet economical access security solution. As reliable as it is practical, the mechanical gate is designed to be used in areas to positively indicate the entrance/exit flow and particularly suited where maximum security is not required.
The gate is designed to be open through 90 degrees and return to the closed position under spring tension. A standard feature of these gates is the ability to be opened in the reverse direction by firm body pressure to give an emergency exit facility. A simple adjustment negates this facility when used as a exit.

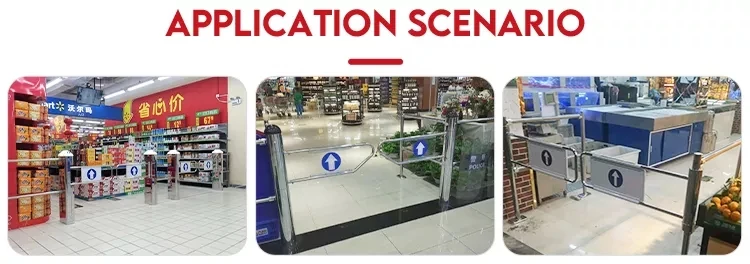

They can be used for making entrances and exits and pedestrian passageways, they can partition and block off rooms, politely direct customers from the entrance to the cash desk and provide you with a means of orientation amidst the wide range of products you stock.
Standard and optional features;
Design:
Standard and optional features;
Design:
Mild steel body in bright chrome
500 -1000mm gate arms available in 50mm increments (other lengths are available by request)
Available in either a left-hand, right-hand or bi directional configuration (bi-directional gates allow free passage through the gate from either direction, yet still closes under spring tension to ensure the gate arm is always controlled
500 -1000mm gate arms available in 50mm increments (other lengths are available by request)
Available in either a left-hand, right-hand or bi directional configuration (bi-directional gates allow free passage through the gate from either direction, yet still closes under spring tension to ensure the gate arm is always controlled
An option of a full depth arm (767mm) with perspexor white infill panel is available (picture shown represents a standard arm 260mm)
Operation:
Manual breakout facility in case of emergency (manual re-set for gate arm after breakout)
90 degree operation 90°
Manual breakout facility in case of emergency (manual re-set for gate arm after breakout)
90 degree operation 90°
Order Information:
All gates are fitted to 1060mm high uprights. Standard finish is bright chrome plate with white infill panel to arm. You need to calculate
Arm Length -Single gate: Width of gap -150mm, Facing pair of gates, Width of gap -250mm (Round either up or down to nearest supplied length)
Arm Length -Single gate: Width of gap -150mm, Facing pair of gates, Width of gap -250mm (Round either up or down to nearest supplied length)
Arm Direction -Imagine you are standing behind the supporting post of the gate, looking down the length of the arm, if someone were to walk through the gate, would it move through your left or right quadrant? If it moves through the right, a right handed gate is needed and visa-versa.
Gate Arm = 750mm -150mm = 600mm
Gate Arm = 750mm -150mm = 600mm
Select type of gate required. Calculate gate arm length (available in 500mm—1000mm in 50mm increments). Ascertain gate arm direction (Left hand, righthand, bi-directional). Order fixings separately. Recommend 4xM10x80 rawlbolts for standard floors
