WSFM C Single side high speed microcomputer normal Paper/PP/PLA/PE extrusion laminating and coating machine
- Category: >>>
- Supplier: Wenzhou Winrich Machinery Co. Ltd.
Share on (1600643461772):
Product Overview
Description
Product Description

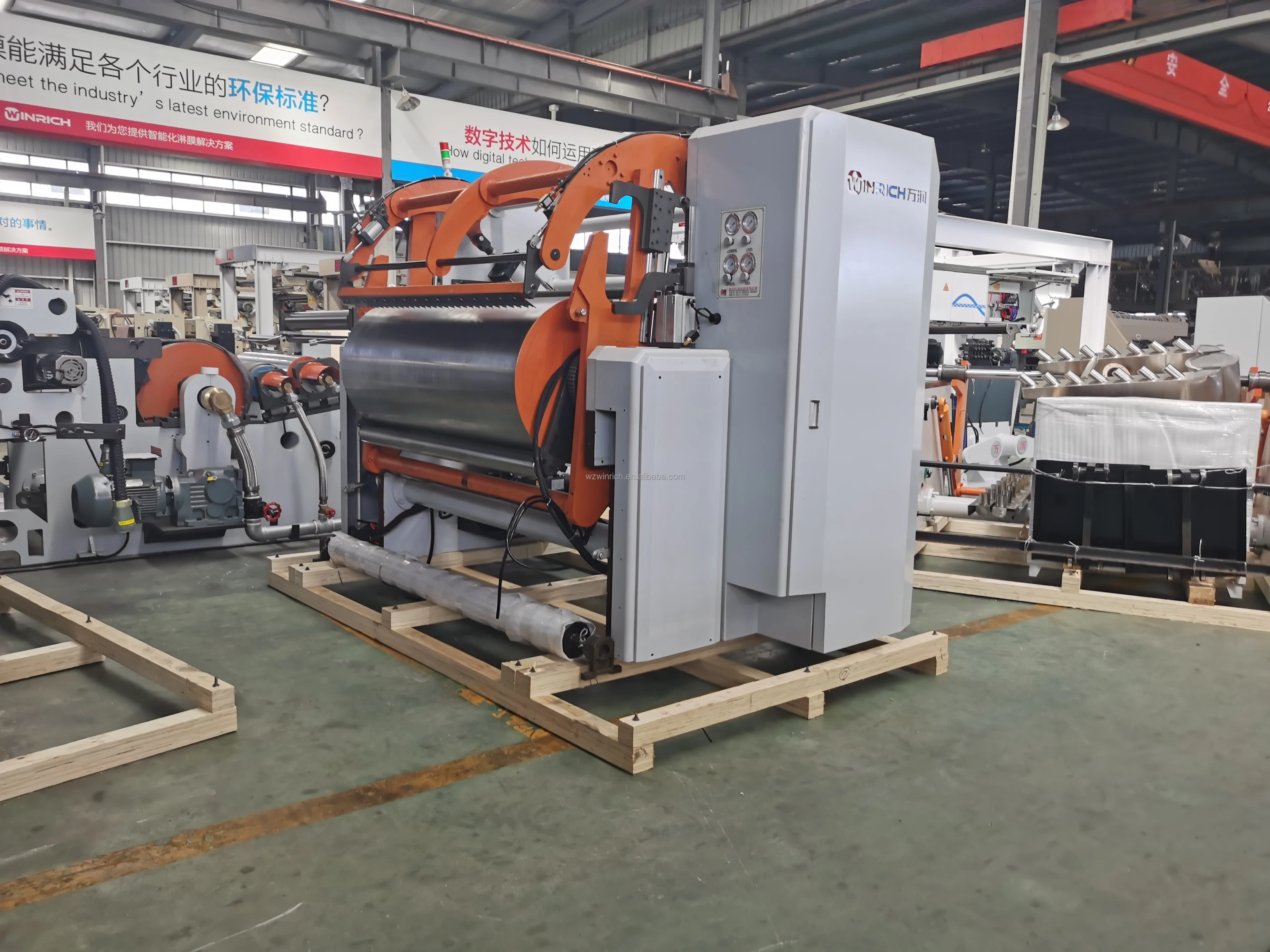

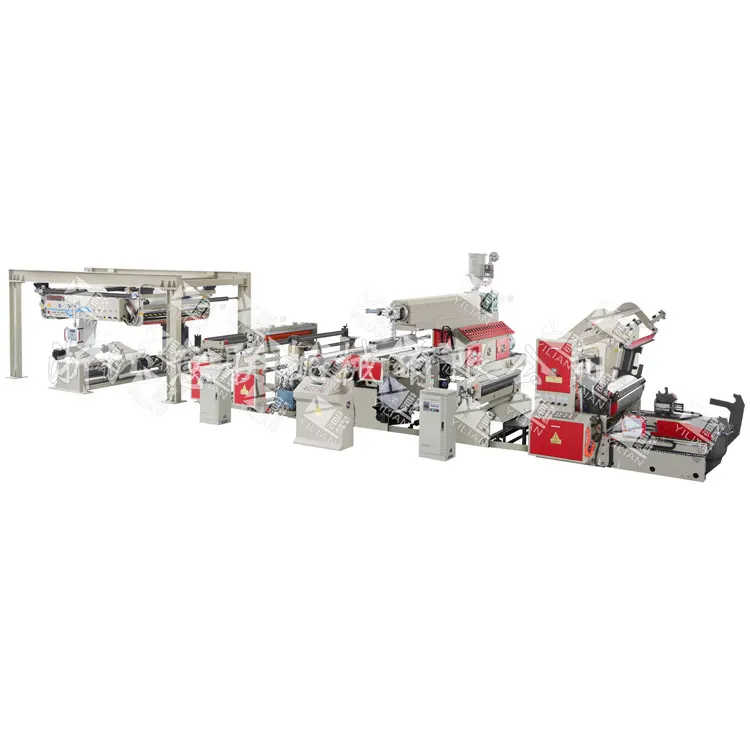

YILIAN WSFM series High speed Extrusion coating and laminating machine
WSFM Models coating and lamination machine suitable to coat paper start from 70gsm-400gsm ,lower than 70gsm and over 400gsm should be customized .
Machine speed maximum 200m/min without decrease speed to change materials .So far it is the most popular in cup paper business field and craft paper
For food packages business field .
Technical parameter:
machinery specification | 1100/90mm,1300/100mm ,1500/105mm, 1800/110mm |
speed of coating film | 150m/min,180m/min,200m/min |
suitable coating resin film | LDPE,PP EVA ,EAA |
suitable base material | BOPP,BOPET,BOPA,CPP,CPE,PAPER,AL |
width of coating film | 1100mm,1300mm,1500mm,1800mm |
thickness of coating film | 0.012~0.1mm |
inaccuracy thickness of coating film | ≤±5% |
complex cooling roller | Φ500mm,Φ600mm,Φ700mm |
screw specification | (L/D)Φ90:33,Φ100:33,Φ105:33;Φ110:33 |
main unwinding diameter | Φ800-1500mm |
diameter of auxiliary unwinding | Φ500mm |
diameter of rewinding | Φ800-1700mm |
