Factory Supply Ultrasound Measurement Ultrasonic Intensity And Frequency Meter

Product Overview

Description

Factory Supply Ultrasound Measurement Ultrasonic Intensity And Frequency Meter

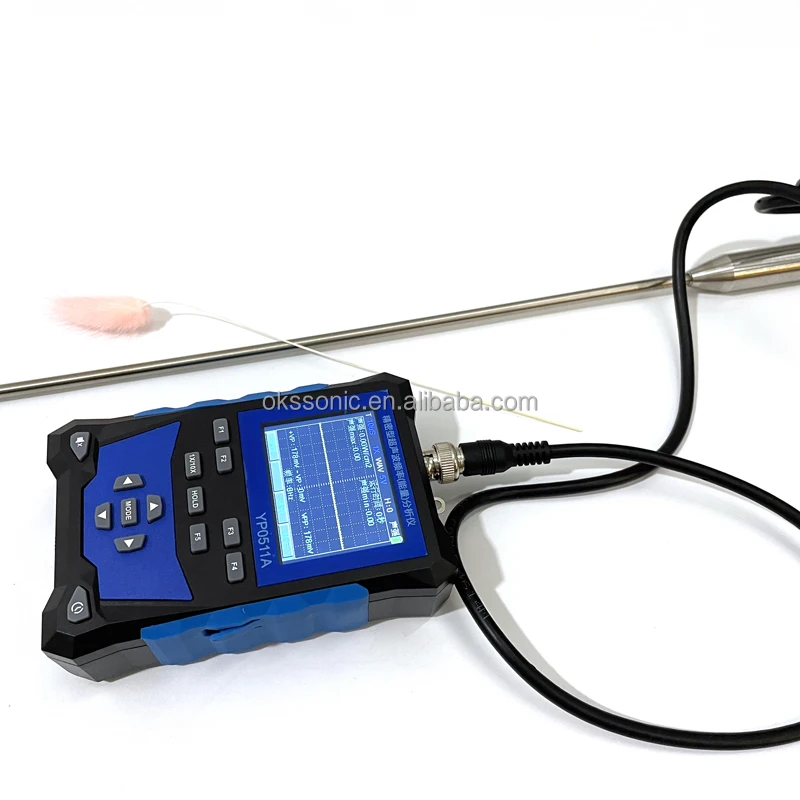

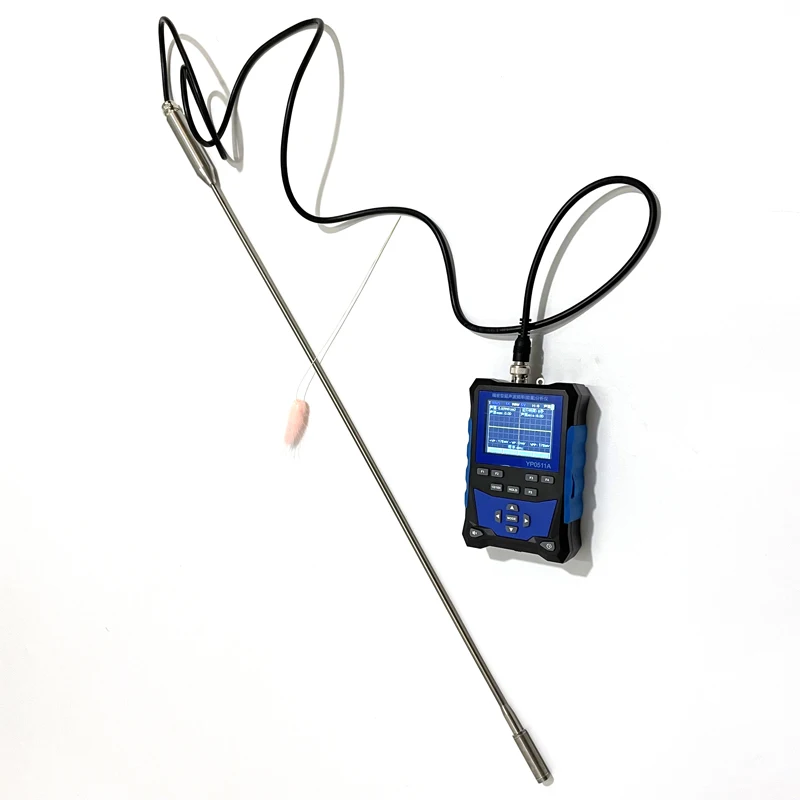

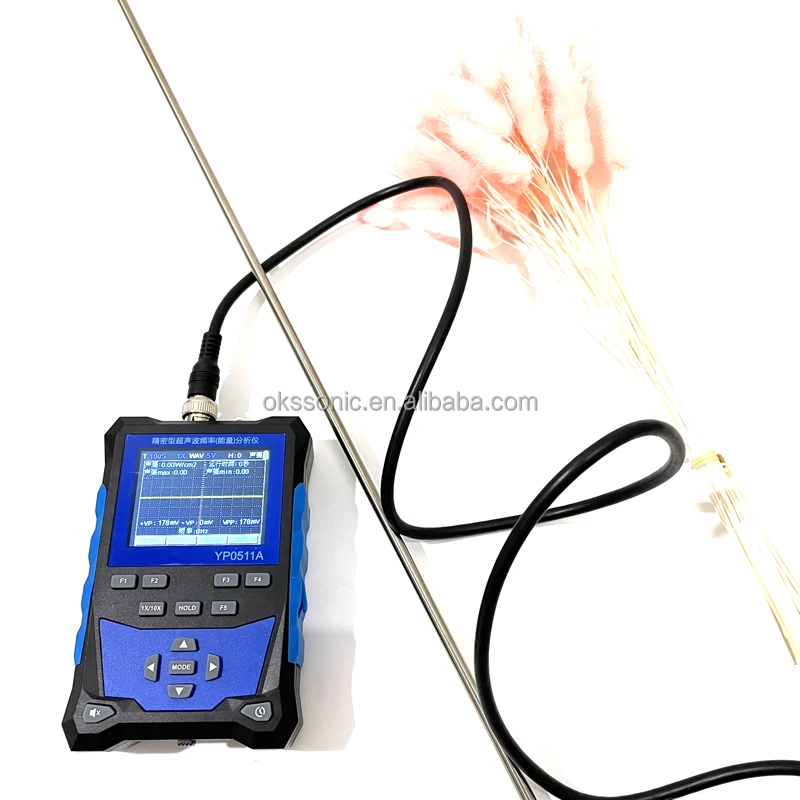

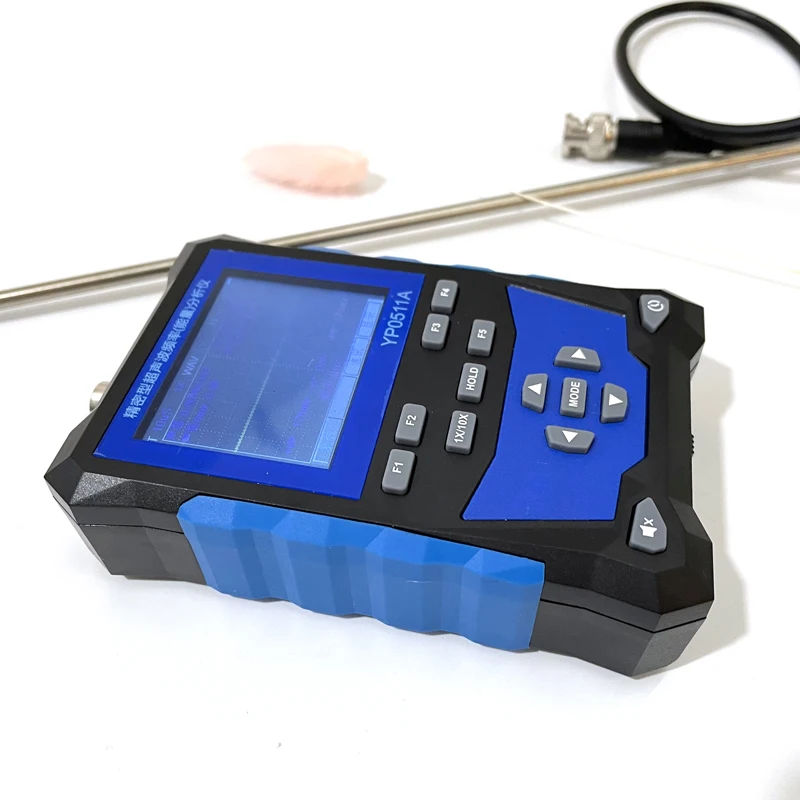

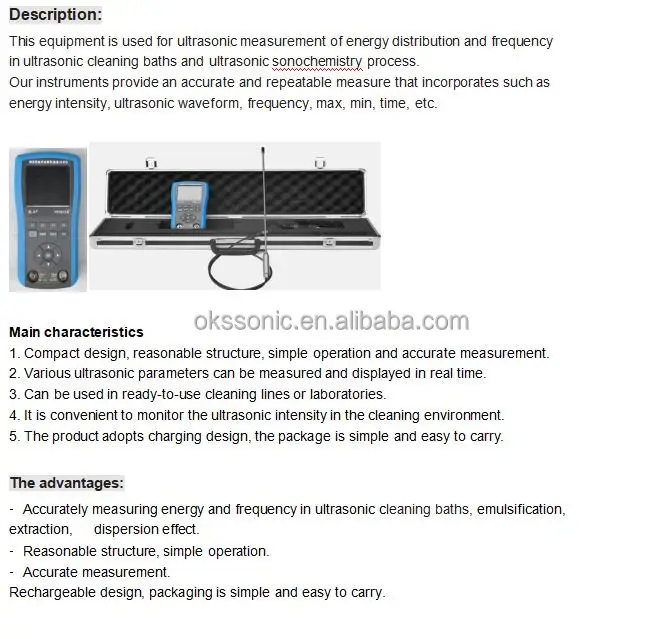

The measuring instrument is a portable sound pressure meter designed and developed for the purpose of measuring the instantaneous value and average value of the cleaning power of the ultrasonic cleaning machine. The pressure of the surrounding liquid on the surface of the object in the cleaning liquid during ultrasonic irradiation is used as ultrasonic cleaning. The washing power of the machine was measured. It can be used to detect the ultrasonic intensity distribution in the ultrasonic cleaning tank, the adjustment inspection of ultrasonic devices such as ultrasonic cleaners, the cleaning effect management of industrial parts, and the analysis of ultrasonic irradiation intensity and cleaning effect. Product use: It can be used to detect the ultrasonic intensity distribution in the ultrasonic cleaning tank, the adjustment inspection of ultrasonic equipment such as ultrasonic cleaning machine, the cleaning effect management of industrial parts, and the analysis and research of ultrasonic irradiation intensity and washing effect.



Ultrasonic sound pressure meter is occurred in the measurement of ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).The measuring instrument is measuring the instantaneous value of ultrasonic cleaning machine wash force and average designed for the development of portable sound pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid surrounding the pressure as ultrasonic cleaning machine wash are determined by a net force.Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank, ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination, the wash effect of management, industrial parts, and the analysis ultrasonic irradiation intensity and wash effect, etc.

Product advantage:
1, this measuring instrument operation is simple and accurate.
2, holding a lithium battery, can also charge the battery by an external power supply.

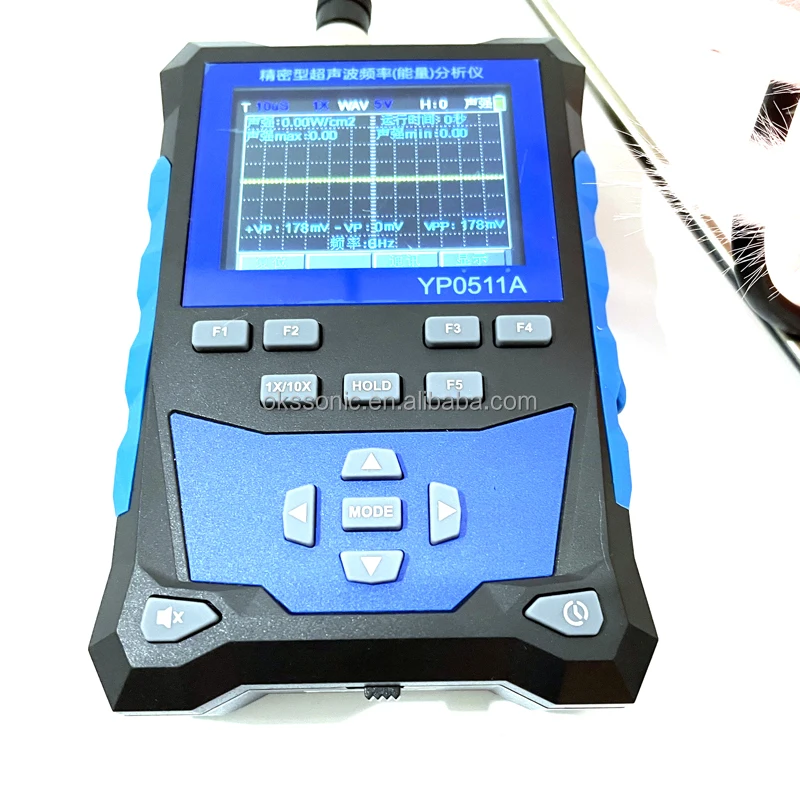

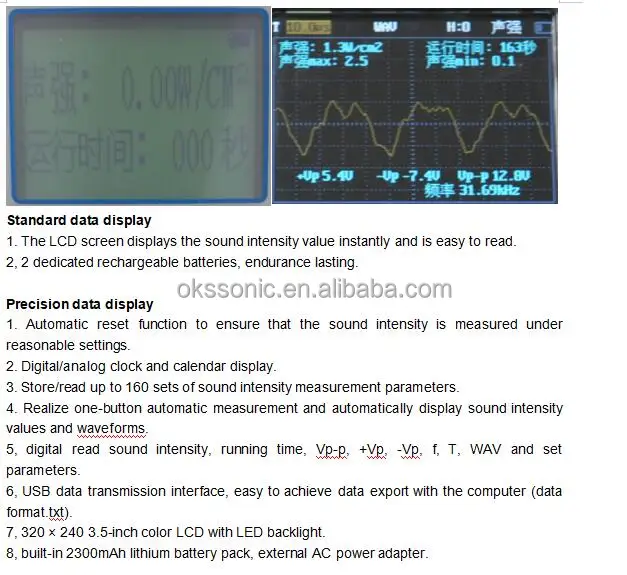

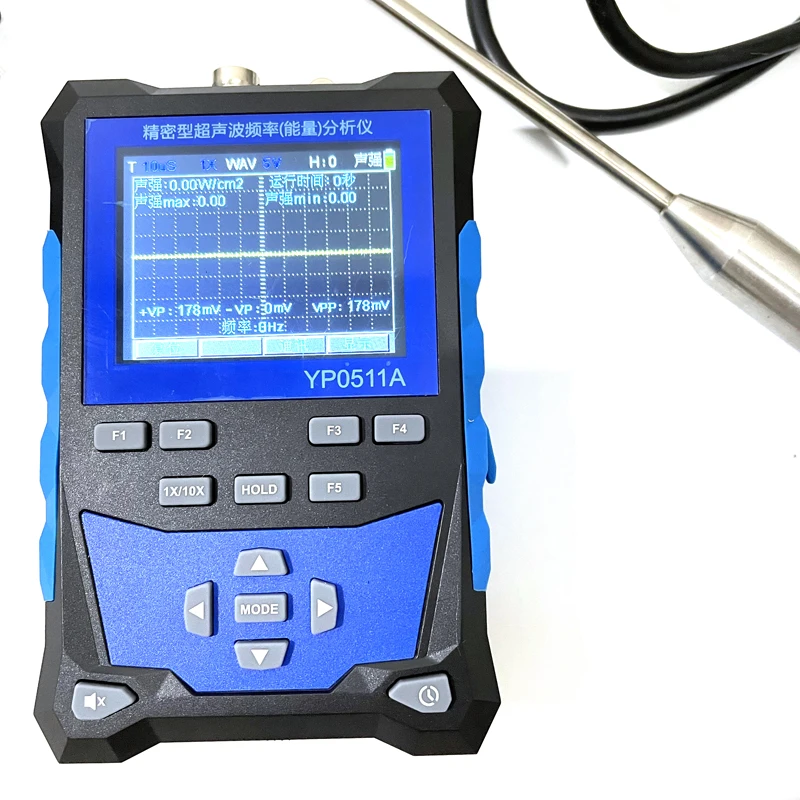

3, color screen display, real-time computation and storage the maximum and average sound intensity.
4, can be continuous 48 hours data memory, data upload.
5, this product is to provide independent software (to buy), you can upload on your computer to run the equipment data trend analysis.
6, customer special requirement (custom), and this equipment can be customized to provide communication interface and customer PLC connection, convenient for remote data, real-time monitoring, principle as shown in figure:



Model	OKS-SYJ100	OKS-SYJ -100S	OKS-SYJ -200
Measuring range	0 - 255 w/in2	0 - 255 w/in2	0 - 255 w/in2
Freqeuncy	10 kHz – 100 kHz	10 kHz – 100 kHz	10 kHz – 200KHz (Frequency range is bigger)
Data display	Color screen display, time and energy curve, the maximum, minimum, average, record file number	Color screen display, time and energy curve, the maximum, minimum, average, record file number, ultrasonic frequency	Color screen display, time and energy curve, the maximum, minimum, average, record file number, ultrasonic frequency
data storage	Time, instantaneous energy, continuous recording 24 hours, 180 k data (0.5 seconds per point)	Time, frequency, transient energy, continuous record 48 hours, 360 k point data (every 0.5 seconds	Time, frequency, transient energy, continuous record 48 hours, 360 k data (0.5 seconds per point)
Power	3.7 V li-ion rechargeable battery	3.7 V li-ion rechargeable battery	3.7 V li-ion rechargeable battery

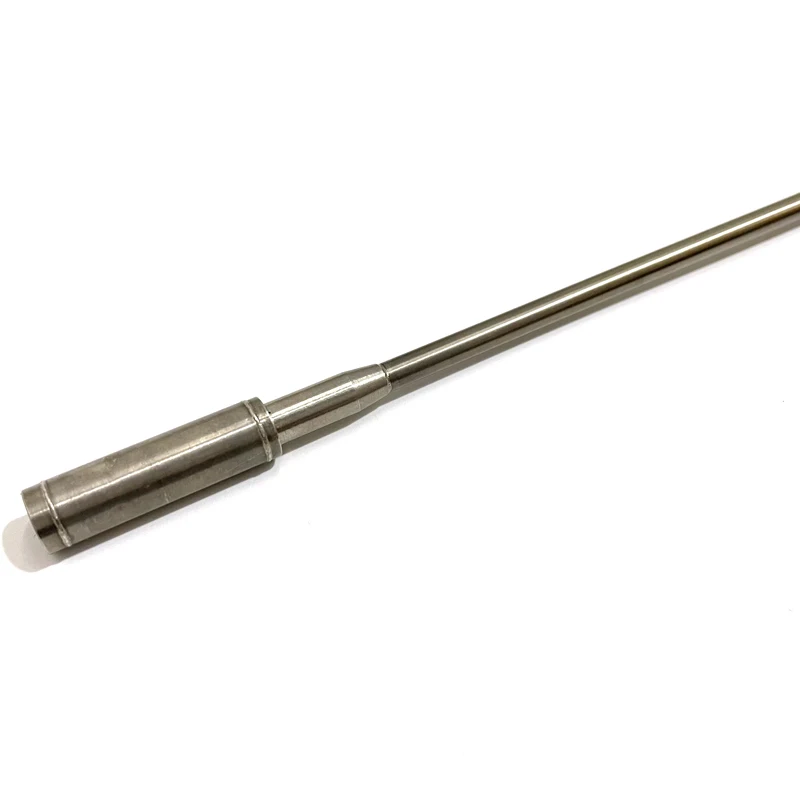

Meterial	Stainless steel tube	Stainless steel tube	Stainless steel tube
fluid temperature	0℃-150℃	0℃-200℃	0℃-200℃
Meter diameter	10 mm	10 mm	10 mm

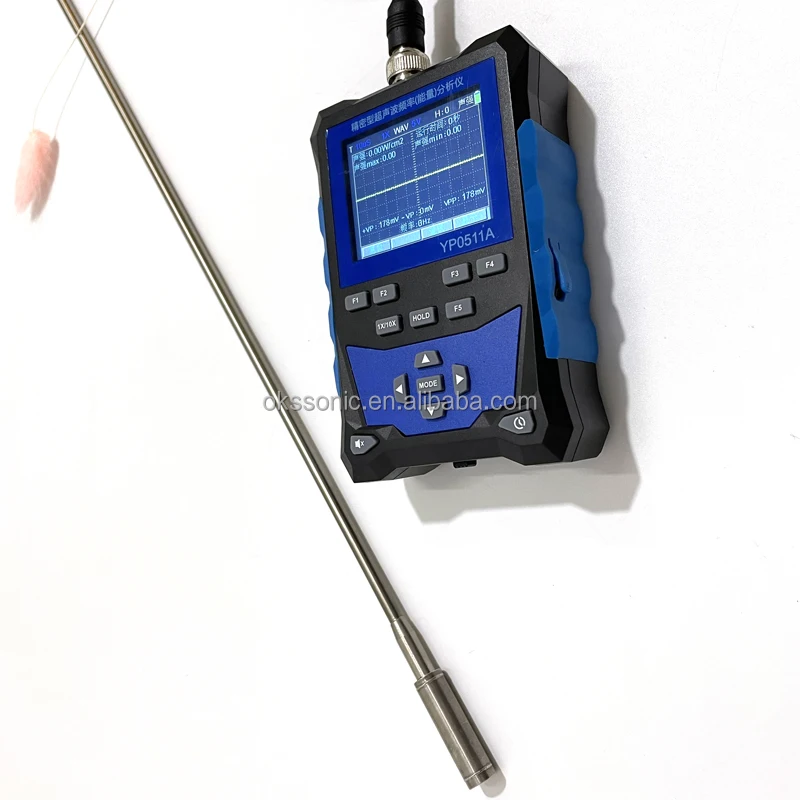

Length	1.0 m;0.5 m stainless steel probe + 0.5 m cable	1.0 m;0.5 m stainless steel probe + 0.5 m cable	1.0 m;0.5 m stainless steel probe + 0.5 m cable
Frequency display	No	yes	yes
Data upload	No	Yes	Yes
