O3 Medical Equipment Full Quartz Technology Ozone Generator Hospital and Clinic medical ozone therapy machine
- Category: Water Treatment Machinery >>>
- Supplier: Aquapure,Cn,Ltd.
Share on:
Product Overview
Description
Product Description
O3 Medical Equipment Full Quartz Technology Ozone Generator Hospital and Clinic medical ozone therapy machine
The model MOA0.6-AD is a new medical ozone generator that designed for multi-treatments with ultra pure medical ozone gas for hospital and clinic use.
It uses Double Walls of Pure Quartz Electrode to make pure oxygen/ozone mixed gas in high accuracy of ozone concentrations.
It can deliver pure ozone from low to high concentrations (2~ 95 ug/mL) for different therapy applications. It has a power (VC) meter with knob for adjusting the ozone concentrations. Also, it has been built-in two powerful ozone destructors which can remove extra ozone gas, and a powerful vacuum pump with 0.07 Mpa pressure.
The Double Walls of Pure Quartz Electrode is a patented design that offers Ultra-pure Ozone and constant stable ozone
concentration. It is a latest technology that makes sure NO ANY metal, plastic, ceramic, rubber, glues, etc., be at the ozone
generating area. Pure Quartz is the ONLY material at the ozone generating area. The stain point of this pure quartz is 1110℃, and its soften point is 1670℃. It is 100% ozone resistant, an ideal material for high frequency high voltage electrode. It makes Ultra-pure ozone without any contaminants.
concentration. It is a latest technology that makes sure NO ANY metal, plastic, ceramic, rubber, glues, etc., be at the ozone
generating area. Pure Quartz is the ONLY material at the ozone generating area. The stain point of this pure quartz is 1110℃, and its soften point is 1670℃. It is 100% ozone resistant, an ideal material for high frequency high voltage electrode. It makes Ultra-pure ozone without any contaminants.

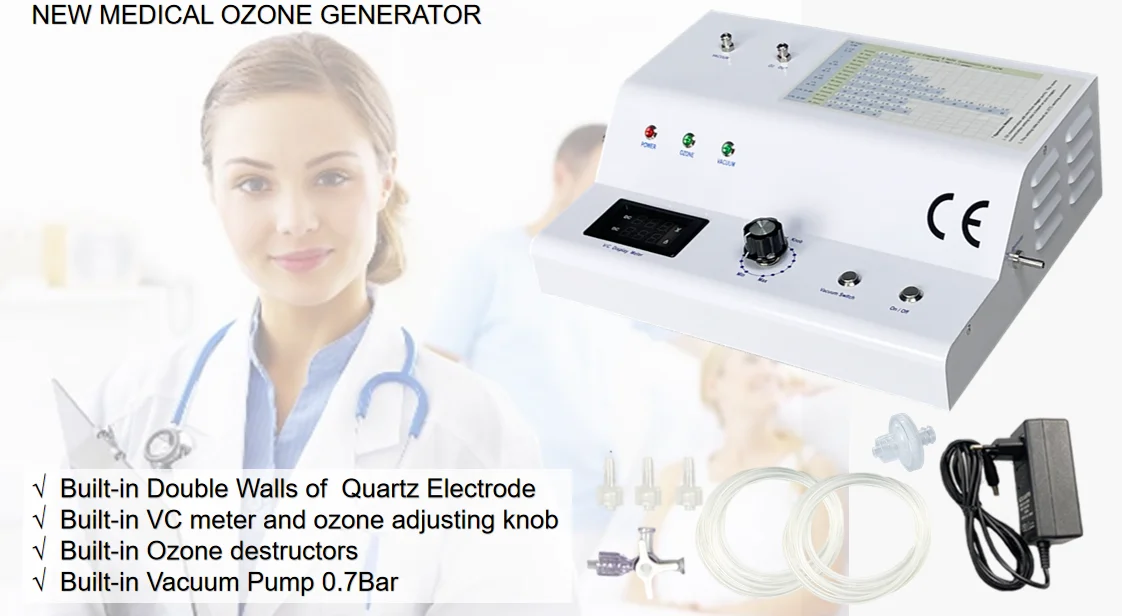

Key Features:
----High accuracy of ozone output: Stable Ozone concentration 2~95 ug/mL
----Built-in VC meter to monitor ozone generating chamber
----With Ozone concentration Adjusting knob
----Built-in powerful Ozone Destructors: 2 separated ozone destructors inside for over 5 years usage
----Built-in vacuum pump for blood treatment
----Built-in VC meter to monitor ozone generating chamber
----With Ozone concentration Adjusting knob
----Built-in powerful Ozone Destructors: 2 separated ozone destructors inside for over 5 years usage
----Built-in vacuum pump for blood treatment
Product Datasheet
Name | Medical Ozone Generator Ozone Therapy Machine |
Model No. | MOA0.6-AD |

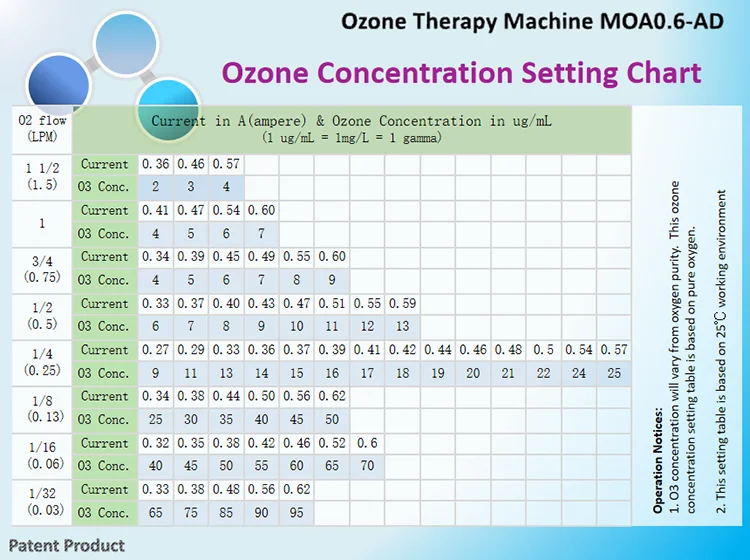

Ozone Concentrations | 2 ~ 95 ug/mL （ 1 ug/mL = 1 gamma = 1 mg/L ） Adjustable |
Connection of Ozone Outlet | Standard Luer Lock Connector |
Ozone Module Technology | Double Walls of Pure Quartz Electrode Technology |
Ozone Destructor | Powerful catalyst *2 pcs |
Sucking Pump | 0.7 bar vaccum pressure |
Life | > 10,000 hours |
Cooling System | 4000 RPM , turbo brushless cooling fan |
Input Voltage | 12V DC (100-240V AC to 12V DC adaptor) |
Rated Power | < 18W |
Product Size(L x W x H) | 325*220*108 mm |
Package Box Size(L x W x H) | 340 *250*160 mm |
Applications

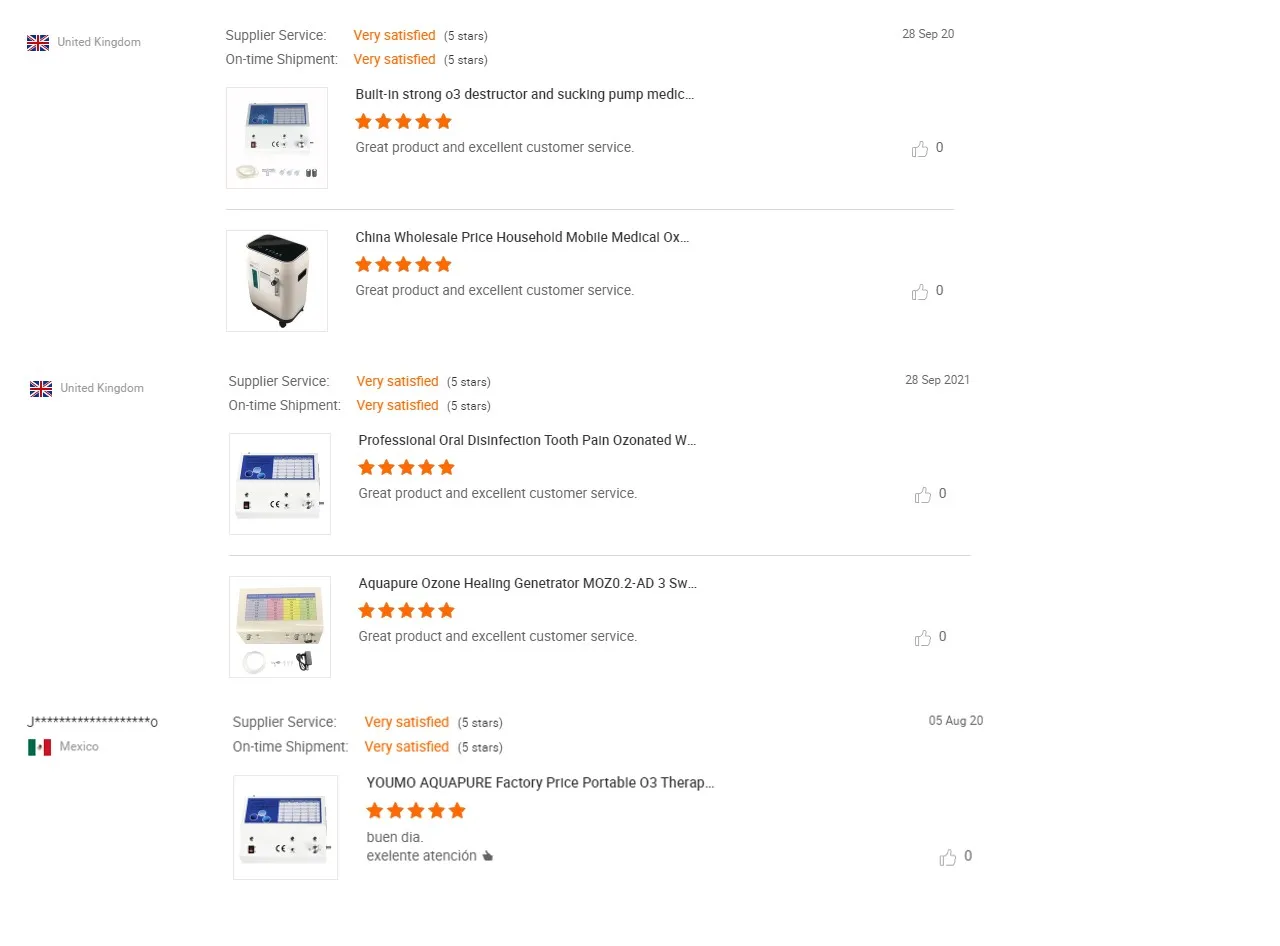

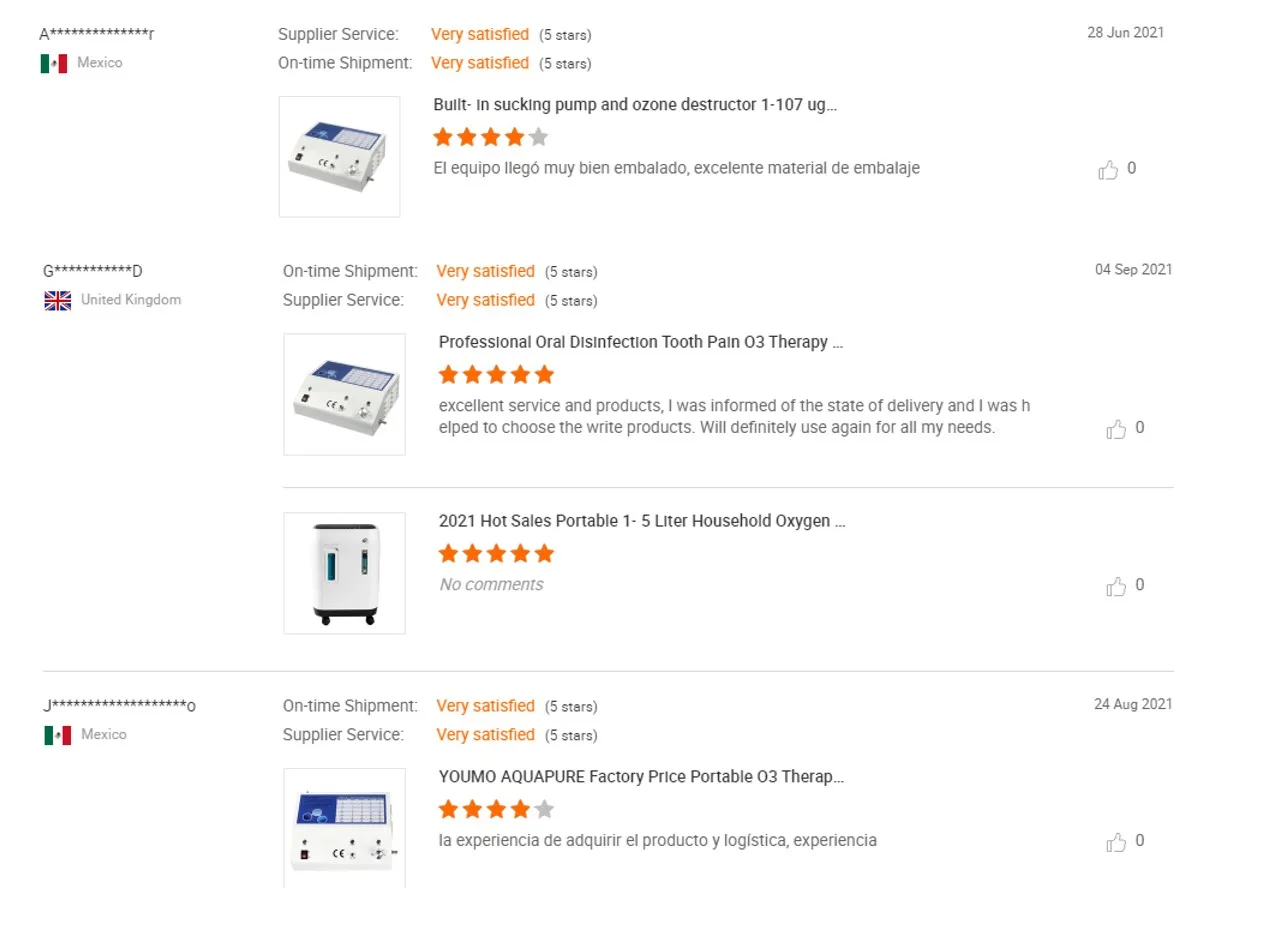

Buyers' Reviews

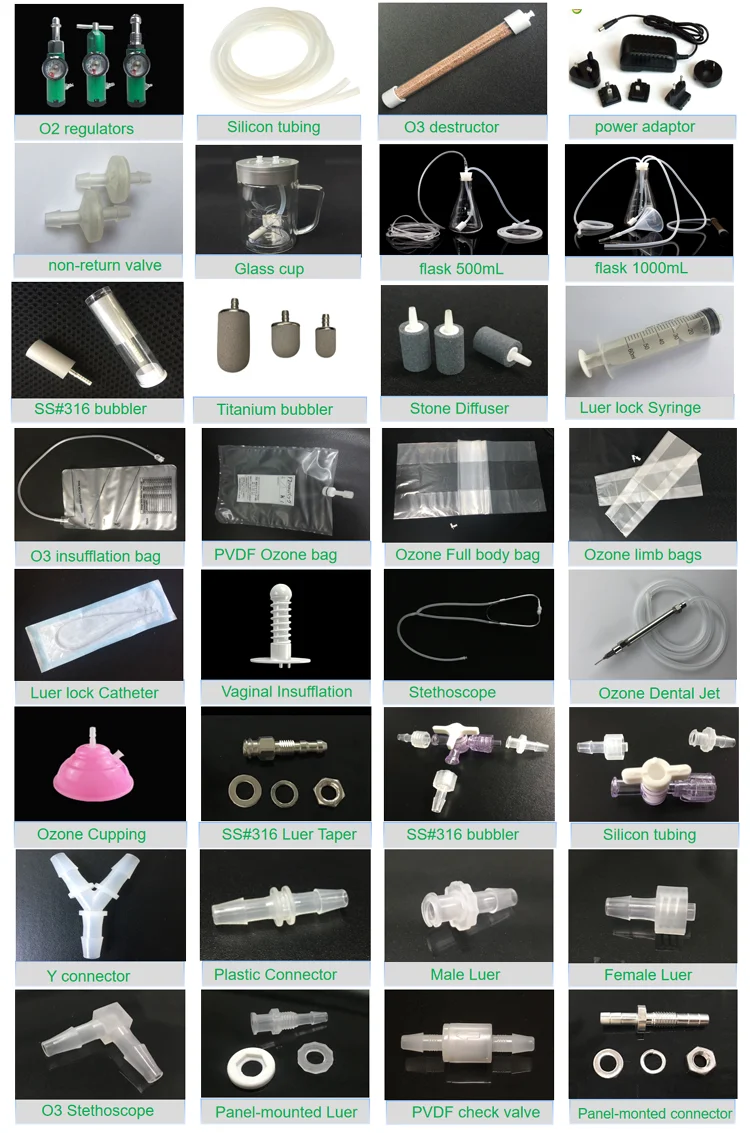

Related Products
CGA540 Oxygen Regulator
CGA870 Oxygen Regulator
Bullnose Oxygen Regulator
Cold Ozone Glass Cup
500mL & 1000mL ozone flasks
Ozone Limb bags
Packing & Delivery

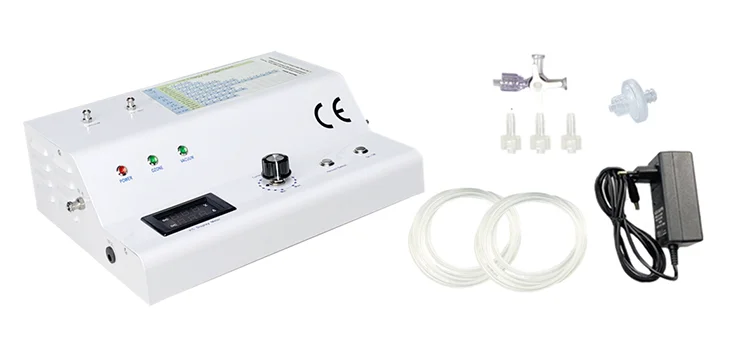

YOUMO AQUAPURE Medical Ozone Generator Ozone Therapy Machine MOA0.6-ad:
O3 Medical Equipment Full Quartz Technology Ozone Generator Hospital and Clinic medical ozone therapy machine
Packing
1>. Standard export carton packing
2>. 1pc / single box, Box size: 34*25*16 cm, ~3.3 kg/ box
Delivery
1> samples------------within 7 days after payment arrive
2> batch orders-------7-30 days after payment deposit
Our Company
AQUAPURE is a professional ozone generator and plasma generator manufacturer specializing in the R&D, design, manufacture and processing of ozone/anion products.
The AQUAPURE brand is originated in the city of Stuttgart in southwest Germany in 2002. To combine the Germany advanced technology with the Chinese lower labour cost and material cost, Chinese office was set up in 2009. Till 2011, the Chinese company named AQUAPURE CN LTD was set up at Shenzhen, China, as the R&D center and production/shipment organization center. Our engineers have very rich experience in ozone generators & plasma generators. We now have a series of high performance ozone generators with patents. We can design and manufacture products according to the customers' special demand.
Certifications
ISO13485:2016
FAQ
Q: What's your advantage? Why we choose you?
1>. High Quality products and professional
2>. over 10 years experience, ODM, OEM available
3>. good price, fast shipments
Q: What's the Payment?
1> T/T
2> Credit card, Paypal
3> Western Union, L/C
Q: Do you make your own products or just a trading company?
1> we make our own products
2> we design them and make them
3> we offer ODM,OEM services
Q: How can I get some samples?
Just leave messages or send email to us , we will contact you within 24 hours .
Q: What is your warranty?
For all the standards products, we offer >1 year warranty.
