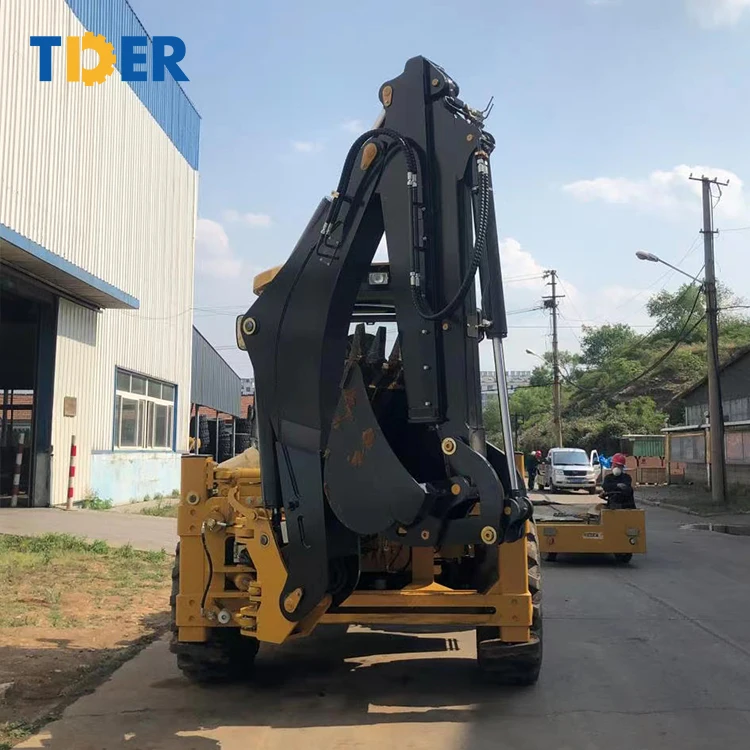

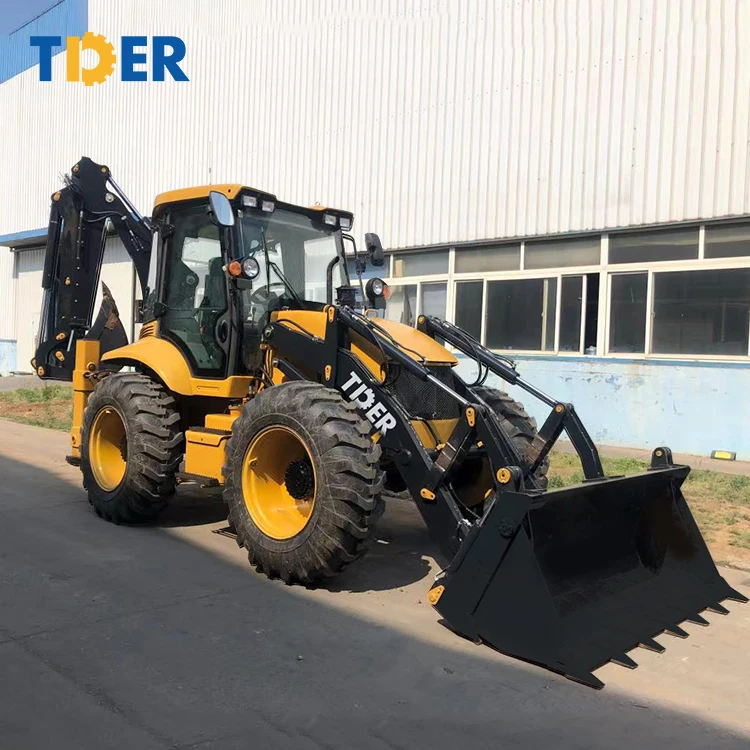

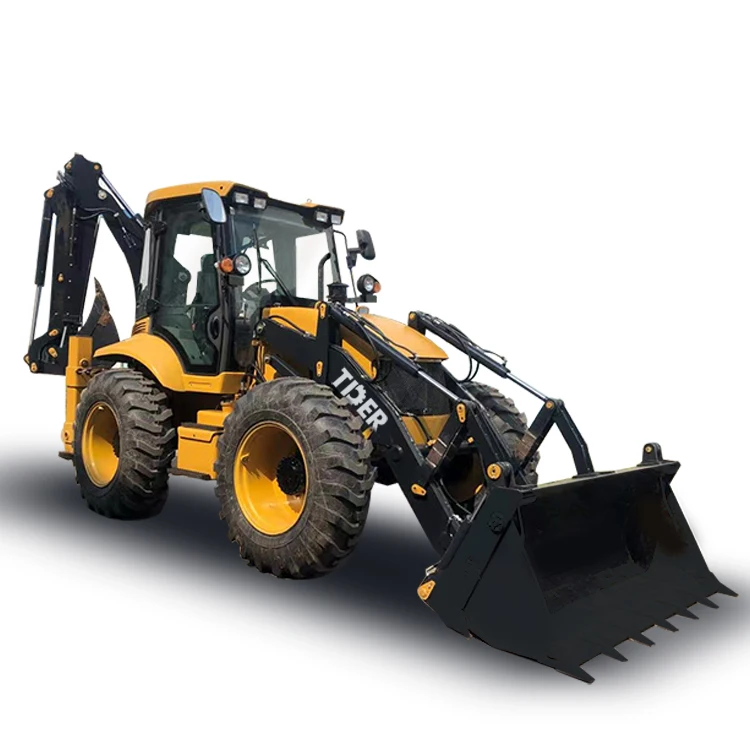

Hot Selling 2.5Ton Capacity Backhoe loader ZT388H earth moving machine Factory price for sale
- Category: >>>
- Supplier: Xiamen,Tder,Industrial,Co.,Ltd
Share on:
Product Overview
Description
Product Description
ZT388H BACKHOE LOADER STANDARD CONFIGURATION | ||||
Main Specifications | ||||
Overall Size | Operating Weight | 8200kg | ||
Overall Dimension | 6150×2250×3763mm | |||
Wheel base | 2264mm | |||
Min. Ground Clearance | 300mm | |||
Performance | Breakout Force | 38KN | ||
Loading lifting capacity | 2500kg | |||
Front Bucket Capacity | 1.0 m3 | |||
Bucket Dumping Height | 2650mm | |||
Bucket Dumping Distance | 1025mm | |||
Digging Height | 3878mm | |||
Backhoe Capacity | 0.3cbm | |||
Max. Digging Depth | 4085mm | |||
Single angle of excavator grab | 190° | |||
Max. pulling force | 39KN | |||
Engine | Brand | Duetz WP4G95E221 | ||
Type | Inline Direct Inject Turbocharged | |||
No. of Cylinder-Bore/Stroke | 4-105x130 | |||
Rated Power | 70kw/95HP | |||
Max. torque | 380 N.m/1400~1600rpm | |||
Displacement | 4.5L | |||
Rated Speed | 2200r/min | |||
Min. Fuel Consumption | 230g/Kw·h | |||
Steering system | Model of steering system | BZZ5-250 | ||
Steering angle | ±36° | |||
Mini turning radius | 6581mm | |||
Pressure of the system | 12MPa | |||
System Pressure | Loading Hydraulic System | 16MPa | ||
Digging Hydraulic System | 18Mpa | |||
Axle | Brand | Carraro(Italy) | ||
Driving Axle Load Capacity | 4/18.5T | |||
Rated Dynamic/static load of front axle | 9T/22.5T | |||
Rated Dynamic/static load of rear axle | 7.5T/18.75T | |||
Transmission system | Torque converter | YJ280 | ||
Gearbox | TLB14WD | |||
Type | Fixed Shaft Power shift/Electric Control | |||
Max.speed | 38Km/h | |||
Brake system | Service brake | Wet Internal self-regulatic self-balance type | ||
Parking brake | Spring brake/hydraumatic terminating brake | |||
Tires | Size | 14-17.5/19.5L-24 | ||
Hydraulic system | Digging power of excavator grab | 46.5KN | ||
Digging power of dipper | 31KN | |||
FAQ
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
