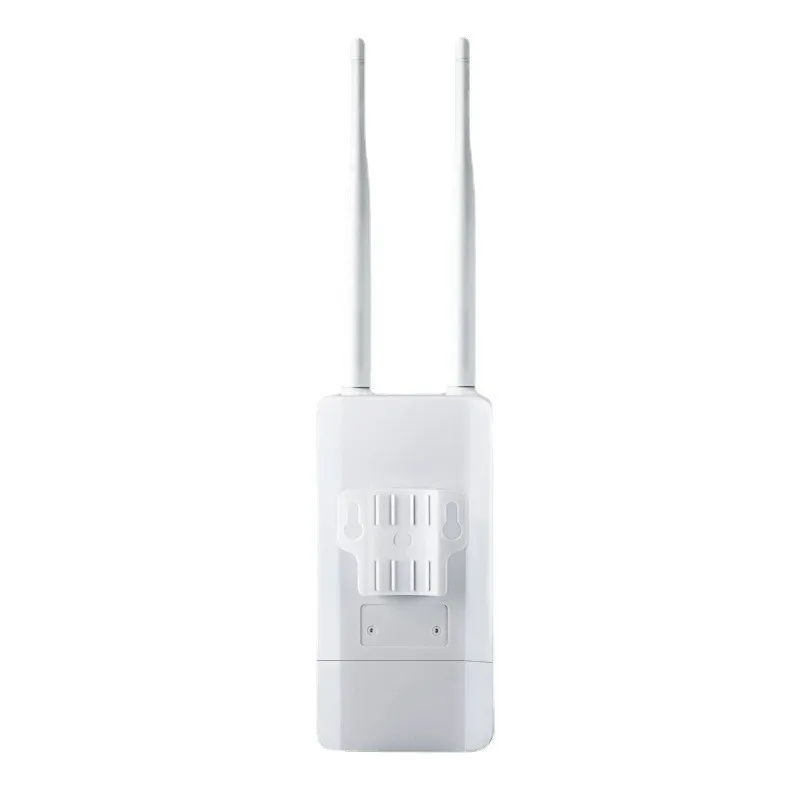

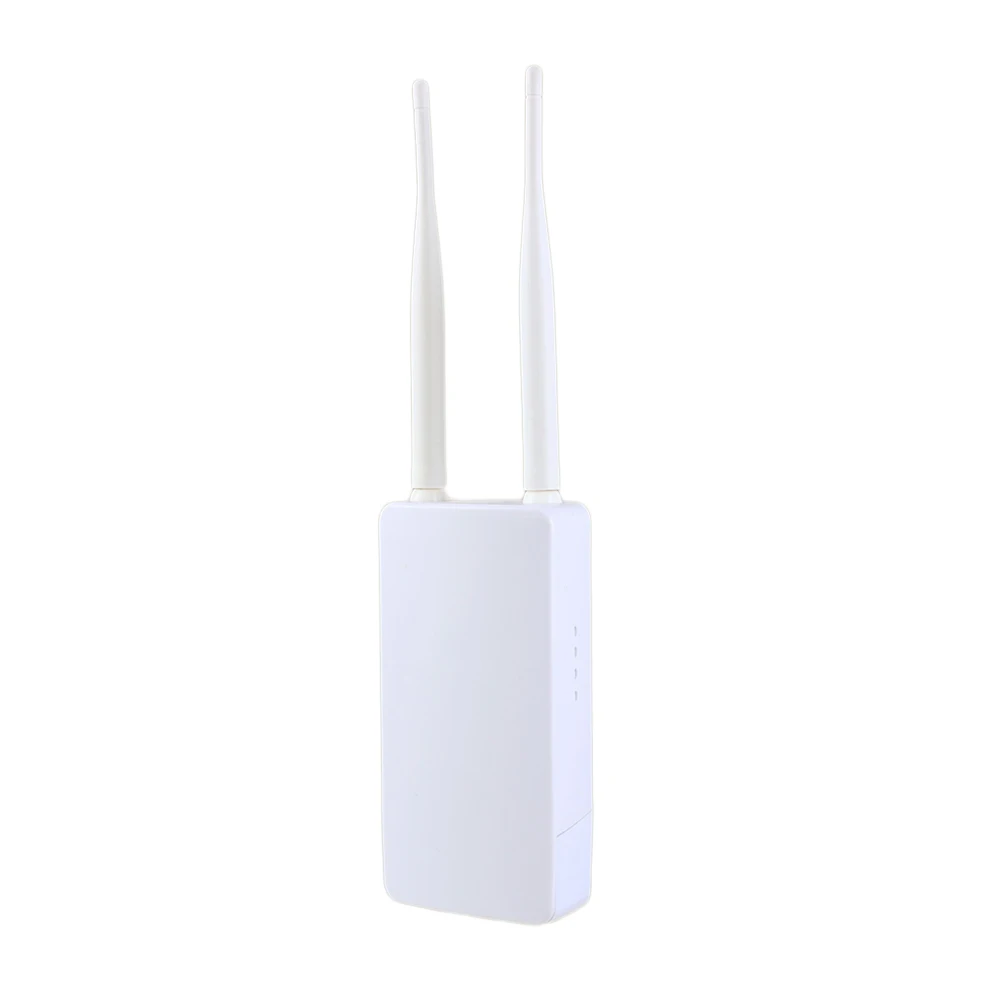

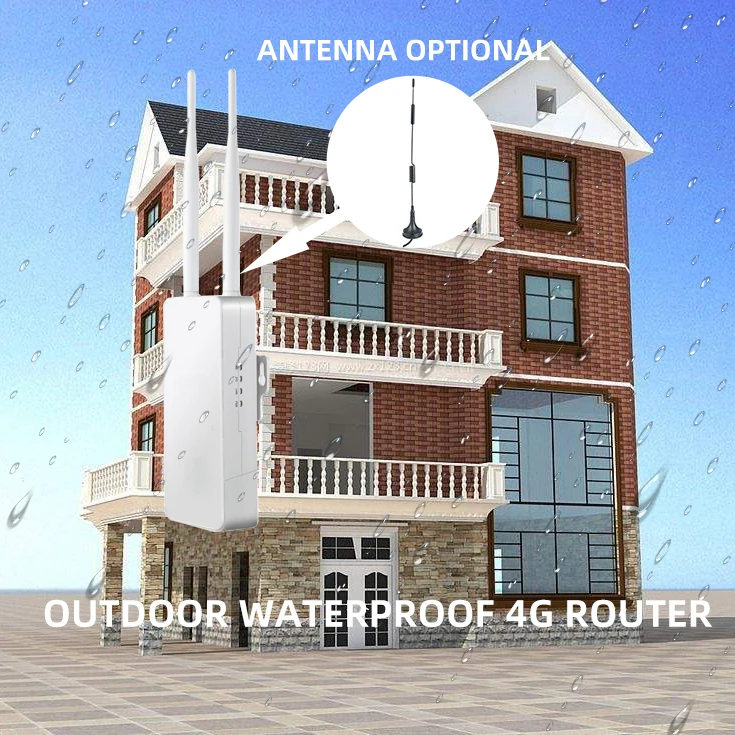

MASKURA Outdoor Waterproof Router 4G Home WiFi Modem 4G WiFi Lte Mobile outdoor router wifi router 4g lte
- Category: >>>
- Supplier: Shenzhen Maskura Technology Co. Ltd.
Share on (1600643563786):
Product Overview
Description
MKC05is a 4G wireless router for outdoor use that can output 9V to power the camera, without the need for an additional power supply specifically for the camera, and also for regular mobile office networking, engineering project office networking, family yard, shed, outdoor monitoring, etc. to achieve WiFi coverage without pulling the broadband. The device supports TDD, FDD, WCDMA network system, SIM card standard large card, domestic all-network pass, not tied to the card mobile card, telecom card, Unicom card change at will, the system automatically identifies, eliminating the need for complicated settings can easily access the Internet, foreign use can also be matched with the module suitable for the country where the region (foreign use need to be informed before ordering); insert the SIM card with traffic can be converted into WiFi signal, so that It can also be converted into a wired network to provide internet access to other devices such as desktop computers, internet TVs, wired smart homes and other devices that need internet access.
Product features
DC output 12V for powering other powered devices such as cameras
Rainproof and dustproof IP65
4G network to wireless and wired network, also can broadband wired network to wireless wired, wired priority when both access
Wireless rate 300Mbps
1 x 10/100Mbps Adaptive Network Port
Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption protocol
Compliant with IEEE 802.11b/g/n 2.4GHz standard protocol, IEEE802.3,IEEE802.3u standard protocol

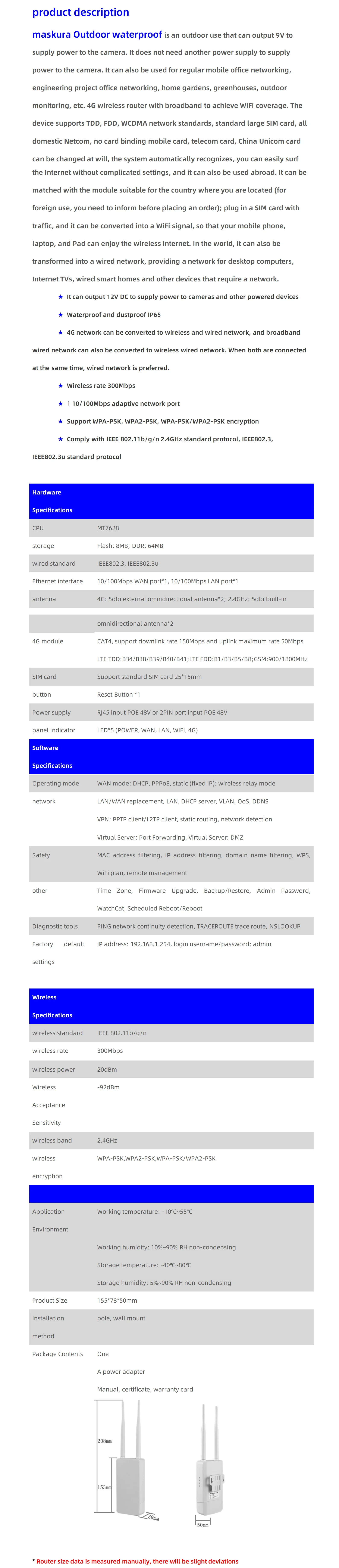

Product specifications
Hardware specifications |
|
|
CPU |
| MT7628 |
Storage |
| Flash: 8MB; DDR: 64MB |
Wired Standard |
| IEEE802.3,IEEE802.3u |

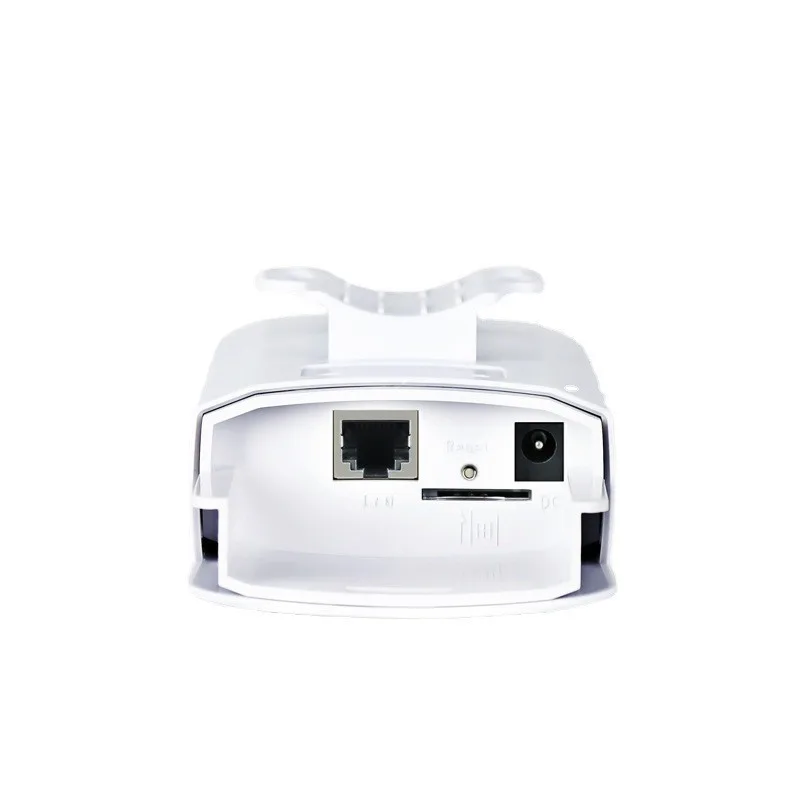

Ethernet interface |
| 10/100Mbps WAN port*1, 10/100Mbps LAN port*1 |
Antennae |
| 4G: 5dbi external omni-directional antenna*2 ; 2.4GHz: 5dbi internal omni-directional antenna*2 |
4G Module |
| CAT4, supporting 150Mbps downlink and 50Mbps uplink maximum LTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8; GSM:900/1800MHz |
SIM card |
| Supports standard SIM cards 25*15mm |
Keystrokes |
| Reset Button *1 |
Power supply method |
| RJ45 into POE 48V or 2PIN port into POE 48V |
Panel indicator |
| LED*5 ( POWER, WAN, LAN, WIFI, 4G ) |
Software specifications |
|
|
Working mode |
| WAN mode: DHCP, PPPoE, static (fixed IP); wireless trunking mode |
Network |
| LAN/WAN swap, LAN, DHCP server, VLAN, QoS, DDNS |
| VPN: PPTP client /L2TP client, static routing, network detection | |
| Virtual Servers: Port Forwarding, Virtual Servers: DMZ | |
Safety |
| MAC address filtering, IP address filtering, domain name filtering, WPS, WiFi plans, remote management |
Other |
| Time zone, firmware upgrade, backup/restore, admin password, WatchCat, scheduled reboot/restart |
Diagnostic tools |
| PING network conductivity detection, TRACEROUTE route tracing, NSLOOKUP |
Factory default settings |
| IP address: 192.168.1.254, login username/password: admin |
Product specifications
Wireless specifications |
|
|
Wireless standards |
| IEEE 802.11b/g/n |
Wireless Speed |
| 300Mbps |
Wireless power |
| 20dBm |
Wireless receiver sensitivity |
| -92dBm |
Wireless band |
| 2.4GHz |
Wireless encryption methods |
| WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK |
Other specifications |
|
|
Application environment |
| Operating temperature: -10℃~55℃ |
|
| Operating humidity: 10% to 90% RH non-condensing |
|
| Storage temperature: -40°C~80°C |
|
| Storage humidity: 5% to 90% RH non-condensing |
Product size |
| 155*78*50mm |
Mounting method |
| Rods, wall-mounted |
Package contents |
| One MKC05 router |
|
| One power adapter |
|
| Instruction manual, certificate of conformity, warranty card |
Woutdoor
Certificate
logistics
FAQ
Q: Are you a manufacturer?
A: Yes, we are the manufacturer. We can provide OEM/ODM customized services according to various applications and needs of customers. All our products are fully patented, ID/MD design, hardware and software, mold, assembly are done by our own team.
Q: What is the minimum order quantity (MOQ)?
A: We accept a set of standard products. We can even customize your logo if desired. If OEM is required, will see the detailed requirements and determine the MOQ our sales department will give you.
Q: How to order and pay?
A: We accept T/T, L/C at sight, Western Union, MoneyGram, Paypal, Secure Payment (Alibaba) and Credit Card.
Q:How do you keep my funds safe?
A:In international trade, trust has always been a big issue, and we believe that good business reputation and credibility are the most important. We recommend Alibaba Group's trade assurance services. We won't get funding unless you get the product and confirm payment.
Q:Which countries do you ship to?
A:We ship to almost any country by express, air or sea. If we are unable to ship to your country, we will notify you.
Q: What is your product warranty?
A: We provide 12 months warranty after shipment.
Q: Can I extend the warranty period?
A: We offer an extended warranty of up to 36 months, and the price of the extended warranty is increased by 10%.
Q: How long does it take to deliver?
A: The production lead time is about 15 days depending on the needs, and the shipping time for DHL/UPS/FEDEX/TNT is about 3-5 working days. For some remote locations, the delivery time may be a little longer.
Q: If there is a problem with the device, how to fix it?
A: We will provide technical support online to solve the problem; if it is a hardware problem, if the customer has a technician, we can send the parts or components to the customer and teach them to install, or can also send it back to us for repair.
Q: Are your products in stock?
A: Most items are usually in stock. It all depends on the needs of our promotions, manufacturers and suppliers.
Q: Can you customize products and custom packaging?
A: Yes, all products can be customized according to customer requirements.
Regarding custom packaging, we can put a logo or other information on the box.
Q: How is your after-sales service?
A: We will inspect each product before delivery according to international quality standards.
Q: Can you provide samples?
A: Yes, we can provide samples. Sample fee and shipping fee will be charged by buyer.
