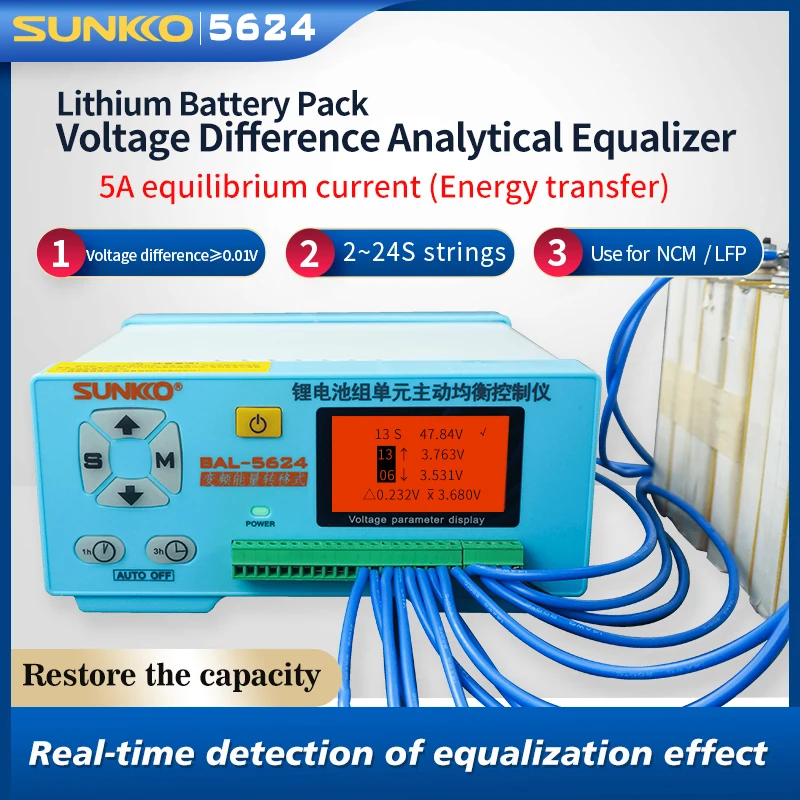

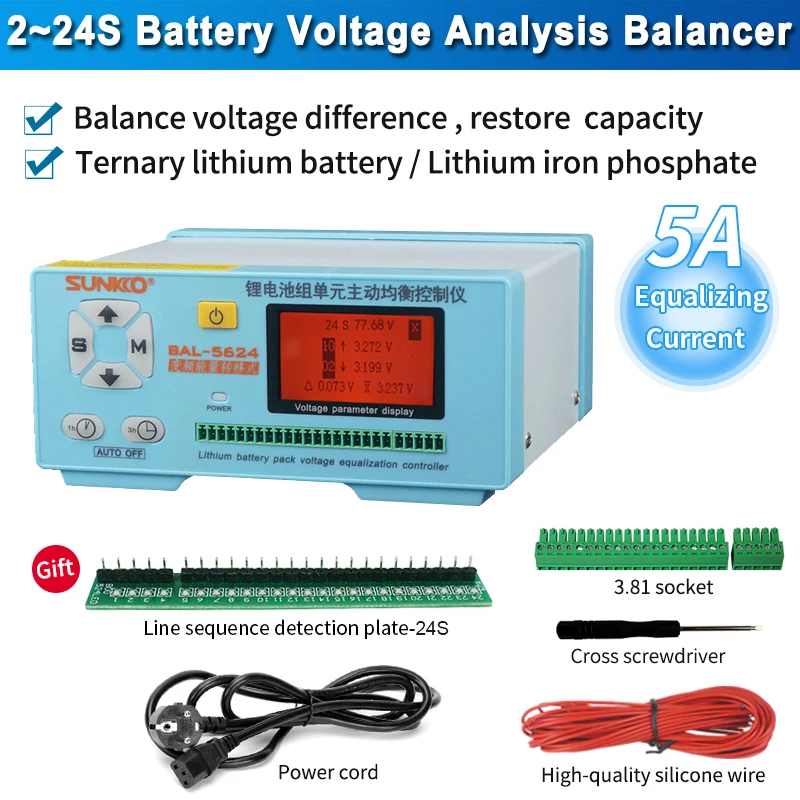

Sunkko BAL 5624 5A 2 24S battery voltage Analysis balancer battery life tester
- Category: Electrical Instruments >>>
- Supplier: Shenzhen Chuang Xin Jia Technology Co. Ltd.
Share on (1600643601547):
Product Overview
Description
Products Description

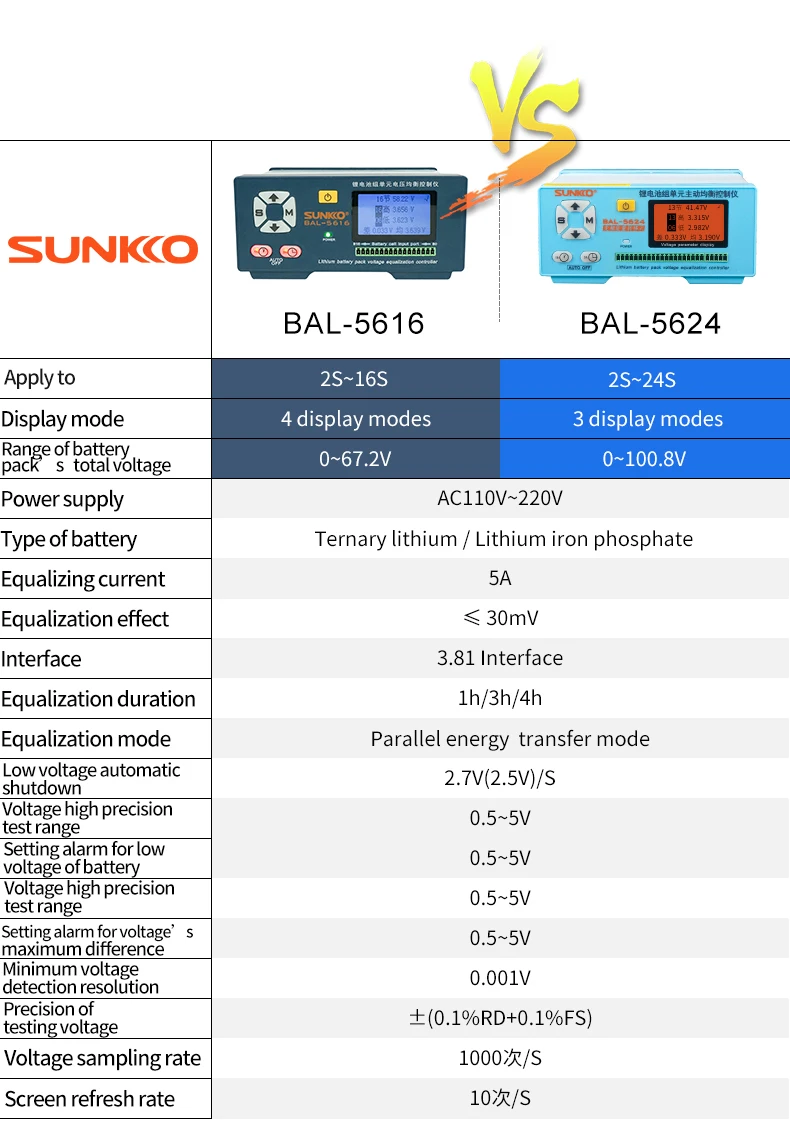

Model Number | BAL-5624 | Brand Name | SUNKKO | |
Voltage | 5V | Warranty | 3months-1year | |
LI-ION charge balance voltage | 4.2v | Application | 2S~24S battery pack |

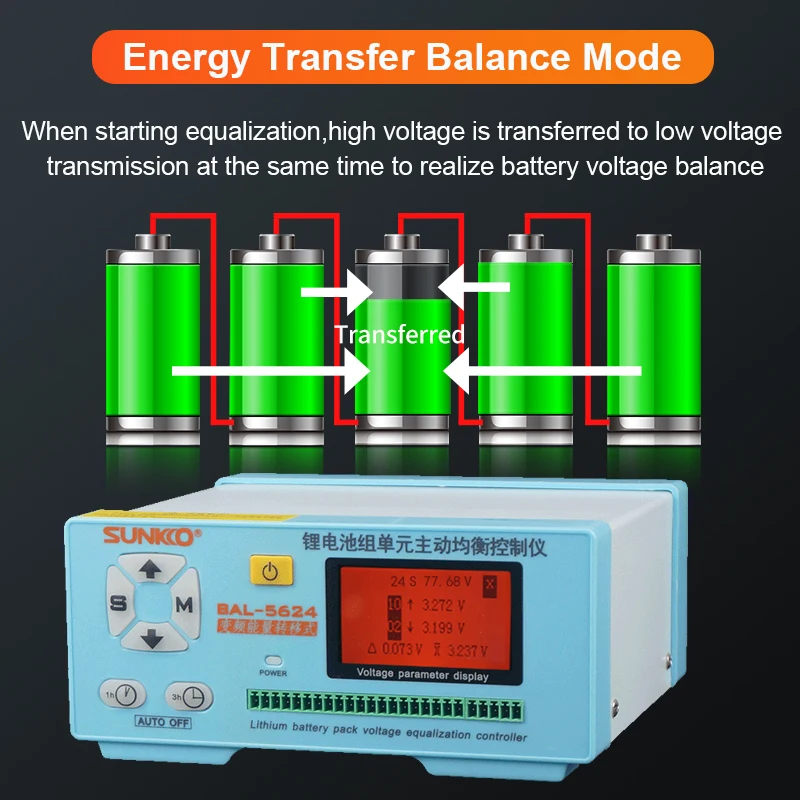

BAL-5624 equalizer controller adopts high-frequency transformer inversion and
equipotential isolation coupling energy technology to realize the parallel connection of each series of batteries. Based on the
parallel connection state, each series of batteries with high and low voltages realize energy transmission and distribution, and
finally realize the high-efficiency and precise balance of the battery pack.The Taiwan main control chip MCU combines with the

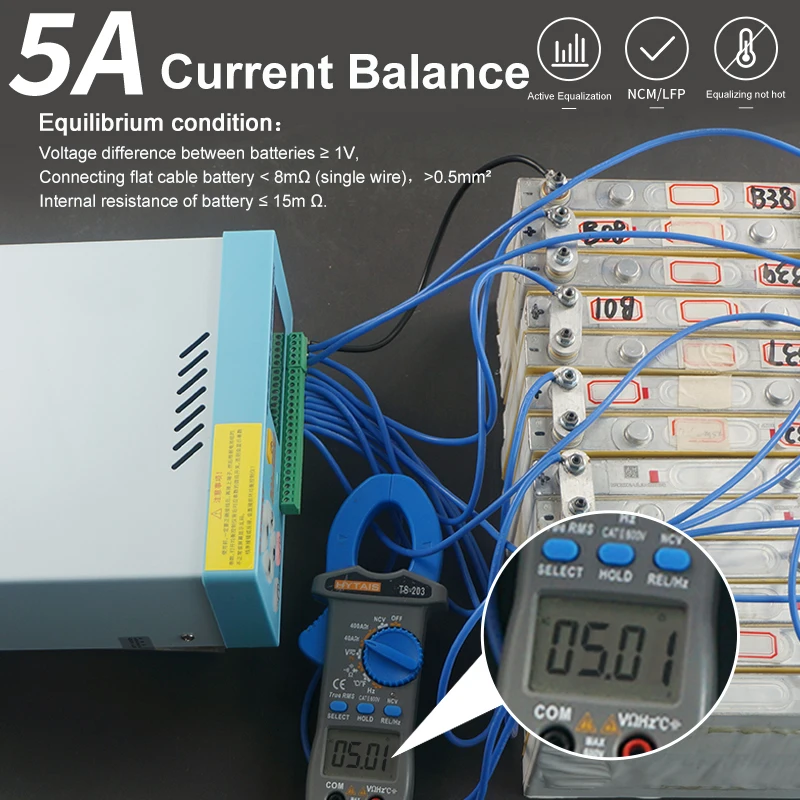

ultra-low dynamic impedance inverter to obtain the more than 5A balanced current. The precise transformer process and fully
symmetrical circuit design can achieve the balanced effect of ≤ 30mV.
And the analyzer adopts latest large-scale high-speed MCU chip of American microchip to carry out real-time precision detection of
each unit of lithium battery pack. The voltage information collected by the chip is stored and calculated and compared, and the

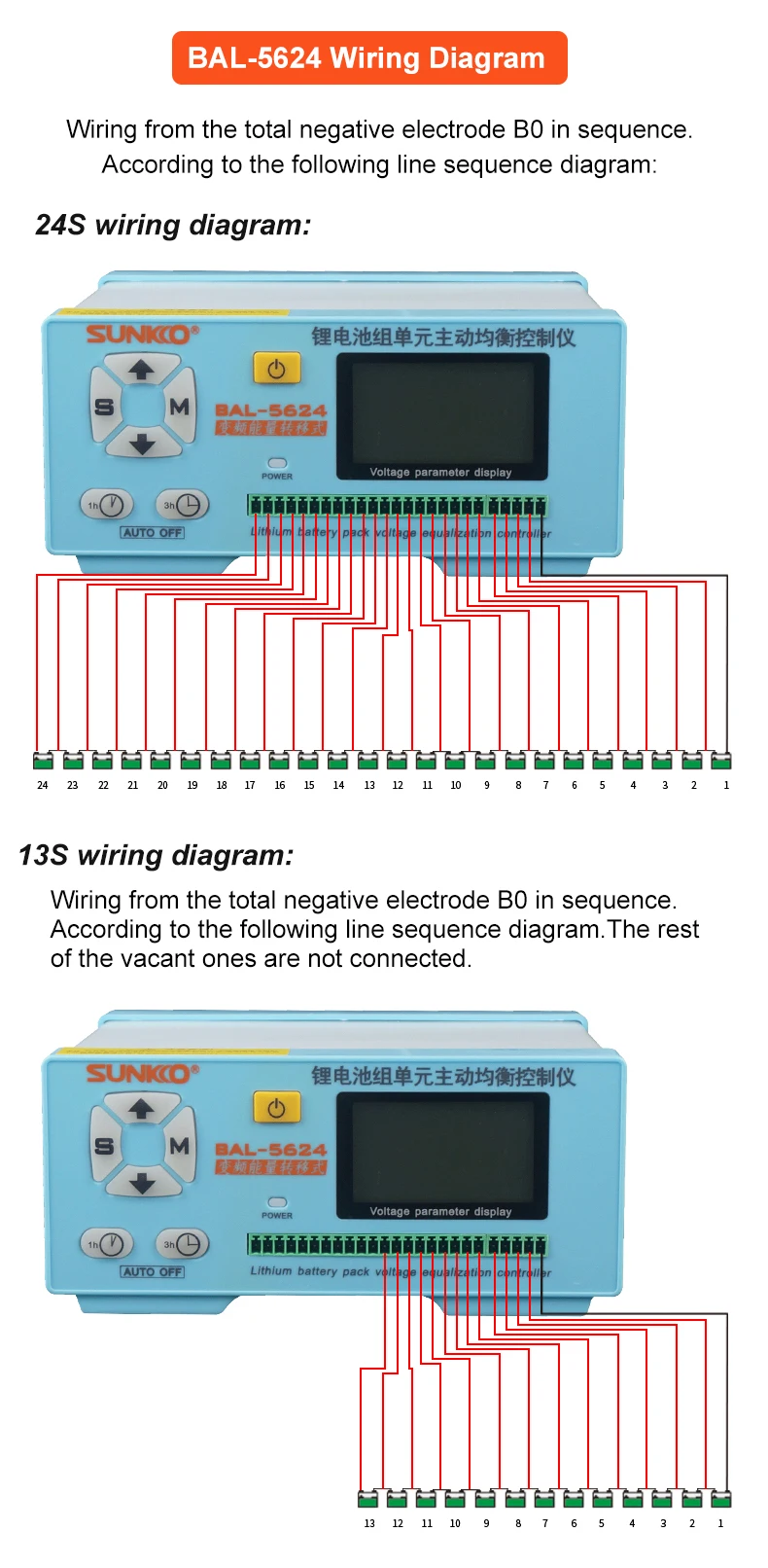

data is processed and displayed on the LCD screen. This detector cal detect the voltage of up to 24 series of lithium batteries at
the same time, and automatically analyze and compare the voltage.Real-time monitoring equalizing voltage
It is suitable for high-capacity ternary lithium battery pack and lithium iron phosphate battery pack, etc. The maximum equalizing
current can reach 5A, and the equalizing voltage difference can reach 30mV; Forced start switch is added to better solve the
problem of poor equalization effect. Product features
1.Automatically analyzing the maximum voltage difference value and the average voltage
value of the battery pack.When balancing, it can quickly detect the voltage of each string of the battery pack.
2. Voltage difference analysis and equalizing voltage dual function.
3.Equipped with multi-mode intelligent voltage detection display, it can monitor the working
progress of battery pack repair in real time.
4. Nano amorphous isolated fully symmetrical transformer ensures the minimum voltage difference
5.American ultra-low internal resistance MOS devices constitute an ultra-low dynamic impedance inverter circuit. Achieve high
power balance.
6.The control and management of intelligent MCU chip realize automatic self balancing;7.Automatically detect the minimum voltage
of the battery, stop working when the battery
energy is low, and protect the battery from power loss;
8. Over current fuse resistance at each series input end to ensure safety;9. 1h/3h/4h time-limited equalization time adjustable;
10. Heat dissipation design of inverter under extreme equilibrium state of high voltage difference.
equipotential isolation coupling energy technology to realize the parallel connection of each series of batteries. Based on the
parallel connection state, each series of batteries with high and low voltages realize energy transmission and distribution, and
finally realize the high-efficiency and precise balance of the battery pack.The Taiwan main control chip MCU combines with the
ultra-low dynamic impedance inverter to obtain the more than 5A balanced current. The precise transformer process and fully
symmetrical circuit design can achieve the balanced effect of ≤ 30mV.
And the analyzer adopts latest large-scale high-speed MCU chip of American microchip to carry out real-time precision detection of
each unit of lithium battery pack. The voltage information collected by the chip is stored and calculated and compared, and the
data is processed and displayed on the LCD screen. This detector cal detect the voltage of up to 24 series of lithium batteries at
the same time, and automatically analyze and compare the voltage.Real-time monitoring equalizing voltage
It is suitable for high-capacity ternary lithium battery pack and lithium iron phosphate battery pack, etc. The maximum equalizing
current can reach 5A, and the equalizing voltage difference can reach 30mV; Forced start switch is added to better solve the
problem of poor equalization effect. Product features
1.Automatically analyzing the maximum voltage difference value and the average voltage
value of the battery pack.When balancing, it can quickly detect the voltage of each string of the battery pack.
2. Voltage difference analysis and equalizing voltage dual function.
3.Equipped with multi-mode intelligent voltage detection display, it can monitor the working
progress of battery pack repair in real time.
4. Nano amorphous isolated fully symmetrical transformer ensures the minimum voltage difference
5.American ultra-low internal resistance MOS devices constitute an ultra-low dynamic impedance inverter circuit. Achieve high
power balance.
6.The control and management of intelligent MCU chip realize automatic self balancing;7.Automatically detect the minimum voltage
of the battery, stop working when the battery
energy is low, and protect the battery from power loss;
8. Over current fuse resistance at each series input end to ensure safety;9. 1h/3h/4h time-limited equalization time adjustable;
10. Heat dissipation design of inverter under extreme equilibrium state of high voltage difference.

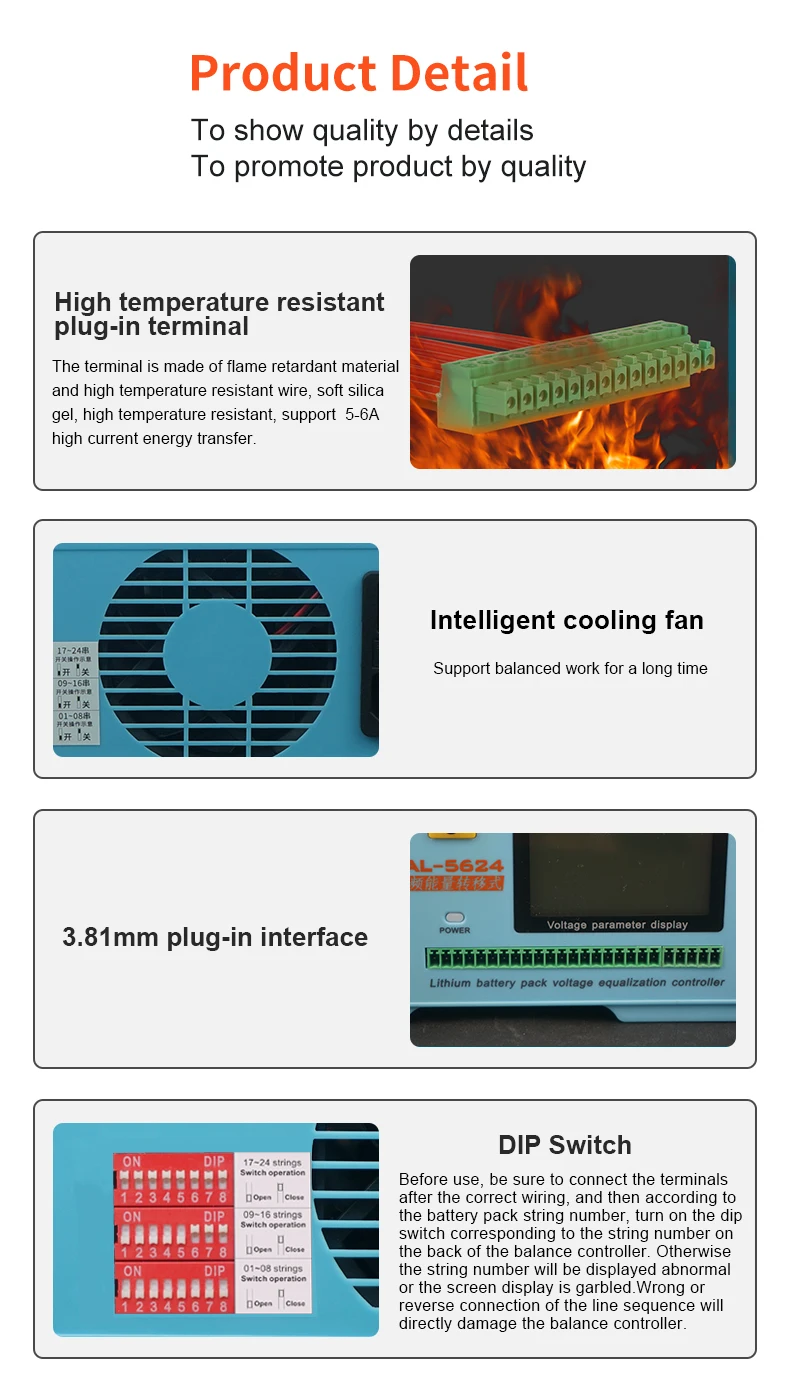

Details Images
