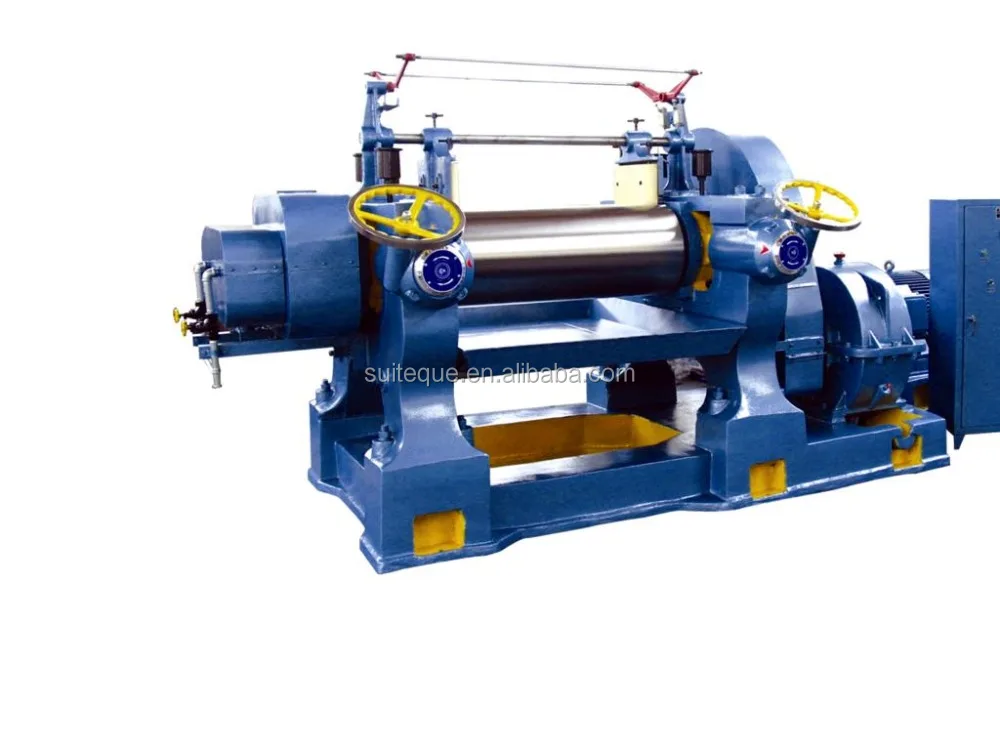

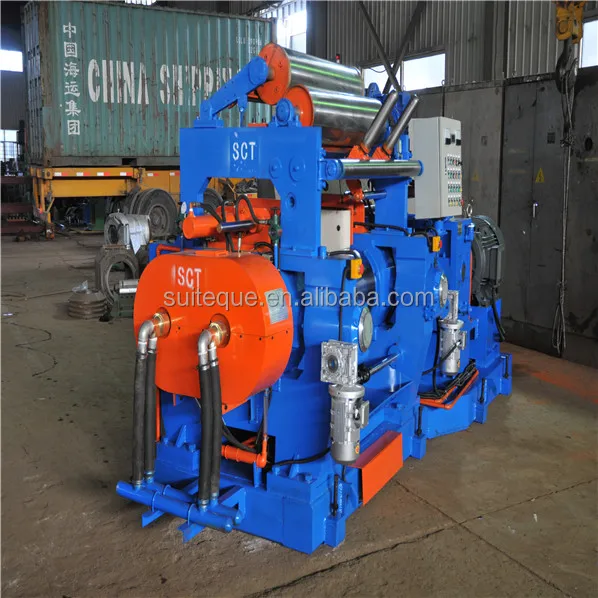

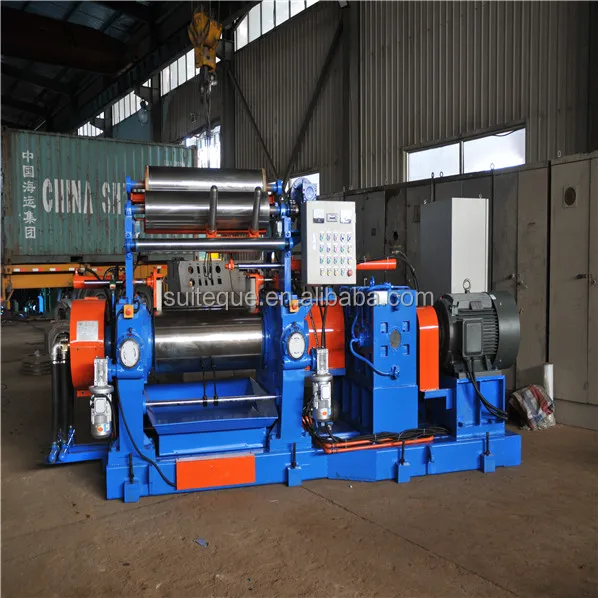

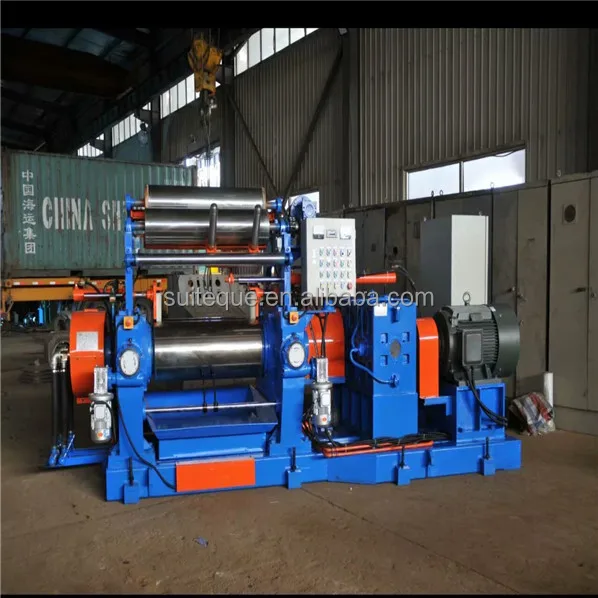

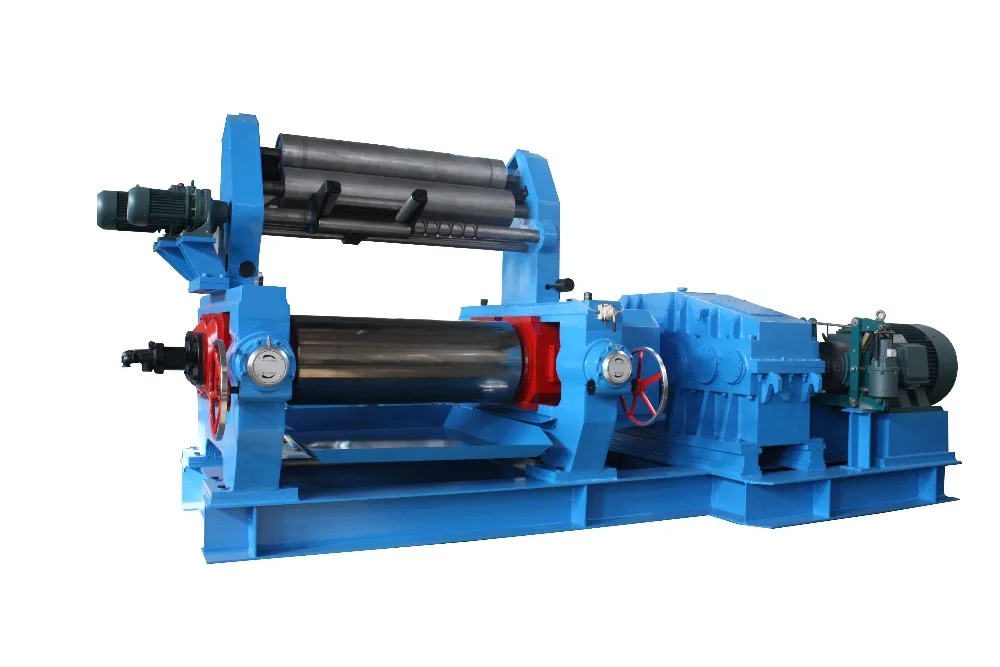

CE open mill silicon rubber two roll mixing mill
- Category: >>>
- Supplier: Qingdao Suiteque Machinery Co. Ltd.
Share on (1600644299526):
Product Overview
Description
CE open mill silicon rubber two roll mixing mill
Product Description
CE open mill silicon rubber two roll mixing mill
Application:
It is used for rubber mixing, warming, sheeting and plastic mixing, etc.
Structure features:
This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected by a safety shim, and rollers bearings are lubricated with manual-peration/power
driven through a grease pump.
Technical parameter:
Specification&type | Roll diameter ×Length(mm) | Linear speed of front (m/min) | Roll friction ratio | Batch volume (kg) | Motor power (KW) | Max.nip adjusting (mm) | Overall dimension (mm) | Weight (t) |
X(S)K-160 | 160×320 | 8.95 | 1:1.35 | 1-2 | 5.5 | 4.5 | 1120×920×1295 | 1.1 |
X(S)K-200 | 200×500 | 19.50 | 1:1.05 | 8 | 11 | 5 | 2055×900×1165 | 2.5 |
X(S)K-250 | 250×620 | 15.20 | 1:1.10 | 10-15 | 18.5 | 8 | 3220×1500×1290 | 3.8 |
X(S)K-360 | 360×900 | 16.26 | 1:1.25 | 15-20 | 30 | 10 | 3920×1650×1725 | 5.53 |
X(S)K-400 | 400×1000 | 18.65 | 1:1.27 | 25-35 | 40 | 10 | 4380×1710×1880 | 8.14 |
X(S)K-450 | 450×1200 | 23.85 | 1:1.27 | 30-50 | 55 | 8 | 5050×1920×1870 | 13 |
X(S)K-560 | 560×1530 | 27.61 | 1:1.315 | 50-60 | 95 | 12 | 5830×2300×2000 | 22 |
X(S)K-550 | 550×1500 | 27.175 | 1:1.25 | 50-65 | 90(110) | 15 | 6040×2100×1625 | 20 |
X(S)K-610 | 610×1830 | 28.7 | 1:1.25 | 90-120 | 160 | 15 | 6750×3040×1743 | 35 |
XKY-660 | 660×2130 | 32.45 | 1:1.09 | 165 | 185 | 15 | 7450×3660×2080 | 45 |
XKR-660 | 660×2130 | 28.60 | 1:1.24 | 165kg | 250 | 15 | 7465×3660×2080 | 45.6 |
X(S)K-710 | 710×2200 | 31.90 | 1:1.09 | 350kg | 280 | 15 | 7180×3805×3015 | 50 |
X(S)K-760 | 760×2540 | 33.23 | 1:1.09 | 350kg | 315 | 15 | 7180×3805×3015 | 58 |
X(S)K-810 | 810×2540 | 31.90 | 1:1.09 | 350kg | 355 | 15 | 7180×3805×3015 | 68 |
Packaging & Shipping
Packaging:In wooden boxes
Shipping:Within 20~40 workdays
Our Services
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.
FAQ
1.Q: Are you a factory or trading company?
A: We are the factory.We have our own plant,worker and techniques research developing department.
2.Q: Where is your factory located?How can I visit there?
A: Our factory add is Tieshan industrial Park,Jiaonan,Qingdao,Shandong province,China.
3.Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market.And main products are the mtorcycle,electric bike and bicycle tyre making machine.
4.Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department.We win make a strick inspectin before the machines leave the factory.
5.Q: Are the techncal parameter is fixed?
A: Basicall,each model correspondin to the related machine.But we can design different type machine according to the clients requirement.
Company Information
Qingdao Suiteque Machinery Co.,Ltd is located in the west coast of Qingdao city. It is a professional enterprise that engage in manufacturing, custom-making, selling and technical service products such as rubber kneader series, rubber mixing mill series, rubber extruder and strainer series ,motorcycle and electric bike outer tyre and inner tube ,tube flap, plate vulcanizing machine series and so on. There are more than 60 types of rubber plastic machines in our company. The machines are widely used for producing cycle tyre, bicycle tyre, electric car tyre, car tyre etc.
The corporation has enormous potentially in science and technology development, advanced manufacturing facilities, complete test and scientific modern management system. Products sold throughout the country and being sold in places such as Southeast and Middle Asia, the Middle East, South Africa and North America.
All friends are welcome to visit us and faithfully hope to enter into business relations with you.
Thanks for your browsing and may you have happiness and prosperity!
