fiber laser small gun welding laser machine welding aluminium silver 2um laser weld machine
- Category: >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (1600644386990):
Product Overview
Description
We are factory!!!
Contact us get discount price!!!
After-sale team support!!!
Application
Applicable Material of fiber laser welding machine
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.
Applicable industry of fiber laser welding machine
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
Main Features
1) Simple and easy to operate, the weld is not deformed.
2) Laser output is stable, ensuring weld consistency.
3) High power density after laser focusing.
4) The weld seam is smooth and beautiful, the welding workpiece has no deformation, the welding is firm, and no subsequent grinding process is required, which saves time and cost.
5) 360 degree without dead angle micro soldering
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
6) Fast, easy to operate, labor saving
Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year.
7) Long life working, safer and more environmentally friendly
laser welding is with low consumables for micro soldering.
2) Laser output is stable, ensuring weld consistency.
3) High power density after laser focusing.
4) The weld seam is smooth and beautiful, the welding workpiece has no deformation, the welding is firm, and no subsequent grinding process is required, which saves time and cost.
5) 360 degree without dead angle micro soldering
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
6) Fast, easy to operate, labor saving
Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year.
7) Long life working, safer and more environmentally friendly
laser welding is with low consumables for micro soldering.
Our Advantages
Comparison project | Traditional Welding | Laser welding | AccTek New laser welding |
Heat input | Very high | Low | Low |
Deformation | Big | Small | Small |
Base metal Bond strength | General | Good | Very good |
Final product processing | Polish | No or few polish | No or few polish |
Welding speed | General | 2 times of argon arc welding | more than 2 times argon arc welding |
Applicable material | SS, CS,GS, etc. | SS, CS,GS, etc. | SS, CS,GS, etc. |
Consumables | More | Less | Less |
Operation difficulty | Complex | General | Simple |
Safety of the operator | Unsafe | Safe | Safe |
Impact of environmental protection | Polluted | Environmentally Friendly | Environmentally Friendly |
Fault tolerance | Good | Not good | Good |
Swing welding | No | No | Yes |
Spot width adjustable | No | No | Yes |
Welding quality | Inferior | General | Good |
Technical Parameters
No | Description | Parameter | ||||
1 | Model | AKH-1000 | AKH-1500 | AKH-2000 | ||
2 | Laser power | 1000W | 1500W | 2000W | ||
3 | Range of adjustable power | 1-100% | ||||
4 | Laser wavelength | 1070nm | ||||
5 | Fiber length | Standard 10m, maximum support 15m | ||||
6 | Way of working | continuous/modulation | ||||
7 | Speed range | 0-120mm/s | ||||
8 | Repeat precision | ±0.01mm | ||||
9 | Welding thickness | Welding thickness | ||||
10 | Welding gap requirements | ≤0.5mm | ||||
11 | Cooling water | Industrial therm ostatic water tank | ||||
12 | Working temperature | 15-35℃ | ||||
13 | Working humidity | <70% no condensation | ||||
14 | Voltage | 220V | ||||

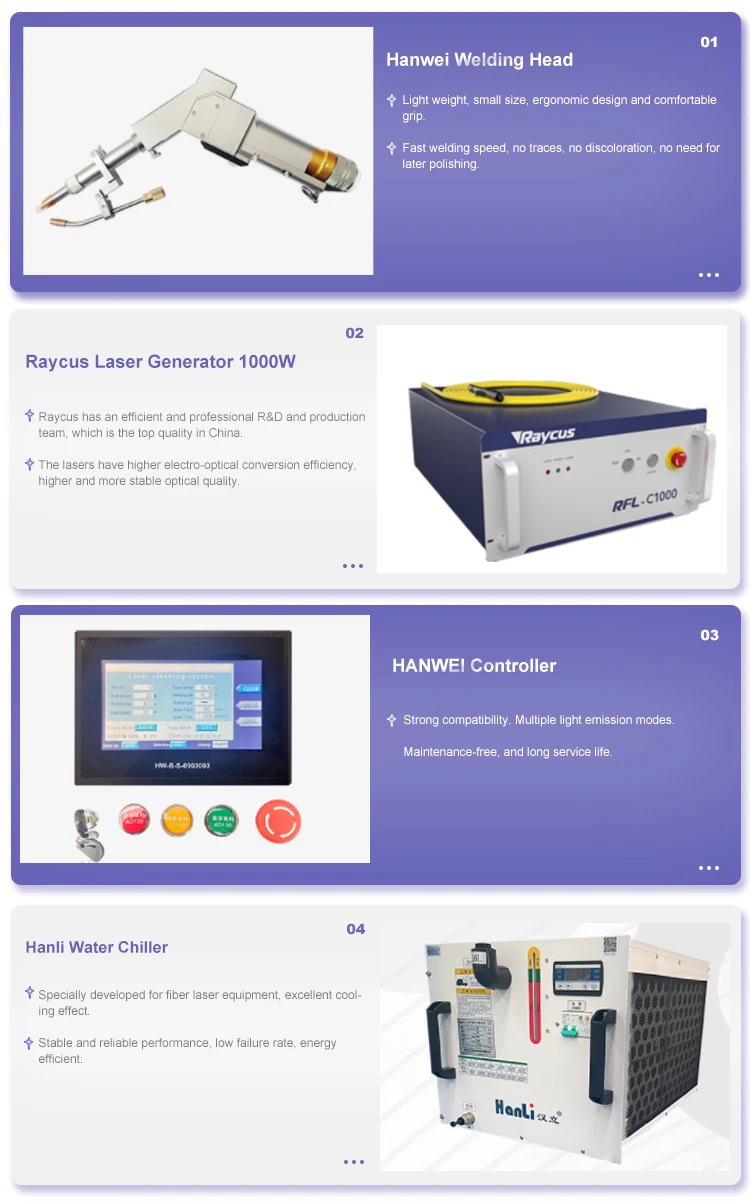

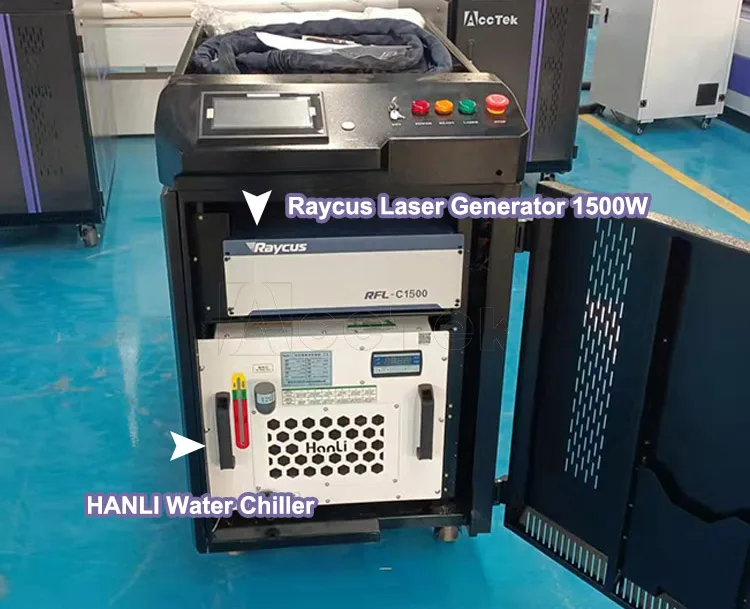

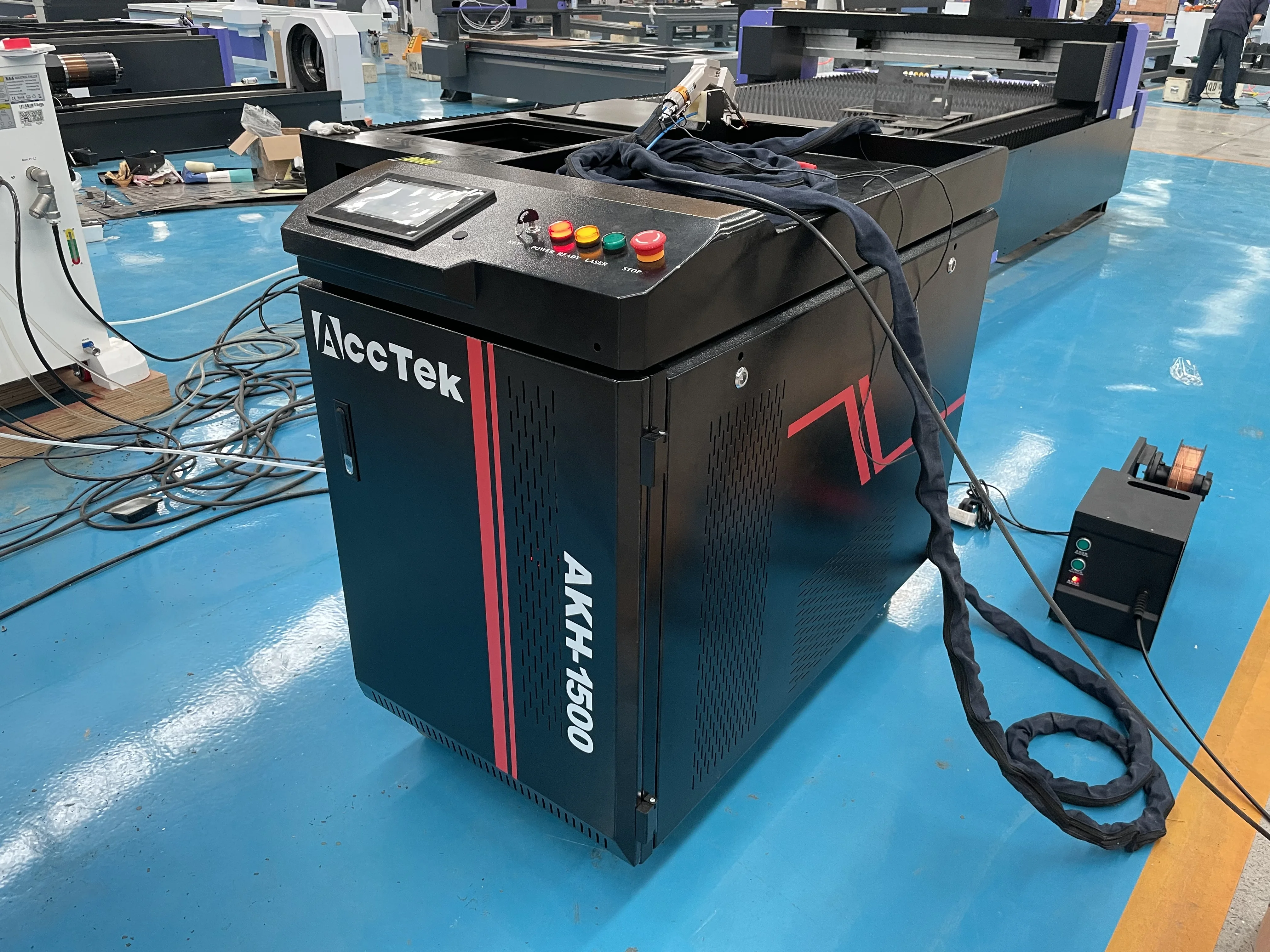

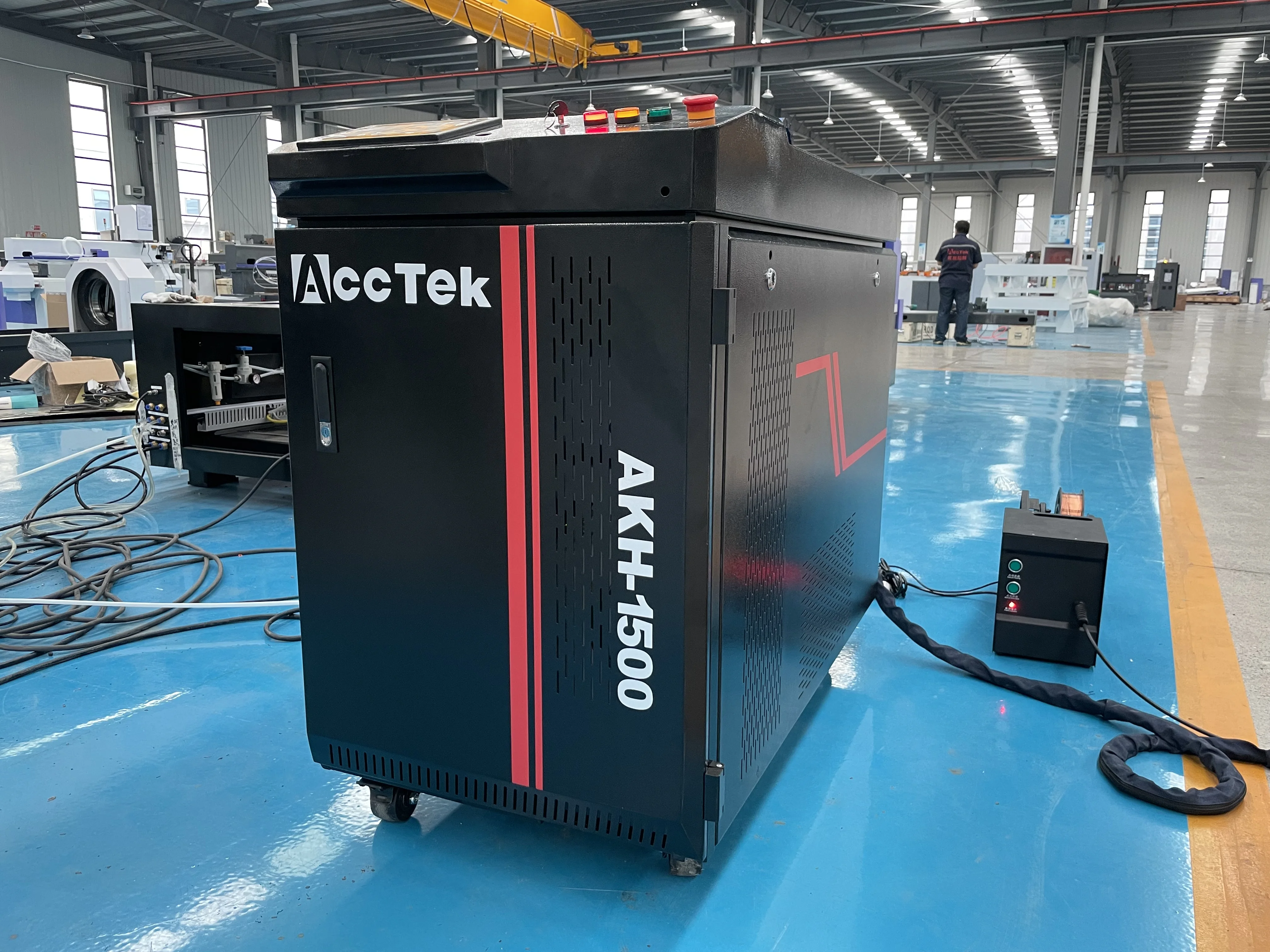

Machine Details

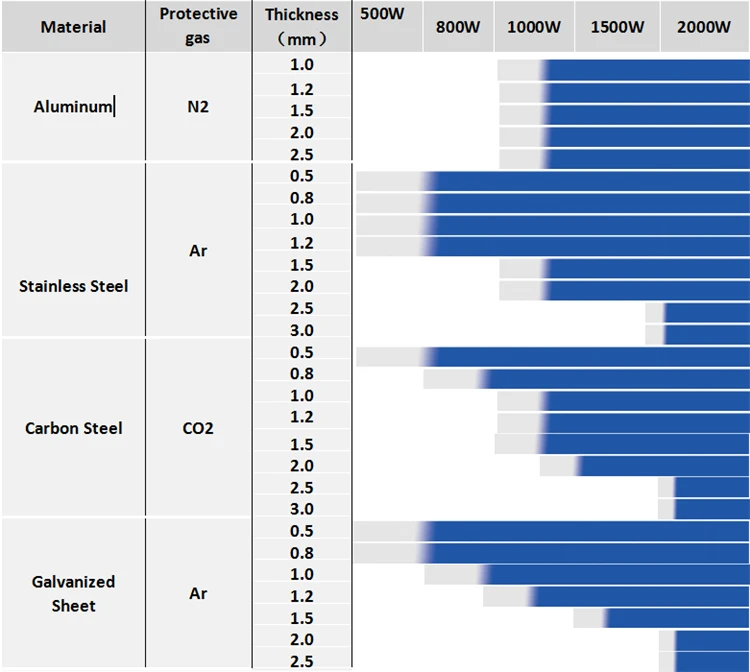

Penetration Data Of Machine
After Sale Services
1) Guarantee
3 years guarantee of the whole machine.
2) Software issue
Our technician is able to re-install or set up by remote for free.
3) Hardware issue
Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way)
We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs(flight, visa, hotel, training costs, etc.)
3 years guarantee of the whole machine.
2) Software issue
Our technician is able to re-install or set up by remote for free.
3) Hardware issue
Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way)
We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs(flight, visa, hotel, training costs, etc.)
