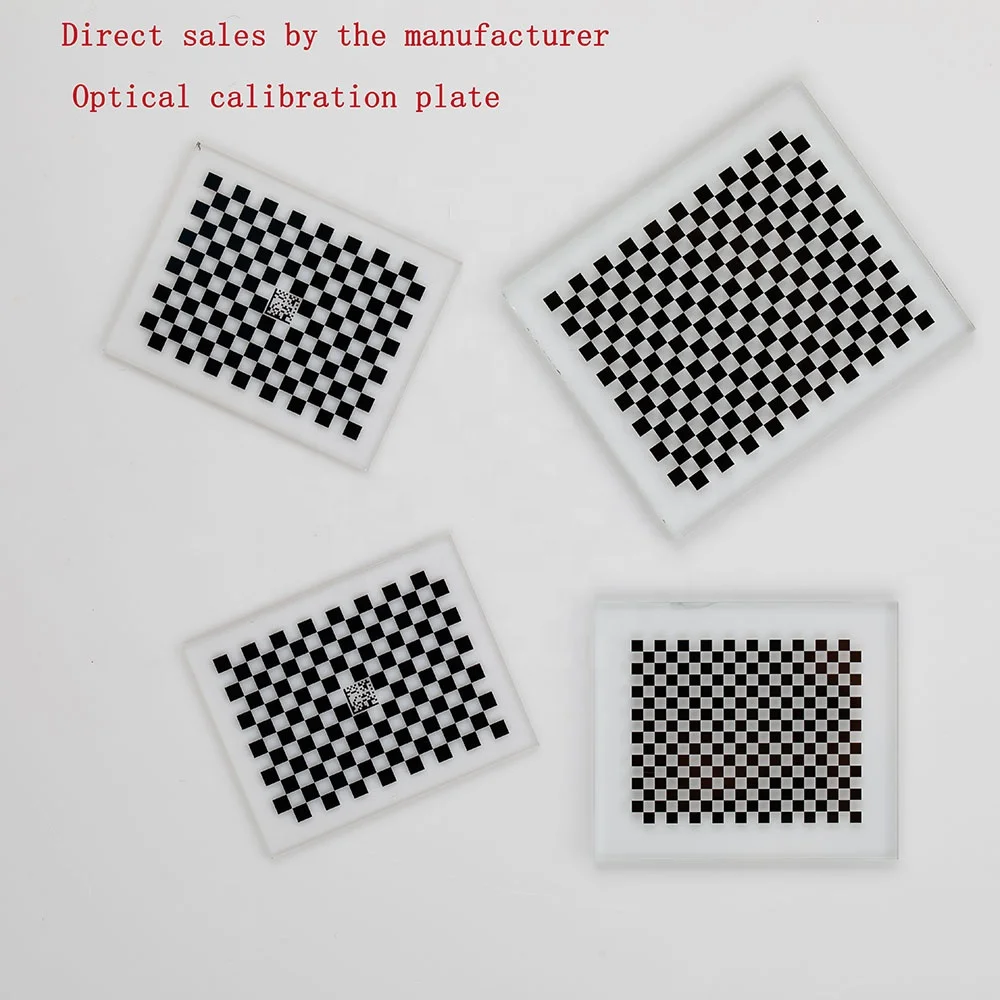

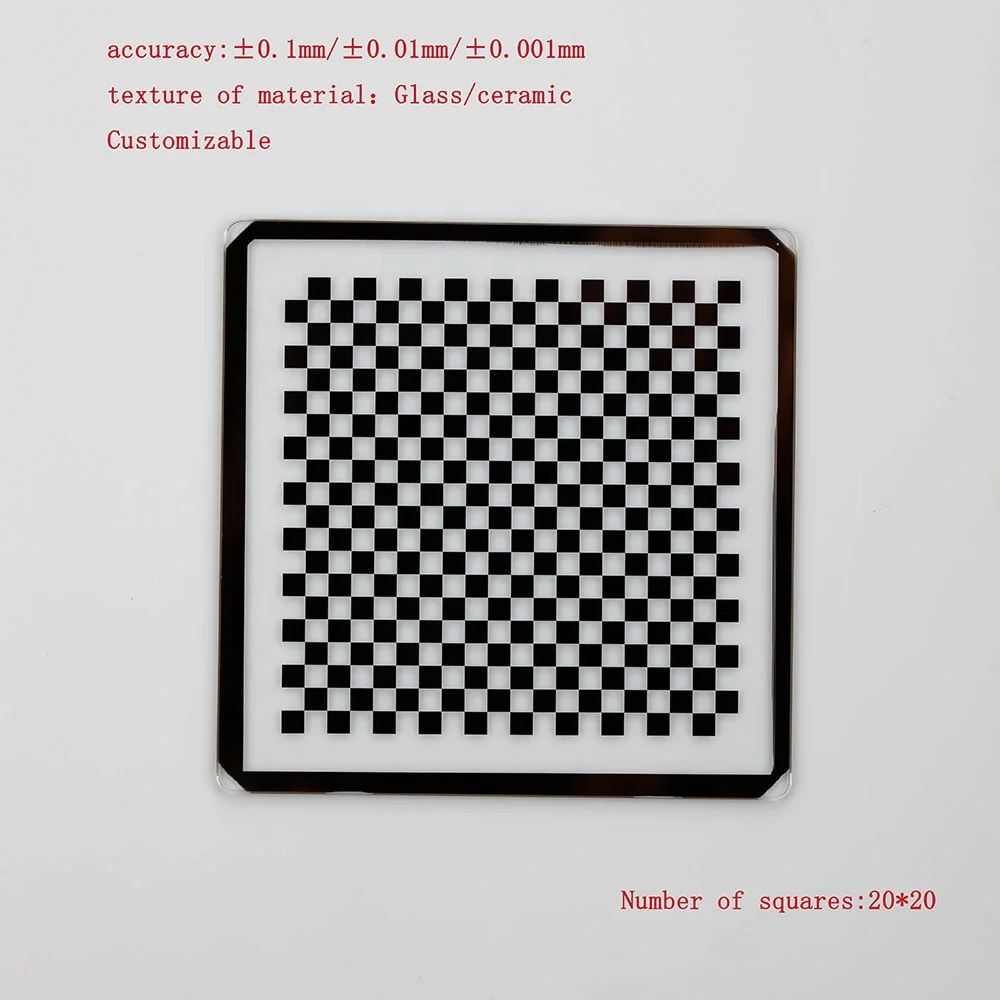

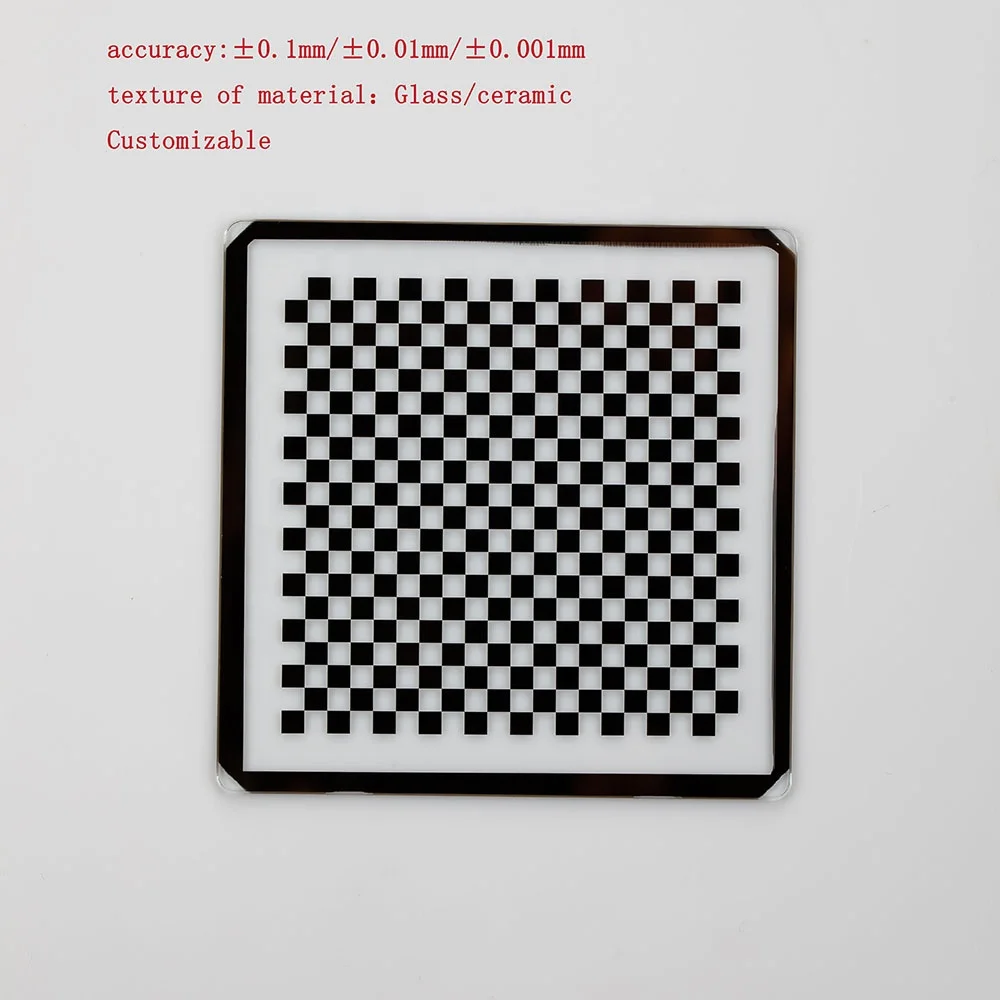

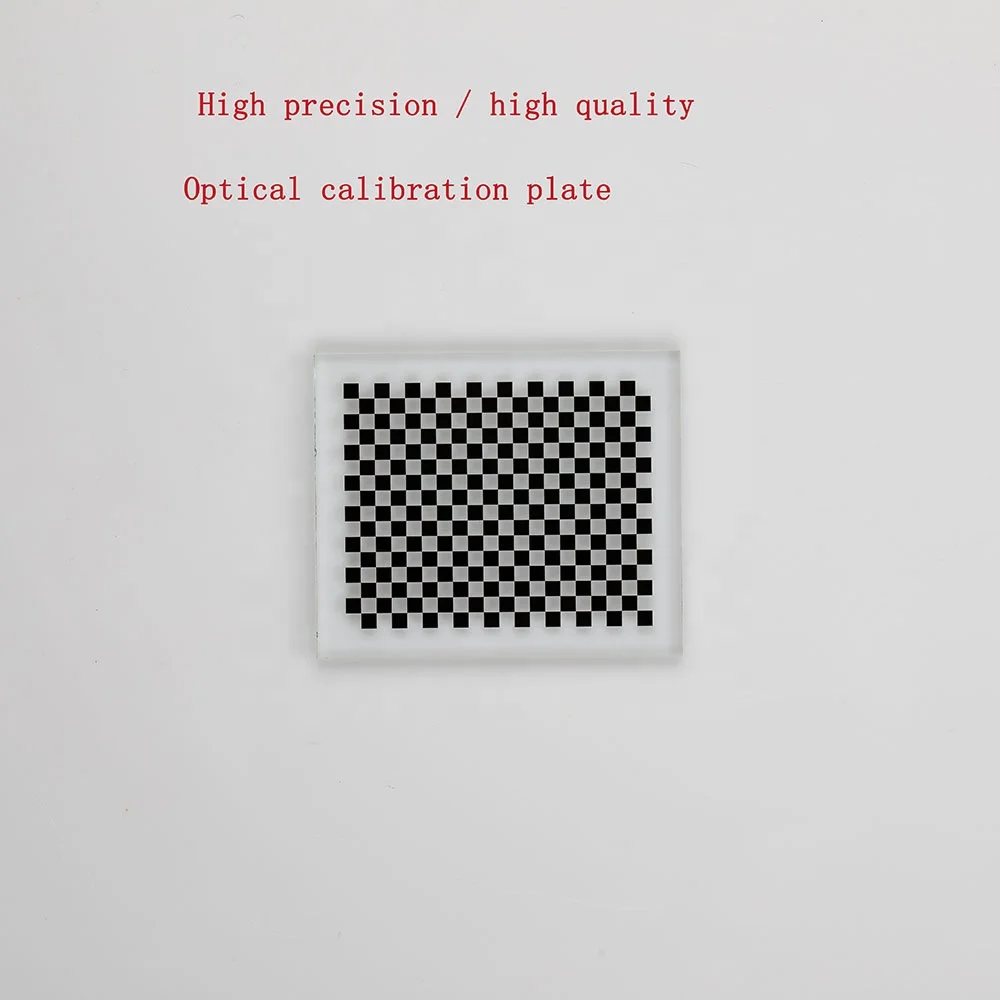

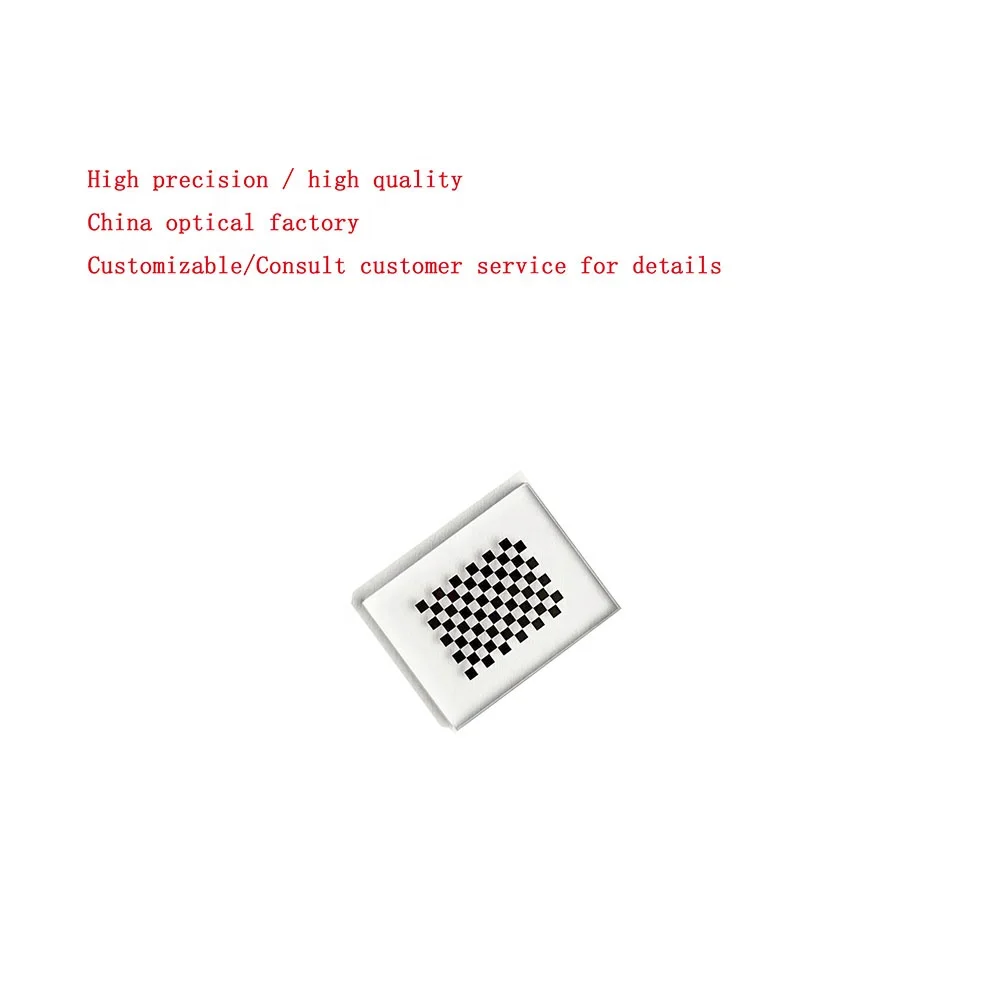

High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image
High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image

High resolution microscope check the deflection and curvature of the plate slide target CheckBoard test image

Share on (1600644584042):


Price:$16.90 - $29.40

Quantity:


Product Overview

Description







Product Description


Specifications
Diameter
Distance
number of dots

material
Precision
(mm)
Halcon6mm
0.375mm
0.75mm
7*7
glass/ceramics
±0.001mm
Halcon10mm
0.625mm
1.25mm
7*7
glass/ceramics
±0.001mm
Halcon15mm
0.9375mm
1.875mm
7*7
glass/ceramics
±0.001mm
Halcon20mm
1.25mm
2.50mm
7*7
glass/ceramics
±0.001mm
Halcon30mm
1.875mm
3.75mm
7*7
glass/ceramics
±0.001mm
Halcon40mm
2.50mm
5.00mm
7*7
glass/ceramics
±0.001mm
Halcon50mm
3.125mm
6.25mm
7*7
glass/ceramics
±0.001mm
Halcon60mm
3.75mm
7.50mm
7*7
glass/ceramics
±0.001mm
Halcon80mm
5.00mm
10.00mm
7*7
glass/ceramics
±0.001mm
Halcon100mm
6.25mm
12.50mm
7*7
glass/ceramics
±0.001mm
Halcon160mm
10.00mm
20.00mm
7*7
glass/ceramics
±0.001mm
Halcon200mm
12.50mm
25.00mm
7*7
glass/ceramics
±0.001mm


Specifications
Pattern size
（L*W）
Square side length
(Distance)
number of squares（one）
material
Precision
(mm)
OpenCV5mm
5.0*4.0mm
0.25*0.25mm
20*16个
glass/ceramics
±0.001mm
OpenCV10mm
10*8mm
0.5*0.5mm
20*16个
glass/ceramics
±0.001mm
OpenCV15mm
15*12mm
0.75*0.75mm
20*16个
glass/ceramics
±0.001mm
OpenCV20mm
20*16mm
1.0*1.0mm
20*16个
glass/ceramics
±0.001mm
OpenCV30mm
30*24mm
1.5*1.5mm
20*16个
glass/ceramics
±0.001mm
OpenCV40mm
40*32mm
2.0*2.0mm
20*16个
glass/ceramics
±0.001mm
OpenCV50mm
50*40mm
2.5*2.5mm
20*16个
glass/ceramics
±0.001mm
OpenCV60mm
60*48mm
3.0*3.0mm
20*16个
glass/ceramics
±0.001mm
OpenCV80mm
80*64mm
4.0*4.0mm
20*16个
glass/ceramics
±0.001mm
OpenCV100mm
100*80mm
5.0*5.0mm
20*16个
glass/ceramics
±0.001mm
OpenCV160mm
160*160mm
8.0*8.0mm
20*20个
glass/ceramics
±0.001mm
OpenCV200mm
200*200mm
10.0*10.0mm
20*20个
glass/ceramics
±0.001mm




Specification


item
value
Warranty
3 years
Customized support
OEM, ODM, OBM
Place of Origin
China
Zhejiang
Brand Name
ZHUYU
Model Number
ZX
Product name
CheckBoard test image
Application
Microscopic inspection plate
Function
Check measurement
Accuracy
±0.5um
Color
transparent
weight
15g
packing
The plastic box
Outer packaging
carton
Brand
ZHUYU
Material Science
glass


Packing & Delivery




Carton


Company Profile





Ningbo Zhixing Optical Technology Co., Ltd.
is a technology-based enterprise focusing on the research and development of optical devices. The founder of the company graduated from Changchun Institute of Optics and Mechanics, Chinese Academy of Sciences.


The core R&D team includes graduates from Changchun Institute of Optics and Mechanics, Zhejiang University, Beijing Institute of Technology, etc. Many doctors from prestigious optoelectronic schools.The company can complete optical system design, aspheric surface processing, aspheric surface inspection tool (computed hologram, CGH) production, machine vision calibration board development and other requirements according to customer needs, and has its own independence in aspheric surface inspection tool (computed hologram, CGH) Intellectual property rights break the monopoly of foreign counterparts in this technology.Maintain long-term cooperation with many well-known companies at home and abroad in the development of calibration boards


Calibration certificate of calibration plate







Ningbo Zhixing Optical Technology Co., Ltd. participated in the 2021 Shenzhen Optical Expo



FAQ


1. who are we?
We are based in Zhejiang, China, start from 2018,sell to Domestic Market(50.00%),North America(15.00%),Eastern Asia(15.00%),South America(9.00%),Central America(3.00%),Southeast Asia(2.00%),Africa(2.00%),Eastern Europe(1.00%),Oceania(1.00%),Mid East(1.00%),South Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Optical calibration plate,Linear ruler,Mask Plate,Holograms,Resolution plate

4. why should you buy from us not from other suppliers?
1. Have the ability to independently develop and design products.
2. Reasonable price and high precision
3. Fast delivery

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
