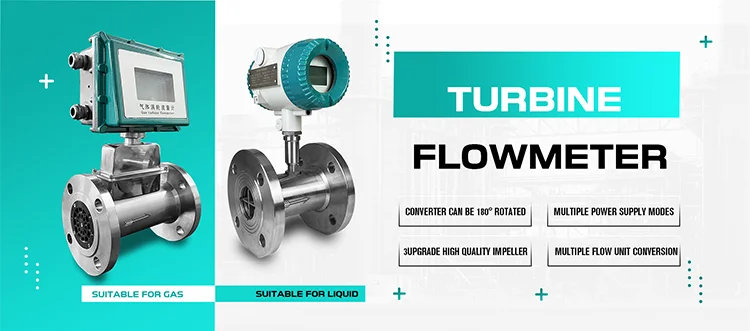

DN25 Lpg Power Supply Thermal Gas Mass Flow Meters Gas Turbine Flowmeter For Gas
- Category: >>>
- Supplier: Kaifeng Meihe Automation Instrument Co. Ltd.
Share on (1600644604170):
Product Overview
Description
| Diameter | Flow Range | Connection Type | Nominal Pressure | Customized Working Pressure (MPa) |
|---|---|---|---|---|
| DN4 | 0.04~0.25 | Thread Connection | 6.3MPa | 10/ 16/ 25 |
| DN6 | 0.1~0.6 | Thread Connection | 6.3MPa | 4.0 /6.0/ 10 /16 /25 |
| DN10 | 0.2~1.2 | Thread Connection | 6.3MPa | 4.0 /6.0/ 10 /16 /25 |
| DN15 | 0.6~6 | Thread Connection | 6.3MPa | 4.0/ 6.3/ 10 /16/25 |
| Flange Connection | 4.0MPa | |||
| DN20 | 0.8~8 | Thread Connection | 6.3MPa | 4.0/ 6.0 /10 /16/ 25 |
| Flange Connection | 4.0MPa | |||
| DN25 | 1~10 | Thread Connection | 6.3MPa | 4.0/ 6.3/ 10/ 16 /25 |
| Flange Connection | 4.0MPa | |||
| DN32 | 1.5~15 | Thread Connection | 6.3MPa | 4.0/ 6.0/ 10 /16 /25 |
| Flange Connection | 4.0MPa | |||
| DN40 | 2~20 | Thread Connection | 6.3MPa | 4.0/ 6.3/ 10 /16/ 25 |
| Flange Connection | 4.0MPa | |||
| DN50 | 4~40 | Thread Connection | 6.3MPa | 4.0/ 6.3 /10 /16 /25 |
| Flange Connection | 4.0MPa | |||
| DN65 | 7~70 | Thread Connection | 1.6MPa | 4.0/ 6.3/ 10 /16/ 25 |
| Flange Connection | 1.6MPa | |||
| DN80 | 10~100 | Thread Connection | 1.6MPa | 4.0/ 6.3 /10 /16/ 25 |
| Flange Connection | 1.6MPa | |||
| DN100 | 20~200 | Thread Connection | 1.6MPa | 2.5 /4.0/ 6.3/ 10/ 16/ 25 |
| Flange Connection | 1.6MPa | |||
| DN125 | 25~250 | Flange Connection | 1.6MPa | 4.0/ 6.3/ 10 /16/ 25 |
| DN150 | 30~300 | Flange Connection | 1.6MPa | 4.0 /6.3/ 10/ 16/ 25 |
| DN200 | 80~800 | Flange Connection | 1.6MPa | 4.0 /6.3/ 10 /16 /25 |
