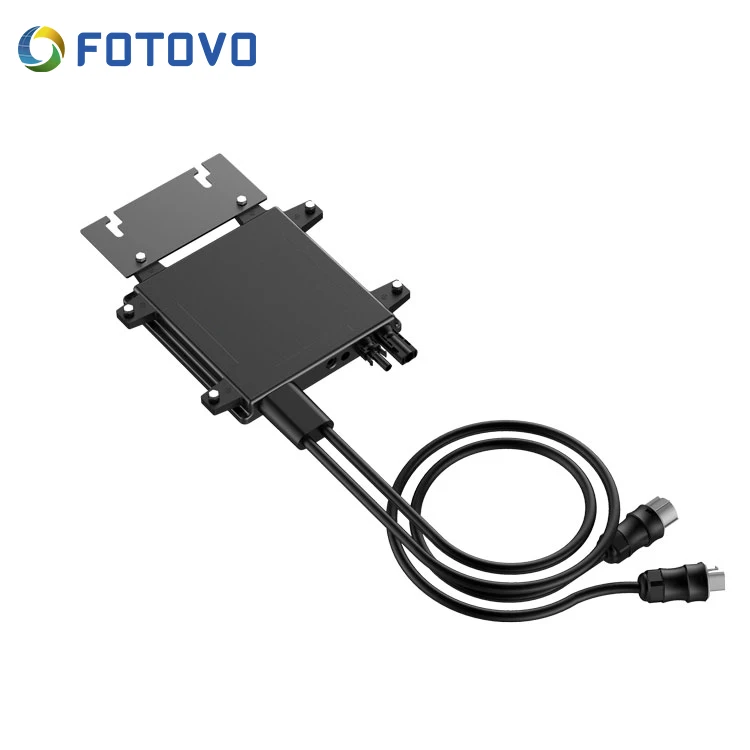

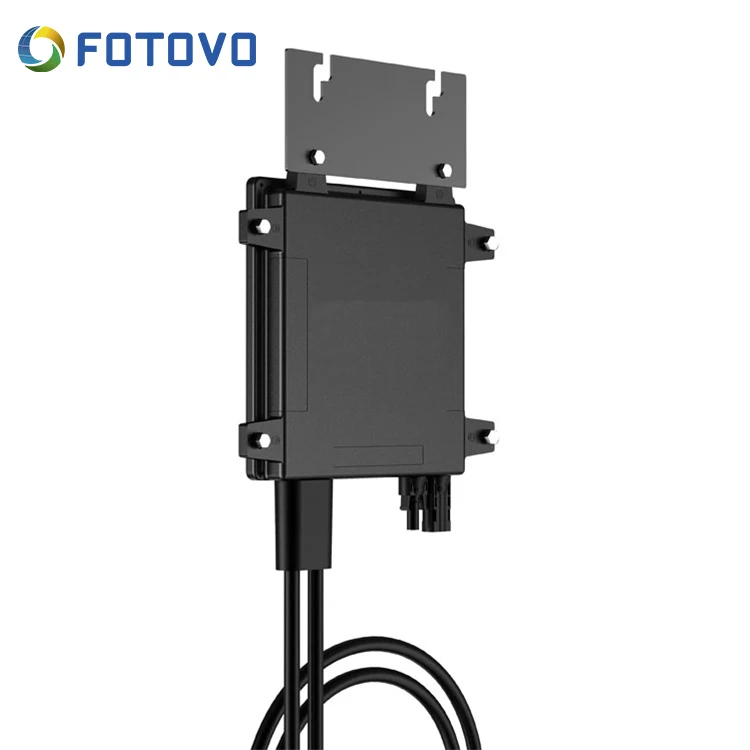

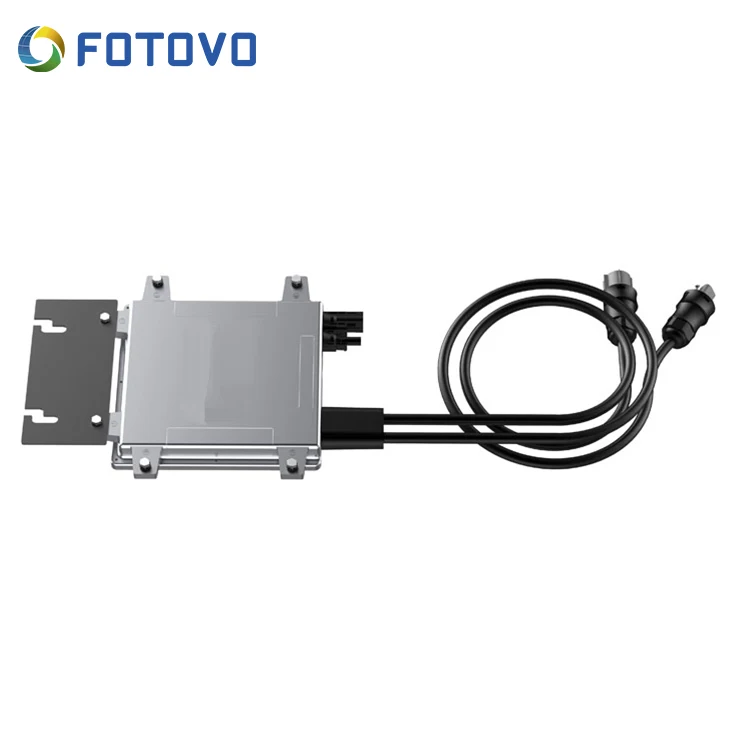

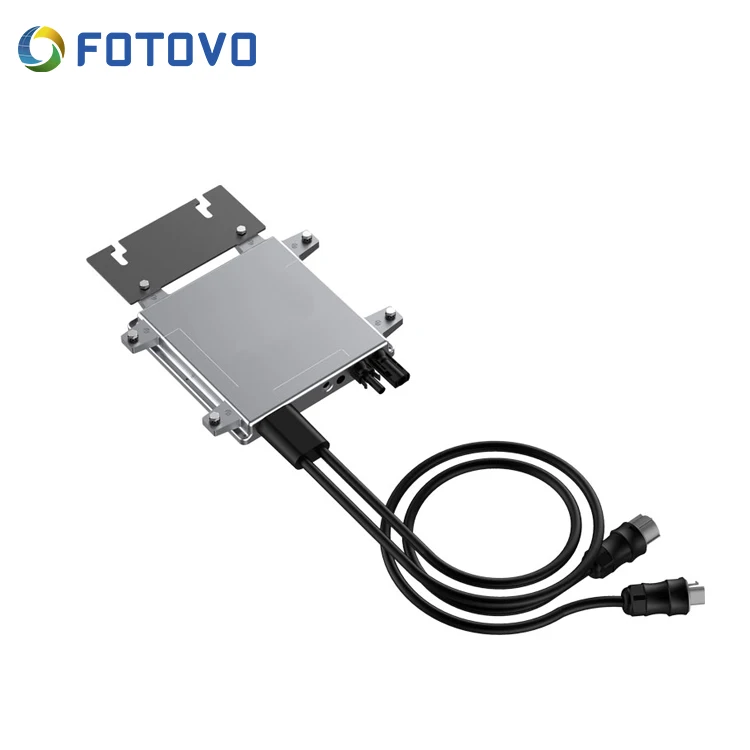

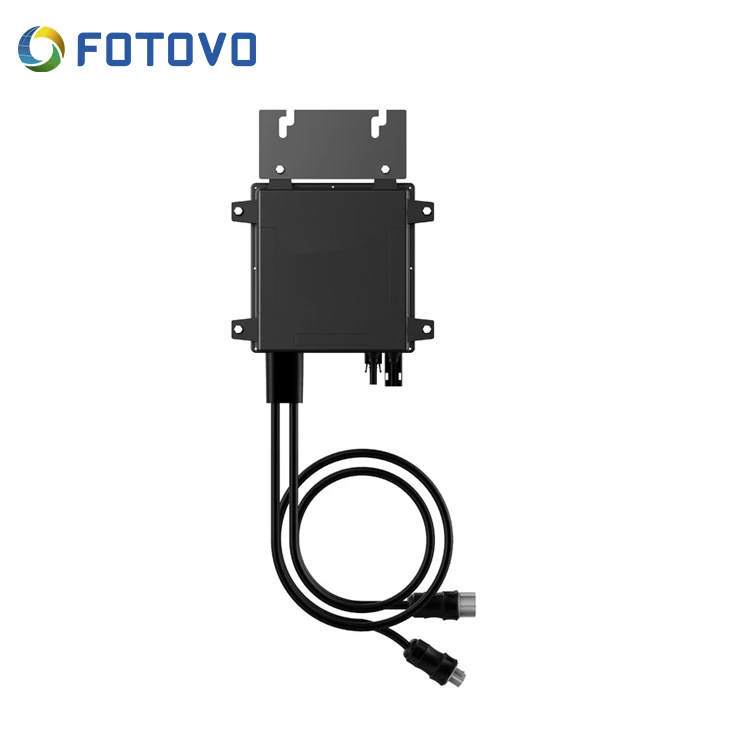

FOTOVO Portable 12v 110v 48v 300w on grid 3 phase pure sine wave Grid tie dc to ac mttp Micro ups Solar Inverter MicroInverter
- Category: >>>
- Supplier: Jiangsu Elemac Energy Co. Ltd.
Share on (1600644674799):
Product Overview
Description
Details Images
Product Paramenters
* Single microinverter connects four PV modules with dual MPPT
* Peak output power up to 300/600/800W; Adapted to 60 & 72 cells PV panels
* Peak efficiency 95.70%; CEC weighted efficiency 95.50%
* Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather
* High reliability: NEMA6 (IP67) enclosure; 6000V surge protection
* Peak output power up to 300/600/800W; Adapted to 60 & 72 cells PV panels
* Peak efficiency 95.70%; CEC weighted efficiency 95.50%
* Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather
* High reliability: NEMA6 (IP67) enclosure; 6000V surge protection
Item | Description | |
A | AC End Cable (Female), 2m 12AWG Cable | |
B | M8*25 screws | |
C | DC Extension Cable, 1m | |
D | AC Female End Cap, IP67 | |
All accessories above are not included in the package, and need to be purchased separately. Please contact our sales representative for the price. (M8 screws need to be prepared by installer-self. | ||
Component name | Product attributes | Parameter | ||
Model | BDM-600 | BDM-300 | ||
Input Data(DC) | Recommended Max PV Power (Wp) | 460 x 2 | 380 | |
Max DC Open Circuit Voltage (Vdc) | 60 | 60 | ||
Max DC Input Current (Adc) | 14x2 | 12 | ||
MPPT Tracking Accuracy | >99.5% | |||
MPPT Tracking Range (Vdc) | 22-55 | |||
Isc PV (absolute maximum) (Adc) | 18 x2 | 14 | ||
Maximum Inverter Backfeed Current to the Array (Adc) | 0 | |||
Output Data(AC) | Peak AC Output Power (Wp) | 600(continuous) | 250 | |
Nominal Power Grid Voltage (Vac) | 240/208/230 | |||
Allowable Power Grid Voltage (Vac) | 211-264 | 183-229 | configurable | |||
Allowable Power Grid Frequency (Hz) | 59.3 a 60.5/configurable | |||
THD | <3% (at rated power) | |||
Power Factor (cos phi, fixed) | >0.99 (at rated power) | |||
Rated Output Current (Aac) | 2.5/2.87/2.6 | 1.04/1.20/1.09 | ||
Current (inrush)(Peak and Duration) | 24A, 15us | |||
Nominal Frequency (Hz) | 60/50 | |||
Maximum Output Fault Current (Aac) | 4.4A peak | 2.2A peak | ||
Maximum Output Overcurrent Protection (Aac) | 10 | 6.3 | ||
Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered) | 7/6/6 | （15A)13 | ||
System Efficiency | Weighted Averaged Efficiency (CEC) | 95.50% | ||
Night Time Tare Loss (Wp) | 0.11 | 0.08/0.06/0.07 | ||
Over/Under Voltage Protection | Yes | |||
Over/Under Frequency Protection | Yes | |||
Anti-Islanding Protection | Yes | |||
Over Current Protection | Yes | |||
Reverse DC Polarity Protection | Yes | |||
Overload Protection | Yes | |||
Protection Degree | IP-67 | |||
Ambient Temperature | -40°F to +149°F (-40°C to +65°C) | |||
Operating Temperature | -40°F to +185°F (-40°C to +85°C) | |||
Display | LED LIGHT | |||
Comunications | Power Line | |||
Dimension (W-H-D) | 10.91"x5.20"x1.97" (277x132x50 mm) | 230*138*35MM | ||
Weight | 6.4 Ibs. (2.9 kg) | 4.6 Ibs. (2.1 kg) | ||
Environment Category | Indoor and outdoor | |||
Wet Location | Suitable | |||
Pollution Degree | PD 3 | |||
Overvoltage Category | II(PV), III (AC MAINS) | |||
Product Safety Compliance | UL 1741CSA C22.2No. 107.1I EC/EN 62109-1 I EC/EN 62109-2 | |||
Grid Code Compliance* (Refer to the label for the detailed grid code compliance) | ΙΕΕE 1547 VDE-AR-N 4105 VDE V 0126-1-1/A1 G83/2, CEI 021 AS 4777.2 & AS 4777.3,EN50438 | |||
Microinverter Advantages
1.In microinverter system the solar panels are connected in parallel, without high voltage on the DC side, which has a good safety.
2.The solar panels do not interfere with each other, independent power generation has no short-board effect.The system efficiency can be maximized.
3.In the environment with shadow obscuration,it can shows more efficient conversion efficiency than ordinary on grid string inverters.
4.In the same system, it can be flexibly designed to connect to different power and different types of solar panels.
5.The background can monitor the power generation of each solar panels to reduce maintenance costs.
6.The design service life is 25 years, and the comprehensive investment cost is lower.
1.In microinverter system the solar panels are connected in parallel, without high voltage on the DC side, which has a good safety.
2.The solar panels do not interfere with each other, independent power generation has no short-board effect.The system efficiency can be maximized.
3.In the environment with shadow obscuration,it can shows more efficient conversion efficiency than ordinary on grid string inverters.
4.In the same system, it can be flexibly designed to connect to different power and different types of solar panels.
5.The background can monitor the power generation of each solar panels to reduce maintenance costs.
6.The design service life is 25 years, and the comprehensive investment cost is lower.
Product packaging
Packing Specification
1pcs/box
5boxs/carton
48cartons/1pallet
