HiOSO GPON ONT has high quality wall mounted metal housing, supports GPON and EPON OLT provides 4 ports 100M RJ45 Ethernet ports

Product Overview

Description

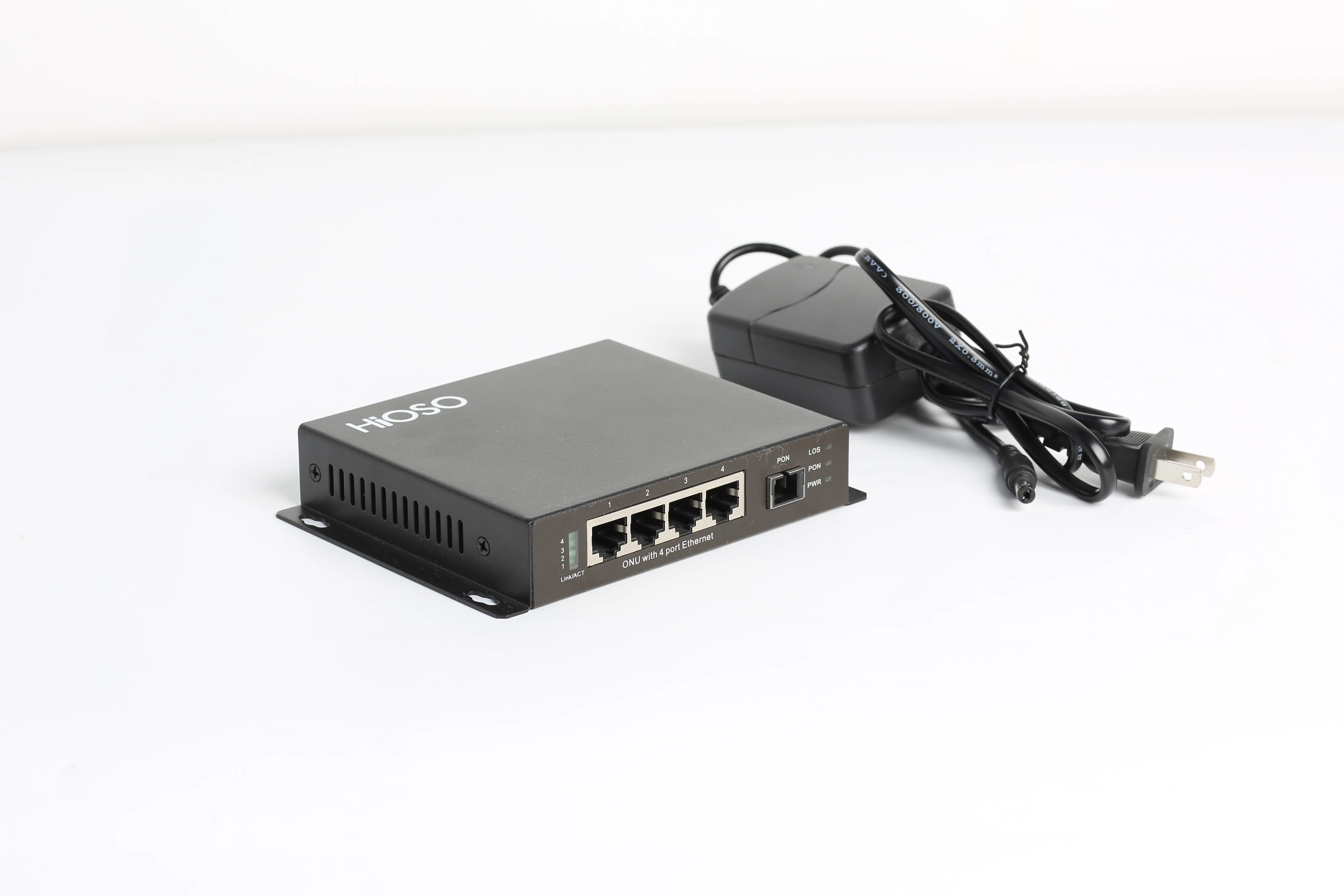

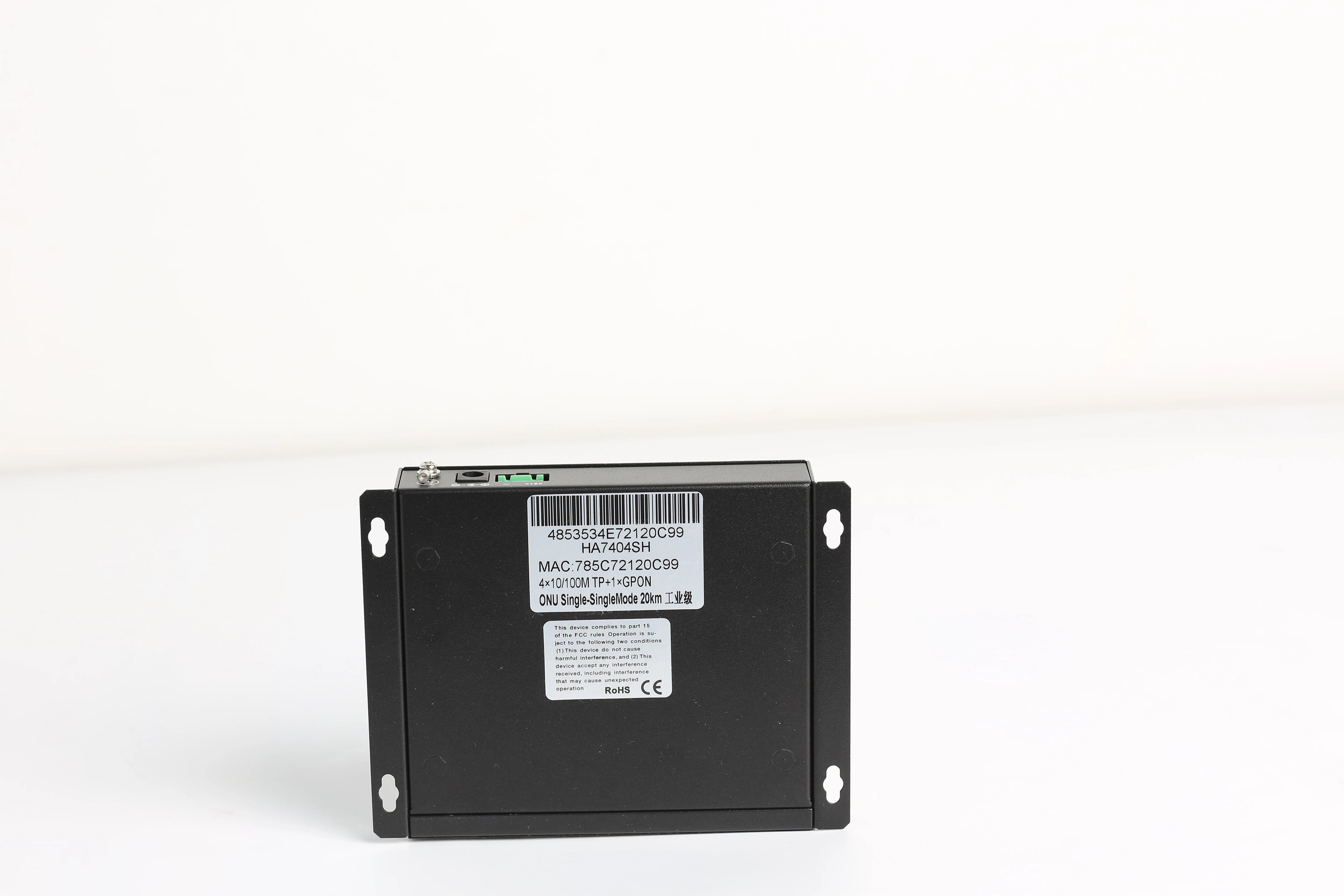

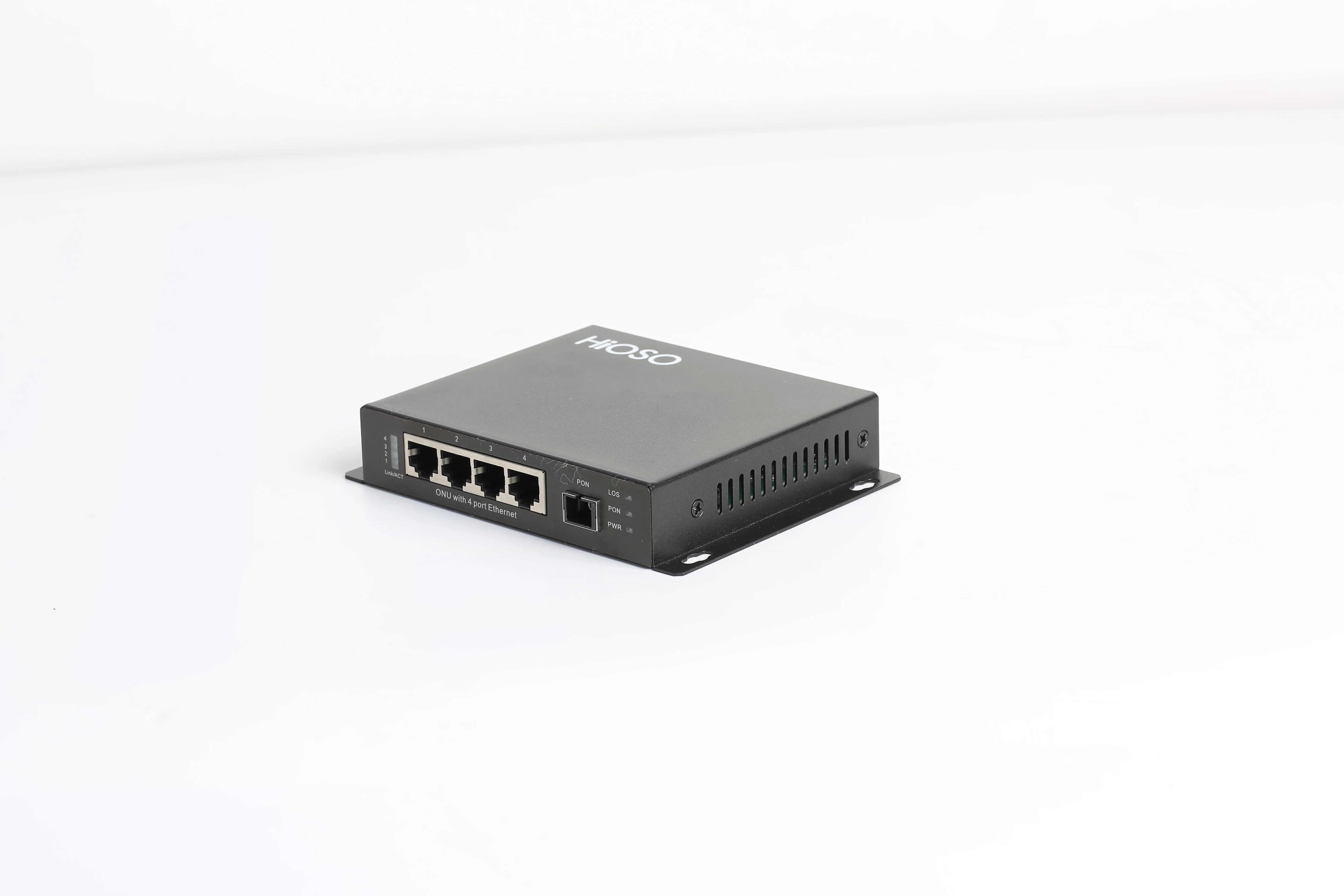

HA7404SH 4FE Industrial ONU

Overview

HA7404SH GPON/XPON ONT is specially designed to meet the FTTH ultra-broadband access needs of home and SOHO users. The HA7404SH provides four 10/100M RJ45 Ethernet ports. Based on stable and mature GPON/XPON technology, it is cost-effective, supports two-layer technology, and supports both GPON and EPON OLT. High reliability, easy maintenance, guaranteed QoS, fully compliant with ITU-T G.984 GPON standard.

Feature

lSupport ITU-T G984 Standard

lAuto discovery EPON/GPON OLT

lSupports 32 TCONT,256 gemports

lSupport ONU auto-discovery/Link detection/remote upgrade of software

lIntegrated remote configuration and maintenance function.

lFunctions like transceiver diagnostic monitoring, transmitter disable, etc

lFully compatibility with GPON OLT with different chipsets.

lSupport port monitoring, port mirroring, port rate limiting etc.

lSupport auto polarity detection of Ethernet ports (AUTO MDIX)

lSupport VLAN division and user separation to avoid broadcast storm

lSupport broadcasting storm resistance functio

Parameter	Specification
Uplink PON interface	1 GPON interface, SC single-mode/single-fibre, uplink 1 .25Gbps, downlink 2.5Gbps

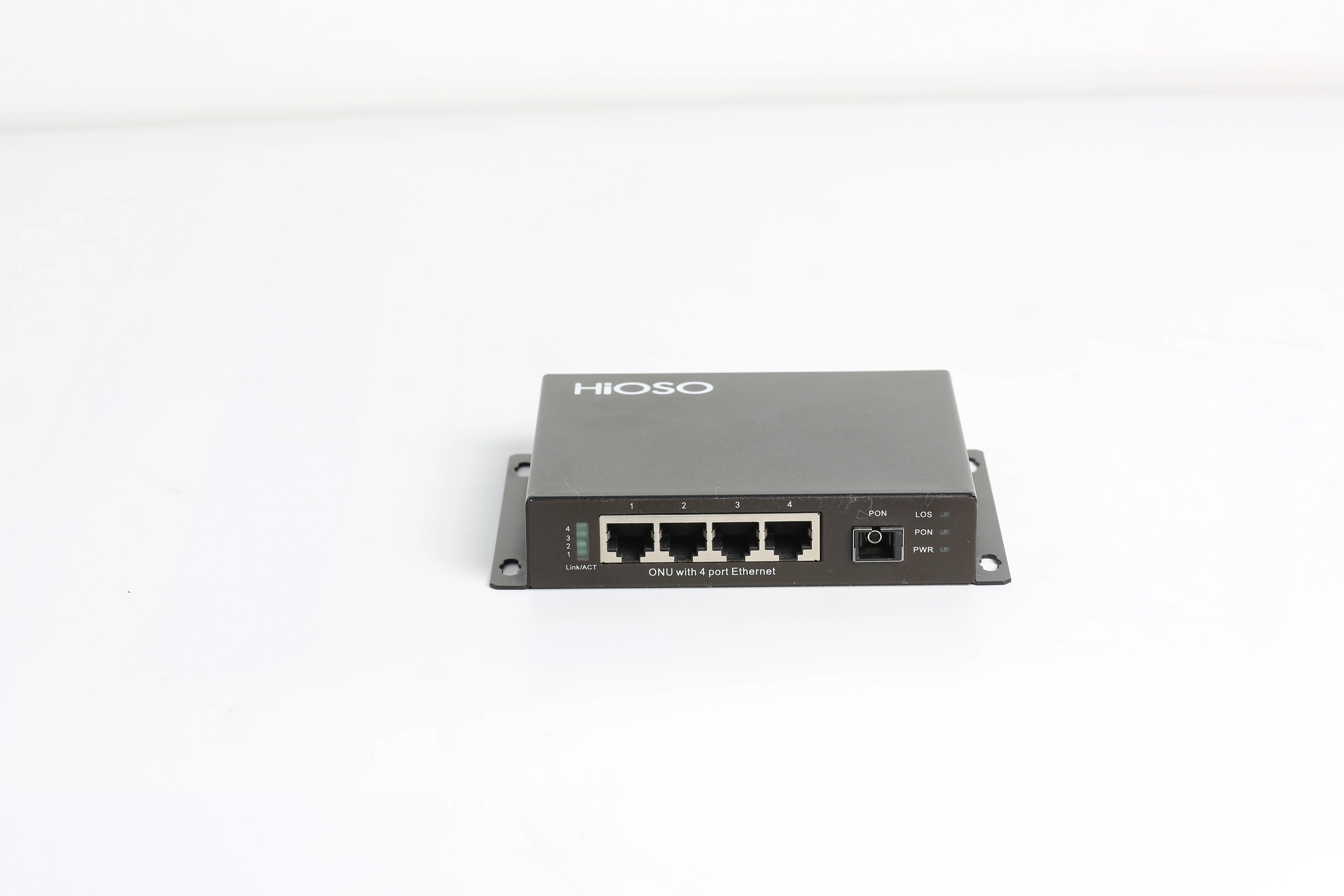

Downlink LAN interface	4* 10/100Mbps Full Duplex/Half Duplex, RJ45 connector
Wavelength	Tx 1310nm, Rx 1490nm
Optical power	0~+4dBm
Receiving sensitivity	-27dBm
Max transmission distance	20 km
Cache space	1.25MB
MTBF	100,000 hours
GPON trait	ITU-T G984 Standard Supports 32 TCONT,256 gemports Support the 984 standard AES128 encryption function Support SBA and DBA

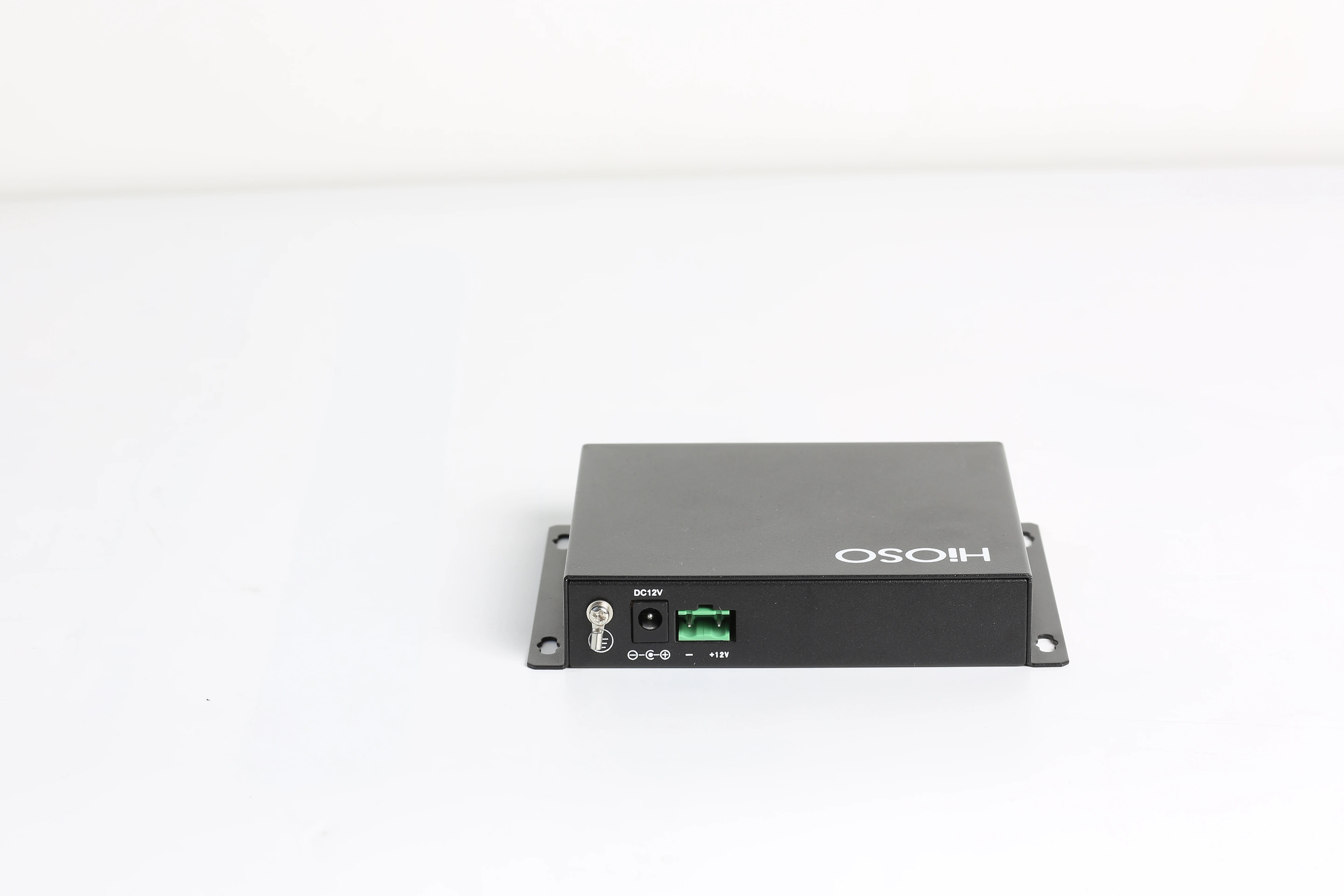

Power	DC12V/1A (outside power)
Power consumption	3.7W
Operating temperature	-10—55 ℃ wide temperature range-T:-40~75℃
Storage temperature	-40—85 ℃
Humidity	5%~90% non-condensing
Dimension	26mm*140mm*106mm
