Handheld 1000w 3000W Laser Rust Removal Machine with Reci Raycus MAX laser source Sheet metal Cleaning
- Category: >>>
- Supplier: Demark,(Wuhan),Technology,Co.,Ltd
Share on:
Product Overview
Description
About Demark

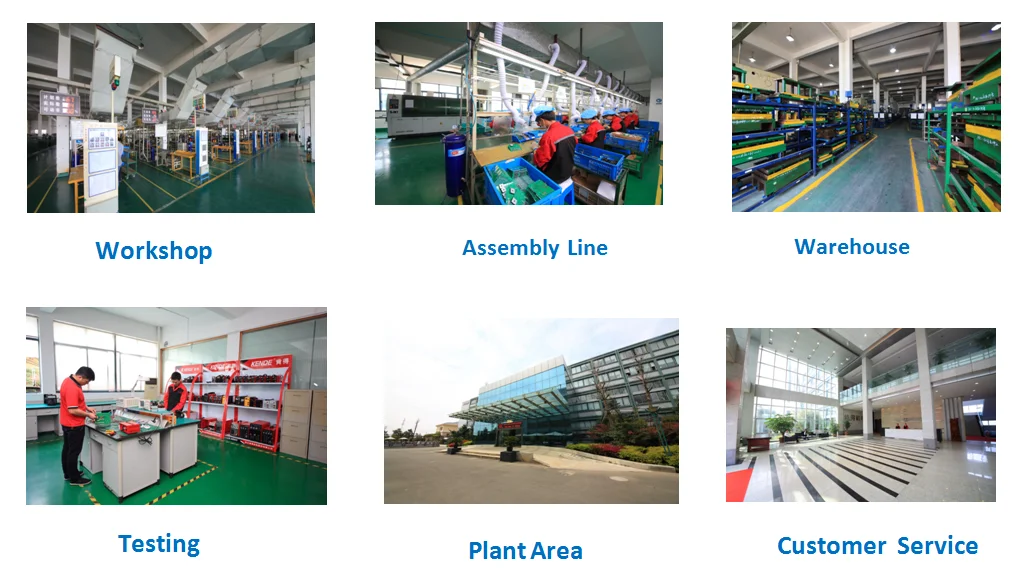

Demark (Wuhan) Technology Co.,Ltd has focused on laser technology for over 20 years in China, including laser marking, laser cleaning, laser welding and laser cutting applications. We started as a small operation, but now have become one of the leading suppliers in the laser industry in China.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
Product Description
laser cleaning machine provedes various laser sources
Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.
Comparison
New generation handheld laser welding machine
*Low working heat input and small deformation
*Good welding quality, no need for grinding
*More than 2 times speed of argon arc welding
*Simple operation and less consumables
*Wobble welding with adjustable welding width
*Constantly improved worker safety design
*Good welding quality, no need for grinding
*More than 2 times speed of argon arc welding
*Simple operation and less consumables
*Wobble welding with adjustable welding width
*Constantly improved worker safety design
Traditional arc welding / ordinary laser welding
*High working heat input and large deformation
*Average welding quality, require subsequent polishing
*Average welding speed
*Difficult operation and many consumables
*Non-wobble welding with fixed welding width
*No worker safety design, without guaranteed safety
*Average welding quality, require subsequent polishing
*Average welding speed
*Difficult operation and many consumables
*Non-wobble welding with fixed welding width
*No worker safety design, without guaranteed safety

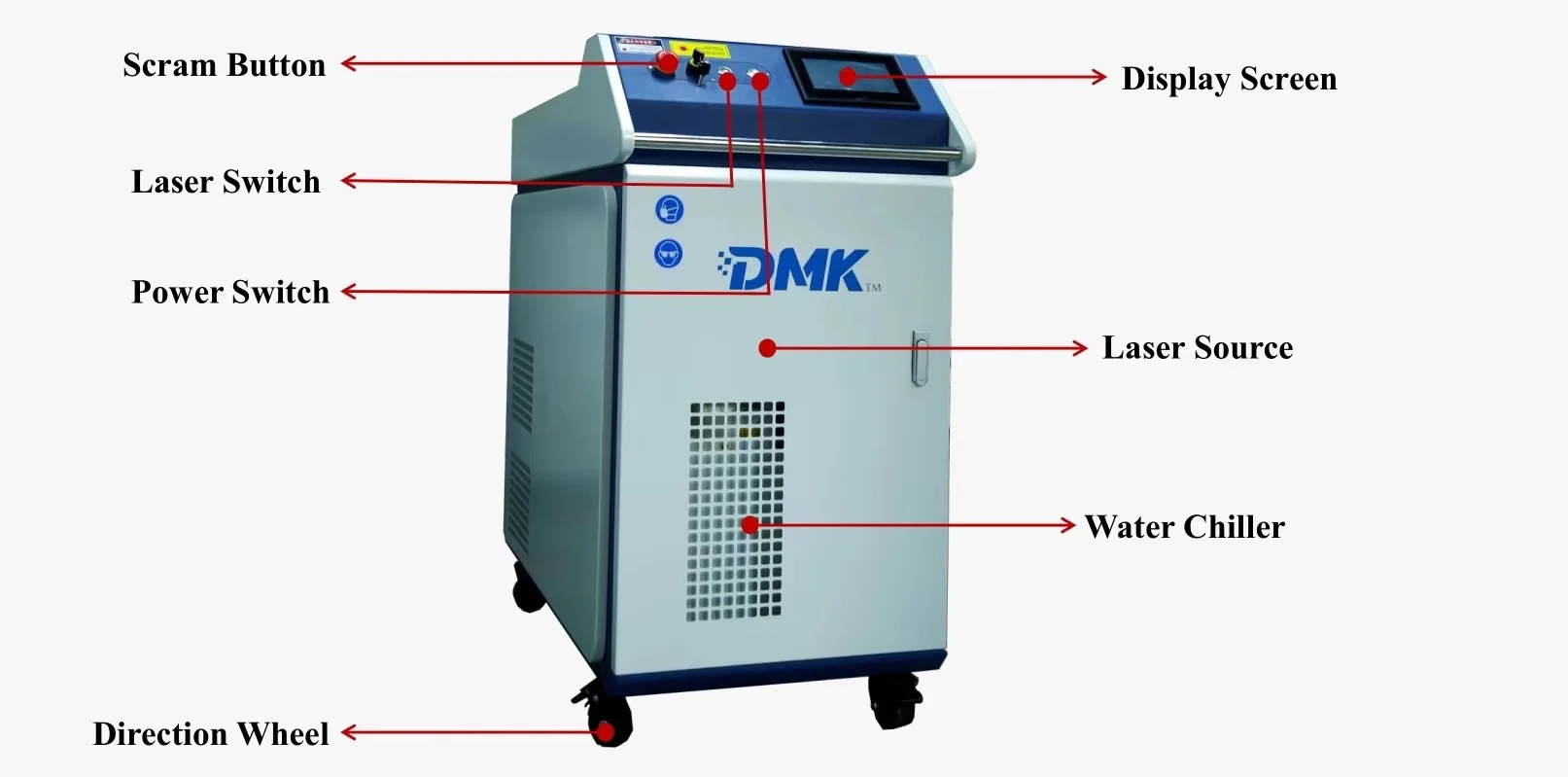

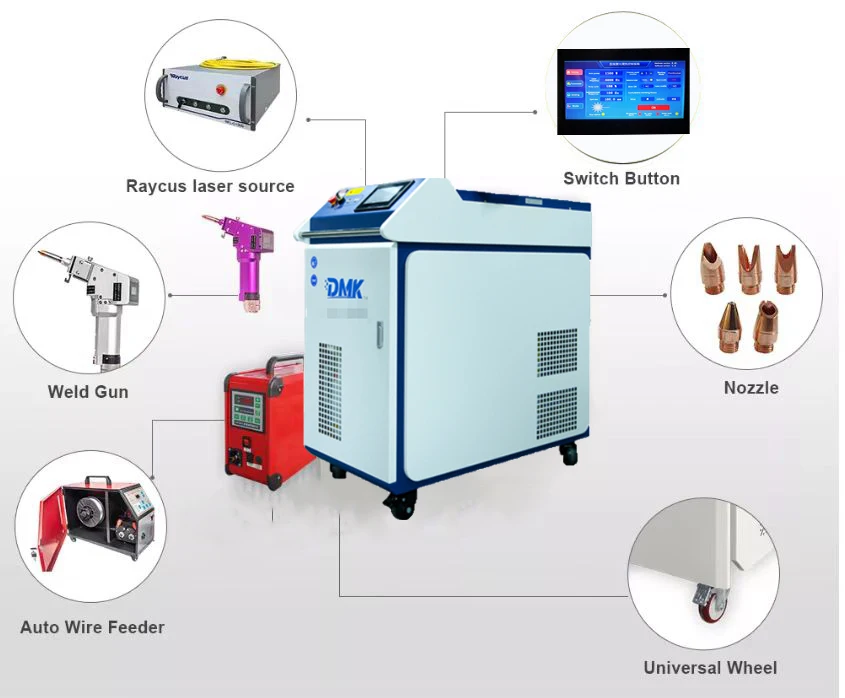

Main Parts

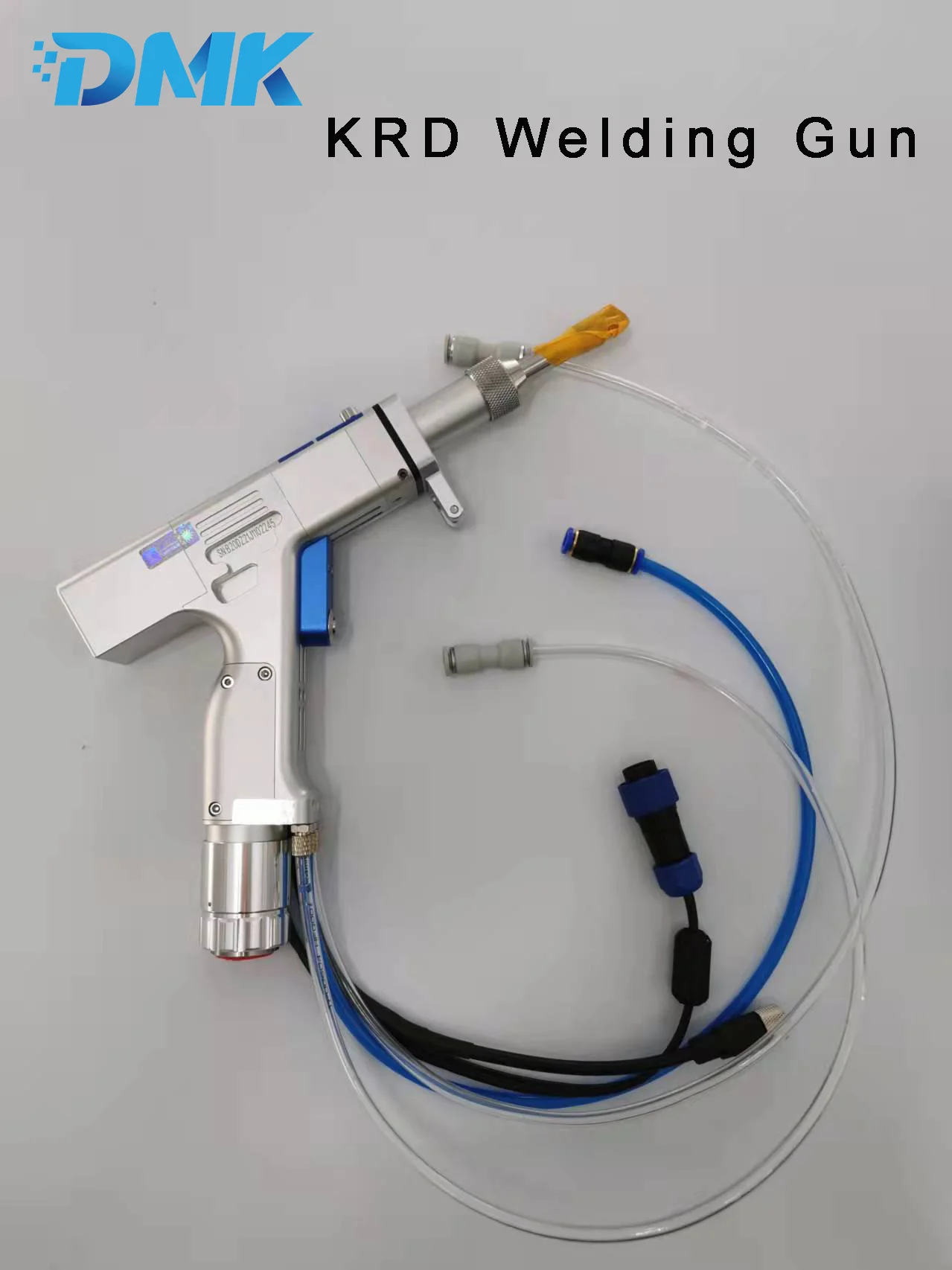

Wobble Head Technology
There's a micro motor moving in the focus lens, so the output beam spot can make circular movements to make wider welding seam which can enlarge more the tolerance range and gap breadth than traditional arc welding. In addtion, the integration of wire feeder system can weld the wider gap, with much stronger solidarity and higher penetration, which will improve your work efficiency and experience.

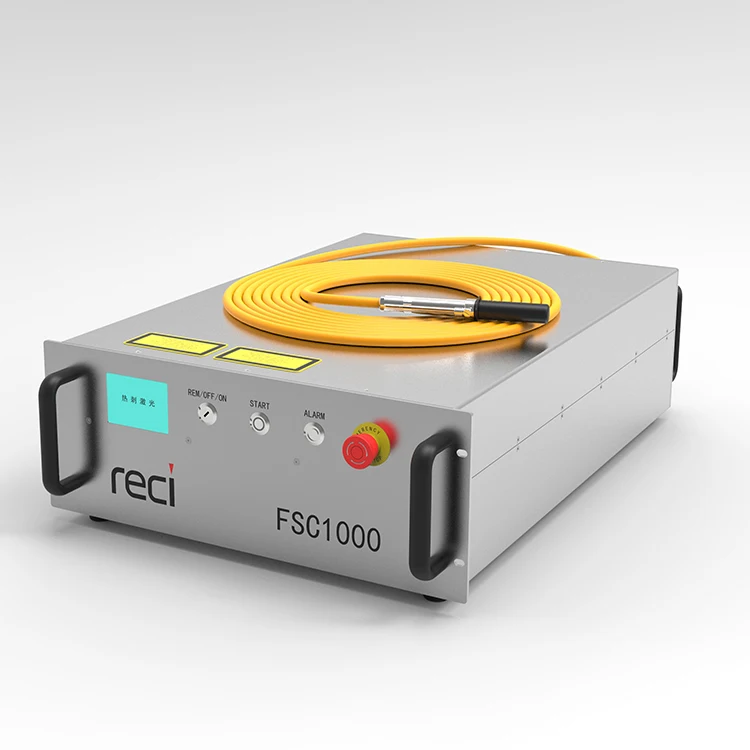

Reci Laser source.
At present, the best laser source combination for welding machines is RECI, which is second to none in terms of cost performance
and occupancy，You can choose from 1000W-3000W at will

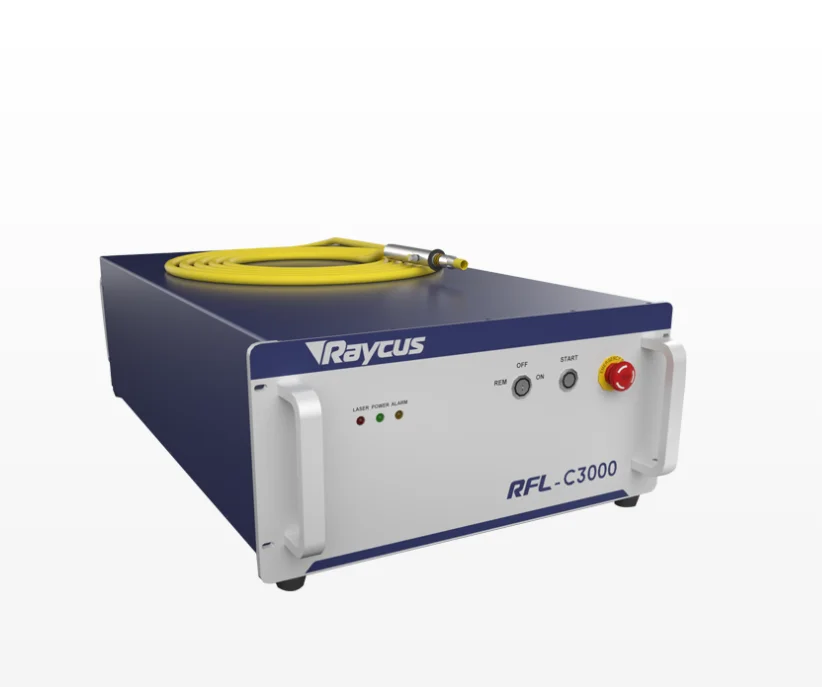

Raycus laser source
Special fiber laser for welding has a large installed capacity, small energy consumption, low failure rate and a service life of more than 100000 hours.
Features
*Spiral swing welding mode
*Expand the tolerance range
*Enlarge the width of the weld
*Expand the tolerance range
*Enlarge the width of the weld
*Industrial chiller
*Perferable cooling effect
*Protection laser and welding head
*Perferable cooling effect
*Protection laser and welding head
*Touch screen design
*Full English interface
*Easy to use and operate
*Full English interface
*Easy to use and operate
*Industrialized design
*Save production space
*Good heat dissipation
*Low noise
*Save production space
*Good heat dissipation
*Low noise
*Physical on-off control
*Automatically lock the light
*High safety
*Automatically lock the light
*High safety
*Intelligent solenoid valve control
*Less consumption
*Effectively protect welding head
*Less consumption
*Effectively protect welding head
Simple operation and full welding
Product Paramenters
Type | DHH-3000 |
Power index | 3000w |
Laser wavelength | 1070nm |
Laser frequency | 50-5000Hz |
Power conditioning | 10-100% |
Welding penetration (Stainless steel ) | 8.0mm |
Welding penetration (carbon steel ) | 8.0mm |
Welding penetration (Aluminium alloy) | 6.0mm |
Welding spot of wobble head | 1.2-3.0mm |
Fiber length | 10m/15m |
Automatic wire feeding | Selectable |
Electricity demand | 380V/50Hz 60HZ |
Machine power | ≤3Kw |
Cooling method | Water-cooled (built-in) |
APPLICATIONS
laser welding machine Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.
