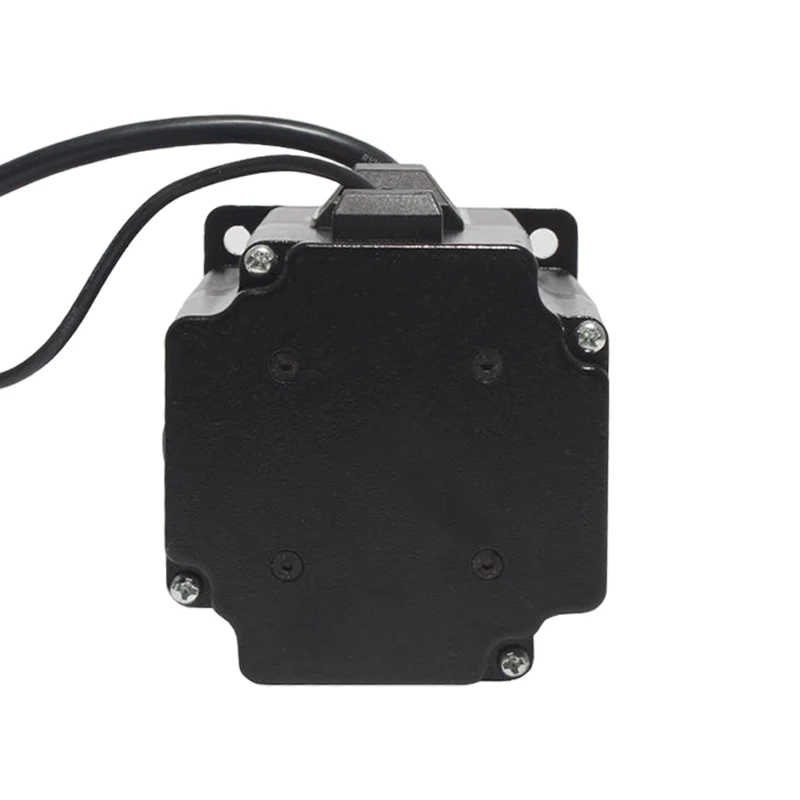

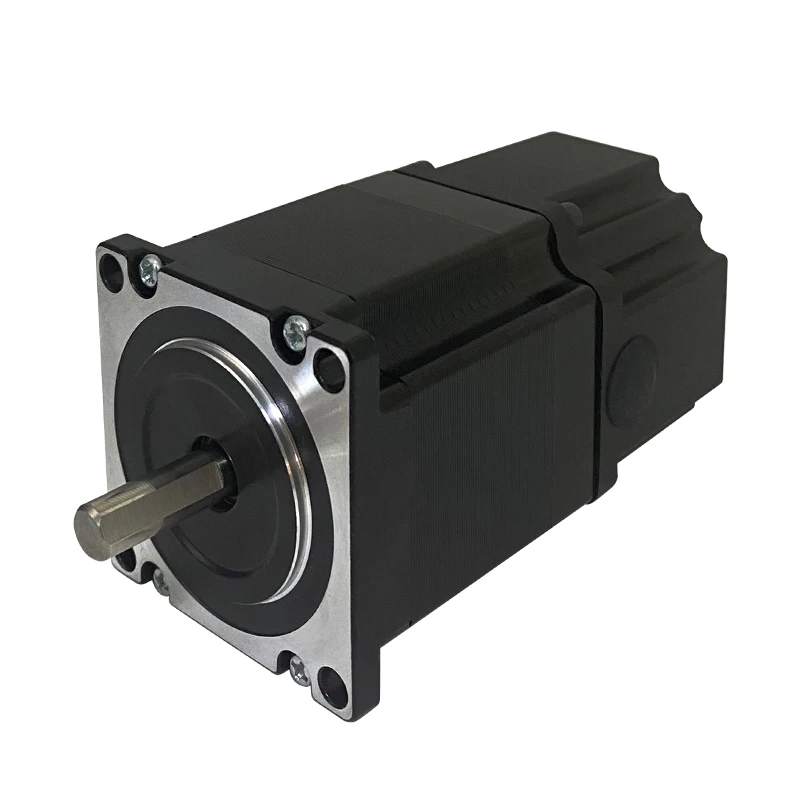

2.4Nm Brake Stepper Motor Nema 23 Hydrid High Quality Powerful Braked Dc Motor

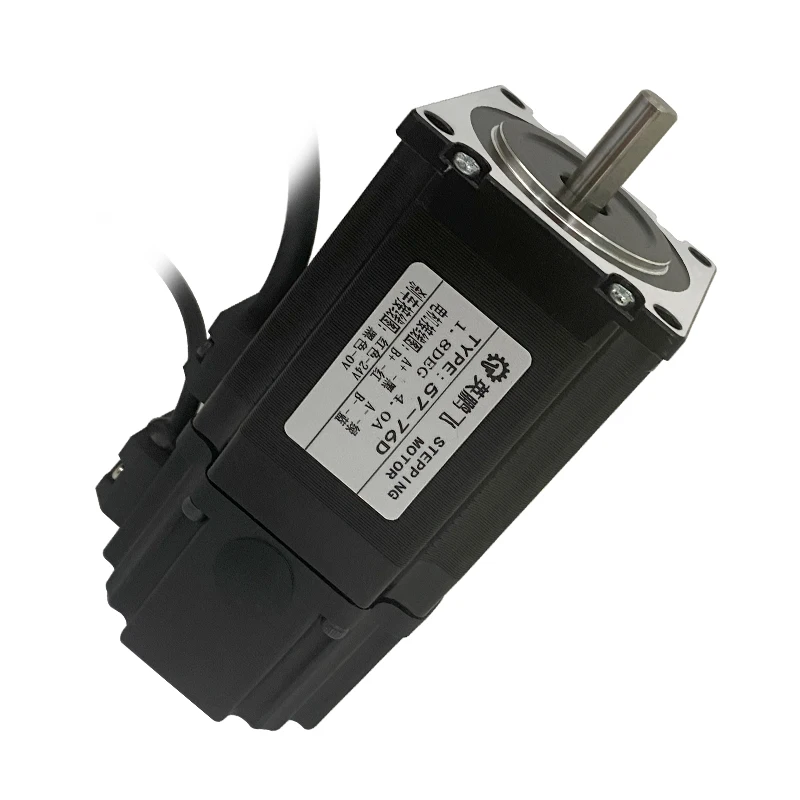

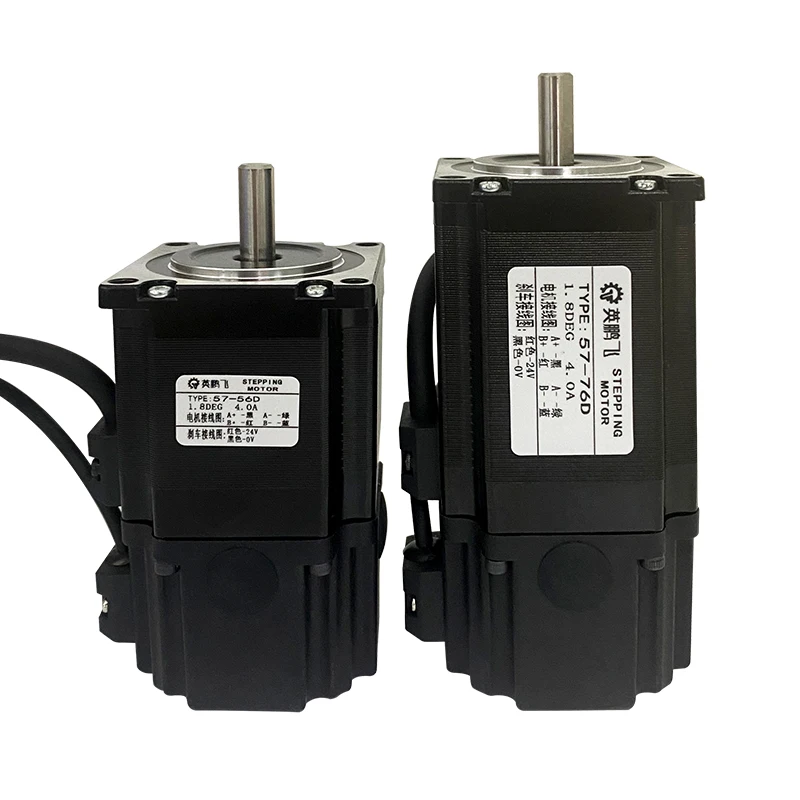

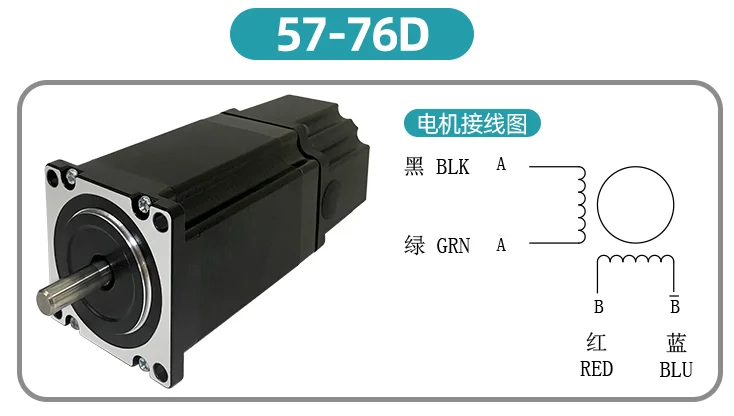

57-56D/57-76D stepper motors with brake have self-locking function when
power off.Will be suitable for vertical movement and swing joints. Be widely used in the applications to prevent the potential
dangers.
dangers.

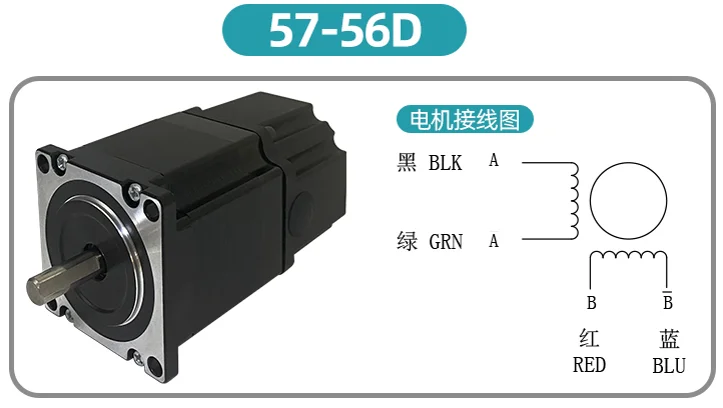

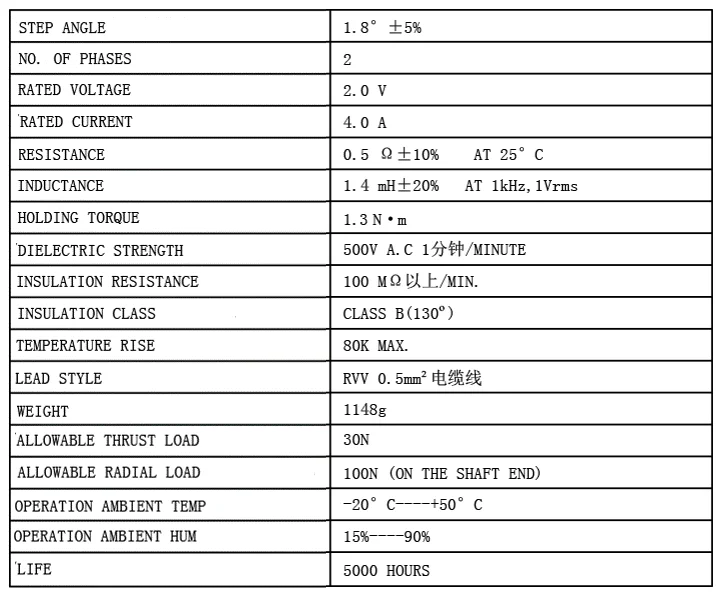

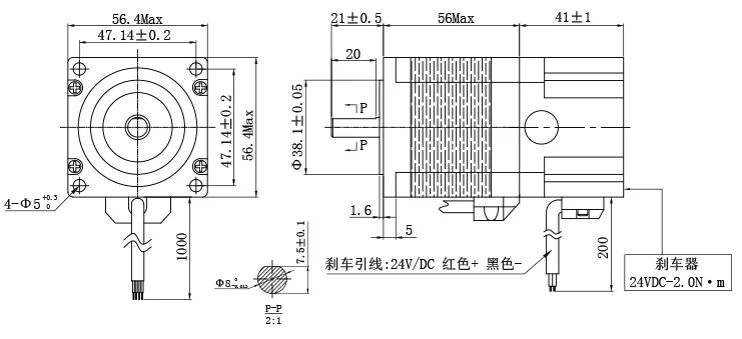

Model: 57-56D
NEMA23(57mm) 1.8°2-Phase Hybrid Stepper Motor with brake
Length 97mm
Holding Torque 1.3N.m
Rated Current 4.0A/Phase
Resistance 0.5Ω/Phase
Resistance 0.5Ω/Phase
Brake Torque 2.0N.m
Brake Power 24V（10W）,
Weight 1.148Kg
Dielectric Strength500VAC（1 minute）

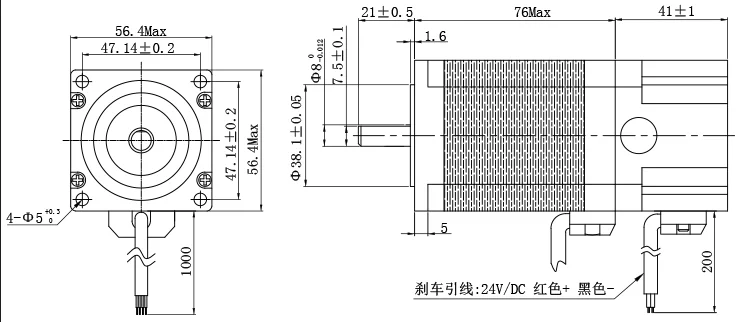

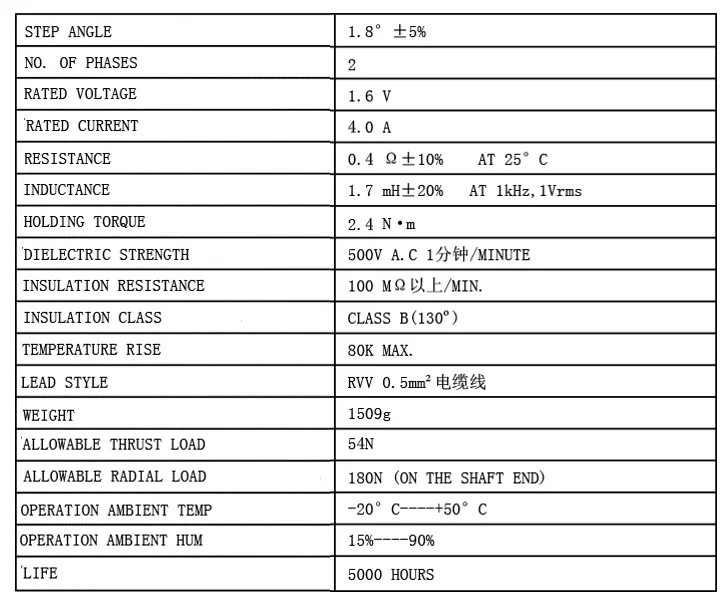

Parameter - 57-56D
NEMA23（57mm) 1.8°2-Phase Hybrid Stepper Motor with brake
Length 117mm
Holding Torque 2.4N.m
Rated Current 4.0A/Phase
Resistance 0.4Ω/Phase
Brake Torque 3.0N.m
Brake Power 24V（10W）,
Weight 1.51Kg
Dielectric Strength500VAC（1 minute）
