Product Overview
Description
Item No. | EV FWT 2G |
Interface form | RJ11*1 |
Working voltage | DC12V |
Antenna power | >1.5DB |
Dialing frequency | 450hz |
Power | <=5w |
Ambient temperature | 0°C --40°C |
Feed Current | 30 mA /40 mA |
Signal Sensitivity | <-104DB |
Frequency Band | Customized |
Network Format | Gsm |
Material | ABS |
Wight | 400g |
Battery | 800mA （without by default) |
Appearance | White/customized |
OEM | Accepted |
Wireless Terminal GSM Gateway
Using industrial wireless communication module, with high-quality signal to enhance the antenna, the signal is relatively strong, clear and stable voice quality.Easy to install. No need to invest in ground wire line,use GSM mobile phone SIM card,With automatic step-down circuit, you can directly use the security alarm system 12V power supply.Using anti-noise circuit design, anti-noise and anti-jamming

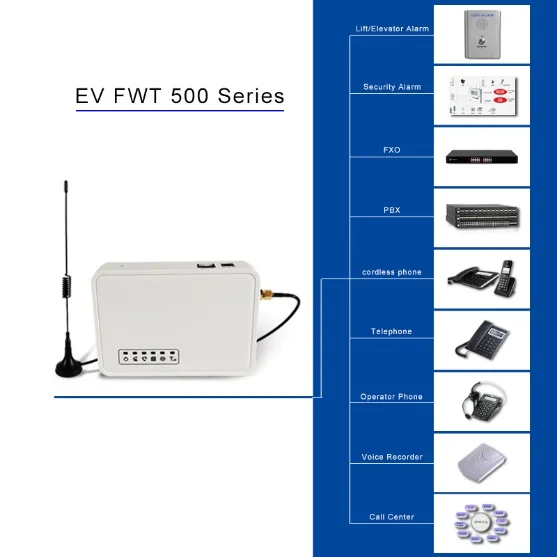

It is widely used in these areas:
Remote country ,mountains,
Dwelling house with weak signals,
Public telephone,shops,offices,telemarketing,
Removable places such as ships,trains,and long distance buses.
Our wireless terminals also have these characteristics are below:
Easy to install,easy to operate,powerful capacity of signal receiving,
Clear talking settings,long using life,steady performance.
2G Gsm Auto Dialer for Security Alarm Syestem
This is a fixed wireless voice access device adopting wireless communication technology to quickly provide wireless telephone communication service under the coverage of cellular network, which is used to replace fixed telephone in certain area where is difficult to wire.
You just need to insert standard SIM card and connect it with regular wired telephone to make and answer both local and abroad calls.
In a word, it features with convenient installation, easy operation, stable performance, clear sound with high quality, and strong signal receiving capability
You just need to insert standard SIM card and connect it with regular wired telephone to make and answer both local and abroad calls.
In a word, it features with convenient installation, easy operation, stable performance, clear sound with high quality, and strong signal receiving capability
Function Description
Functions of EV FWT 3G Fixed Wireless Terminals are mainly as follow:
Multi-function LED signal display lights, which display the running status of equipment in real-time.
Domestic calls, local calls and international calls even some of special free calls are available
Standard communication voltage and DTMF format are both available.
Synchronous display of caller ID, time and date are supported.
Automatic lock of SIM card and network are supported.
Modem mode is supported
Standard reverse polarity billing signal is supported.
The device will be restarted by the built-in watchdog duty cycle circuit when malfunction occurs.
Multi-function LED signal display lights, which display the running status of equipment in real-time.
Domestic calls, local calls and international calls even some of special free calls are available
Standard communication voltage and DTMF format are both available.
Synchronous display of caller ID, time and date are supported.
Automatic lock of SIM card and network are supported.
Modem mode is supported
Standard reverse polarity billing signal is supported.
The device will be restarted by the built-in watchdog duty cycle circuit when malfunction occurs.

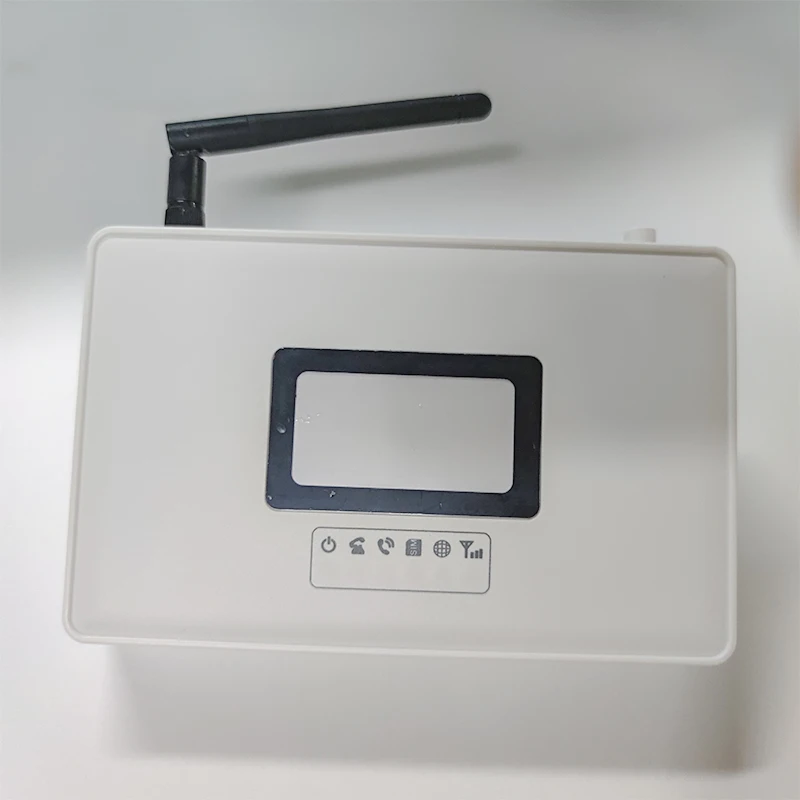

Indicator Light Introduction
① Power indicator: sustainable green light after power on.
② Off-hook indicator: stable green light on when off-hook/hands-free, out during standby
③Call indicator: stable green light on during the call, out during standby.
④ SIM card status indicator: Right light on when SIM card is abnormal. Out when SIM card is normal.
⑤ Network signal indicator: Red light on when the network registration is abnormal.
⑥ Signal indicator: Red light on when signal strength is 1-9. Yellow light on when signal strength is 10-17. Green light on when signal strength is 18-31.
② Off-hook indicator: stable green light on when off-hook/hands-free, out during standby
③Call indicator: stable green light on during the call, out during standby.
④ SIM card status indicator: Right light on when SIM card is abnormal. Out when SIM card is normal.
⑤ Network signal indicator: Red light on when the network registration is abnormal.
⑥ Signal indicator: Red light on when signal strength is 1-9. Yellow light on when signal strength is 10-17. Green light on when signal strength is 18-31.
