Product Overview
Description
Product Overview
Best selling in the world Multi-functional hammer mill

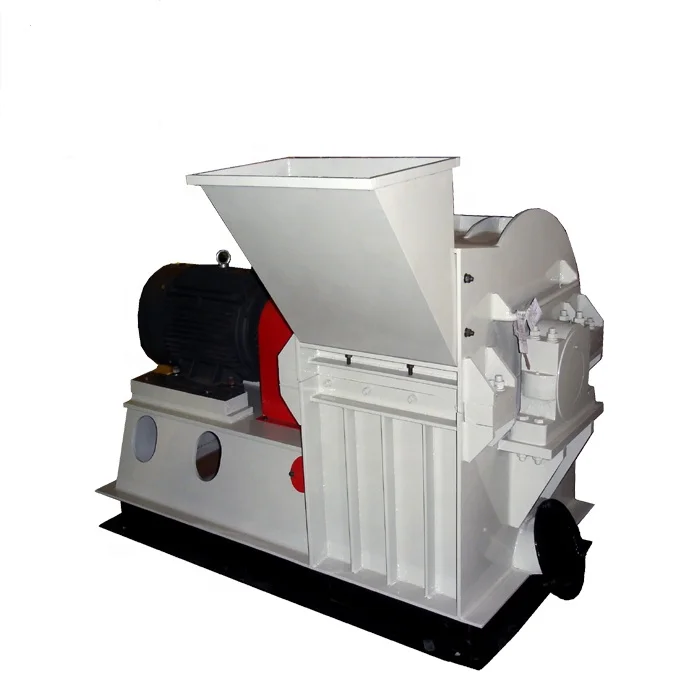

GXP hammer mill, the motor and rotor of this machine installed on the same base. They are directly connected by
coupling. The rotor has been passed dynamic balance test; it can rotate in both of forward backward direction.
There are symmetrical operation door and safety interlock in both sides. The operation doors are helpful to renewal
the sieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher
which can be matched with all kind of feed equipment.
coupling. The rotor has been passed dynamic balance test; it can rotate in both of forward backward direction.
There are symmetrical operation door and safety interlock in both sides. The operation doors are helpful to renewal
the sieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher
which can be matched with all kind of feed equipment.

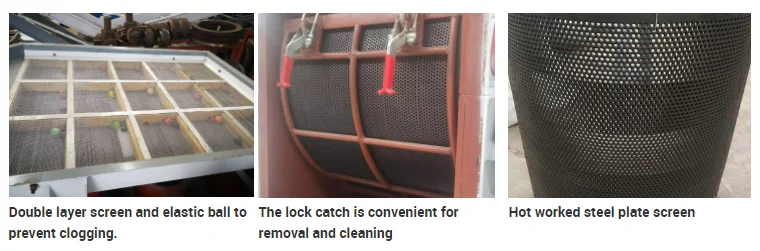

There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be
changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm
adjustable.
changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm
adjustable.
Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple
installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding
equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming
board, rubber and so on.
This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple
installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding
equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming
board, rubber and so on.

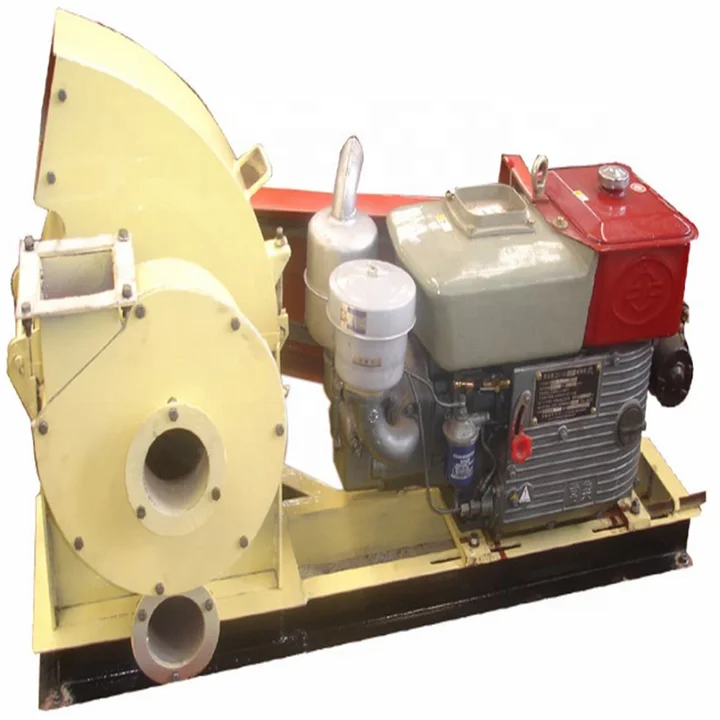

Product Pictures
Product Specifications
Model | Power(KW) | Capacity(Ton /hour) | Qty of hammers (pcs) |

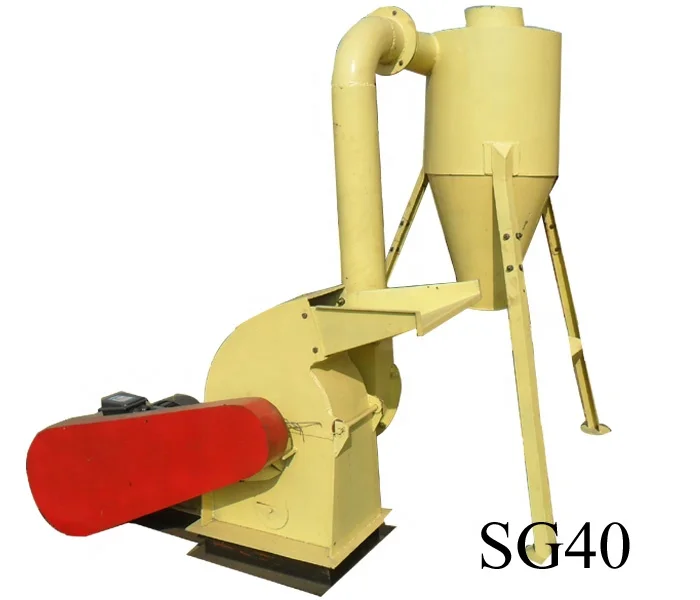

SG40 | 7.5 | 0.3-0.8 | 12 |

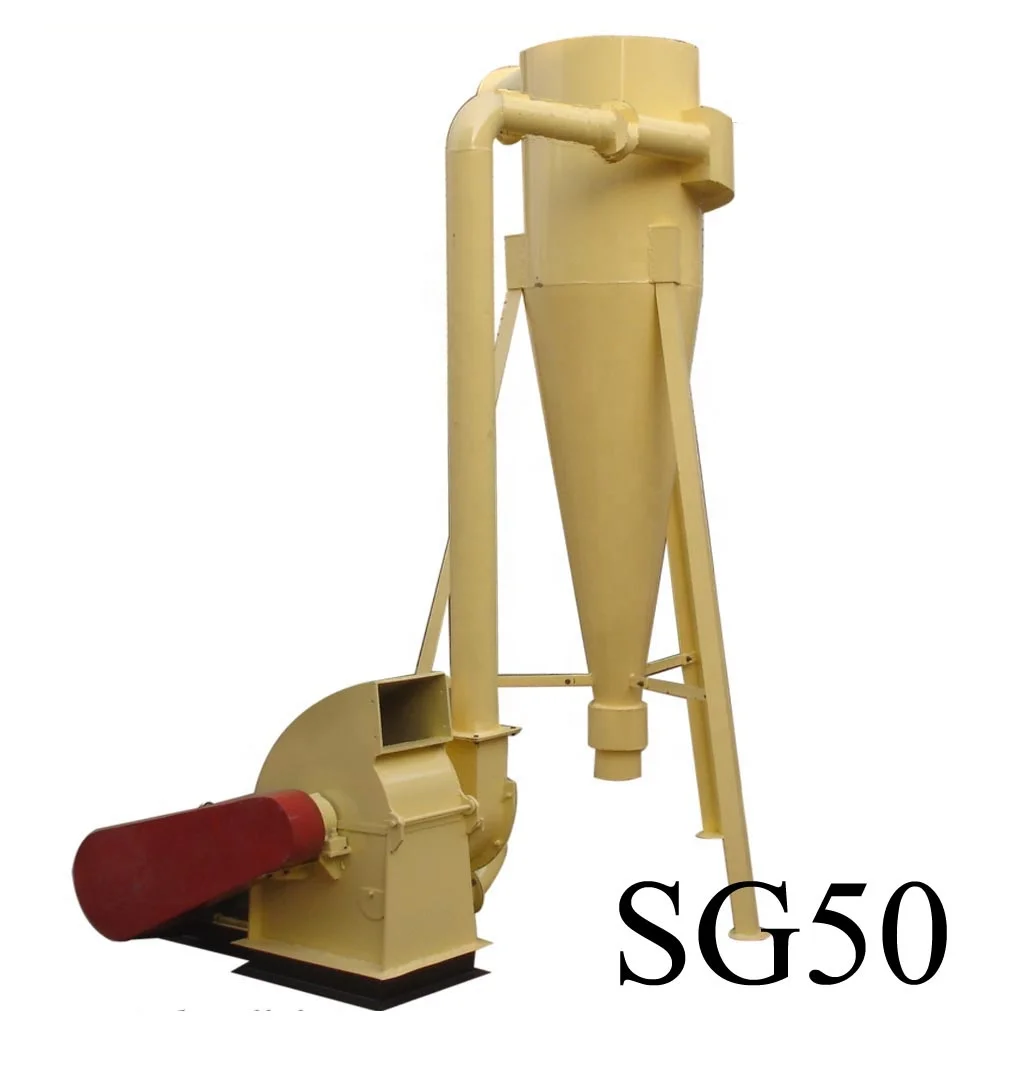

SG50 | 15/11 | 0.5-1 | 16 |

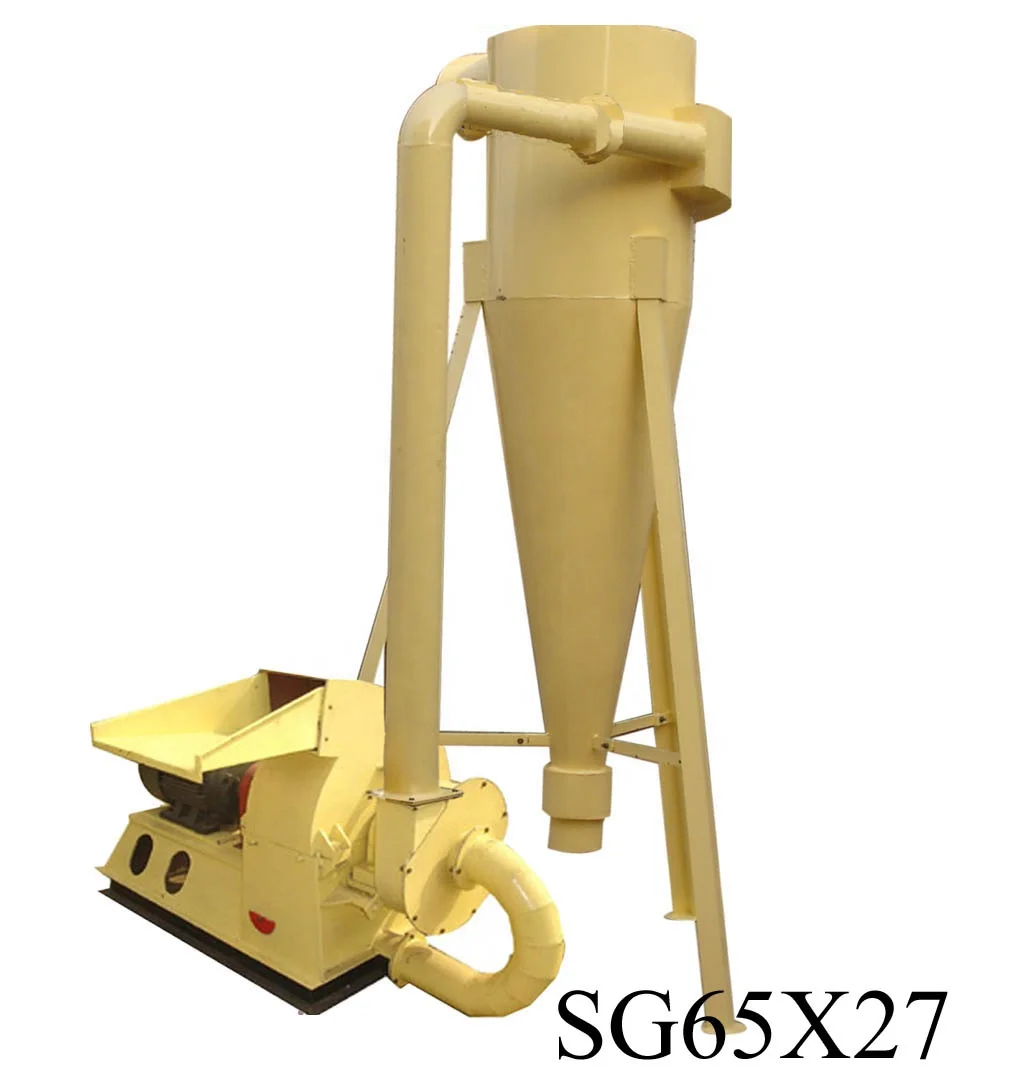

SG65✖27 | 22 | 0.5-2 | 24 |
SG65✖55 | 55 | 3-5 | 48 |
SG65✖75 | 75 | 6-7 | 72 |
SG65✖100 | 90 | 8-9 | 96 |
Product Details
Customer visits and cooperation

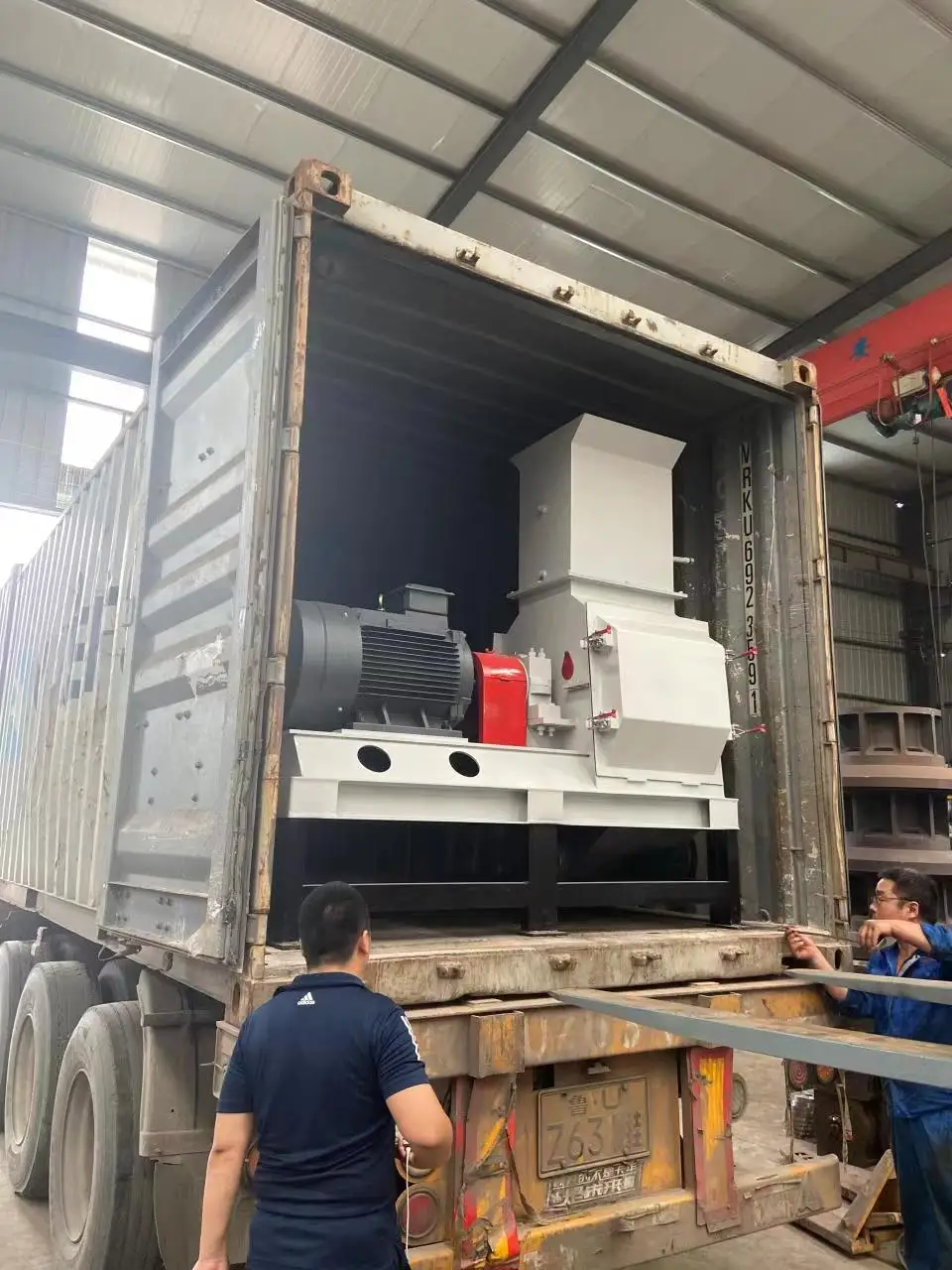

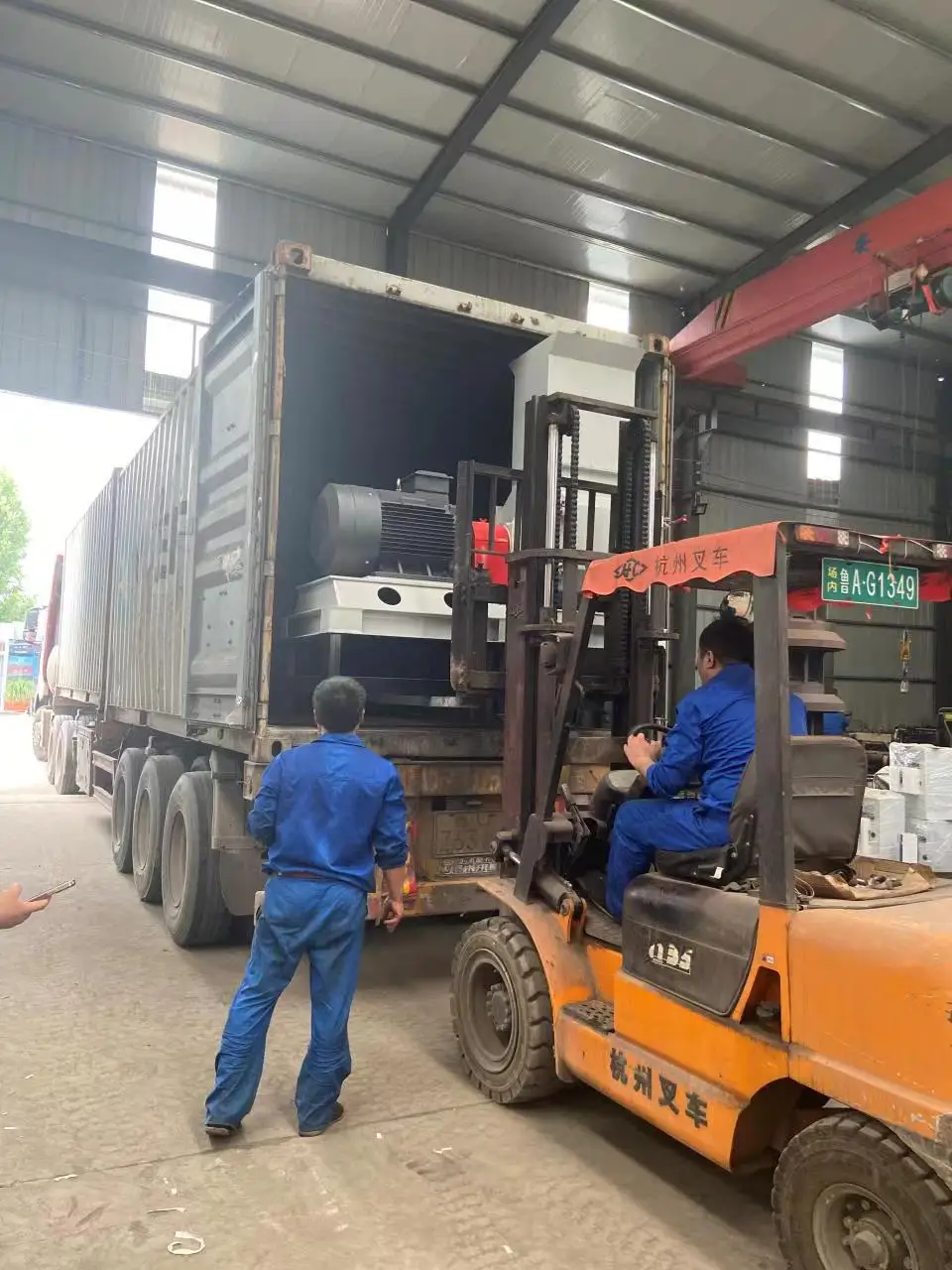

Delivery
