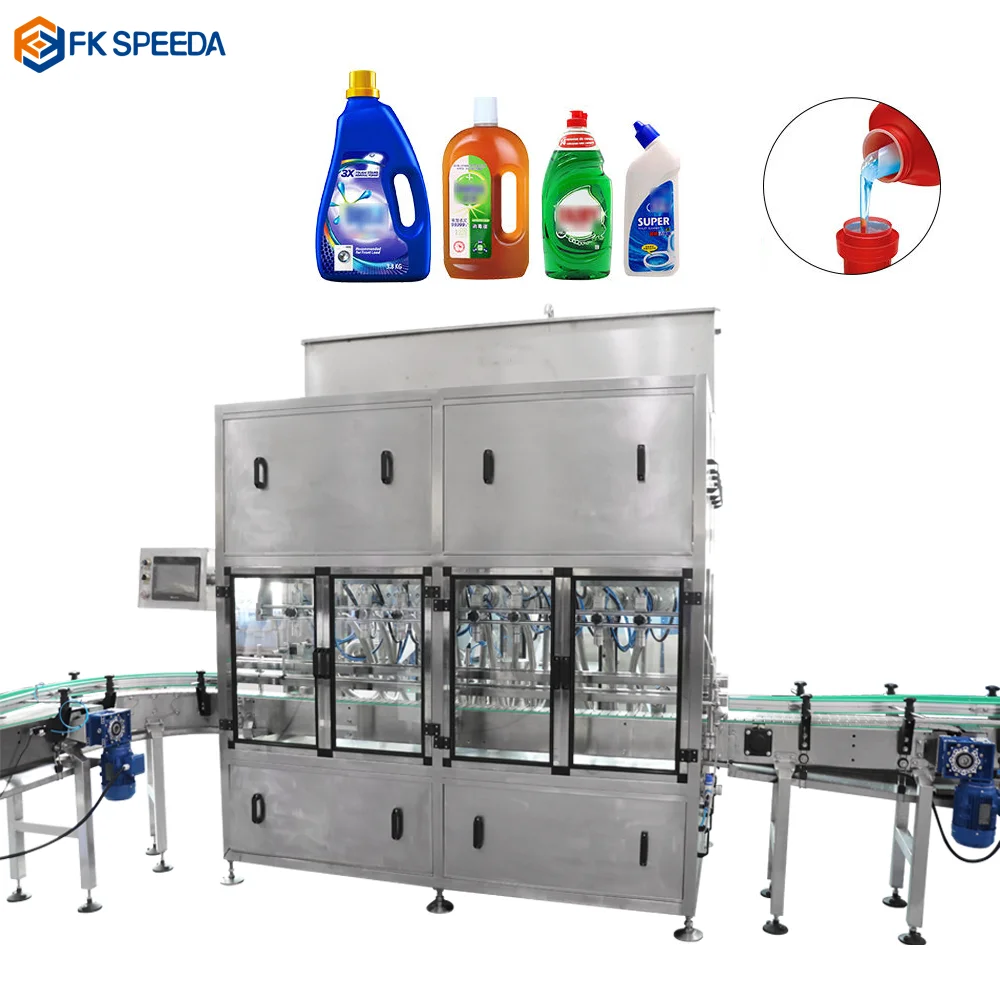

FK SPEEDA 20l car engine oil injection bottle filling machine for oil sunflower oil filling and packing machine
- Category: >>>
- Supplier: Guangdong Fineco Machinery Group Co. Ltd.
Share on (1600645501913):
Product Overview
Description
Product Overview

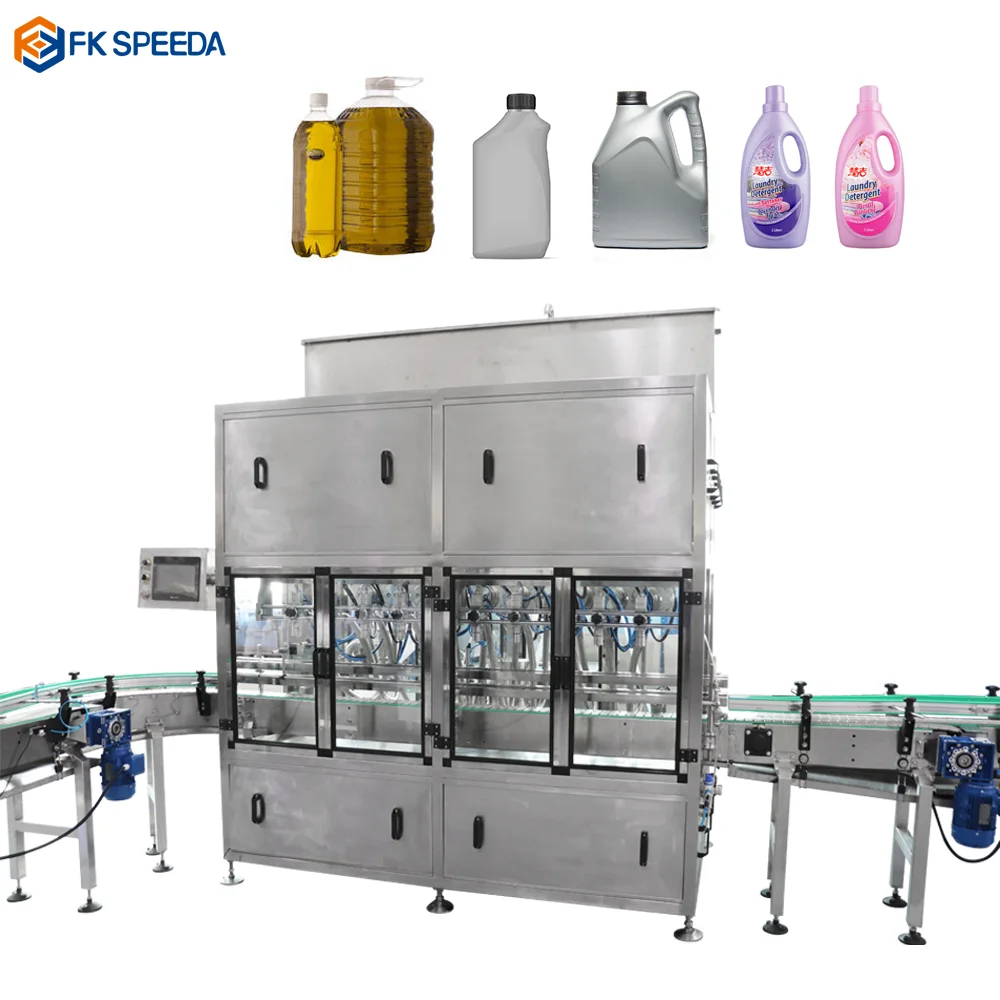

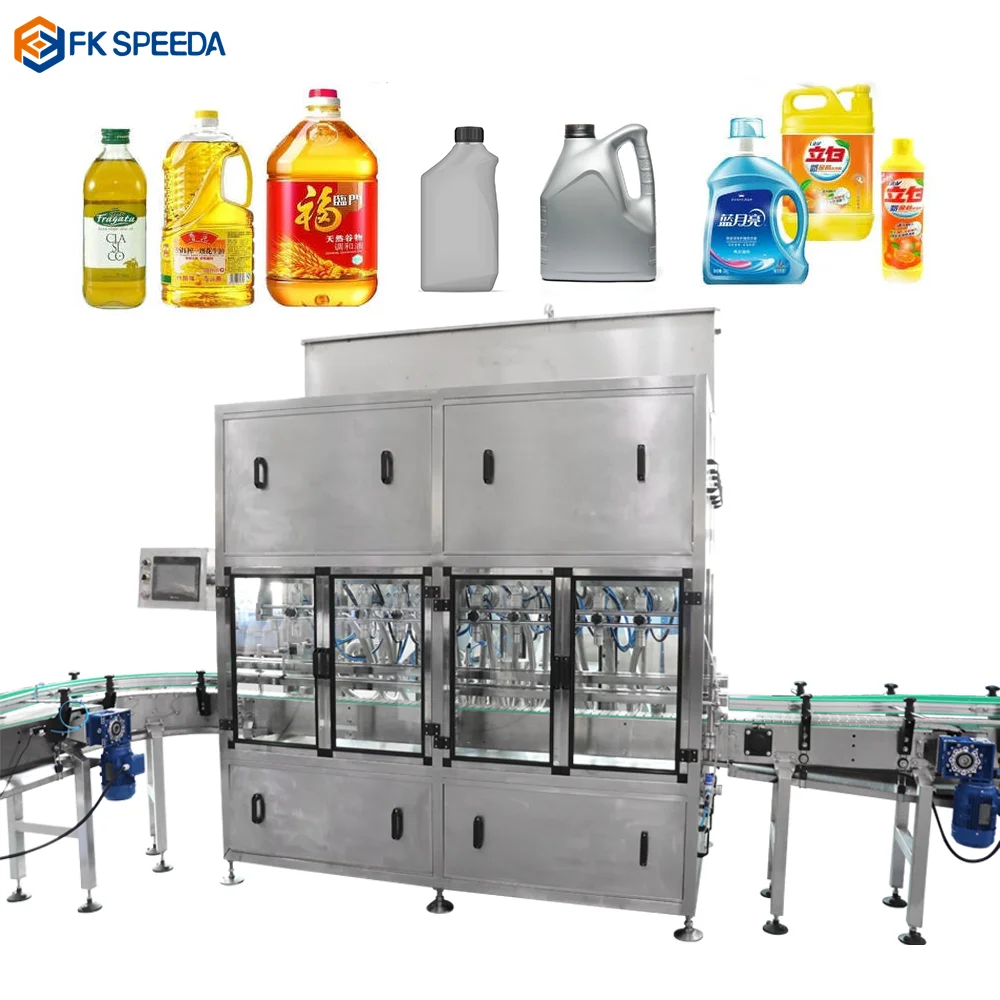

FKF806 Flow Meter Precise Quantitative Filling Machine

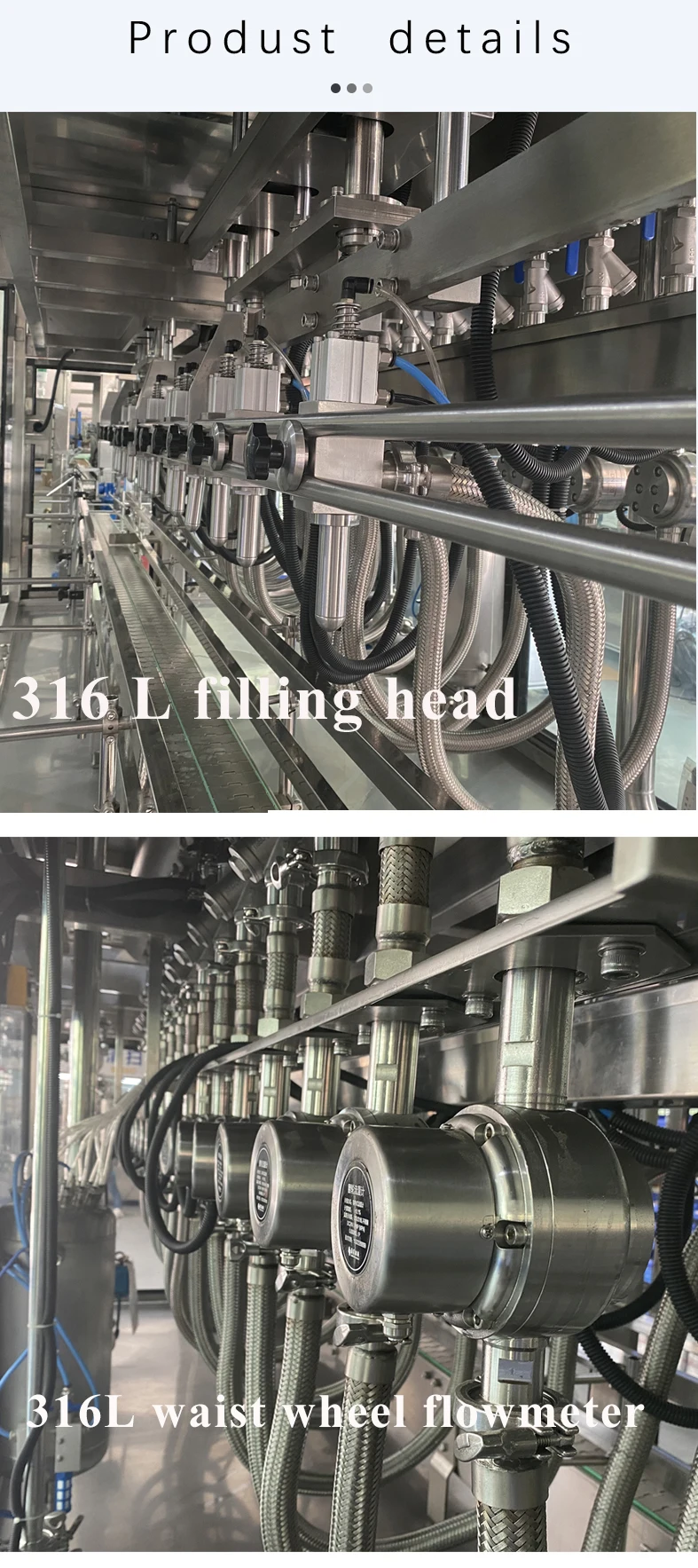

1.FKF806 Flow Meter Precise Quantitative Filling Machine. The filling head and flow meter is made of 316L stainless steel, Can hold a variety of corrosive low viscosity particle free liquids. The machine has suction structure, It has the function of anti-drip, anti-splash and anti-wire drawing. To meet customers’ different sizes and types of bottle filling needs.The machine can be used for regular round, square and flat bottles.
2.The machine is suitable for all liquids except the liquid as thick as dough
PRODUCT SPECIFICATIONS
Parameter | Data |
Filling material | Materials other than powders, particles and very viscous liquids |
Filling Tolerance | ±l% |
Filling Capacity(L) | 0.38 ~ 6 |
Suit bottle size(mni) | According to your need; |
Speed(bottle/min) | One filling head : 175~250;(Determine how many filling heads are used in the machine according to your production and requirements) |
Quantitative way | Flowmeter |
Machine Size(mm) | Listed in the next table |
Voltage | 380V/50(60)HZ;(Can be customized) |
Power(KW) | 5 |
N.W (KG) | 2000 |
G.W(KG) | 2300 |
Additional functionality | Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode |
Number Of Filling Nozzle | Filling Speed(bottle/h) | Machine Size(L*W*H) | Conveyor Size(mm) |
2 | 350-500(2L bottle test) | 680*960*2235(mm) | 3000 |
4 | 700-1000(2L bottle test) | 1280*1540*2235(mm) | 6000 |
6 | 1000-1500(2L bottle test) | 1720*1540*2235(mm) | 8000 |
8 | 1500-2200(2L bottle test) | 1880*1540*2235(mm) | 9000 |
10 | 1400-1600(5L bottle test) | 2200*1540*2235(mm) | 10000 |
12 | 1600-1800(5L bottle test) | 2880*1540*2235(mm) | 10000 |
Successful Project&Feedback

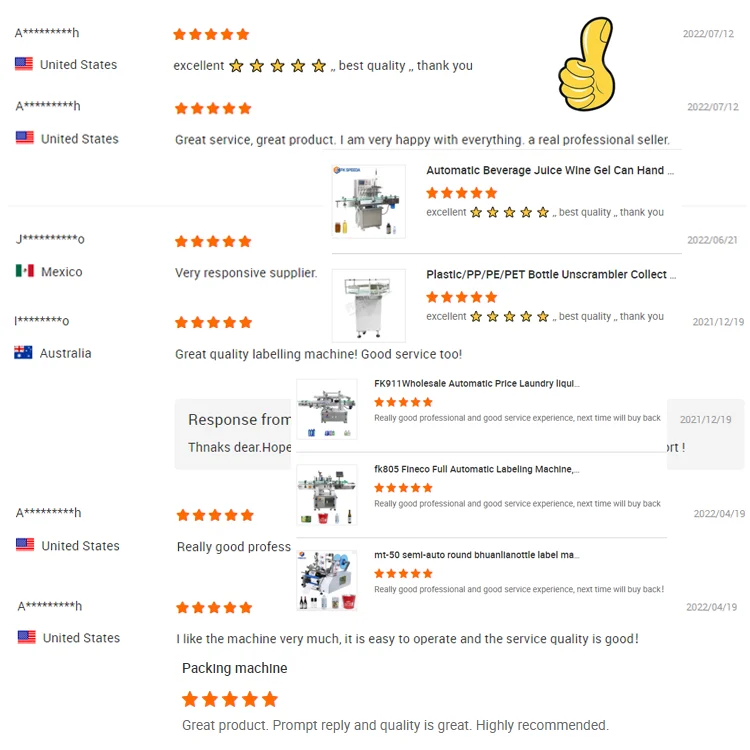

Customer Evaluation
