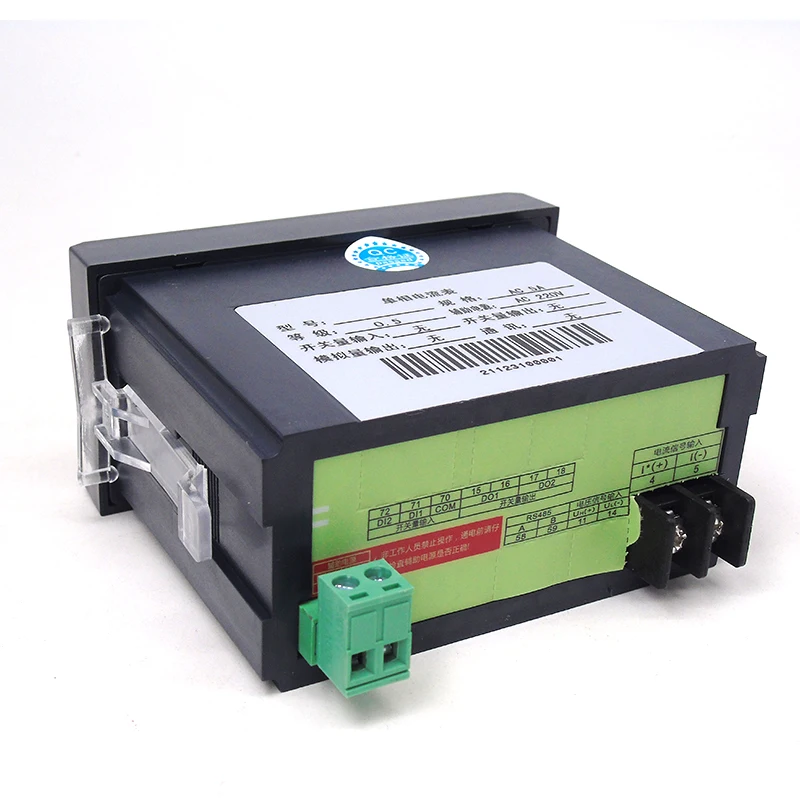

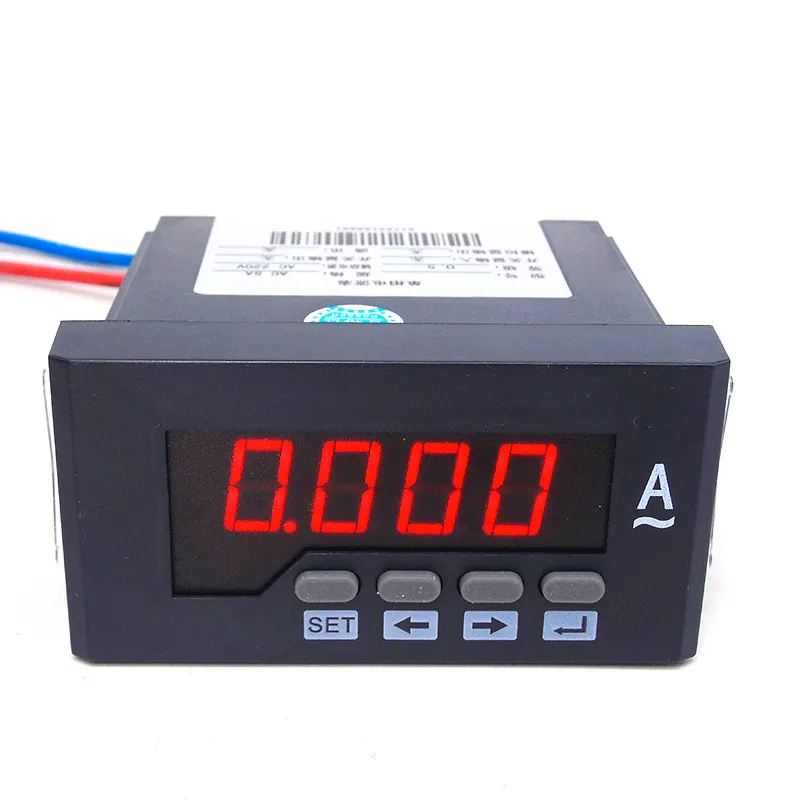

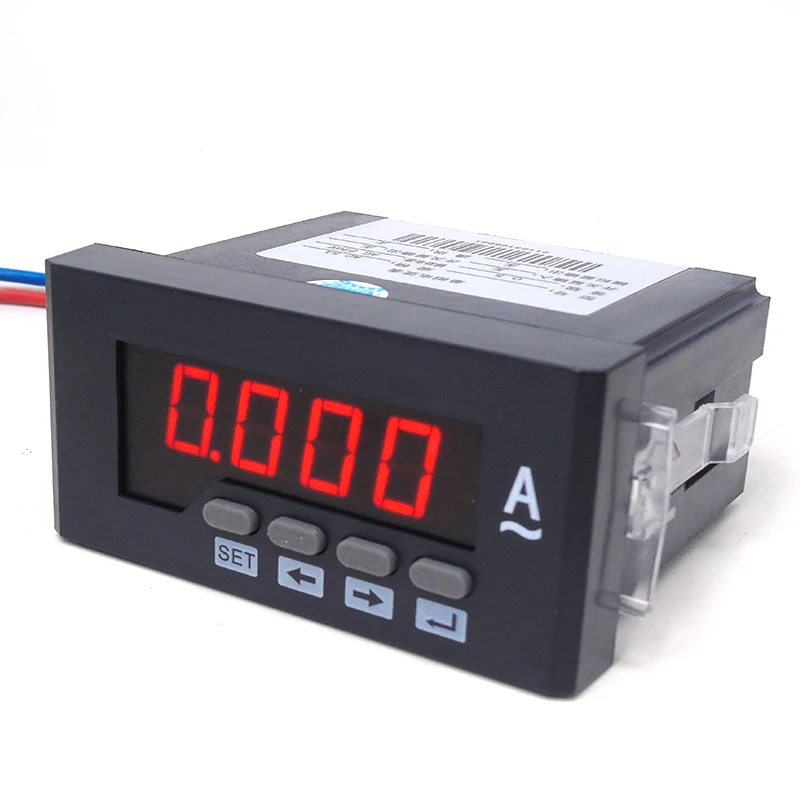

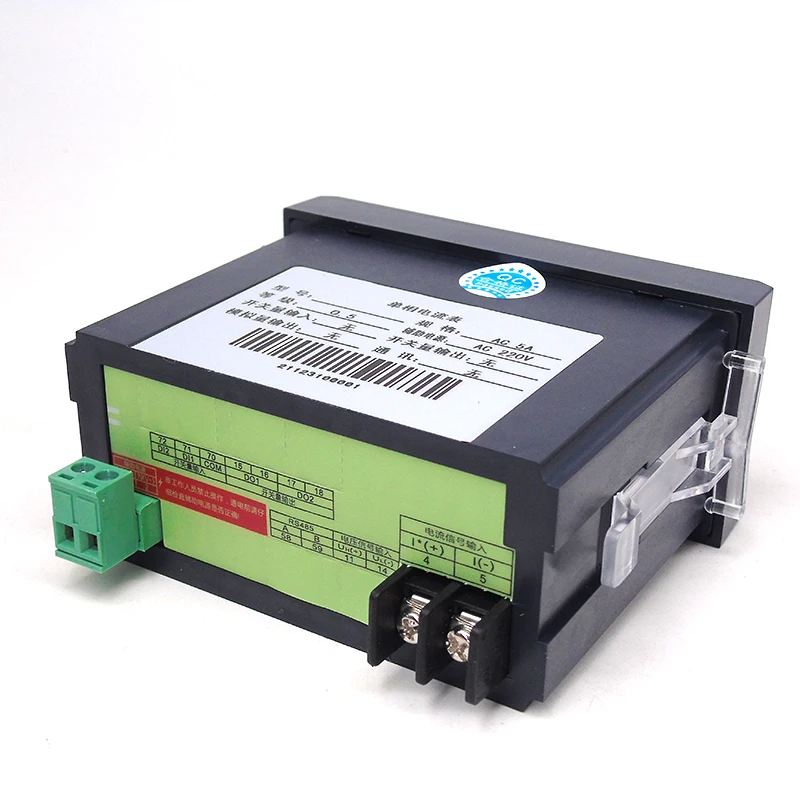

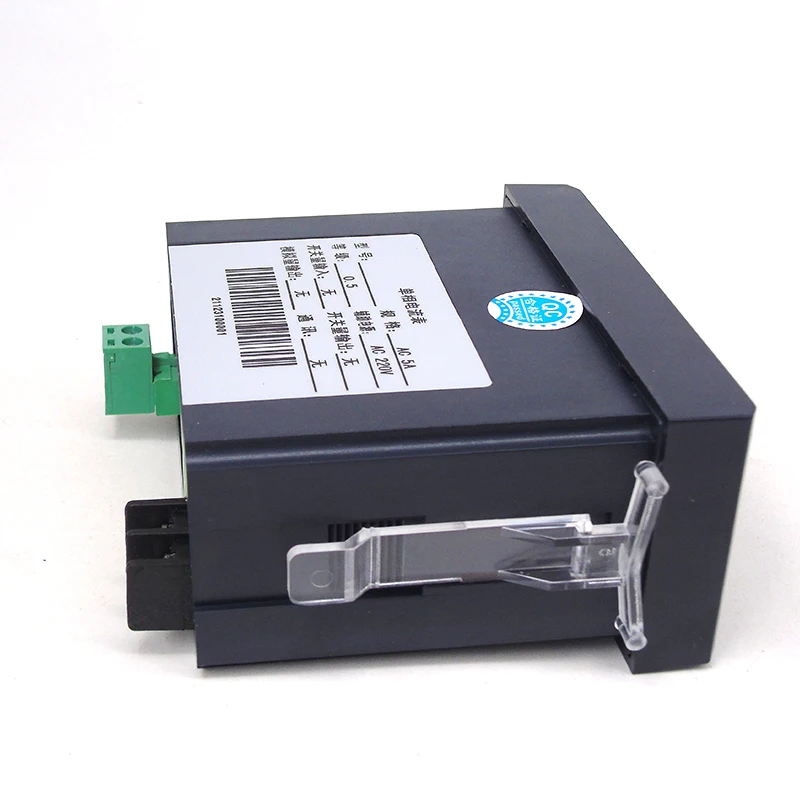

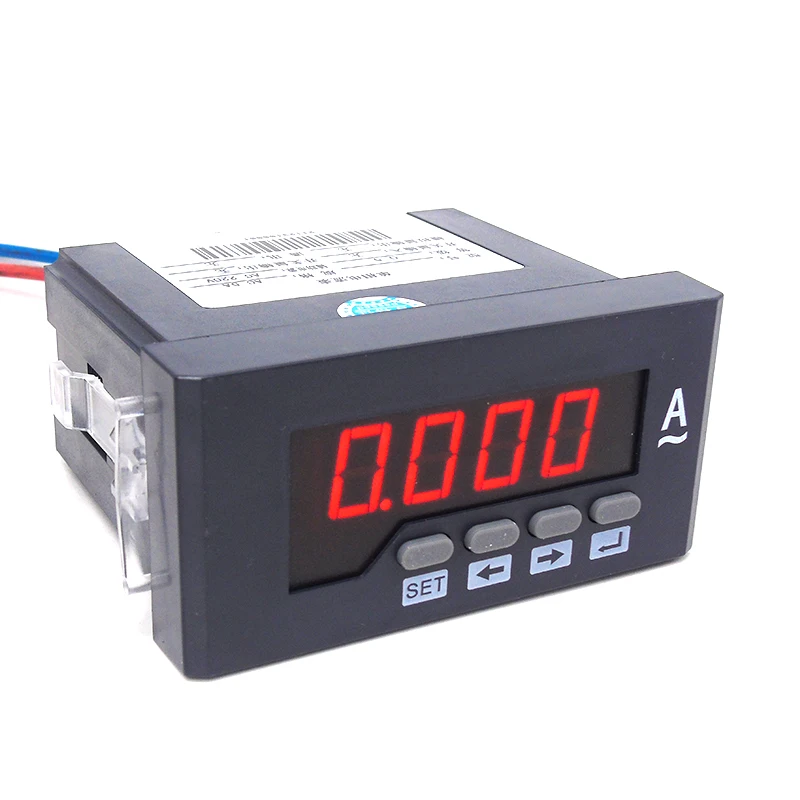

DQ703I 5K1 LED Display Single Phase DC AC Ampere Meter RS485 Digital Panel Meter

Share on (1600645540470):


Price:$11.00 - $15.00

Quantity:


Product Overview

Description



Product Description




Ammeter description
Digital display ammeter, digital ammeter and single-phase AC ammeter are important technical data measuring devices in power system. Ammeter can accurately and intuitively measure the current value of equipment.

The ammeter adopts AC metering chip sampling technology, which mainly measures the and equipment application current in the power grid. The data magnification, alarm value setting, communication, etc. can be set through the panel keys. It has the advantages of intuitive data display, convenient installation, simple wiring, convenient maintenance, etc.


Specification


model
DQ703I-5K1
input
AC0-1A、AC0-5A、AC0-10A
Display range
0-9999 Adjustable
POWER
AC220V、DC24V、AC/DC110V
Operating frequency
50HZ/60HZ
accuracy
0.5%FS
Overall dimension
96*48mm
Opening size
92*45mm
power waste
3W
digital display
LED
Appearance color
black
overload
1.2times

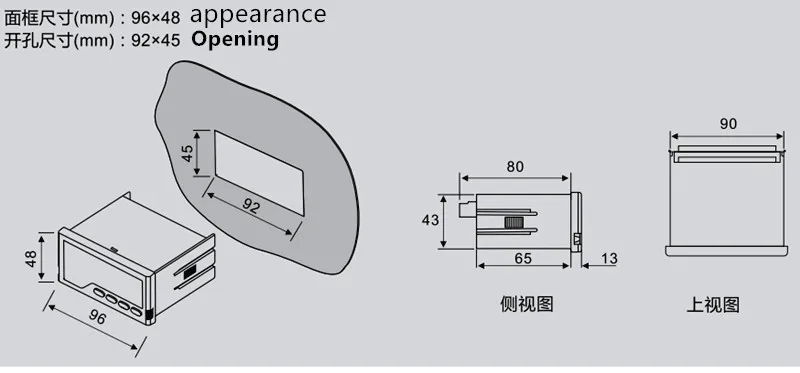

size

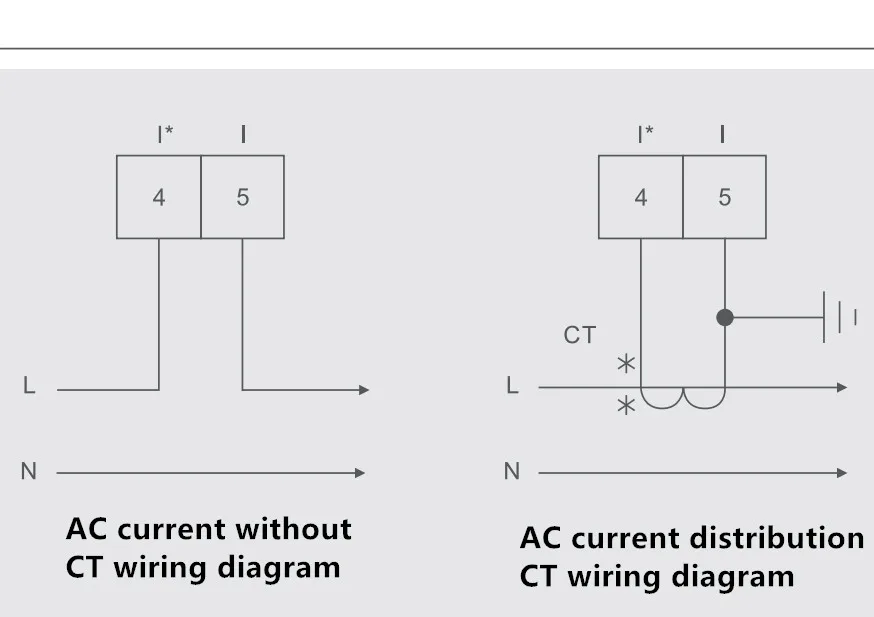

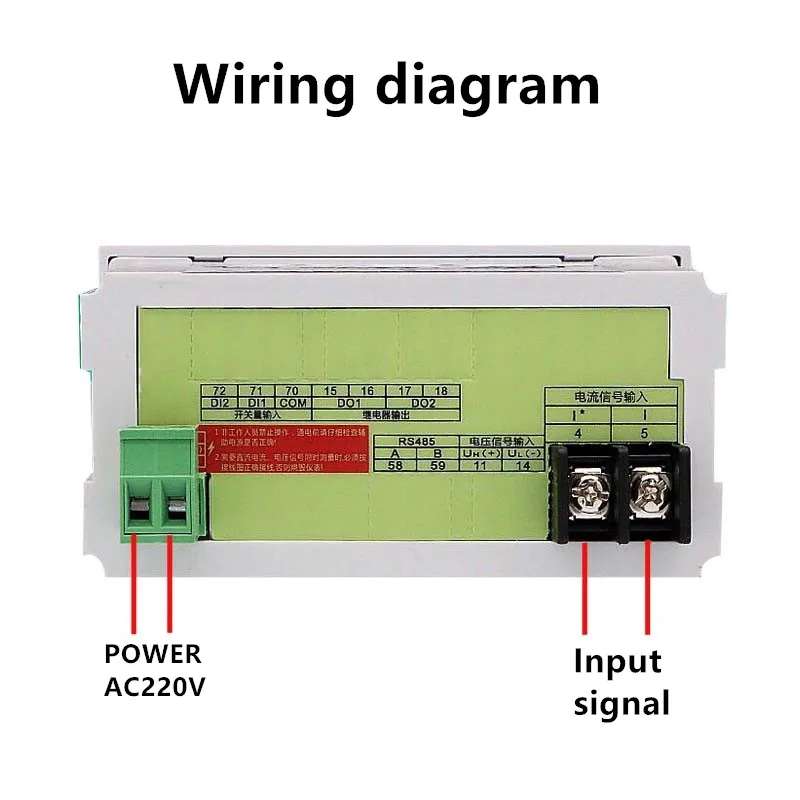

wiring diagram






Details Images








Company Profile




China Henan Dongchuan Electrical Equipment Co., Ltd., founded in 2015 and located in Zhengzhou, the capital of Henan Province, is a technology enterprise integrating the production and sales of industrial control automation instruments and meters.
It is one of the suppliers of industrial electrical automation instruments and meters in China. We focus on, professional, dedicated, integrated production and sales suppliers, and provide high-quality products and services to customers at home and abroad for a long time.




FAQ


Question 1: Are you a factory?
We are a factory established for more than 6 years and exported for more than 5 years.

Question 2: When is the delivery date?
It usually takes 7-10 working days.

Question 3: Can you give me an offer?
Of course.

Question 4: How about after-sales service?
Three year warranty.

Question 5: How about transportation packaging?

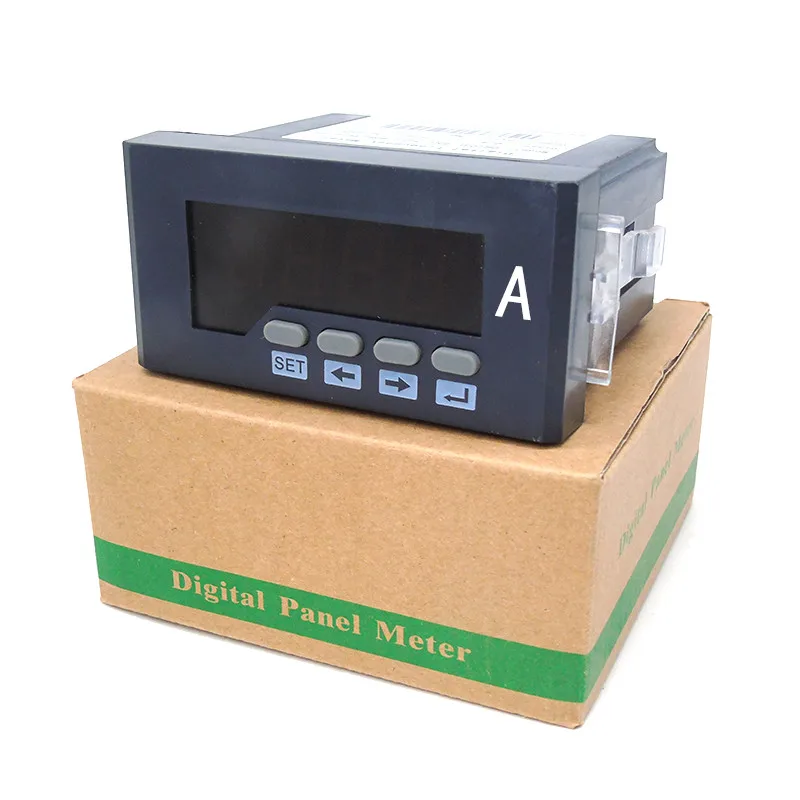

Standard carton

Question 6: How long will you give me an answer?
We will contact you as soon as possible within 2 hours.

Question 7: Can I get samples for test orders?
Yes, we have stock in the warehouse. We can print the product name of your company.
