Испытательная камера DGBELL для испытания на устойчивость к коррозии в Соляном распылителе для испытания металла на аккумуляторе
- Category: >>>
- Supplier: Guangdong Bell Experiment Equipment Co. Ltd.
Share on (1600645575237):
Product Overview
Description

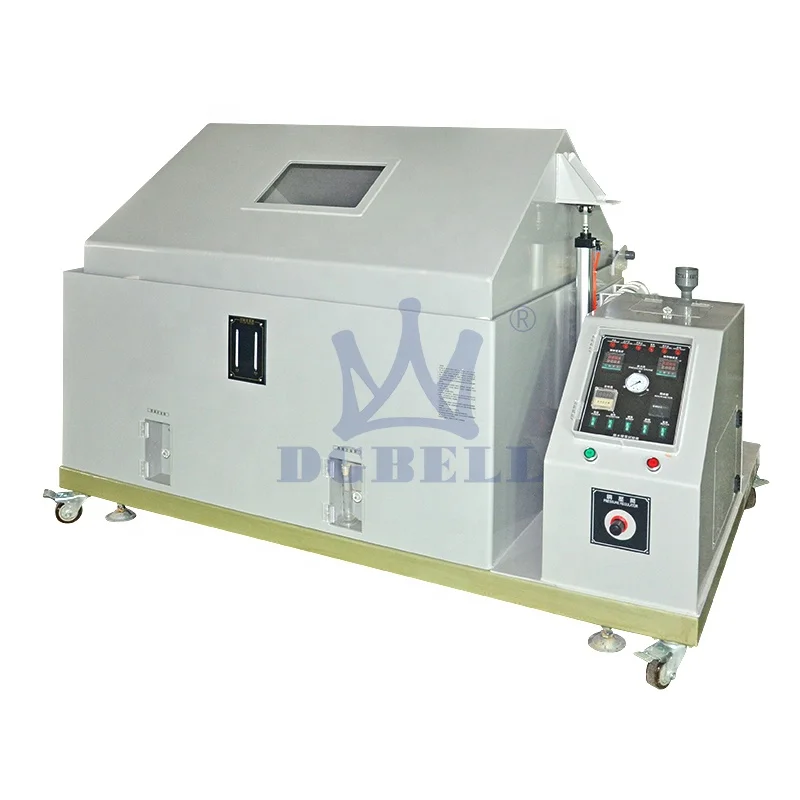

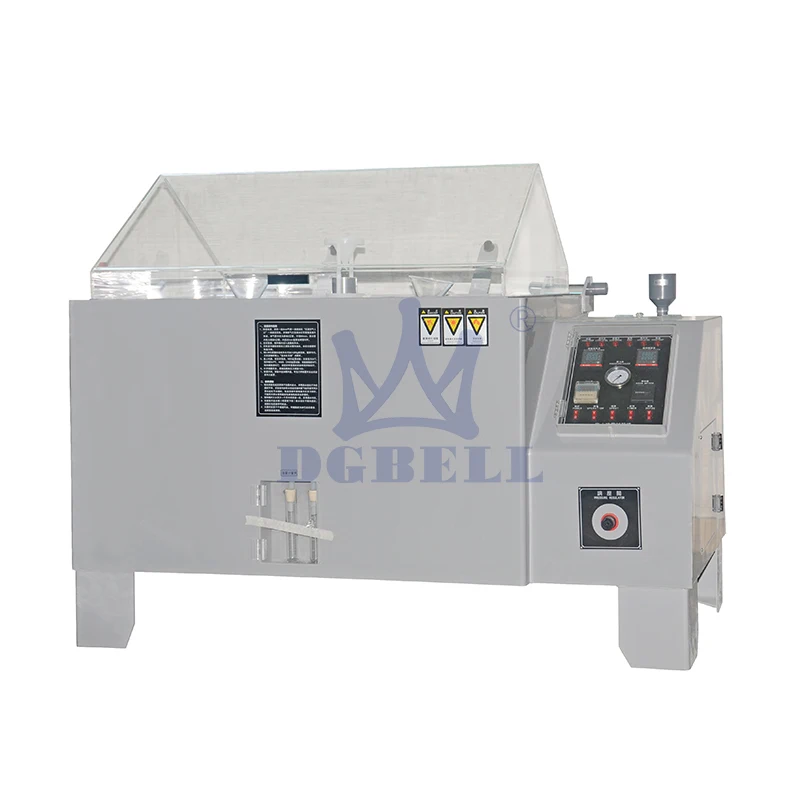

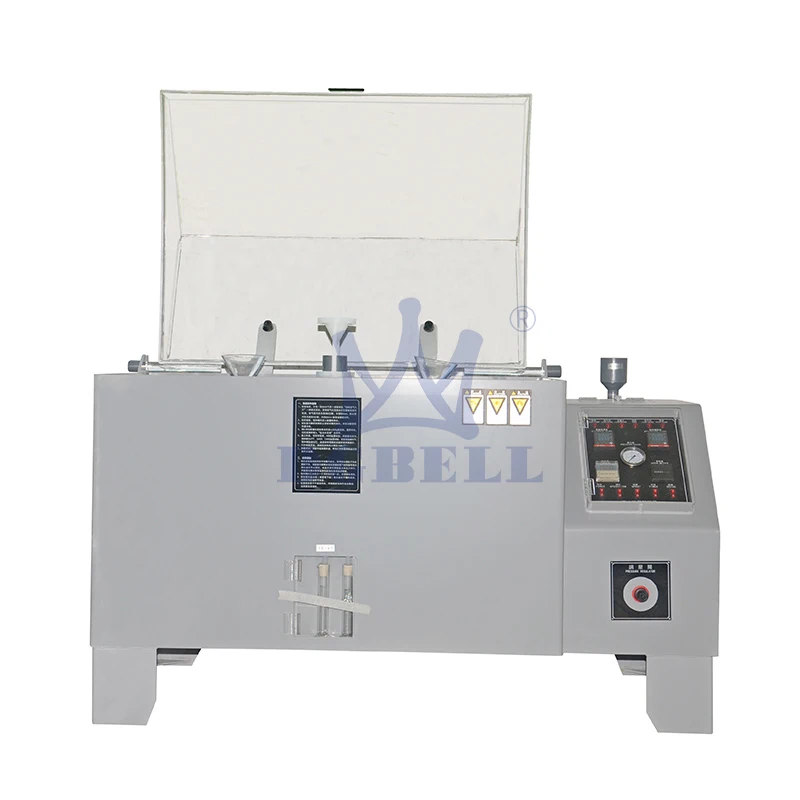

DGBELL Salt Spray Corrosion Test Chamber For Battery Metal Test
Product Description
Applications:
This equipment mainly used in testing materials like paints, electroplating, non-organic, pastry film, anode treatment and rust
prevention oil’s corrosion resistance performance
Features:
1.With auto & manual water supply system, auto water supplement when with low water level, ensure the testing continuously.

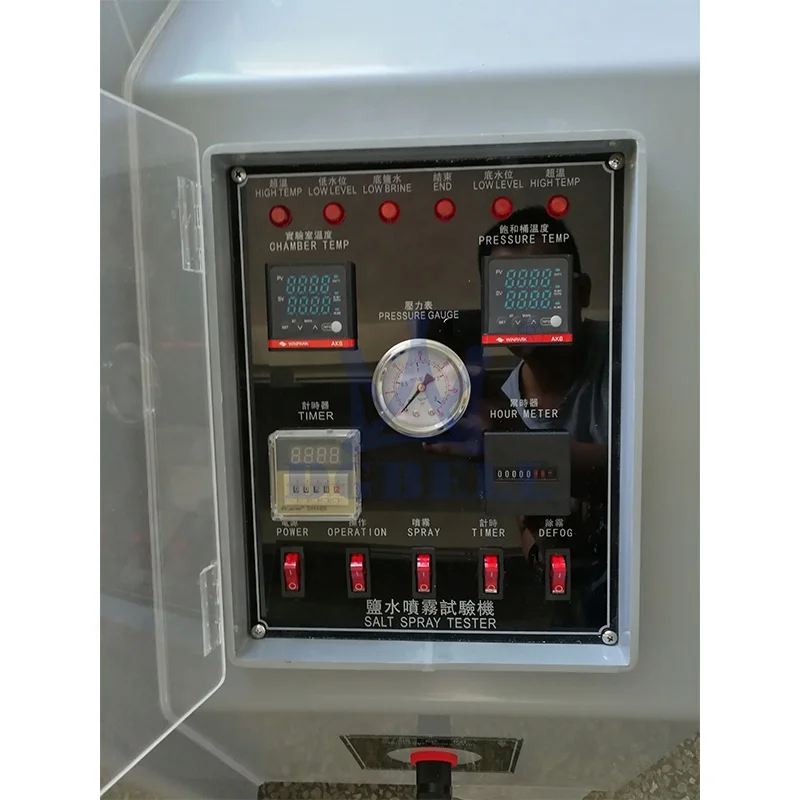

2.Temperature controller with digital control, P.I.D. Control with accuracy of 0.1℃.
3.Double over-temperature protection, alarm when with low water level, ensures operating safety.

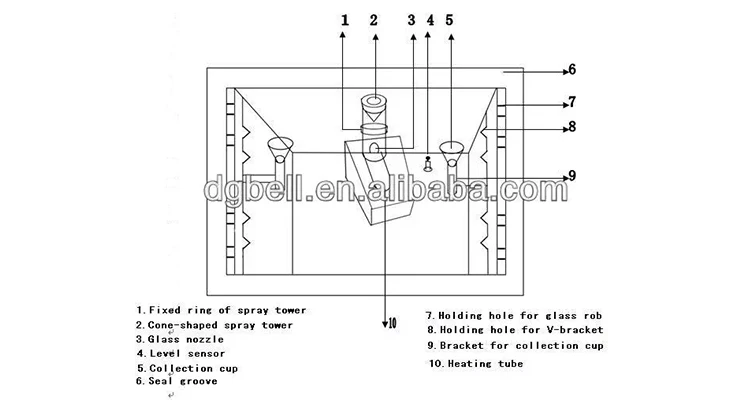

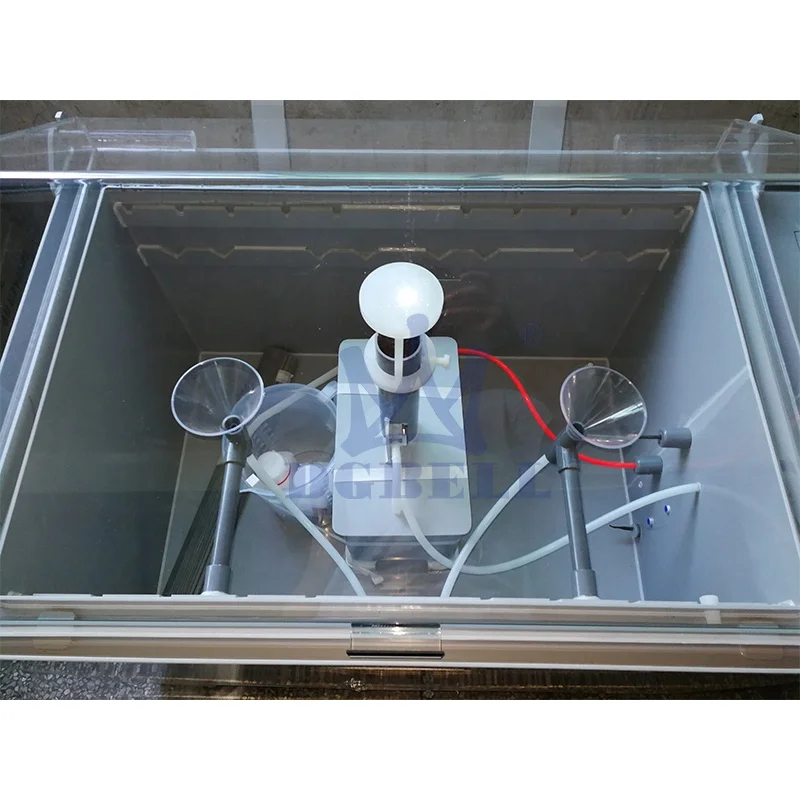

5. High precise glass nozzle control the salt mist, mist spray out uniformity through conical diffuser and free falling on the
specimen, ensure with no crystallization salt blocking.
Standard Compliance:
CNS 3627, 3885, 4159, 7669, 8886
JISD-0201, H-8502, H-8610, K-5400, Z-2371
ISO3768, 3769, 3770
ASTM B-117, B-268
GB-T2423
GBJ-150
This equipment mainly used in testing materials like paints, electroplating, non-organic, pastry film, anode treatment and rust
prevention oil’s corrosion resistance performance
Features:
1.With auto & manual water supply system, auto water supplement when with low water level, ensure the testing continuously.
2.Temperature controller with digital control, P.I.D. Control with accuracy of 0.1℃.
3.Double over-temperature protection, alarm when with low water level, ensures operating safety.
5. High precise glass nozzle control the salt mist, mist spray out uniformity through conical diffuser and free falling on the
specimen, ensure with no crystallization salt blocking.
Standard Compliance:
CNS 3627, 3885, 4159, 7669, 8886
JISD-0201, H-8502, H-8610, K-5400, Z-2371
ISO3768, 3769, 3770
ASTM B-117, B-268
GB-T2423
GBJ-150
Model | BE-CS-60 | BE-CS-90 | BE-CS-120 | BE-CS-160 | BE-CS-200 | ||||
Test Space W x H x D(mm) | 600x400x450 | 900x600x500 | 1200x1000x500 | 1600x1000x500 | 2000x1200x500 | ||||
External Dimension W x H x D(mm) | 1070x600x1180 | 1310x880x1280 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 | ||||
Lab Volume | 108L | 270L | 600L | 800L | 1440L | ||||
Brine Tank Capacity | 15L | 25L | 40L | 40L | 40L | ||||
Power Supply | AC220V,15A | AC220V,15A | AC220V,20A | AC220V,20A | AC220V,30A | ||||
Test Equipment Temp. Range | RT~55℃ | ||||||||
Pressure Tank Temp. Range | RT~70℃ | ||||||||
Temperature Fluctuations | ≤±0.5℃ | ||||||||
Temperature Uniformity | ≤±2℃ | ||||||||
Temperature Precision | ±1℃ | ||||||||
Spray Pressure | 1.00±0.1kgf/c㎡ | ||||||||
Lab Relative Humidity | Above 85%H.R | ||||||||
Spray Way | Continuous or intermittent type spray(optional) | ||||||||
Spray Quantity | 1.0~2.0ml/80c㎡/hour | ||||||||
Safety Protection Device | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection. | ||||||||
01

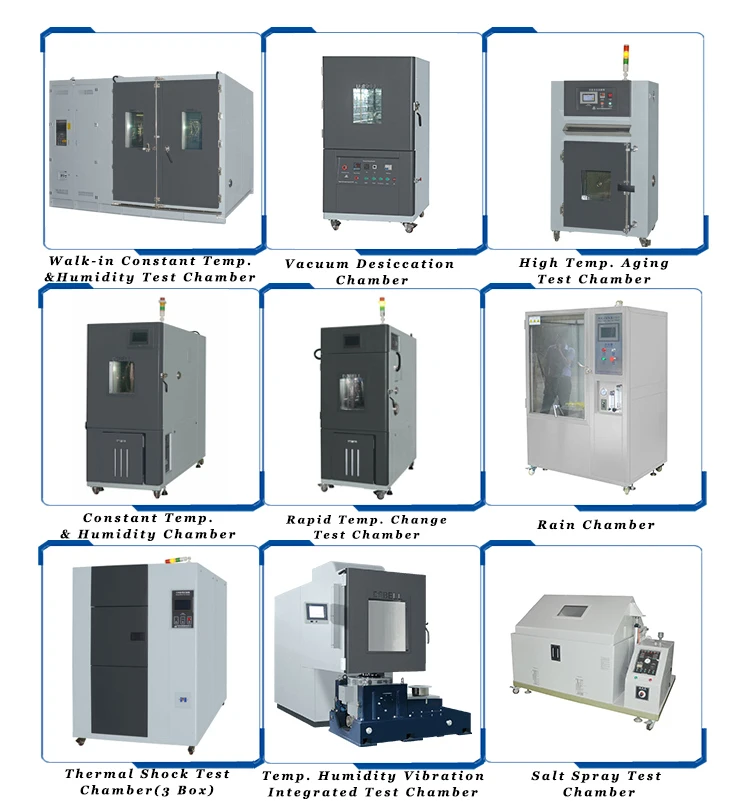

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the
research and development of high-quality and high-value products within the industry.
02
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
20，000+

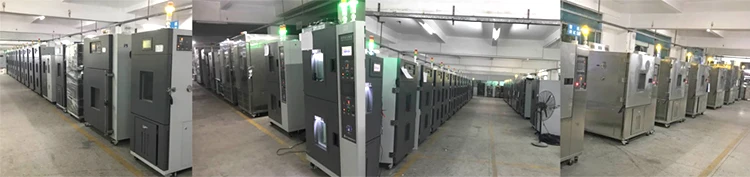

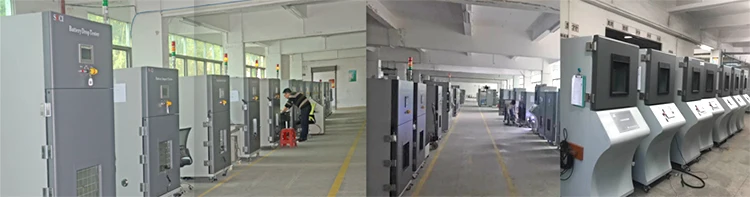

DGBell has a total area of more than 20,000 square meters and The new plant is still xpanding.
