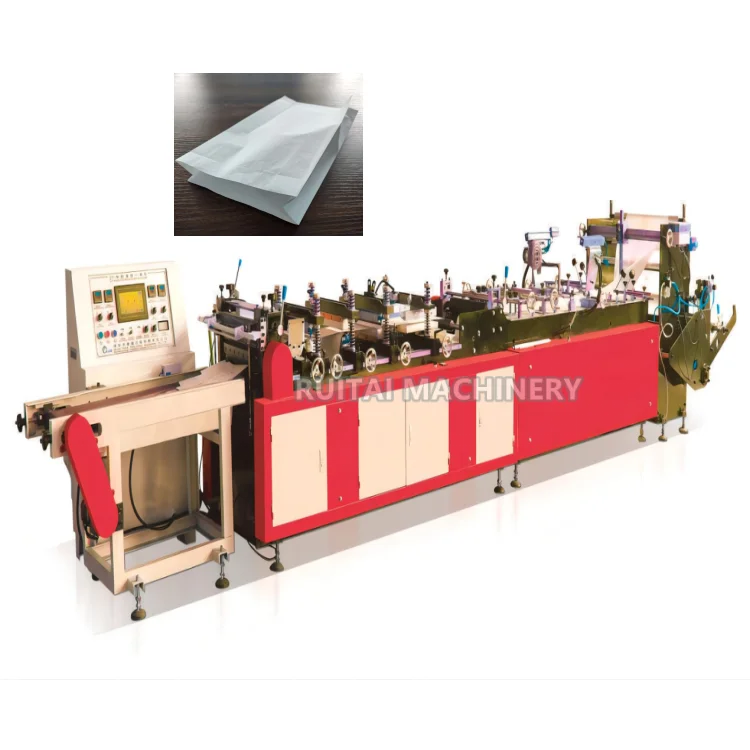

Bag Making Machine for Center Seal Bag / Gusset Bag / three Side Seal Bag Making Machine
- Category: >>>
- Supplier: Zhejiang Ruitai Packaging Machinery Co. Ltd.
Share on (1600645625934):
Product Overview
Description
Bag Making Machine for Center Seal Bag / Gusset Bag / three Side Seal Bag Making Machine
Introduction:PE, PP, Pe-coated paper center (middle) bottom sealing bags making machine are commonly designed and used for producing snacks packgaging,like peanuts,chips,biscuits,bread,juice...
Machine specification and configuration:
Model | 800 |
Max. diameter of roll material | 500mm |
Max. Width of roll material | 700mm |
Max. Bag width | 350mm |
Gusset | 20-40mm |
Max. Bag length | 700mm |
Max Speed | 30-260pcs/min |
Linear speed | 50m/min |
Power supply | 220V 12KW |
Machine Weight(kg) | 1500kg |
Overall size (mm) | 6400x1200x1300 |
Name |
Original | Quantity | |
1 | Computer: ,Available micro computer to control the machine, able to set any number for automatic product counting and alarm | China | 1set |
2 |
Touch screen | China | 1set |
3 |
Material traction motor servo motor | China | 1set |
4 |
Printing tracking electric eye | italy | 1set |
4 |
Host motor(1.5KW) | Shanghai China | 1set |
5 |
Frequency converter for material traction (1.5kw) | China | 1set |
6 |
EPC systerm | Zhejiang China | 1set |
7 |
Unwinder:with magnetic brake to control the tension and air shaft | China | 1set |
8 |
Machine frame: steel | China | 1set |
9 |
Cutting knife basement: cast steel | China | 1set |
10 |
Cutting knife | China | 1set |
