Машина для производства пленки ABA, экструдер, машина для выдувания экструзионной пленки, машина для выдувания пленки пла, термоусадочная машина для выдувания ПЭНД, 50 3 лет
- Category: Industrial Machinery >>>
- Supplier: Zhejiang Chaoxin Machinery Technology Co. Ltd.
Share on (1600645652744):
Product Overview
Description
VR

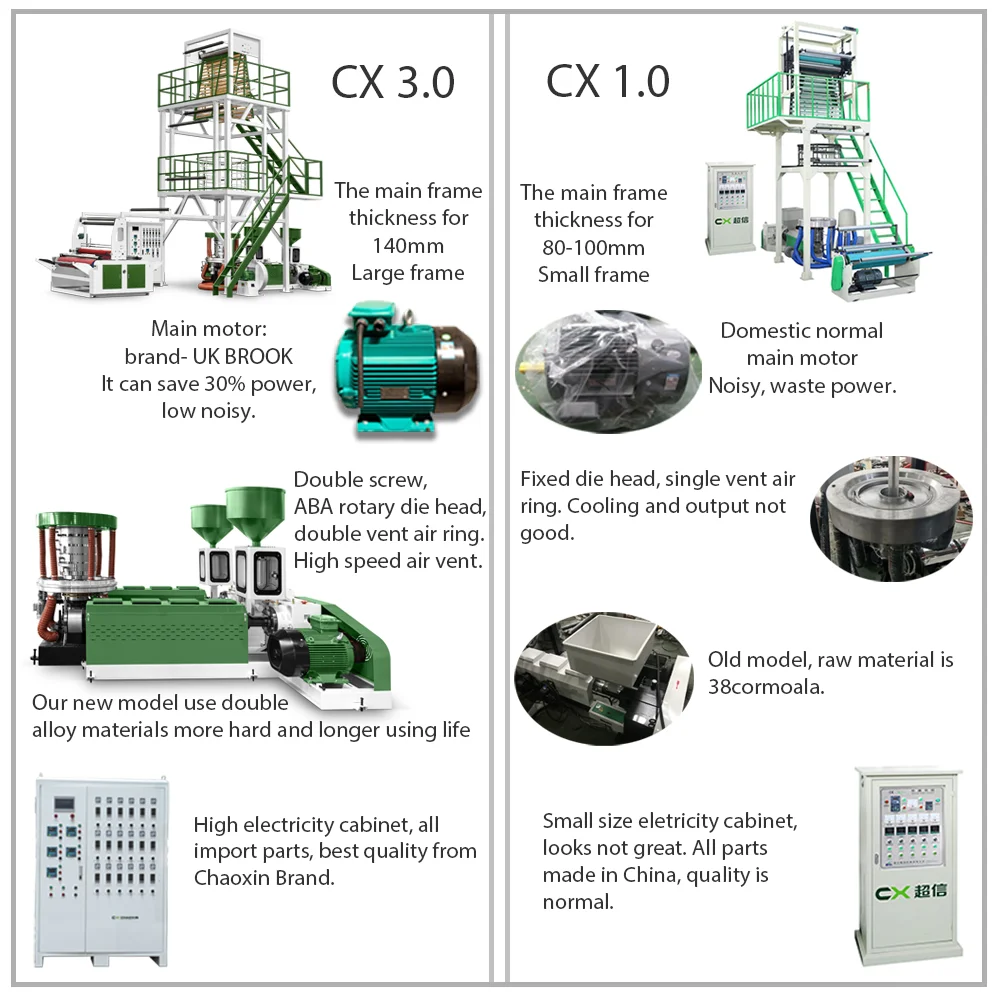

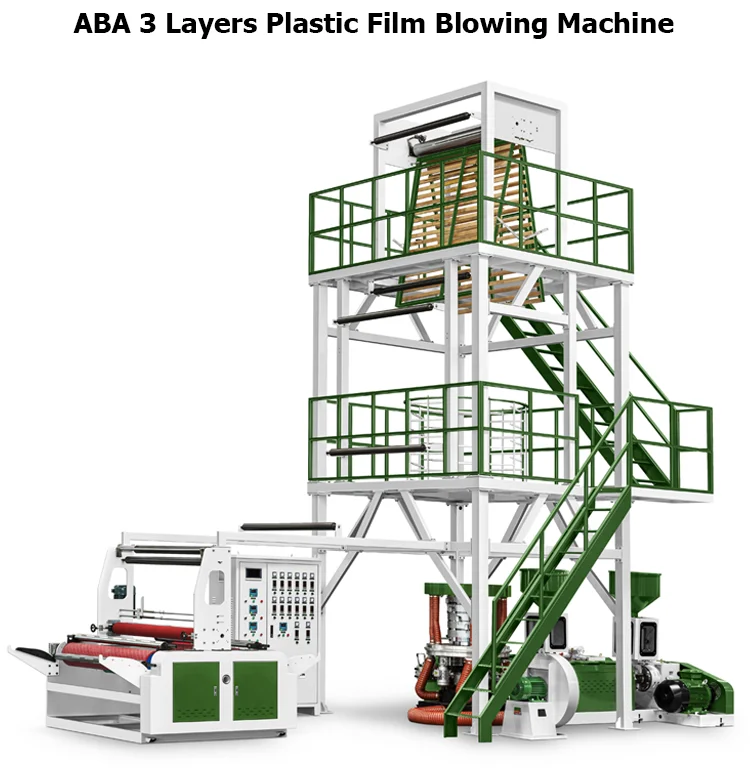

LDPE 3 layers ABA film blowing machine
Simple operation, stable output, Easier Way to Produce
-Using double air ring to start, the cooling effect is better
-Energy saving:30% reduction in energy consumption by best electrical appliances(Brook motor,ETD Inverter,schneider Low voltage electrical appliances)
-Pioneered five-roller traction unit,film winding more smoothly
-Can realize 2 colors in different sides of one same film
Main Technical Parameters
Model | CX-ABA-900 | CX-ABA-1300 | CX-ABA-1600 | CX-ABA-2200 | |||
Suitable Material | LDPE,LLDPE | ||||||
Film Width | 400-800mm | 600-1200mm | 1000-1500mm | 1500-2050mm | |||
Film Thickness | 0.02-0.2mm | ||||||
Max.Output | 120kg/h | 160kg/h | 180kg/h | 220kg/h | |||
Screw Diameter | Φ50*2 | Φ55*2 | Φ60*1 Φ65*1 | Φ65*1 Φ75*1 | |||
Screw L/D Lenth | 30：1/32：1 | ||||||
Cylinder Cooling | 550w*6 | 655w*6 | 550w*7 | 550w*8 | |||
Main Motor | 15kw*2 | 18.5kw*2 | 22kw*1 30kw*1 | 30kw*1 37kw*1 | |||
Average Power Consume | 35kw | 45kw | 60kw | 85kw | |||
Air Blower | 5.5kw | 7.5kw | 7.5-11kw | 11kw | |||
Roller Width | 900mm | 1300mm | 1600mm | 2200mm | |||
Effective Width | 800mm | 1200mm | 1500mm | 2050mm | |||
Take-up Speed | 10-120m/min | ||||||
Power Supply | 380V,50HZ,3PHASE | ||||||

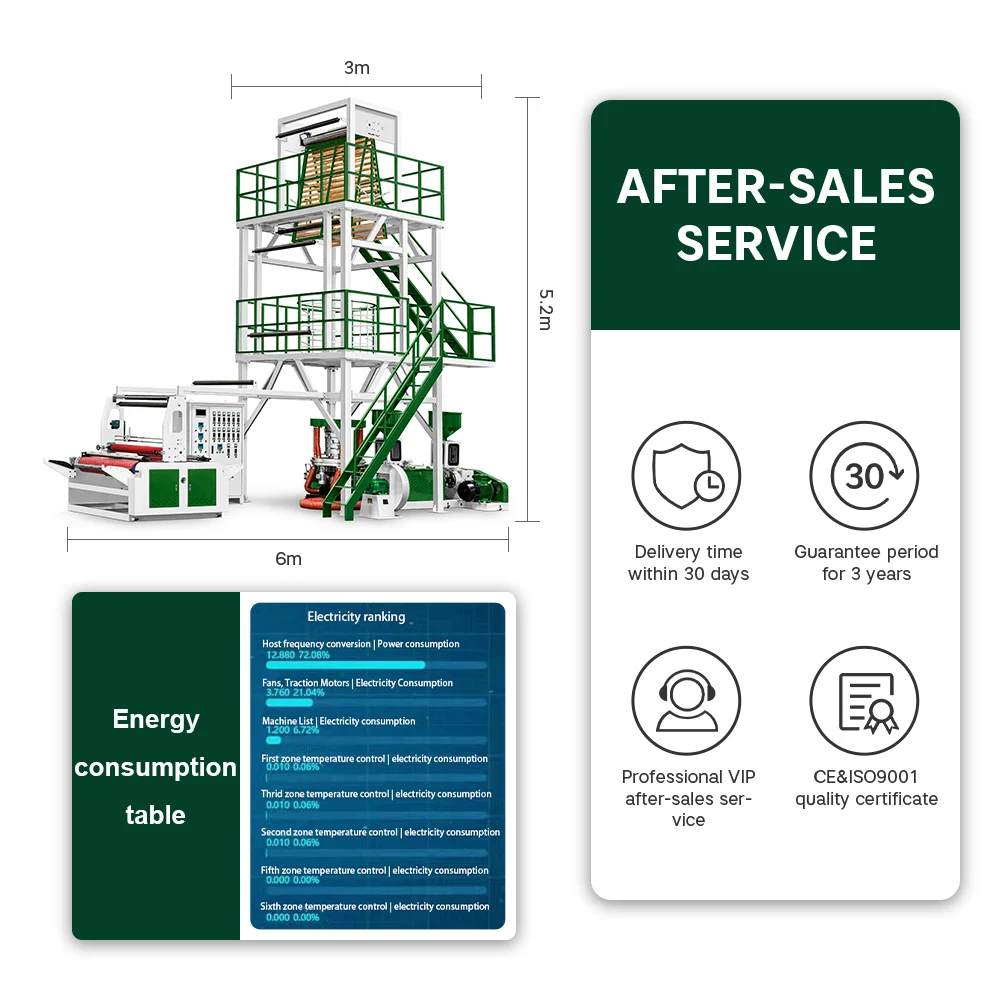

Outline Dimension(L*W*H) | 6*3*5.8m | 6*3.5*6.5m | 6*4*7.5m | 7*4.5*9.5m | |||
Weight | 3t | 4t | 5.5t | 7.5t | |||

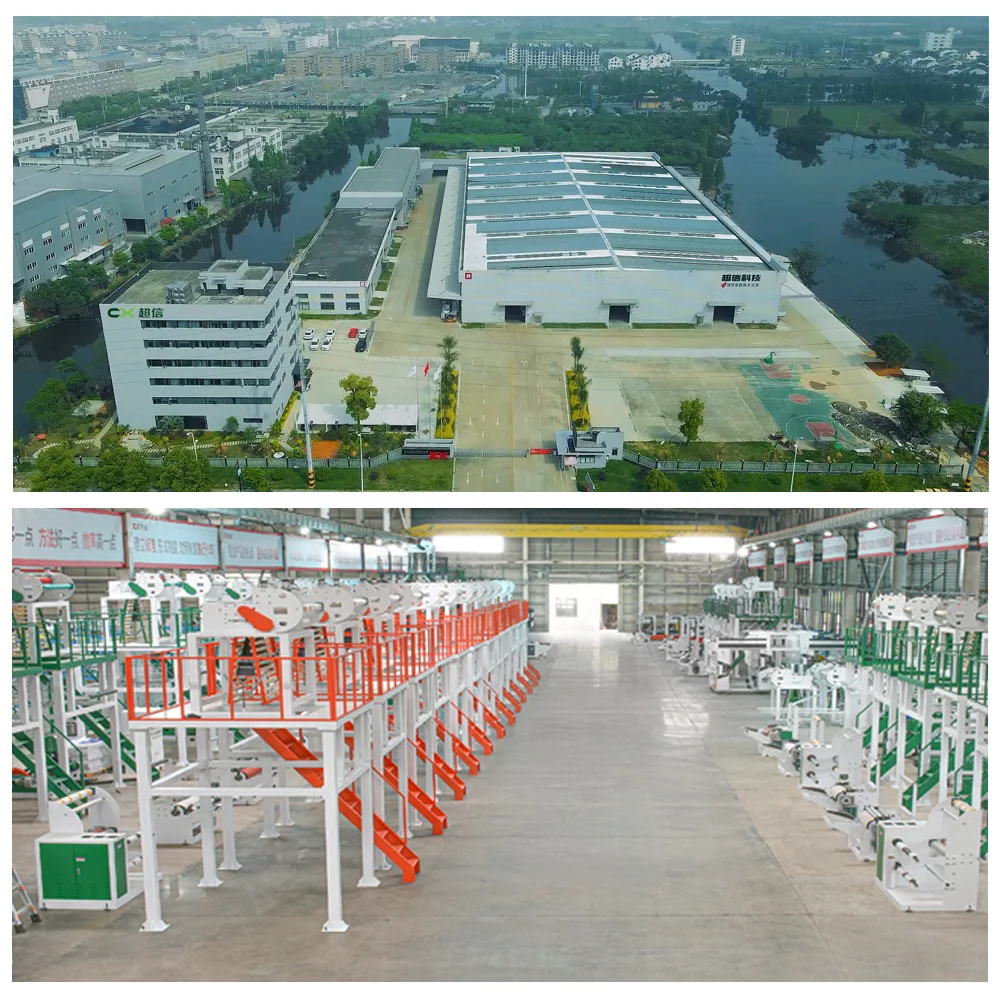

Zhejiang Chaoxin Machinery company limited is located in Pingyang city Zhejiang province. we are committed to establish a leading enterprise in producing biodegradable compostable and plastic film blowing machine, bag making machine, printing machine etc. We are known for excellent performance based on competitive prices, first class crafts, safe packaging and timely delivery. Our products sell well in Europe America Africa... More>>>
Q1: How about after-sales service? How long is the machine warranty
A1: Once you buy our machine, we guarantee lifetime after-sale service, you can call us or send us an email to ask any questions about the machine. Three-year warranty for the five parts of the film blowing machine (motor, inverter, gear box, blower, die head).
Q2: Where is your factory? How can I visit there? Do you support online factory inspection?
Q3:Does your factory need agents? What are the thresholds?
A3:We need to recruit agents, welcome to inquire for more details.
Q4:How long is your delivery time and how many machines can you produce per month?
A4:Normally delivered within 30 days.We can produce up to one hundred machines per month.
Q5:How long can your machine work continuously?
A5:Our machines can work 24 hours a day without stopping, which not only increases production but also saves energy.
A1: Once you buy our machine, we guarantee lifetime after-sale service, you can call us or send us an email to ask any questions about the machine. Three-year warranty for the five parts of the film blowing machine (motor, inverter, gear box, blower, die head).
Q2: Where is your factory? How can I visit there? Do you support online factory inspection?
A2:Our factory is located in Pingyang City, Zhejiang Province, China, about one hour from Shanghai by air. Warmly welcome domestic and foreign customers to visit us, and support 3D online factory
inspection.
Q3:Does your factory need agents? What are the thresholds?
A3:We need to recruit agents, welcome to inquire for more details.
Q4:How long is your delivery time and how many machines can you produce per month?
A4:Normally delivered within 30 days.We can produce up to one hundred machines per month.
Q5:How long can your machine work continuously?
A5:Our machines can work 24 hours a day without stopping, which not only increases production but also saves energy.
