4G GPS WiFI Optional 2TB Hard Disk Recording Vehicle Black Box 10.1 inch Monitor 4CH Bus MDVR 1080P DVR Camera System Car

Product Overview

Description

4G GPS WiFI Optional 2TB Hard Disk Recording Vehicle Black Box

10.1 inch Monitor 4CH Bus MDVR 1080P DVR Camera System Car

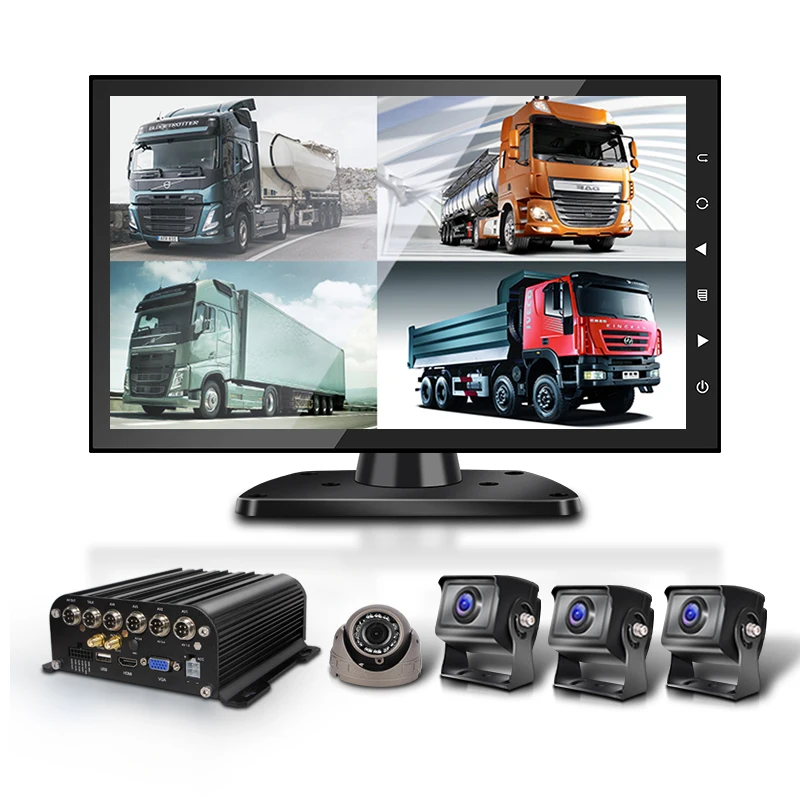

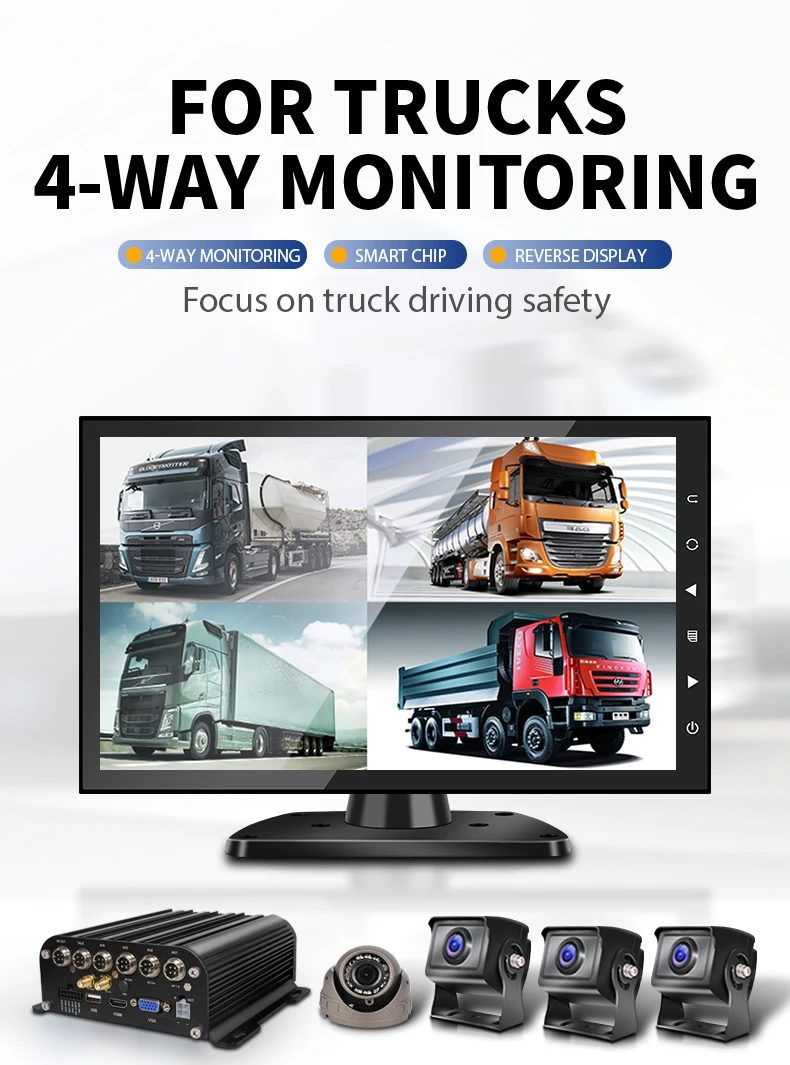

Package Include:

4CH 1080P HDD MDVR with 4G GPS

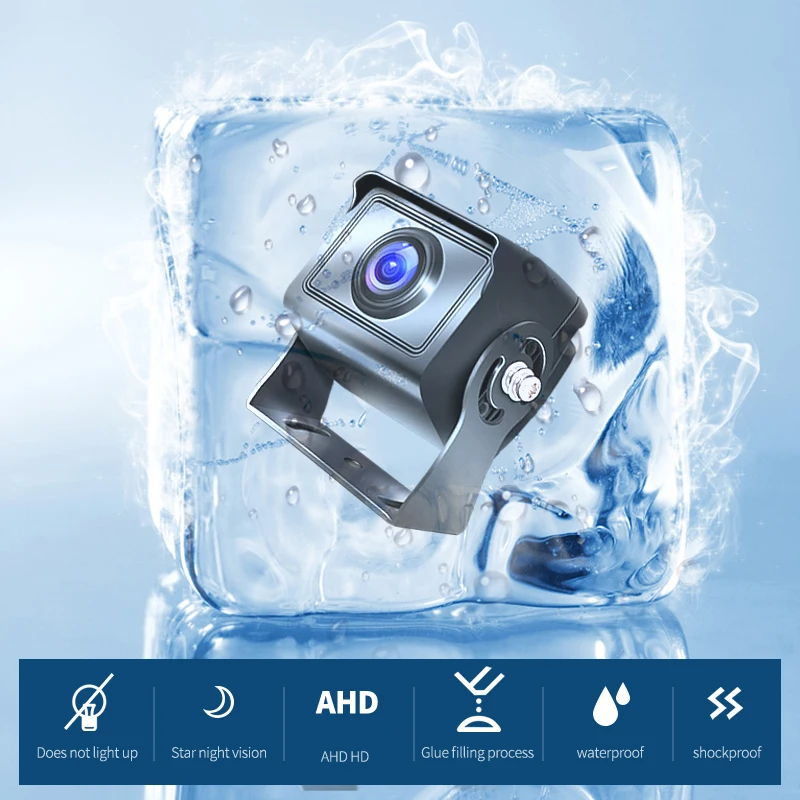

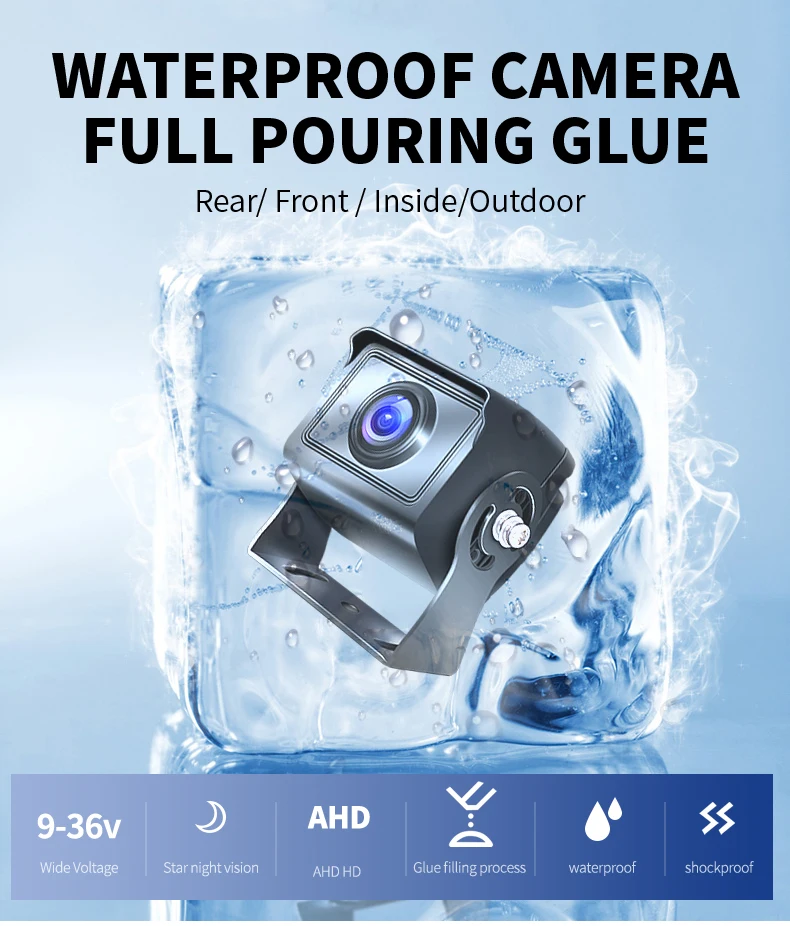

AHD1080P Camera*4

10.1 Inch Monitor*1

5M Cable*3+15M Cable*1



1080P MDVR Specification
Power	Voltage Input	DC8-48V
	Voltage Output	DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)
	Main Processor	Hi3520DV300
	Operating system	Embedded Linux OS
	Operating system	Embedded Linux OS
	Language	Chinese/English
System	OSD	Graphical User interface OSD menu
	Password	Users Password/ Administrator Password
Video	Video input	4CH (8CH)AHD or Analog Video Inputs
	Video output	1CH Video Inputs (1.0Vp-p/ 75 Ohms),  1CH VGA output
	Preview	1 CH/ 4 CH Preview.
	Recording Ratio	PAL: 25 Frame/s; NTSC: 30 Frame/s
	Image Compression	H.264 or H.265 Main profile/MJPEG
	Video Standard	PAL/NTSC
	Image Resolution	1080P/1080N/720P/960H/D1/CIF
	Playback quality	1080P/1080N/720P/960H/D1/CIF
Audio	Audio input	4-CH( 8CH)
	Audio output	1-CH
	Audio Bit Rate	8KB/S
	Recording mode	Audio & Video sync.
Image processing & Storage	Video Quality	1080P/720P/960H/D1/CIF each channel;
		Highest Video Quality: 4CH Full 1080P
	Bit Rate	1080P: 2048Kbps~6144Kbps
		D1: 512Kbps~1536Kbps
		6 levels optional.

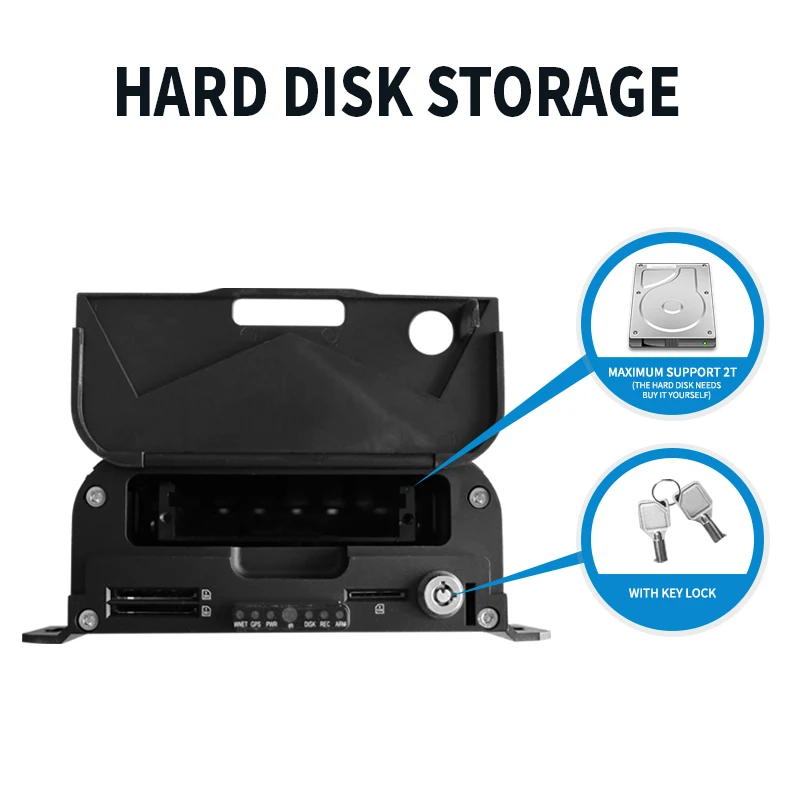

	Storage	2TB Hard Disk & 128GB SD Card (maximum)
Alarm	Alarm input	4 alarm inputs
	Alarm output	1 alarm output
Firmware Upgrading	Upgrading mode	Manual/Automatically/Remote/Emergency Recovery
	Upgrading method	USB disk/Wireless network/SD card

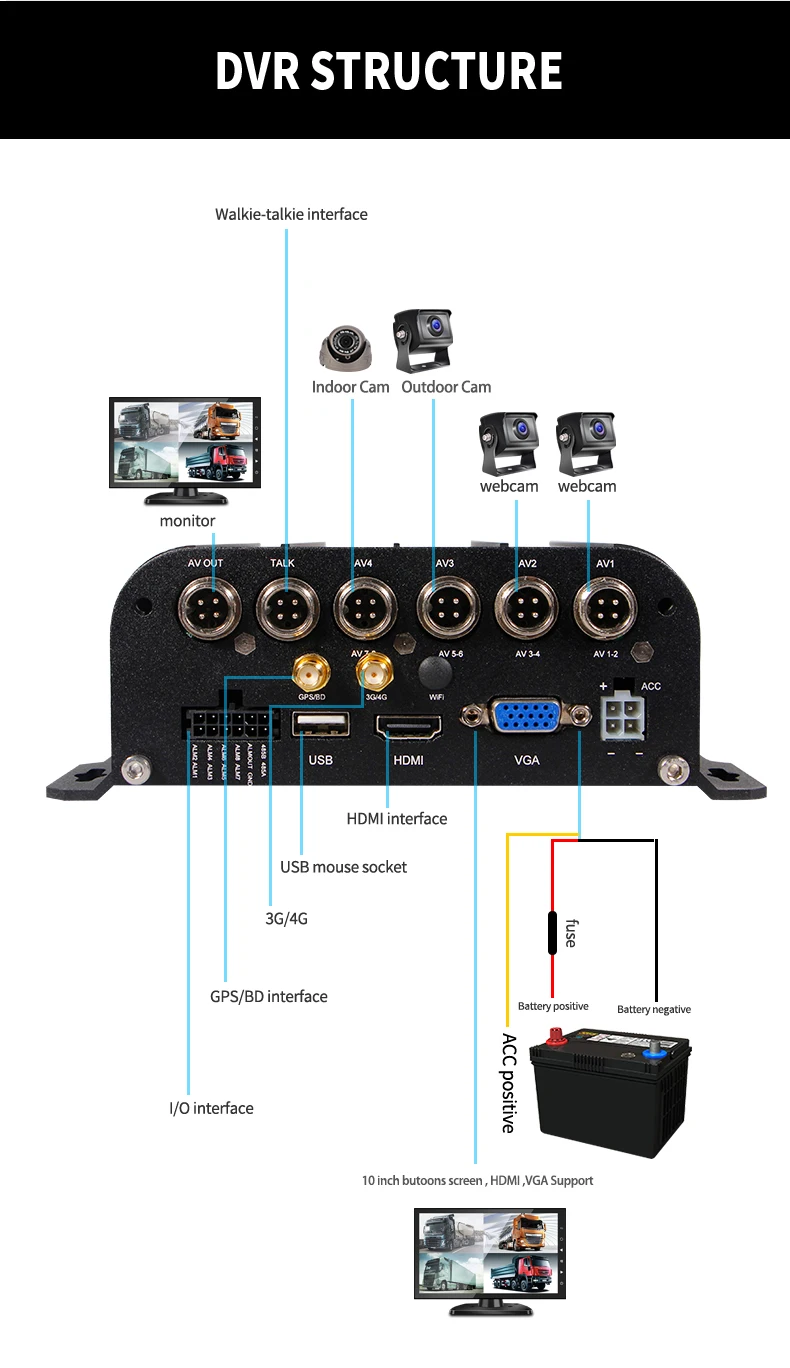

Interface	RJ45 Interface	No
	AV input	4/8 ch Aviation interface
	AV output	1ch VGA video output, 1ch Aviation AV output
	Ignition input	1 ACC signal
	UART	1 LVTTL Level
	USB 2.0 Port	Yes
	RS232 Interface	1-RS232 interface
Wireless	3G/4G	Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
	Wi-Fi	Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz

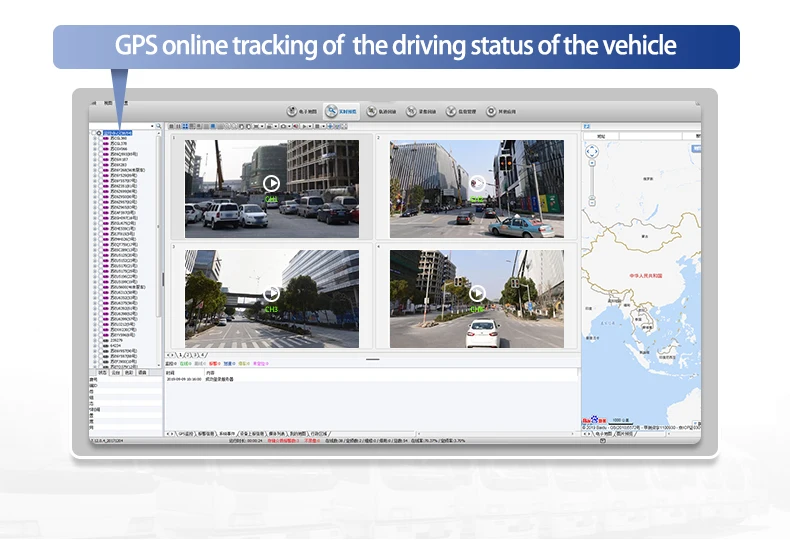

	External GPS Module	(Optional) ,Support detecting antenna Plug in/Unplug/Short
Operation Environment	Temperature	‘-20°~70°
	Humidity	10% to 95%
Feature		Support Mouse operating
		Support reversing aid setting
		Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan
		Built-in super capacitor to avoid abnormal power loss data loss and disk damage
		Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
		Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models;
