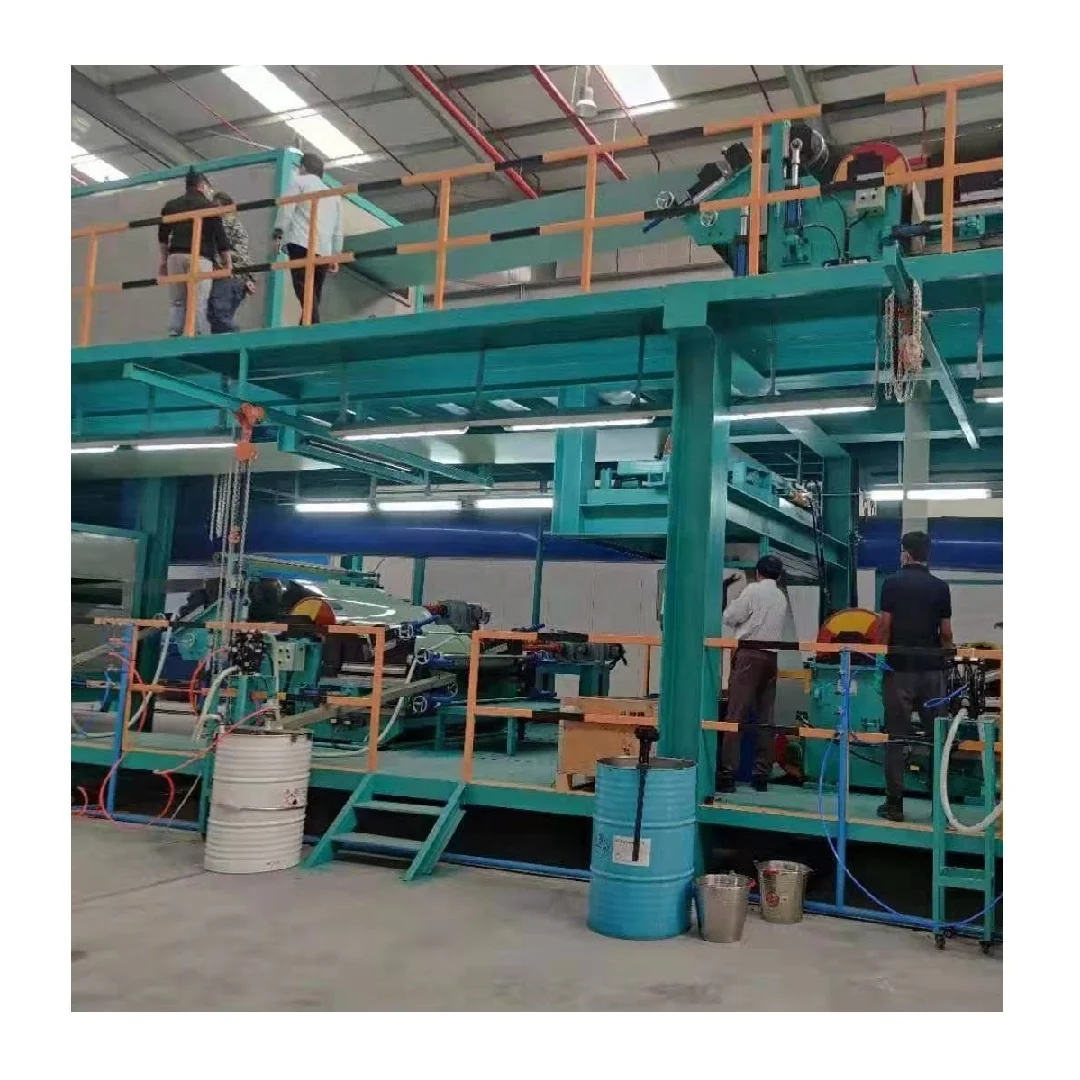

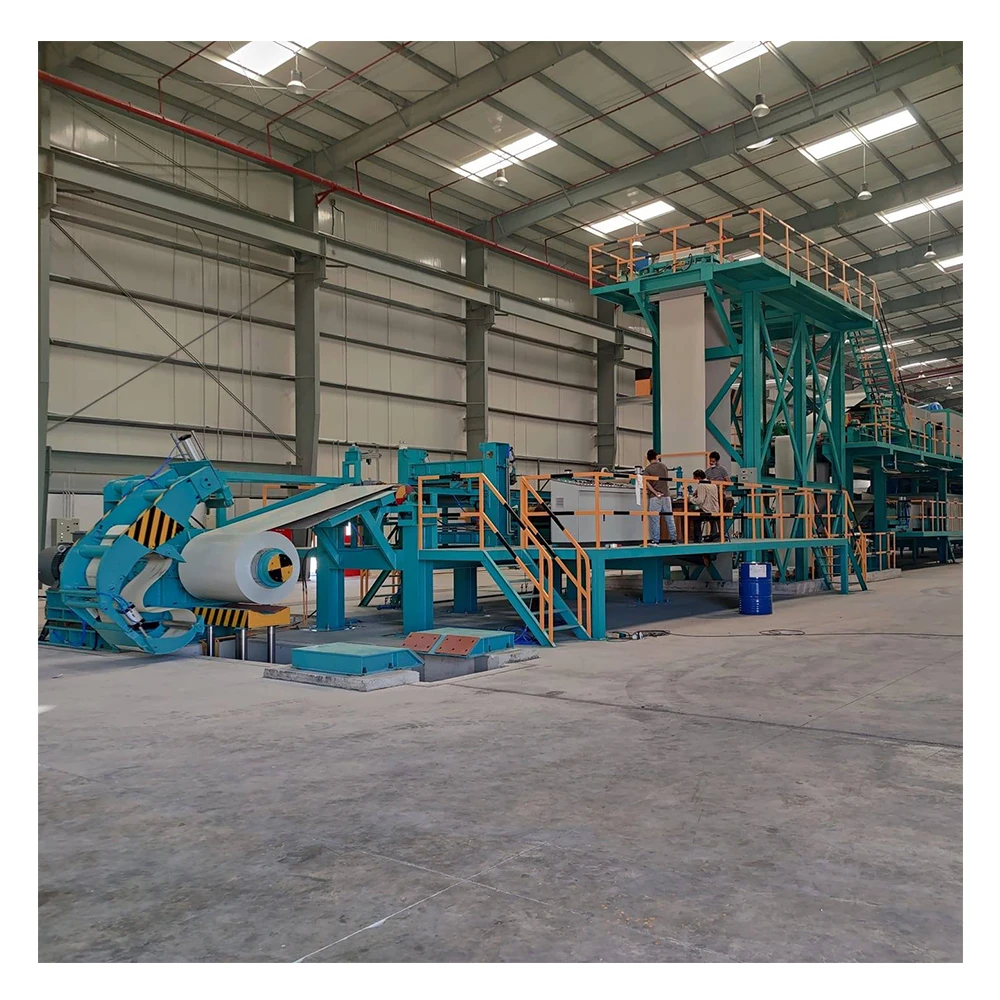

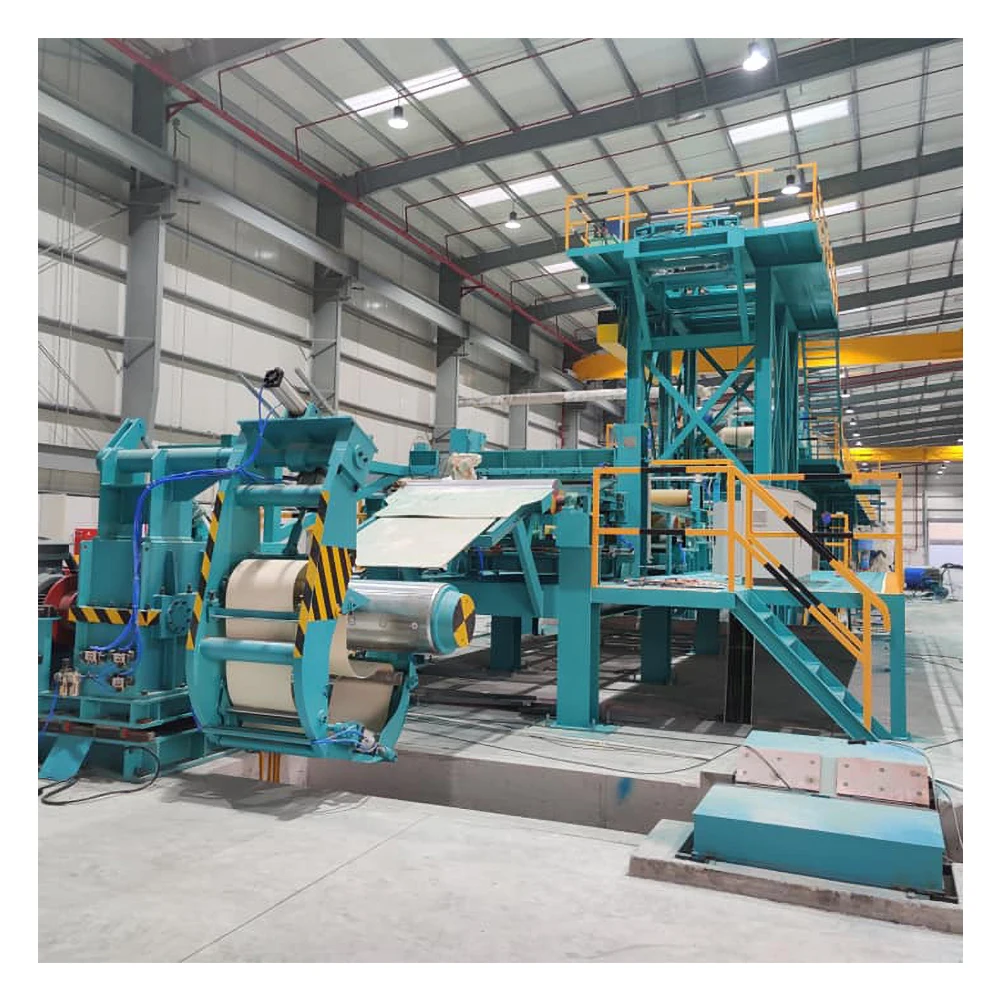

Steel color coating line with bright colorful coated equipment for sale
Metal coil color(organic) coating line is a complete of production equipment for colored steel plate, and the process is as follows: make the steel coil strips be subject to surface degreasing, parkerising and passivating treatment, then apply multi-layer organic coatings (e.g., coatings of modified resin (SMP), high weather-resistant polyester（HDP) , polyvinylidene fluoride (PVDF)etc.)on the strip surface by means of continuous roller coating,next, overprint multi-color patterns, and finally compound to form new functional plates.The production line is composed of equipment of uncoiler, sewing machine,tension
machine,storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc.
machine,storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc.
Product Specification
Material base plate | Electro-galvanized plate, hot-dip galvanized plate, hot-dip Al-Zn plate, cold-rolled steel plate, etc. |
Width of strip steel | 600-1650mm |
Thickness of strip steel | 0.1-2.0mm |
Outer diameter of steel strip | φ800-2000mm |
Process speed | 20-200m/min |
Thickness of coating | 5-25μm for the single-layer dry film for the front face(regulated as required) 5-15μm for the single-layer dry film for the back face(regulated as required) |
Thickness of printing layer | ≤1μm(oil ink or polyester) |
Energy type | Electricity, natural gas, liquefied petroleum gas, coal gas,steam, compressed air, etc. |
Production capacity | 30,000-240,000 t/year |
Detail Image
Sewing Machine
Coating Machine

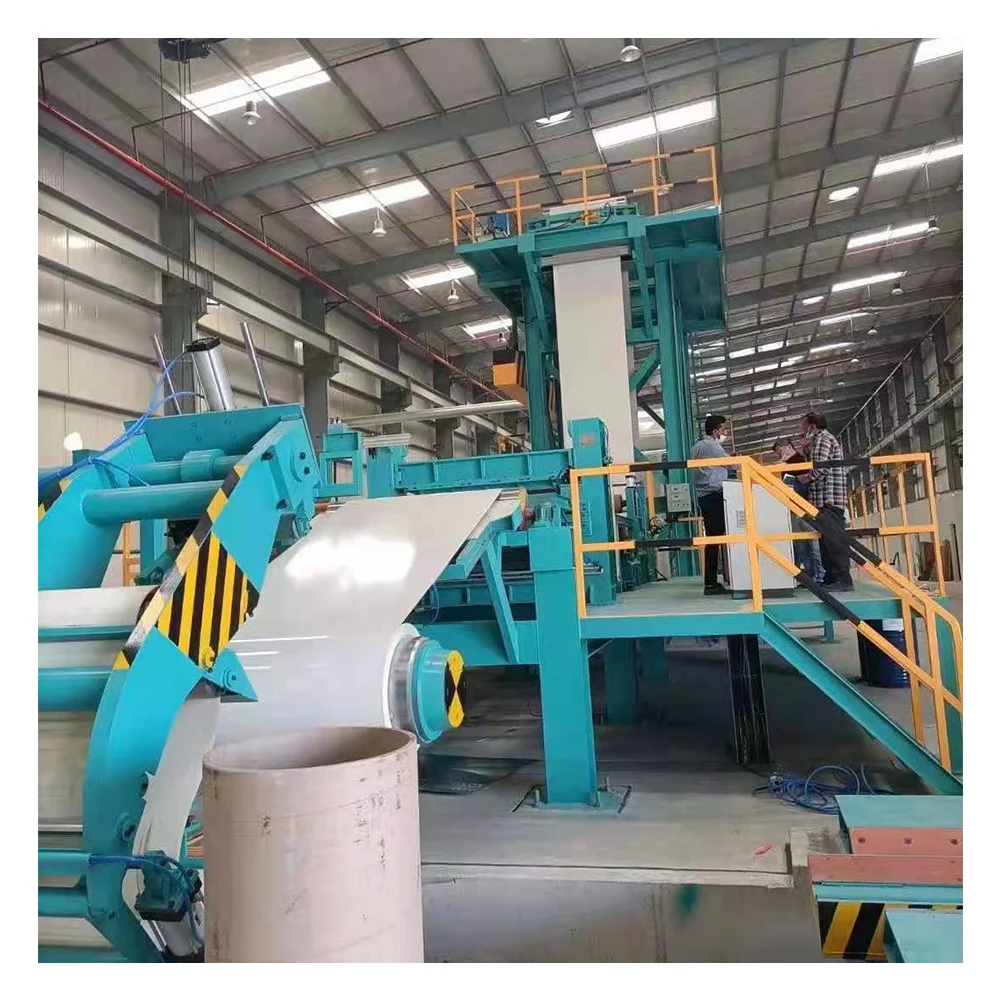

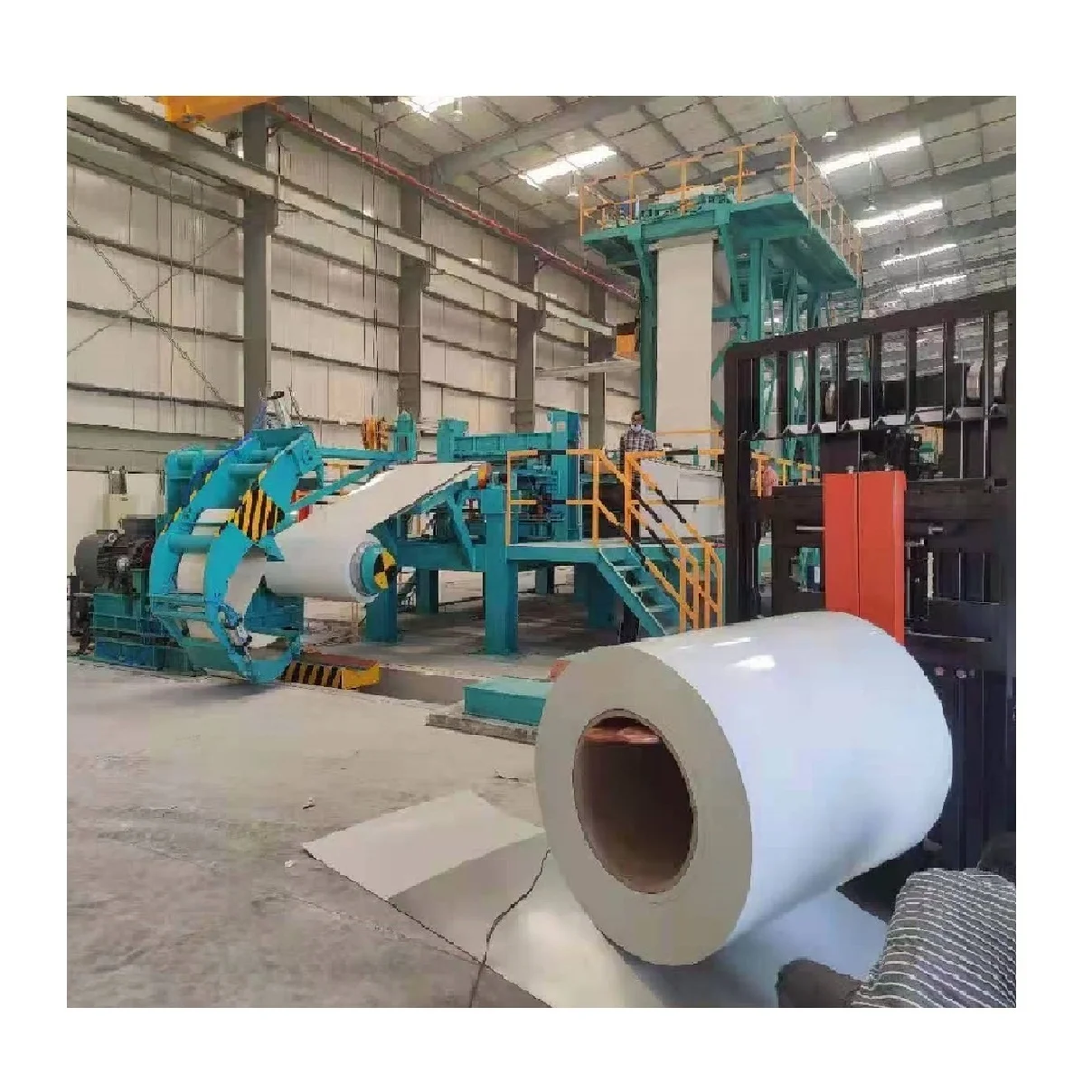

Uncoiler
Tension Roller
Processing Procedure
Decoiler------Pinch roller------Plate shear------Sewing machine------Burr masher------Tension roller------Entry looper------Tension roller------Soak degreasing------Squeeze roller------Degreasing liquid spray------Brush roller------Squeeze roller------Drying machine------Water cleaning------Brush roller------Drying machine------Soak water------Steam dry oven------Passivating machine------Passivating dry oven------Deviation-correcting machine------Tension roller------Bottom coating machine------Primary coating dry oven------Deviation-correcting machine------Tension roller------Printing machine------Finish coating machine------Finish coating dry oven------Cooling system------Deviation-correcting machine------Water cooling------Squeeze roller------Tension roller------Exits looper------Tension roller------Film covering machine------Plate shear------Recoiler
Packing & Delivery
PE Film Wooden Box or as Clients Requirements.
Company Profile
Qingzhou Reachfly Environment Technology Co.,Ltd
Our company covers over 36,000 square meters, has more than 150 designers, manufacturing and installation personnels and owns all kinds of metal coil color/organic coating line, continuous hot-dip galvanizing line, slitting line, cutting line ppgi/ppgl coils and so on. More than 15 production lines can be designed, manufactured and installed every year by us.
The production line and single machine are exported to Algeria, Tanzania, Bangladesh, South Korea, Dubai, India and other countries. Many production lines at home and abroad are available for customers to visit.
