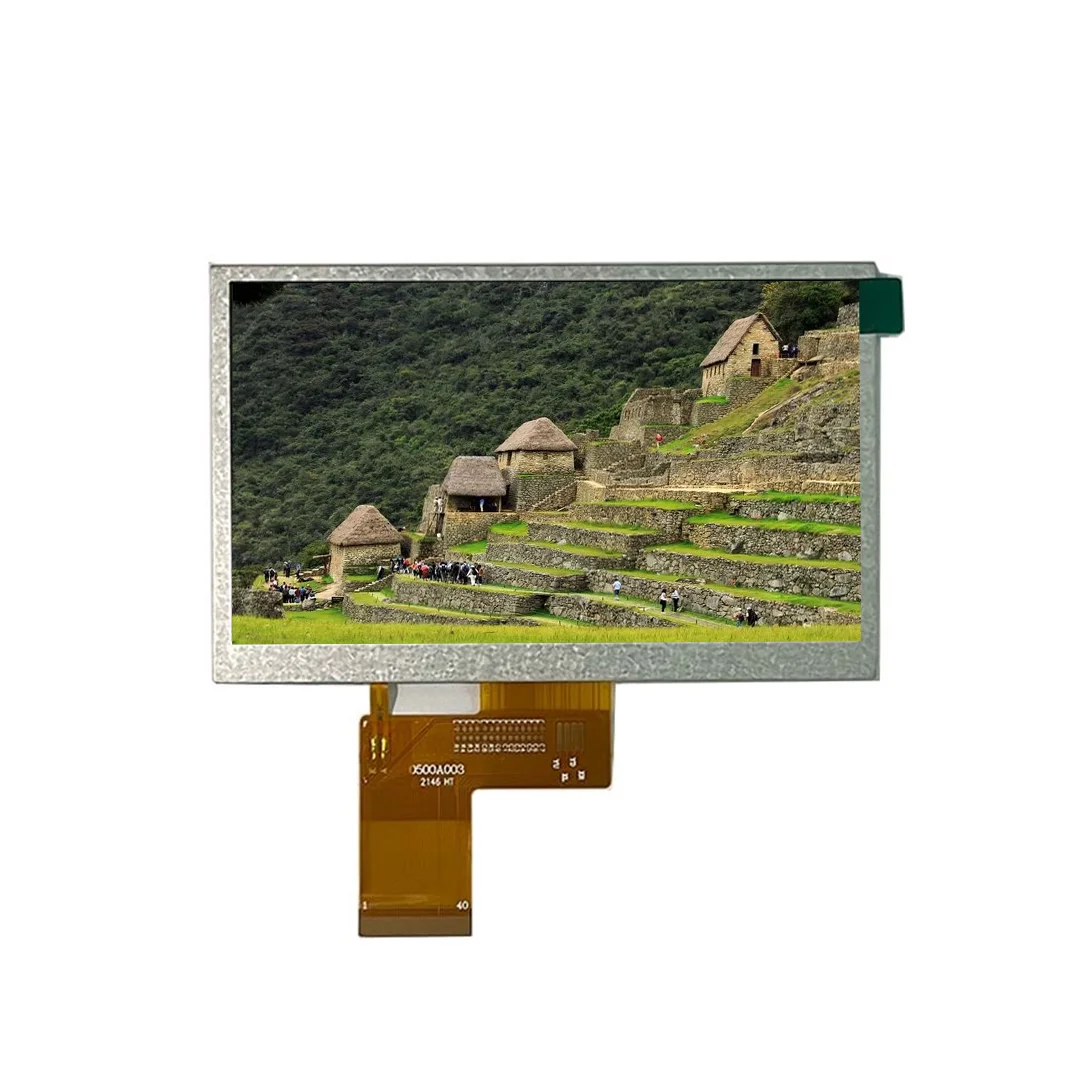

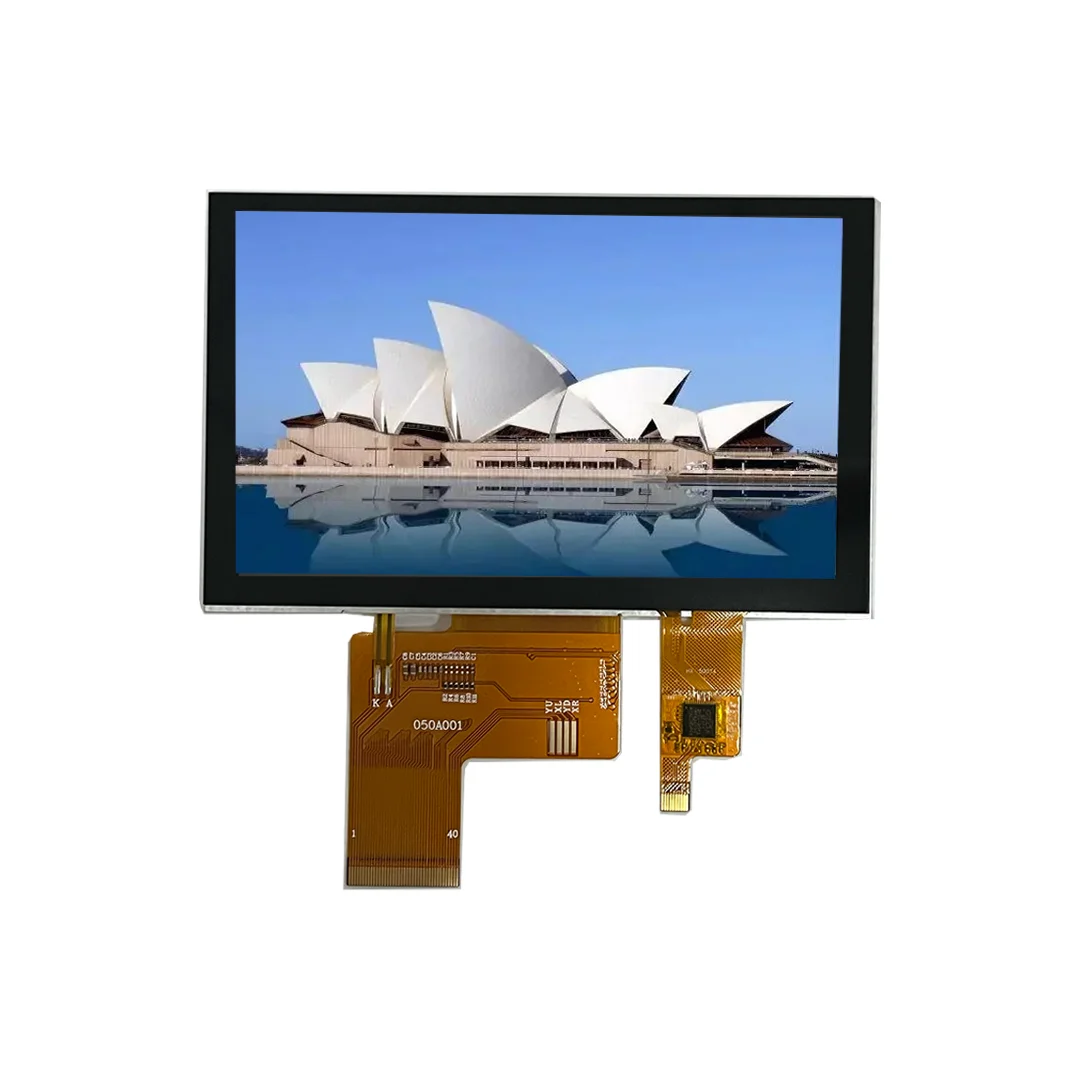

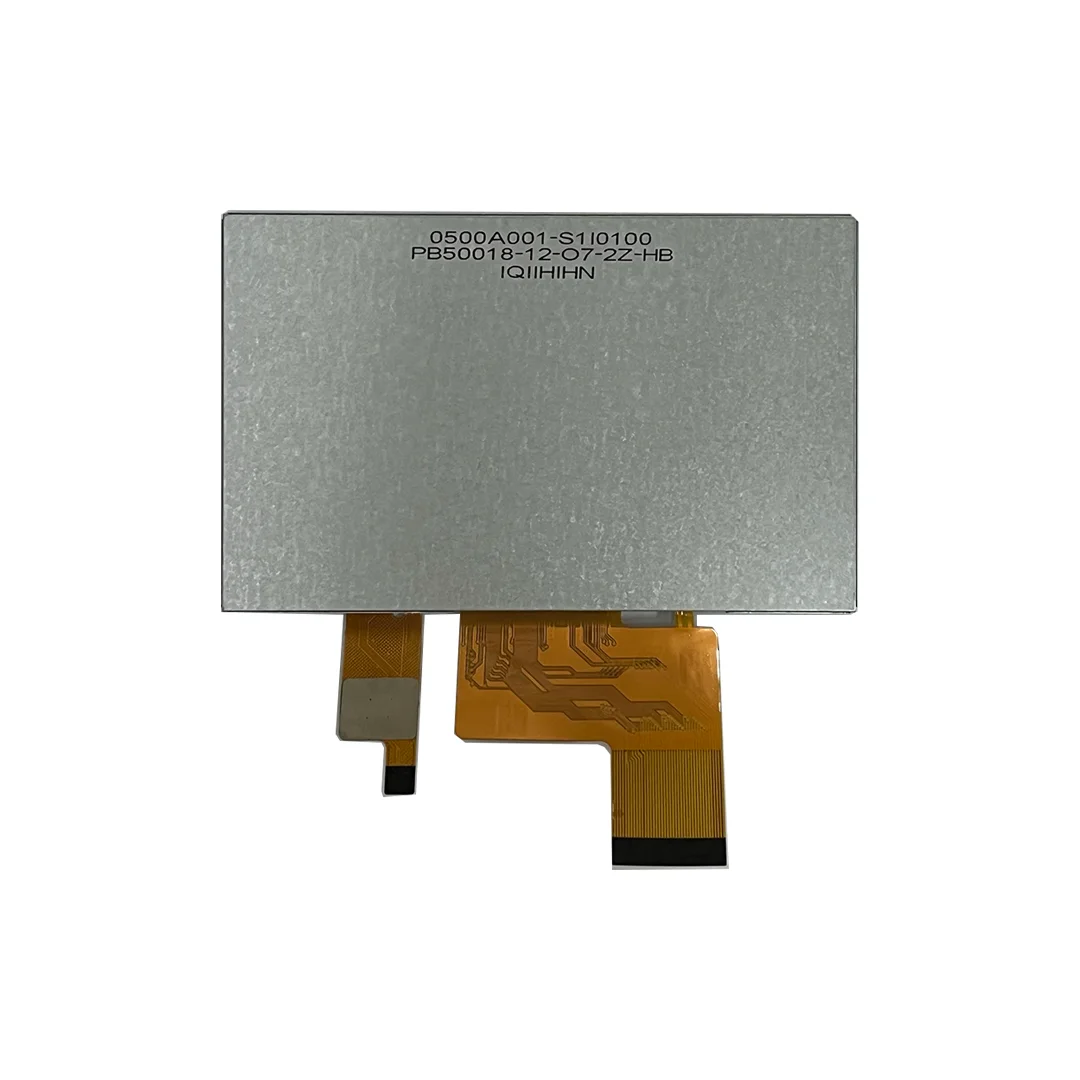

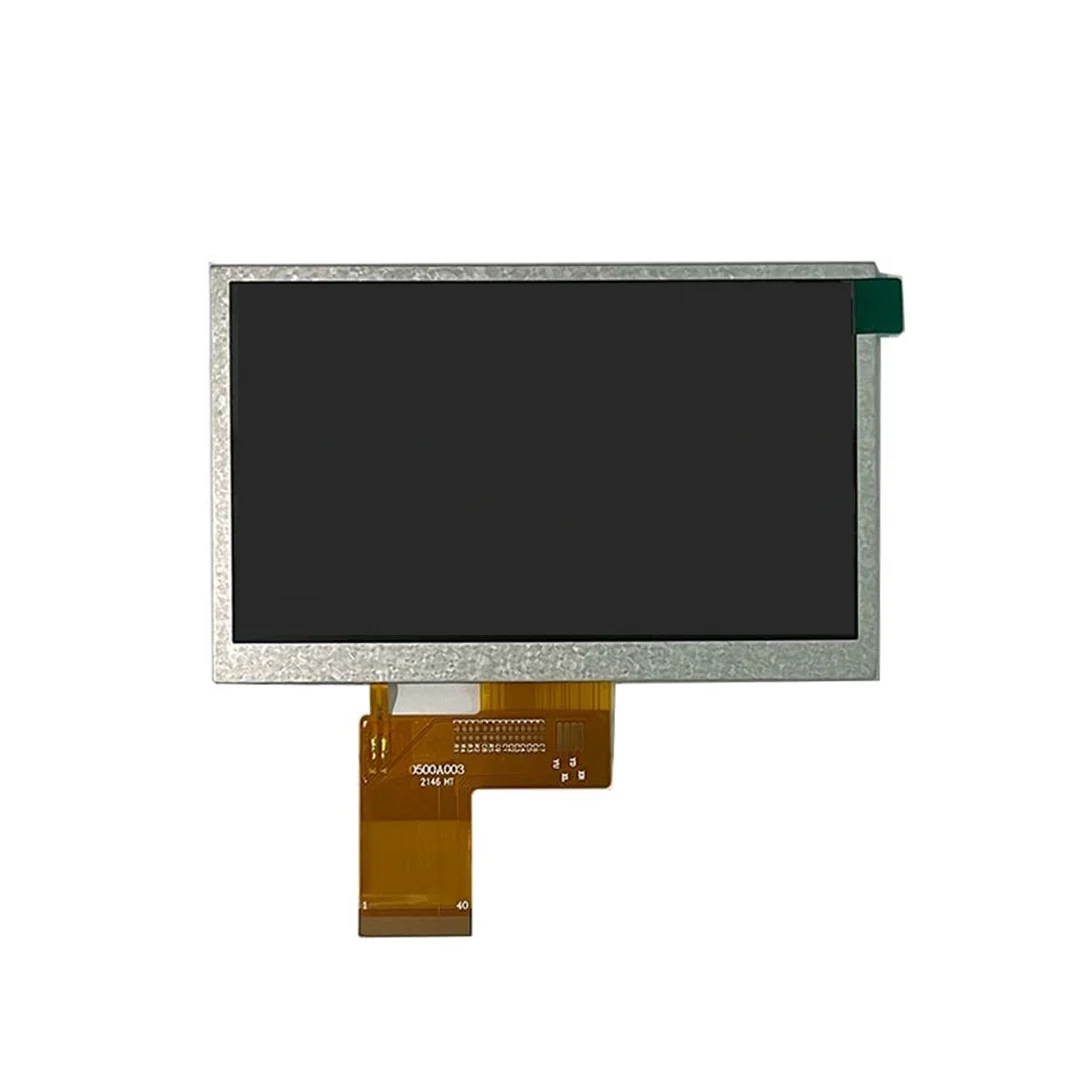

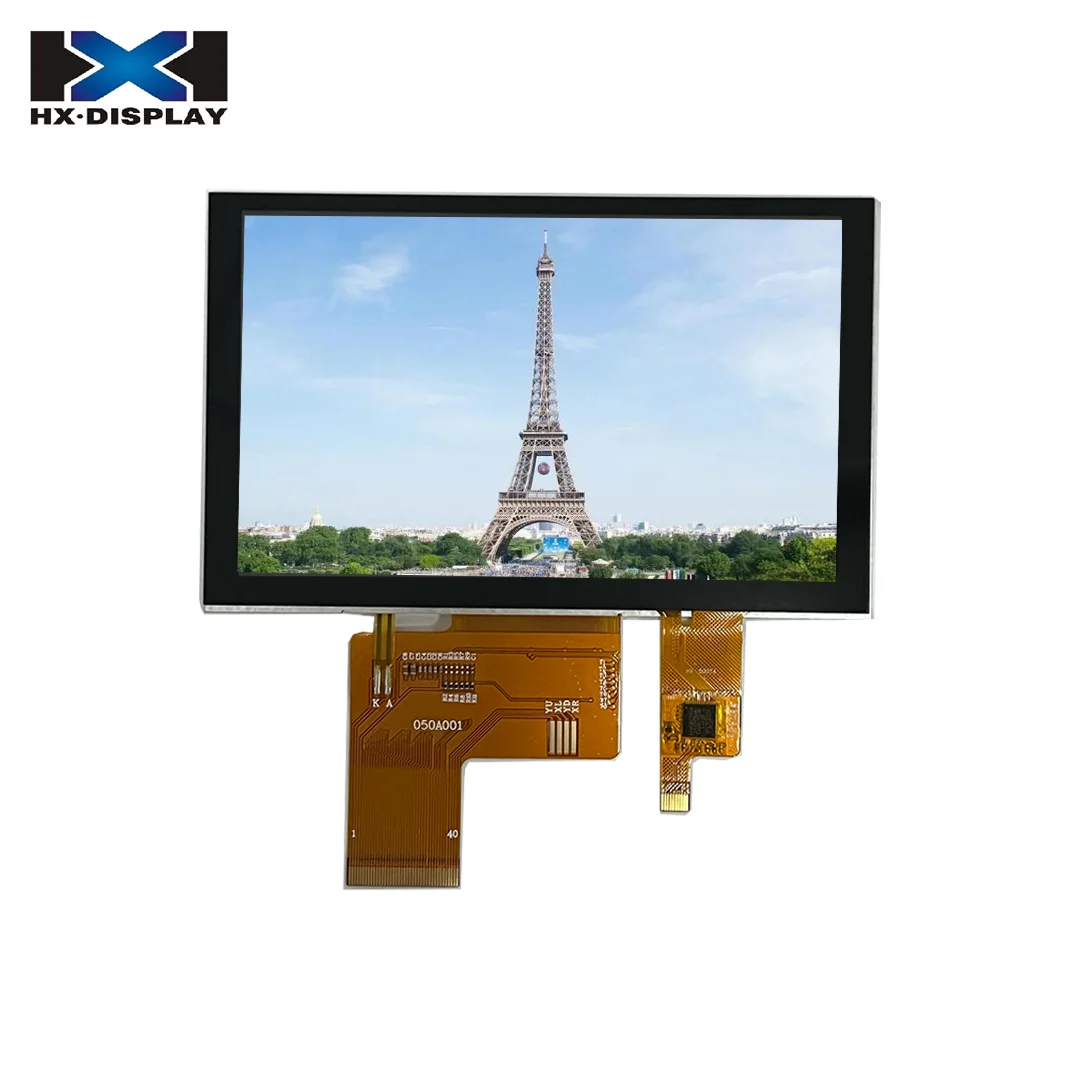

5 Inch 800*480 RGB IPS CTP Capacitive Touch Panel tft lcd touch screen module display
- Category: >>>
- Supplier: Shenzhen Hong Xian Wei Ye Technology Limited
Share on (1600645761703):
Product Overview
Description
Product Description
Specification
item | 5.0 inch tft lcd |
Type | Lcm |
Display Size | 5.0寸 |
Place of Origin | China |
Province | Guangdong |
Brand Name | JING DONG FANG |
Size | 5.0 inch |

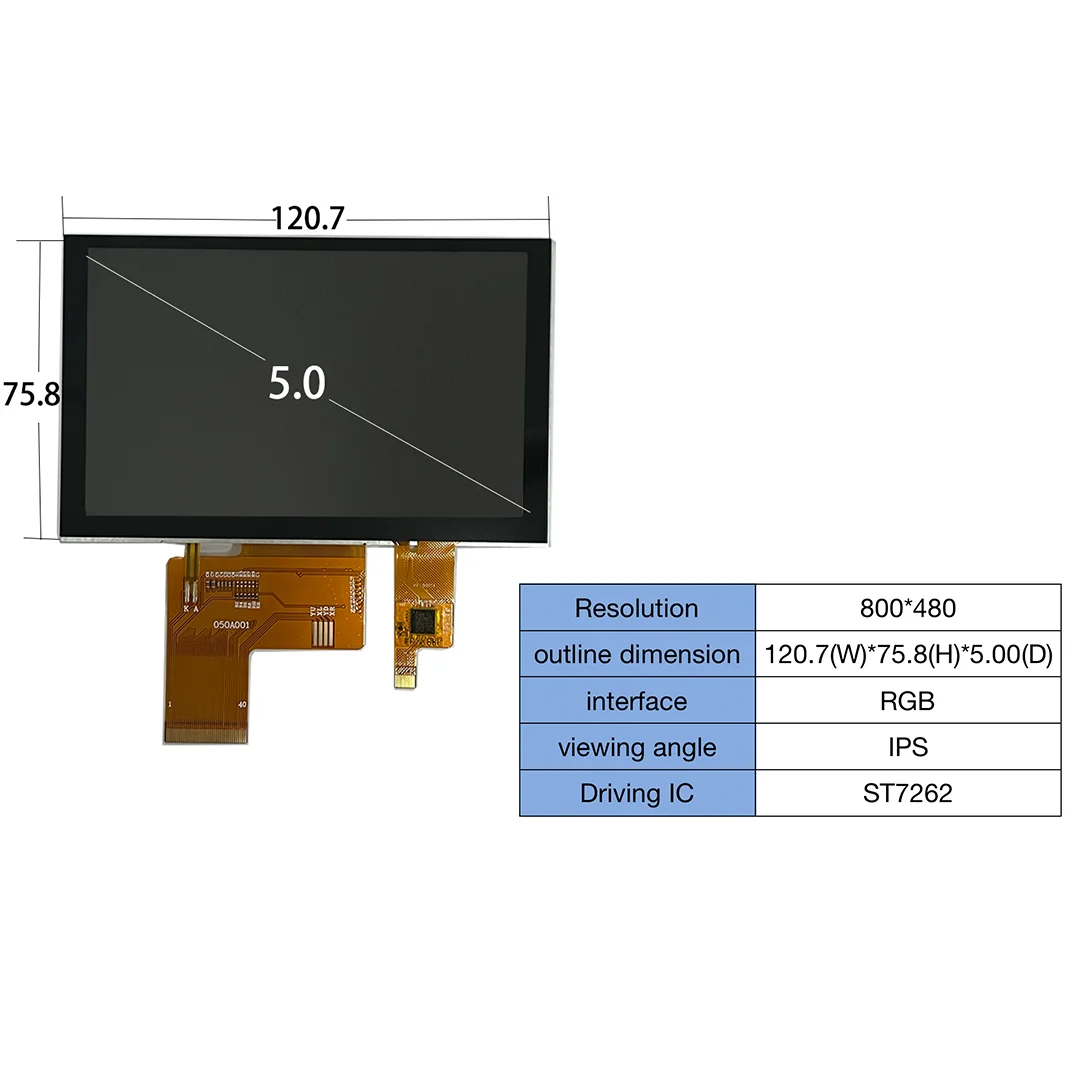

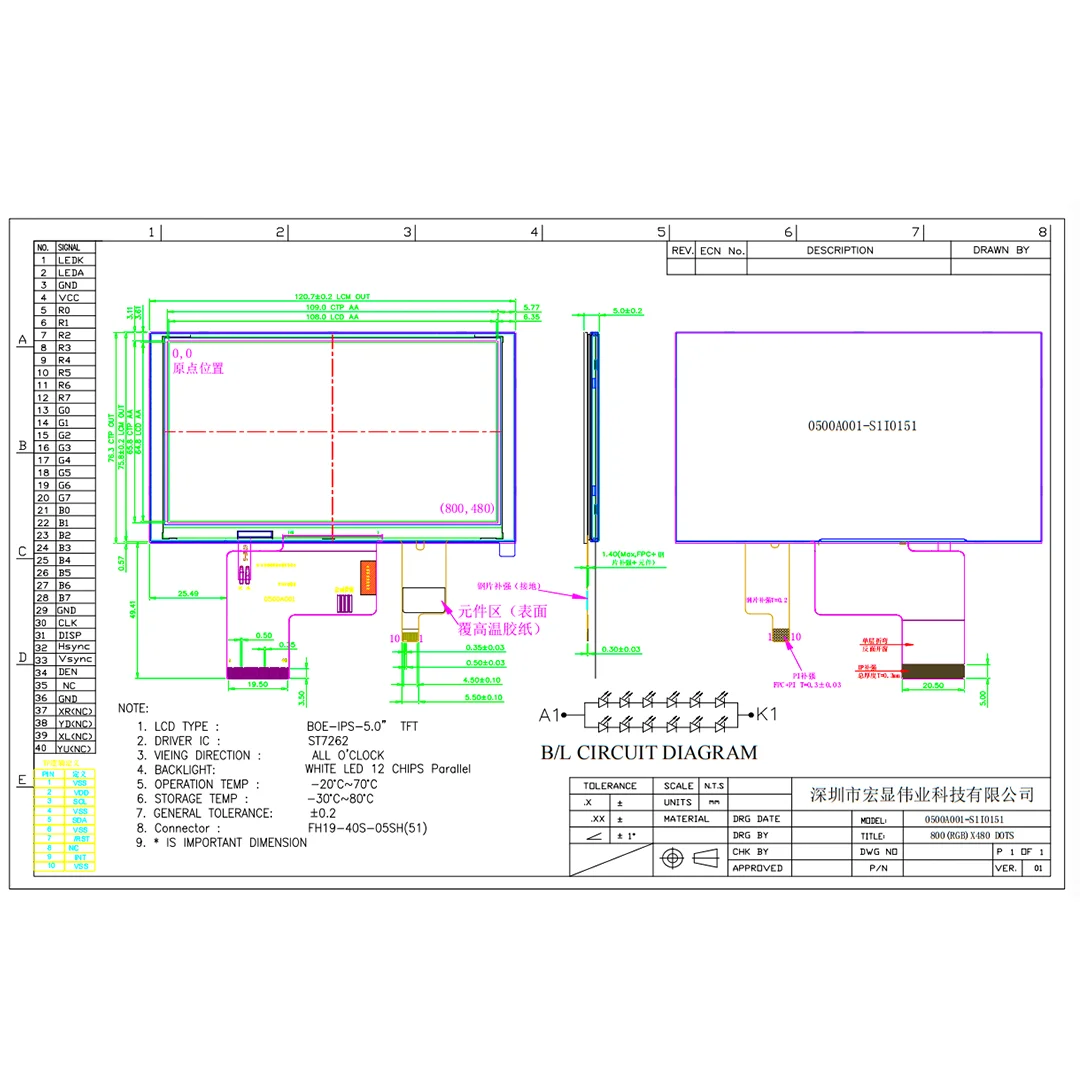

LCM Dimension | 120.7(W)*75.8(H)*5.00(D) |
LCD Active Area | 108.0*64.8 |
Number of Dots | 800*RGB*480 |
LCD Type | a-Si TFT |
Viewing Direction | ALL O'CLOCK |
Driver IC | ST7262 |
Interface Type | RGB |
Backlight Type | 12 LEDs |
Operating Temperature | -20℃~70℃ |
Company Profile
Hong Xian Display Technology Limited
Hong Xian Display Technology Limited ,established in the year 2014 ,located at Bao'an District Shenzhen China. We focus on TFT LCD
module production and R&D. The main sizes of TFT LCD modules we are offering are: 1.44, 1.77, 2.0, 2.2, 2.4, 2.8, 3.0,3.2, 3.5,
4.3, 5.0, 7.0, 8.0, 9.0 and 10.1. Our products are widely used for Security product, household appliances, Instrument and
meter,military products,automobile instruments, finger print machine,mobile phone, video door phone,GPS navigator, CVR,
Anti-dazzle rear-view mirror and so on.
module production and R&D. The main sizes of TFT LCD modules we are offering are: 1.44, 1.77, 2.0, 2.2, 2.4, 2.8, 3.0,3.2, 3.5,
4.3, 5.0, 7.0, 8.0, 9.0 and 10.1. Our products are widely used for Security product, household appliances, Instrument and
meter,military products,automobile instruments, finger print machine,mobile phone, video door phone,GPS navigator, CVR,
Anti-dazzle rear-view mirror and so on.
Production Process
Product Packaging and Delivery
This product adopts formal packaging, and there are different packaging specifications for products of different sizes. The 4.3 inch product is packed in a box of 200 pieces. Packages delivered have triple protections. Each module comes with a standard foam box, and all modules would be placed in order inside the corrugated carton. Besides, each package would be packed in sturdy wooden case, and the cases must be nailed. We ship our products in strong packing just to ensure good condition on arrival.
Product Applications
Certifications
ISO 14001:2015
Production and processing of liquid crystal display module of glucose detector.Applicable to Disign and manufacturing of LCD (liquid crystal display) modules.
ISO 9001:2015
Approved Scope to which this Certificate refers:The Manufactures of Liquid Crystal Display Modules.
FAQ
1.Q: Never End of Supply, Our Long-term Continuity Supply Warranty
A: We understand you probably worry whether we still offer the display after your long development time. HongXian gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.
2.Q: How to understand No MOQ？
A：The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.However, if the quantity is small, the price will be higher.
3.Q:How does HongXian guarantee the quality?
A:HongXian has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly
controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.HongXian has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.The HongXian is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and after-sales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. HongXian is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.
5.Q:How much the transportatian foreight of the sample?
A:The freight depends on total weight and your address.
6.Q：How is the After-sales service?
A:We have a huge team which is in charge of after-charges and offer 24 hours online service to help buyers solving the problems.
We also offer buyers the market information updated regularly.
A: We understand you probably worry whether we still offer the display after your long development time. HongXian gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.
2.Q: How to understand No MOQ？
A：The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.However, if the quantity is small, the price will be higher.
3.Q:How does HongXian guarantee the quality?
A:HongXian has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly
controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.HongXian has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.The HongXian is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and after-sales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. HongXian is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.
5.Q:How much the transportatian foreight of the sample?
A:The freight depends on total weight and your address.
6.Q：How is the After-sales service?
A:We have a huge team which is in charge of after-charges and offer 24 hours online service to help buyers solving the problems.
We also offer buyers the market information updated regularly.
