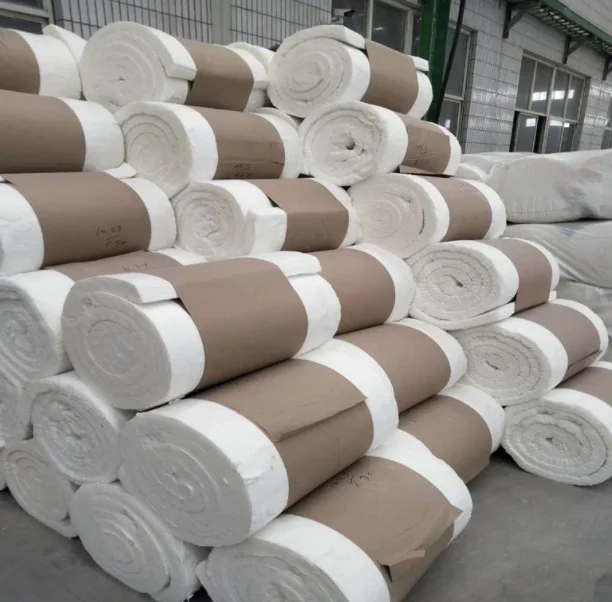

Производители напрямую поставляют недорогое теплоизоляционное хлопковое Керамическое волокно одеяло для промышленных печей
- Category: >>>
- Supplier: Henan Yunchang New Material Co. Ltd.
Share on (1600645768605):
Product Overview
Description
Product Description

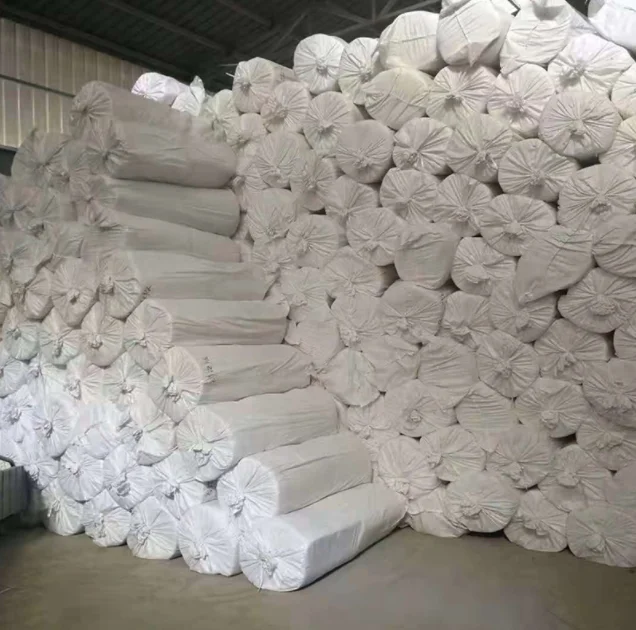

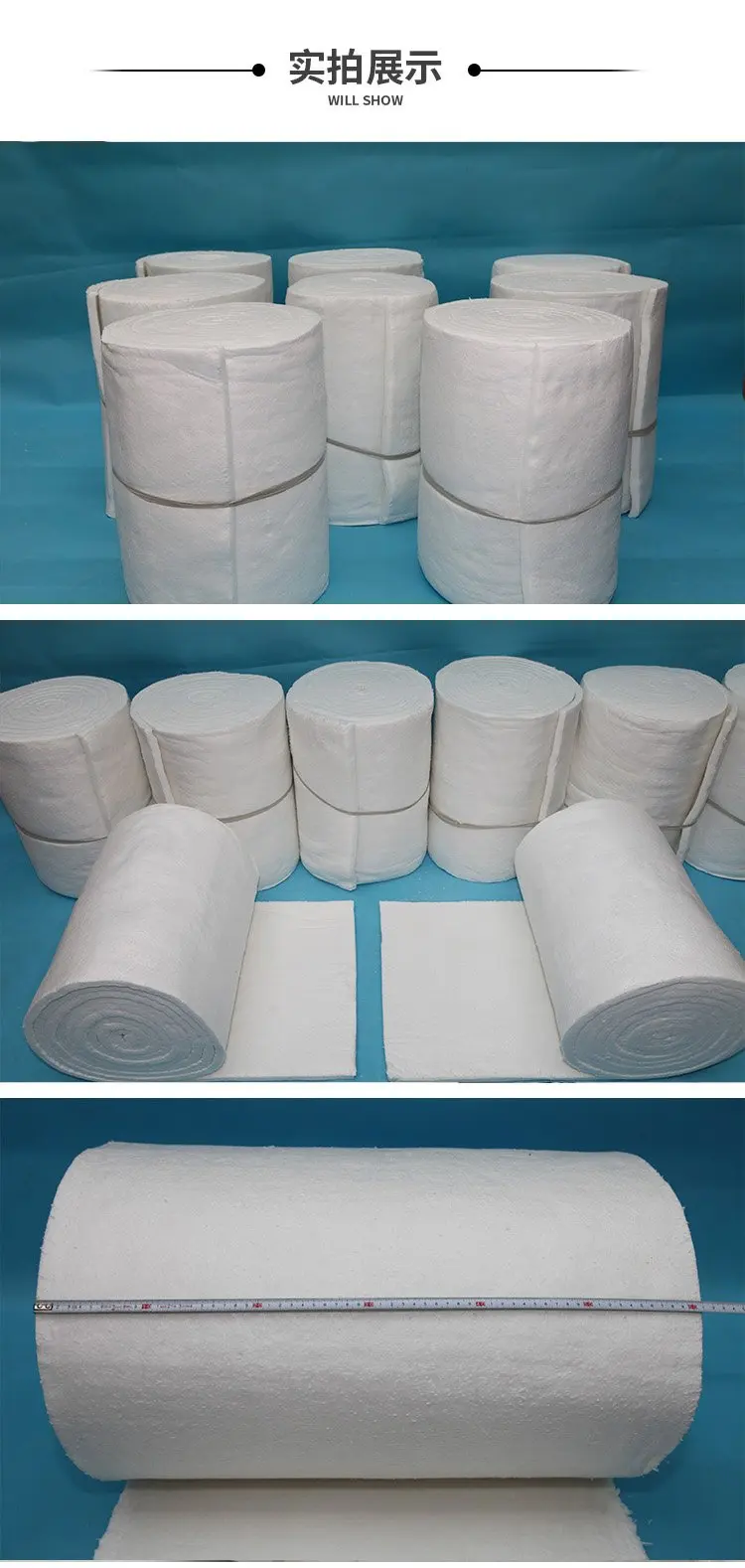

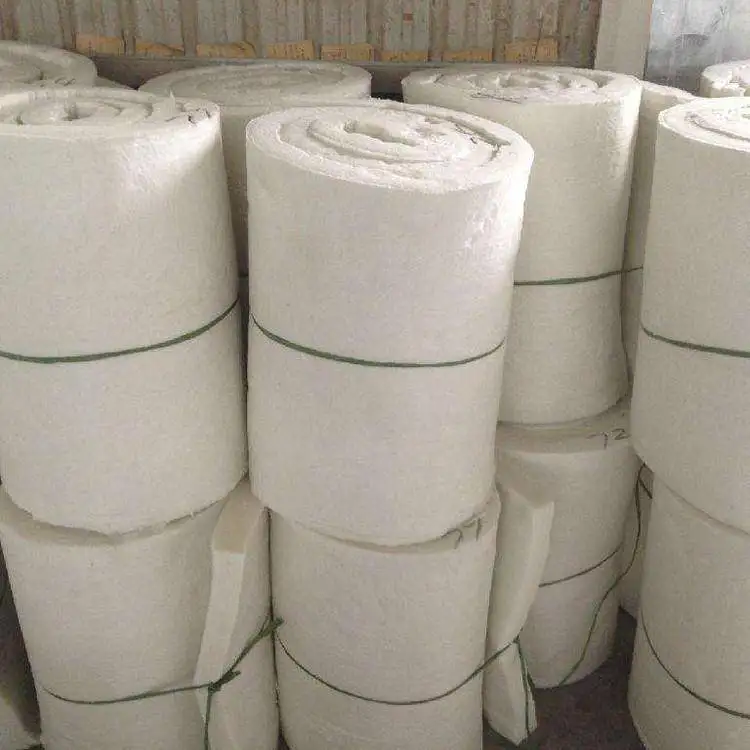

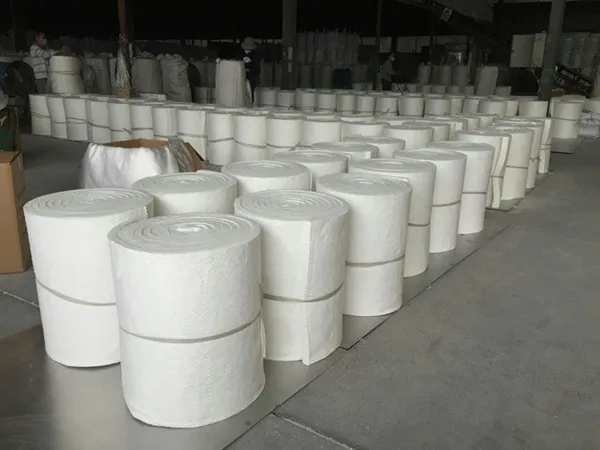

ceramic fibre cotton for furnace insulation

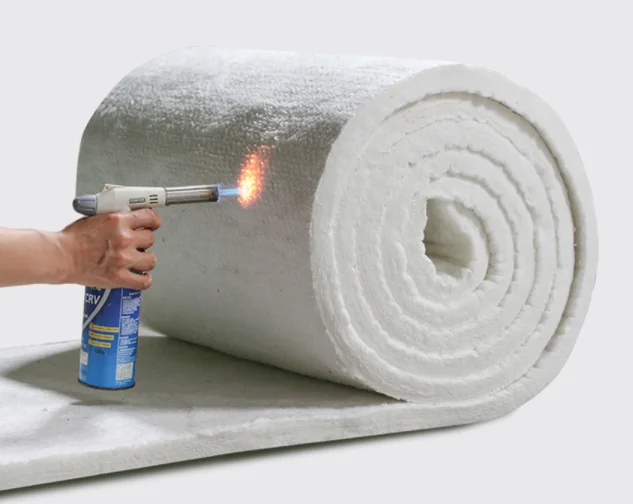

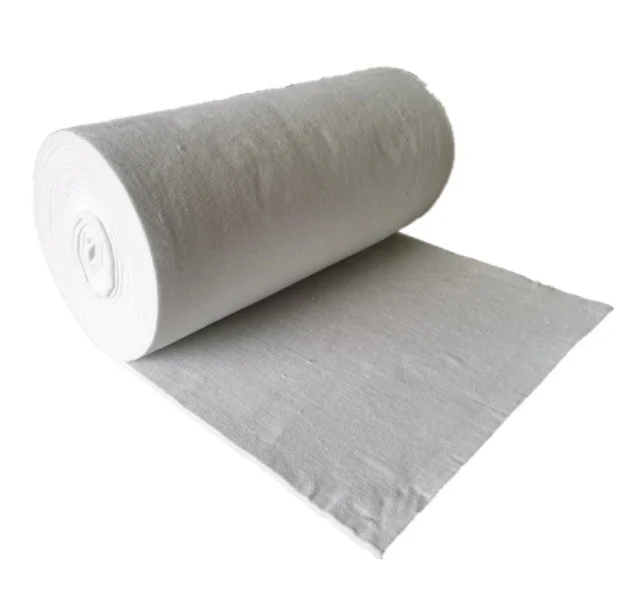

Ceramic Fiber Blanket is a lightweight insulating product. It has low thermal mass which means that it does not retain heat, low thermal conductivity and is an extremely effective insulation material. Its high thermal shock resistance make it suitable for applications where traditional refractories cannot be used. So called Refractory Ceramic Fiber is made from high purity alumino-silicate materials.
Grade | common | standard | high pure | high alumina | zirconium | ||||||
Classification temperature () | 1260 | 1260 | 1300 | 1400 | 1430 | ||||||
Operating temperature () | 1000 | 1000 | 1150 | 1260 | 1350 | ||||||
Color | White | White | White | White | White | ||||||
Densitykg/m3) | 260 | 260 | 260 | 260 | 260 | ||||||
320 | 320 | 320 | 320 | 320 | |||||||
Permanent line constringency(%) ( heat preservation 24 hours, Density 320/ m3) | -4 | -3 | -3 | -3 | -3 | ||||||
1000 | 1000 | 1100 | 1200 | 1350 | |||||||
Thermal transmit coefficient ( w/ m.k) ( Density 285 kgs/ m3) | 0.085(400) | 0.085(400) | 0.085(400) | 0.085(400) | 0.085(400) | ||||||
0.132(800) | 0.132(800) | 0.132(800) | 0.132(800) | ||||||||
0.1801000 | 0.132(800) | 0.180(1000) | 0.180(1000) | 0.180(1000) | |||||||
Tensile Strength ( MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
The chemistry constitute (%) | AL2O3 | 44,45 | 46 | 4749 | 5255 | 3940 | |||||
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | ||||||
AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | ||||||
ZrO2 | - | - | - | - | 15-17 | ||||||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2o+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Dimensions (mm) | 600×400×1050900×600×2050 Other specifications according to the customer request. | ||||||||||
Ceramic fiber blanket advantage attributes
Low bulk density,low thermal conductivity. Resistance to heat-shock, ability to resist the scouring of airflow. Excellent

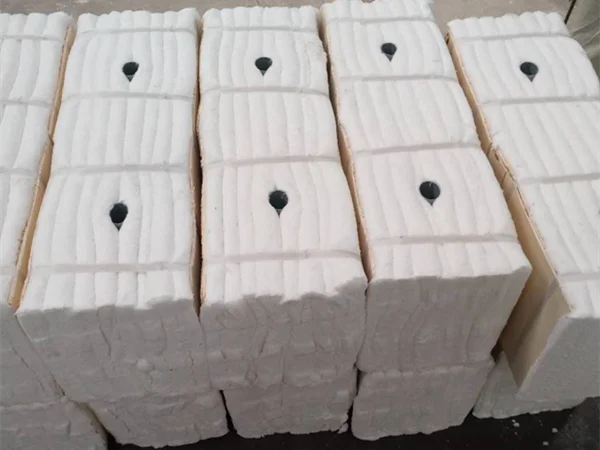

mechanical strength ,built-in anchor, safety performance. Easy to install. after installing the lining form a seamless space, good insulation effect.
mechanical strength ,built-in anchor, safety performance. Easy to install. after installing the lining form a seamless space, good insulation effect.

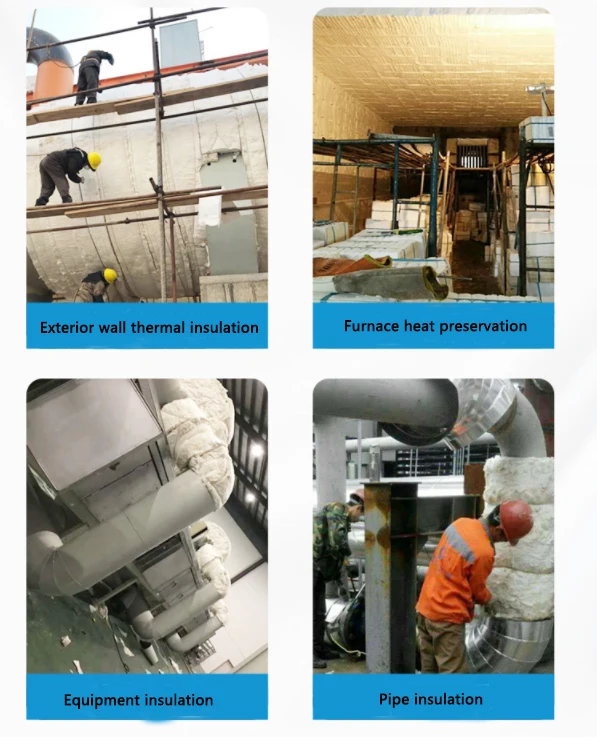

Application scenario and industry of ceramic fiber blanket

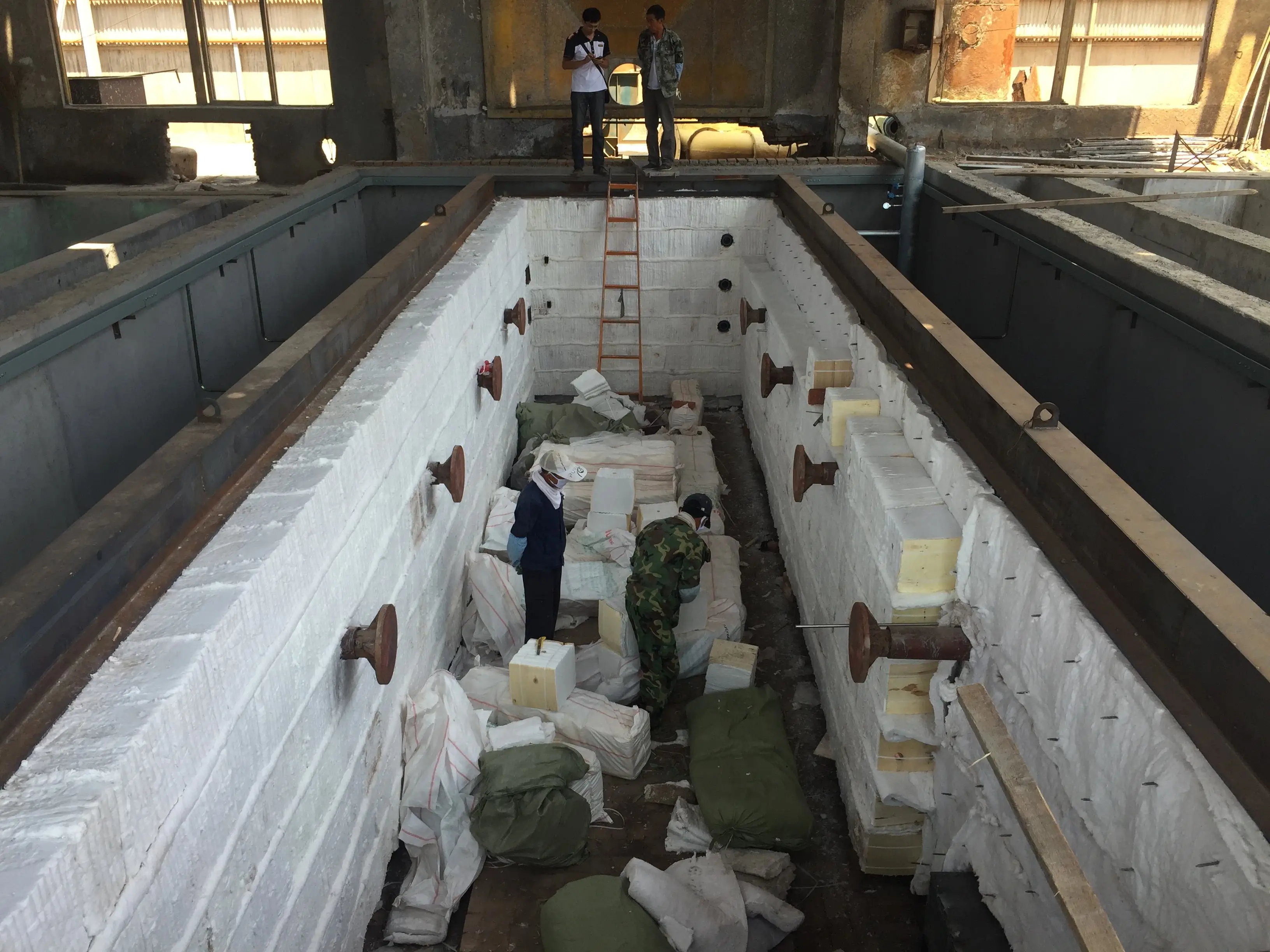

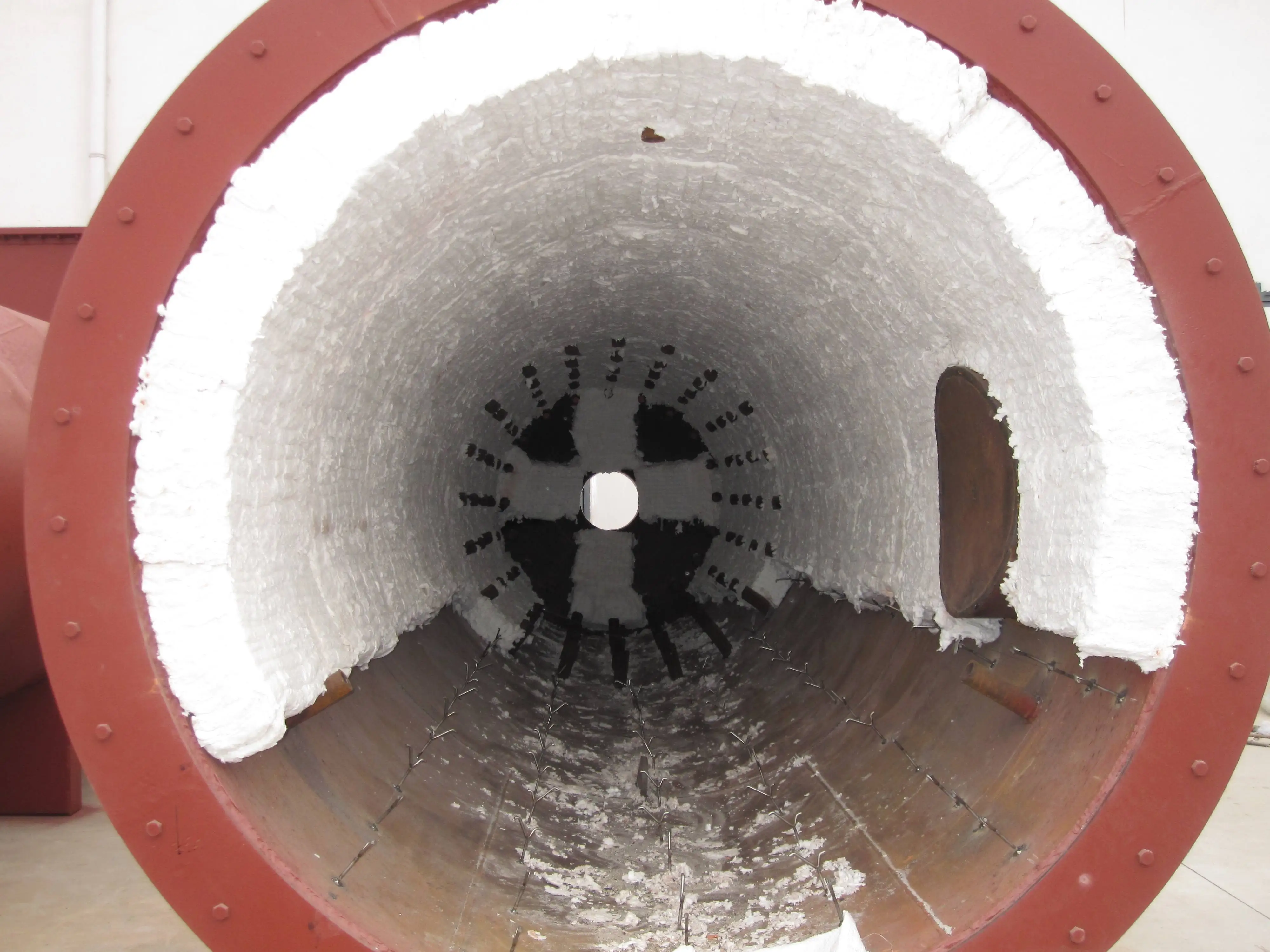

1.Lining, insulation and repair for furnaces, kilns, ovens, boilers;
2.Insulation for power plant, turbine, thermal reactor, generator, and nuclear applications;
3.Expansion joint seal and insulation;
4.Wrapping and insulation for high temperature pipe or metal casting;
5.Fire protective insulation and lining
2.Insulation for power plant, turbine, thermal reactor, generator, and nuclear applications;
3.Expansion joint seal and insulation;
4.Wrapping and insulation for high temperature pipe or metal casting;
5.Fire protective insulation and lining
Company Profile
Henan Yunchang New Material Co., Ltd. specializes in the production, construction, new technology research and development and promotion of refractory materials for industrial high temperature kilns. The company has independent import and export rights, service all over the world, is the furnace refractory engineering technology field with characteristics and competitiveness of scientific and technological production service enterprises. The company has a strong technical force, creating a first-class team specializing in resistant material engineering and rich experience in technological innovation, engineering design and construction. Among them, there are more than 10 senior research and design personnel, more than 10 engineers and more than 20 technical personnel. The company is mainly engaged in:
1. Hot blast furnace transformation project (refractory ball to grid brick).
2. General contracting of pellet shaft furnace material resistance and construction.
3. General contracting of refractory materials and construction of iron mixing furnace and iron water tank.
4. General contracting of refractory materials and construction of lime shaft kiln.
5. General contracting of refractory materials and engineering for mineral heat furnace.
6. Provide melting and non-melting refractory products and technical services for various glass furnaces, such as regenerator, melting tank, working tank and material passage.
7. Refractories for circulating fluidized bed boilers.
8. Refractory materials for coke ovens.
9. Refractories for carbon roasters.
Company main products: corundum mullite bricks, high aluminum brick, clay brick of blast furnace, blast furnace hot blast stove with thermal shock, low creep high alumina series, hot blast stove with thermal shock, low creep mechanism of refractory ball clay brick, lightweight insulation series, AL2O3 - SiC - C, special refractory brick acid-proof brick, low porosity Gao He soft special firebrick, wear-resistant refractory castable refractory plastic, wear-resisting.
The company adheres to the road of scientific and technological innovation and attaches great importance to the way of combining production, learning and research. It has cooperated with many universities and scientific research institutes to ensure strong innovation ability and successfully developed dozens of domestic leading technological achievements with independent intellectual property rights. Henan Yunchang New Material Co., Ltd. has a diversified technical service framework from the beginning, to provide customers with economic, reliable, energy-saving services to lay a solid foundation. The company attaches great importance to the integration and improvement of industrial chain and technology chain. The refractory production base covering 20,000 square meters ensures superior performance and stable quality of refractory materials. With a professional construction team of more than 30 people, combined with superior refractory products, we have the ability to provide customers with overall solutions for safety, environmental protection and energy conservation. At the same time, the company attaches great importance to the construction of service platform, and its business network has covered all provinces and cities in China, and has been promoted to Iran, Turkey, Vietnam, Malaysia, India, Kazakhstan and other countries. "Scientific and technological innovation, win-win cooperation", Henan Yunchang New Material Co., Ltd. is committed to do a good job in every project, to meet customer needs to optimize the program, for users to create the best quality kiln material engineering.
Product Line
Certifications
Our Advantages
Our competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience.Prevent cracks and twist in bricks.
3.Different Moulds.Save mould fees for you.
4.Lower ferric Oxide,porosity,higher refractoriness,density,higher CcS and exacttolerance.
5.Strict Quality Control. Meet clients' quality requirement.
6.Safty packing,prompt delivery time,and excellent after-sales services
3.Different Moulds.Save mould fees for you.
4.Lower ferric Oxide,porosity,higher refractoriness,density,higher CcS and exacttolerance.
5.Strict Quality Control. Meet clients' quality requirement.
6.Safty packing,prompt delivery time,and excellent after-sales services
.7.Large stocks.Guarantee prompt delivery.
8.Professional Packing.Avoid damage and secure the goods in transportation.
8.Professional Packing.Avoid damage and secure the goods in transportation.
Packing & Delivery
Packaging:
1. Carton box outside and plastic bag inside
2. According to customer's requirements
3. We will do our best to avoid the goods damage and secure your goods in transportation.
Shipping:
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Delivery time: within 25 days
1. Carton box outside and plastic bag inside
2. According to customer's requirements
3. We will do our best to avoid the goods damage and secure your goods in transportation.
Shipping:
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Delivery time: within 25 days
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Refractory Materials
4. why should you buy from us not from other suppliers?
1.Competitive Price. Make the products competitive in your market.
2.Strict Quality Control. Meet clients' quality requirement.
3.Safty packing,prompt delivery time,and excellent after-sales services.
4.Guarantee prompt delivery
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Henan, China, start from 2019,sell to Domestic Market(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Refractory Materials
4. why should you buy from us not from other suppliers?
1.Competitive Price. Make the products competitive in your market.
2.Strict Quality Control. Meet clients' quality requirement.
3.Safty packing,prompt delivery time,and excellent after-sales services.
4.Guarantee prompt delivery
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
