Universal Tensile Tester 2KN/5KN/10KN/50KN/100KN Universal Strength Testing Machine
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (1600645786011):
Product Overview
Description
WELCOM TO GESTER
Product Description
Product Overviews

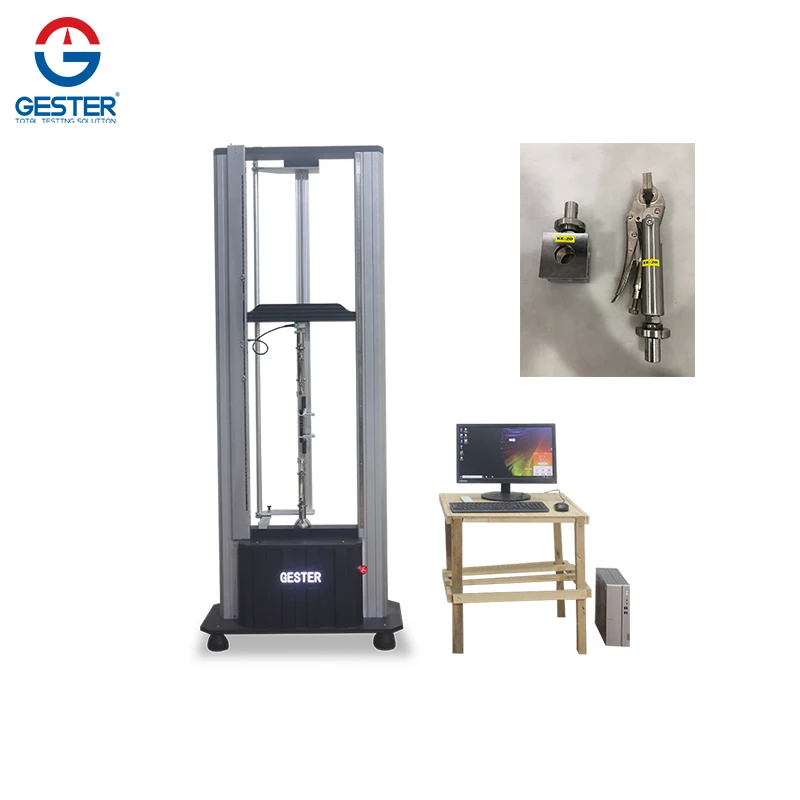

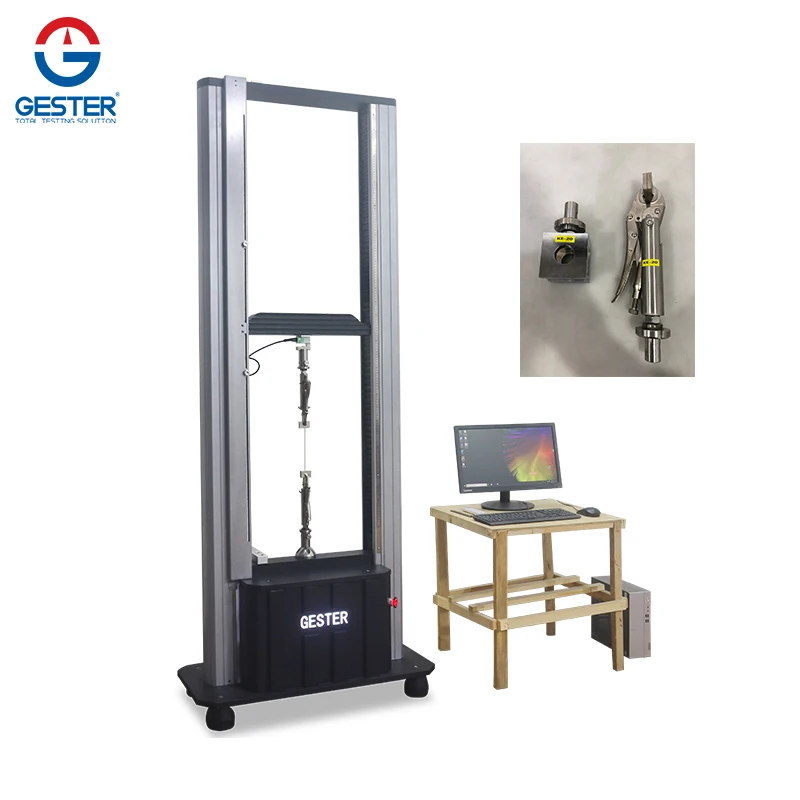

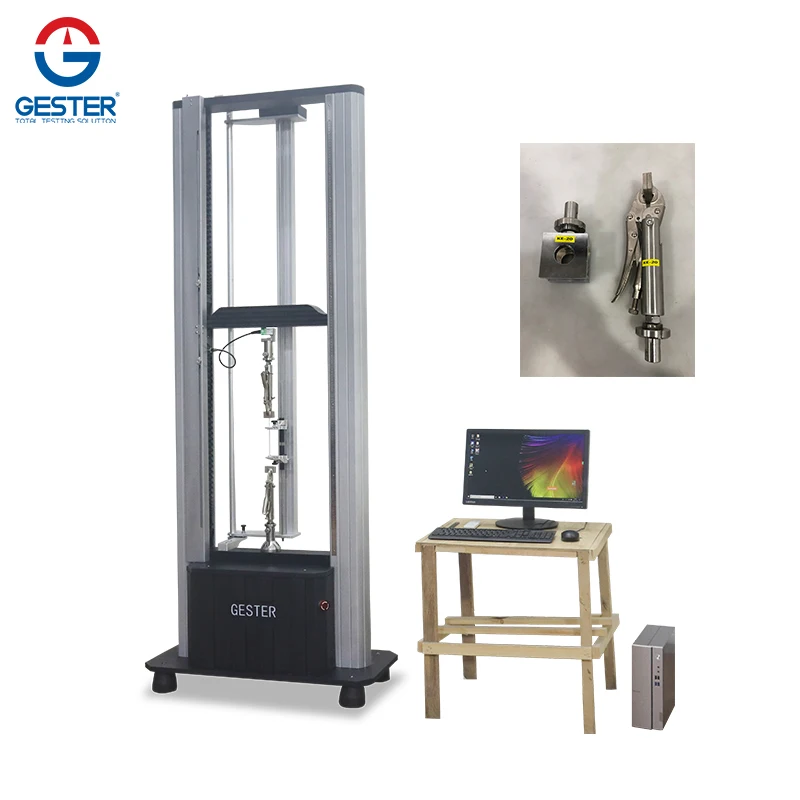

Computerized Universal Tensile Tester Type Universal Material Testing Machine
| Application |
Universal Testing Equipment Dual Column Electronic Tensile Universal Testing Machine is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes, rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
| Feature |
1. The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
2. Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3. The speed control range: 0.001-1000mm/min.
4. This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
5. Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic breakpoint stop function.
| Standards |
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162,
TM401, TM 411, TM 410,ASTMD 751/2209 /412/624 FIA 1206,BS5131- 3.7, 5.11, 5.13 , BS 5131-2.6
ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO19957,
ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776,
ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1, ISO36, ISO37, ISO 17708,
ISO 17696, ISO17706, ISO 22650AS/NZS 2210.2-5.2.4, DIN 53331,GB/T 3903.8, GB/T 3903.9,
GB/T3903.14 ,GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23 , GB/T 3903.24,
GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32,GB/T 3903.39,GB/T 3903.40,
GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529,
GB/T528, GB/T532, GB/T11413, GB/T21396QB/T 2711, QB/T2675, QB/T2883, QB/T4118,
QB/T4198HG/T 2726, HG/T 2877, HG/T4805
| Key Specification |
Model | GT-K01 |
Max. Capacity | 5KN,10KN, 20KN |
Display | Computer display mode |
Force Resolution | 1/100,000 |
Force Accuracy | ≤+/-0.5% |
Stroke Resolution | 0.001 mm |
Extensometer Resolution | 0.001 mm |
Test Speed | 0.001-1000mm/min |
Walking space | 1400mm (It can be custom-tailor.) |
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
Power Supply | AC 220V 50/60HZ 10A |
Dimensions | 110cm x 70cm x 240cm(WxDxH) |
Weight | 370kg |

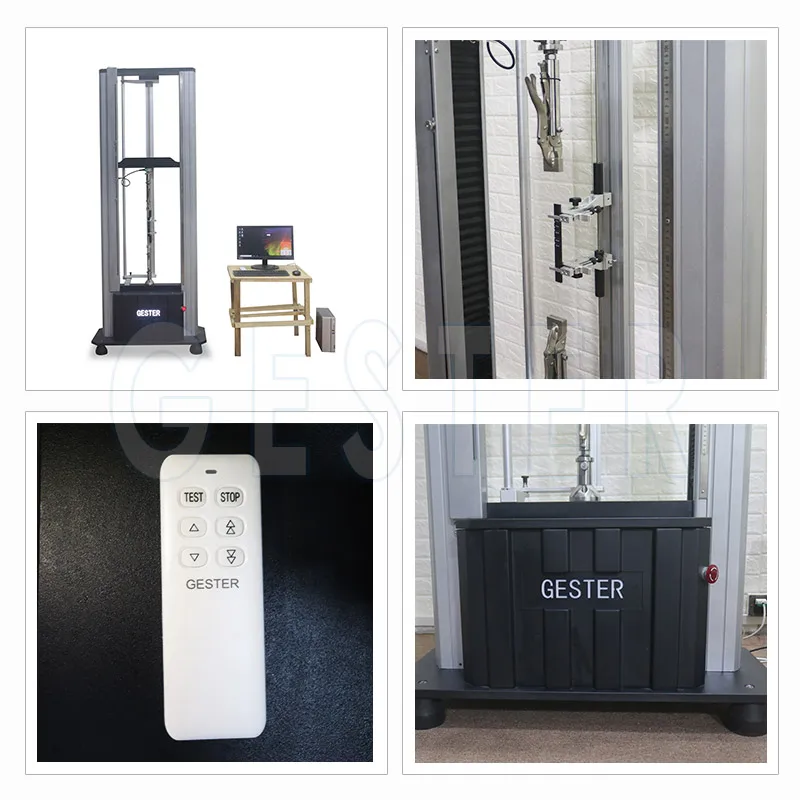

| Product Details |

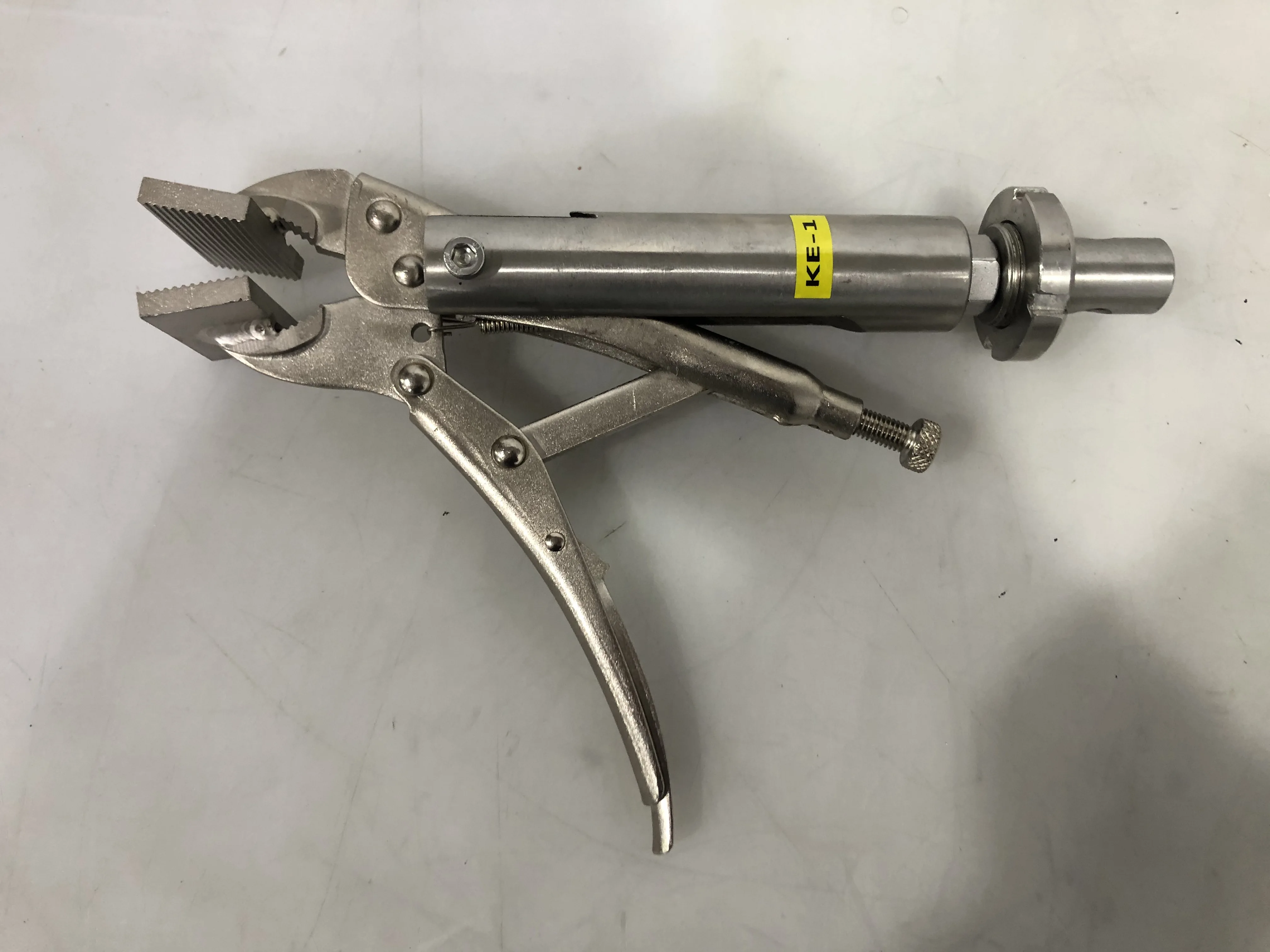

Force sensor | Universal grips | ||
| To sense force, to transfer load | | Usually, we will provide a set of manual grips as standard accessoires. But, the fixture also can be customized.
|
Fix bolt for manual upper/lower limit | Punctuation elongation fixture | ||
| It’s upper stroke switch to limit machine manually. | | To punctuate elongation fixture. |
Scale | Fix pin | ||
| To mark calibration procedure for extension clamp. | | Fix frame for punctuate elongation fixture To adjust position of elongation fixture (when start or stop). |
Remote controller
| |||
| E-stop(power) | | Can be used for doing some simple operation, such START / STOP running, controlling of fixture up/down going. |
