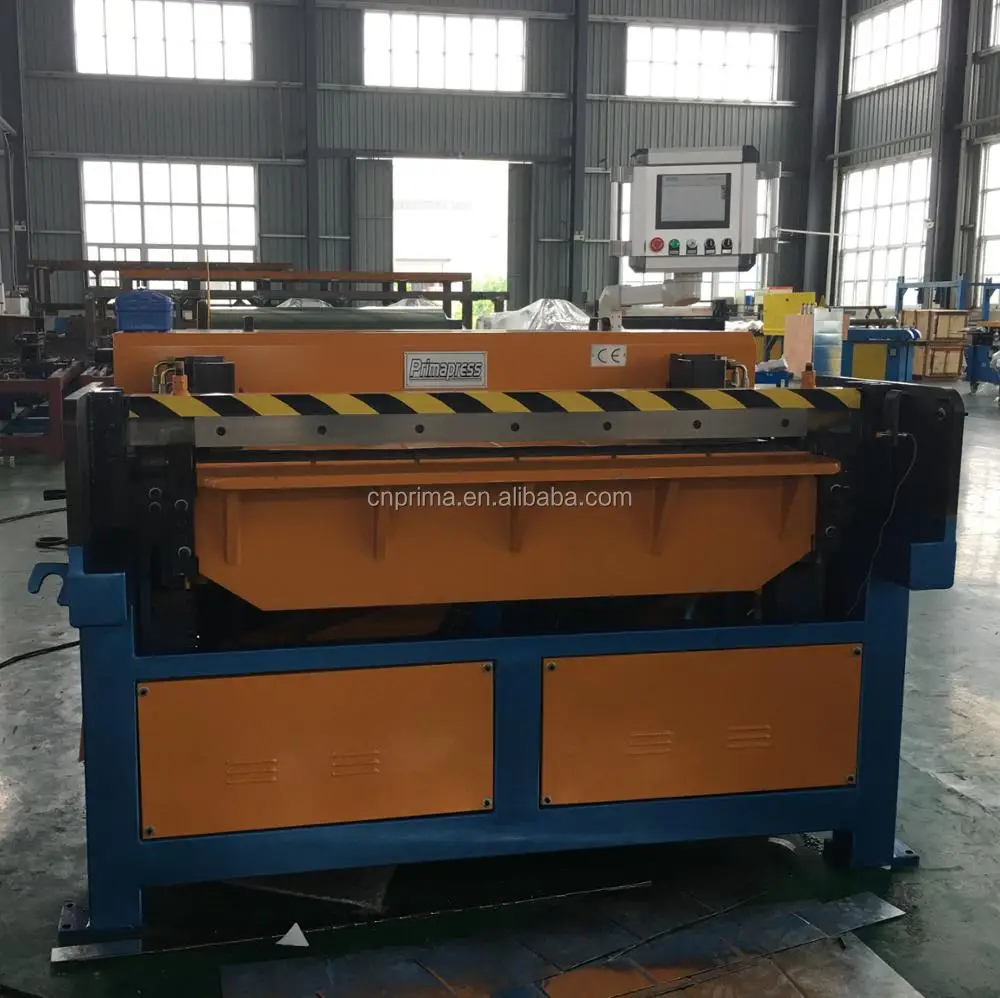

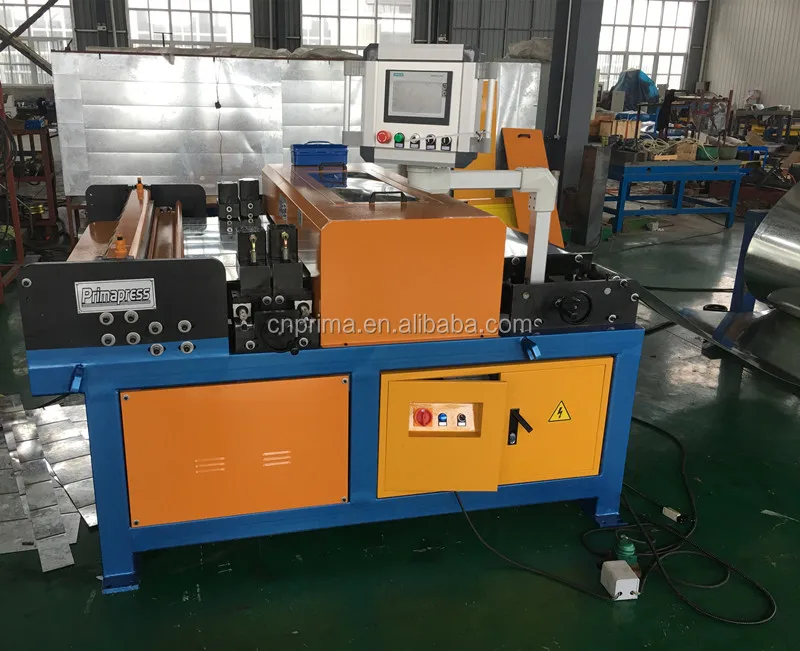

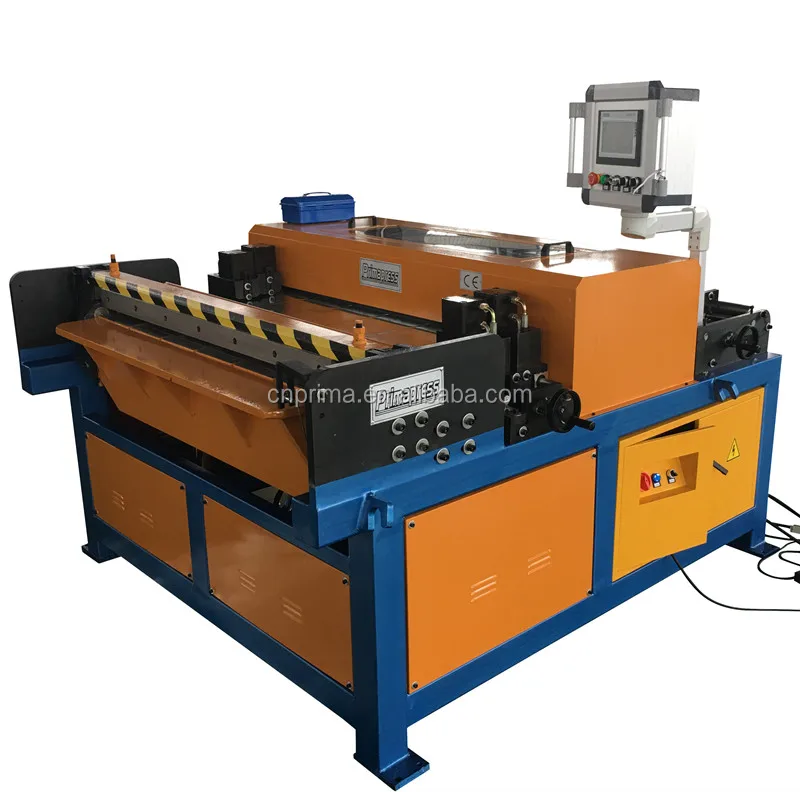

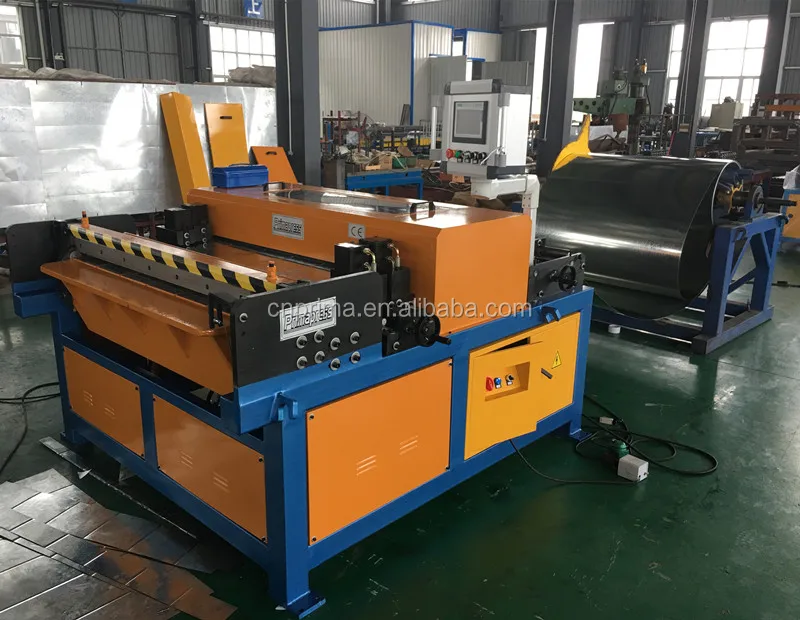

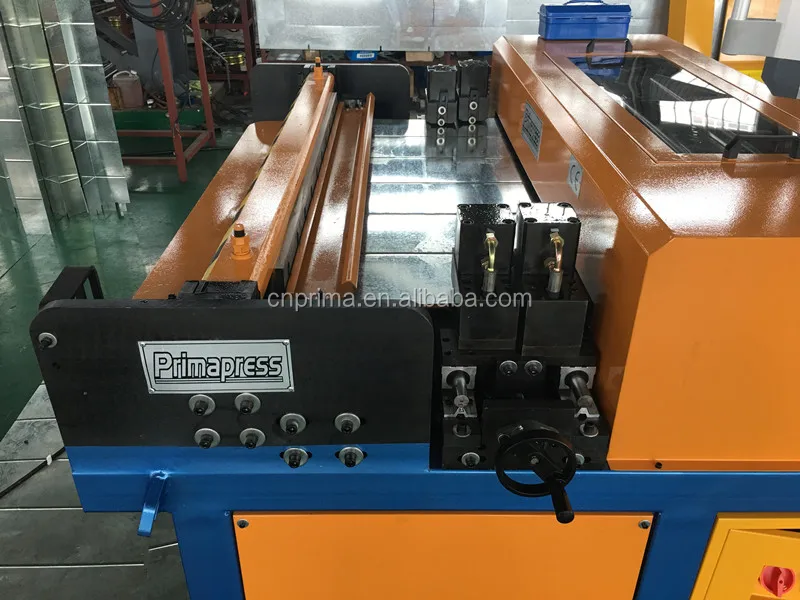

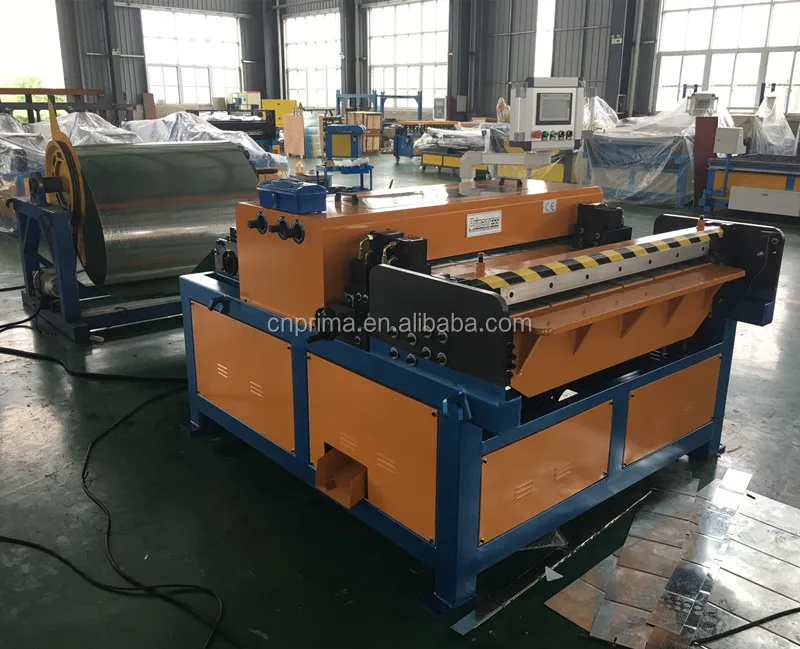

auto duct line iii havc duct making machine with bending notching beading leveling function

Performance Features:

   · Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation

 helps customers to achieve the goals.

   ·  During feeding mechanism with pneumatic servo manipulator helps to ensure stability and

 speed of the machine, and the accuracy of its locating system.

   ·   It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double

 comparing with the linear type.

   ·  Without moving back and forth the fixed locking machine is able to improve the efficiency.

   ·  All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

   ·  Under the material-saving mode of CNC system, waste is less than 20 mm per roll.

   ·  With production memory functions, the production orders can be tracked and checked.

Function:

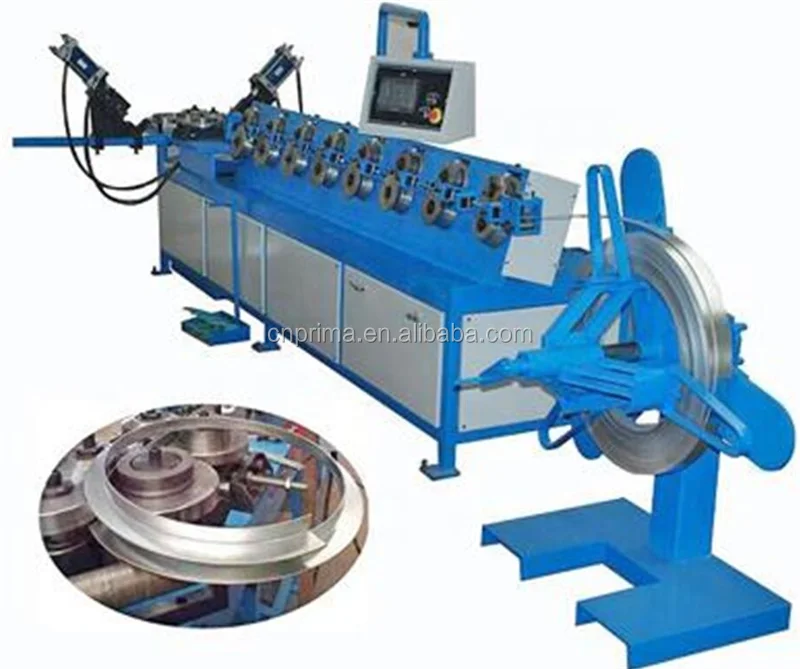

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of

1000-2500 square meters. Only with inputting dimensions in duct, production line can

automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF /

angle steel / C-shaped flange and folding.

Main import Configuration:

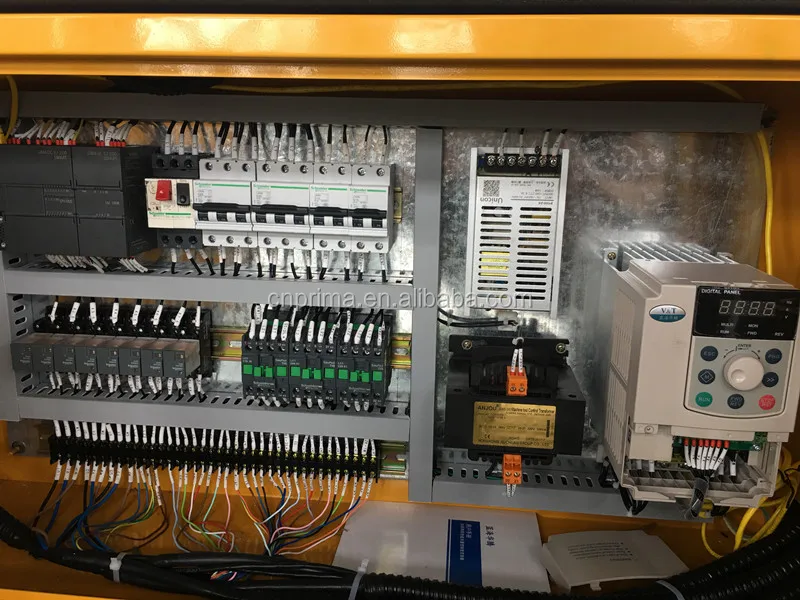

· MITSUBISHI HMI Display And PLC

· MITSUBISHI Frequency Converter

· Japan NEMICON Inverter

· Taiwan Hydromax Pump

· Taiwan High Temperature Resistant Tubing

Basic Configuration:

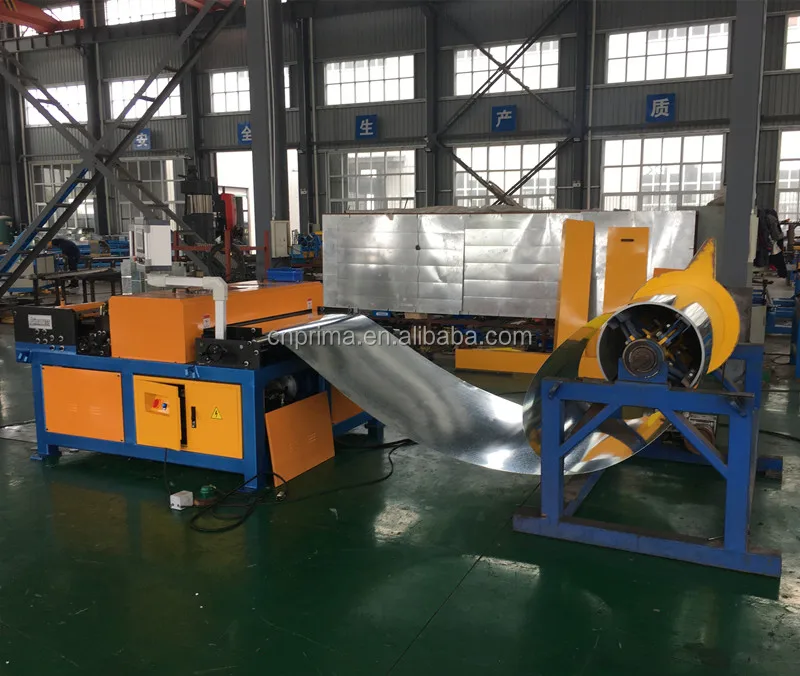

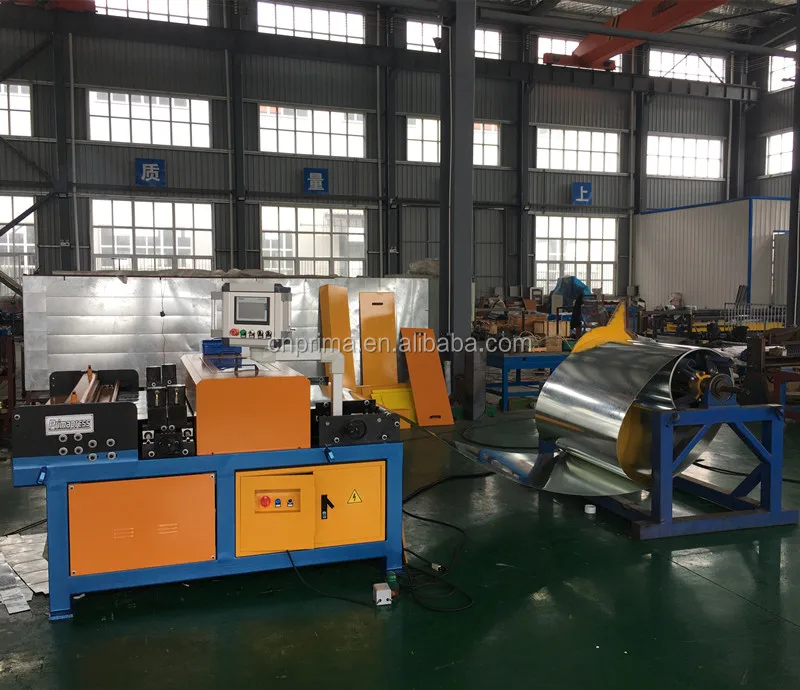

       · Two electric coil cradles, 4 material trays (5-7 t each roll)

       · One rack

       · One host (line 2 host)

         ·  Two stainless steel roller convey platforms

         ·  One fixed joint locking machine

         ·  One duplex TDF flange forming machine

         ·  One duplex angle steel flange forming machine

         ·  One servo feeding platform

         ·  One hydraulic folding machine

         ·  One set of computer controlling system
