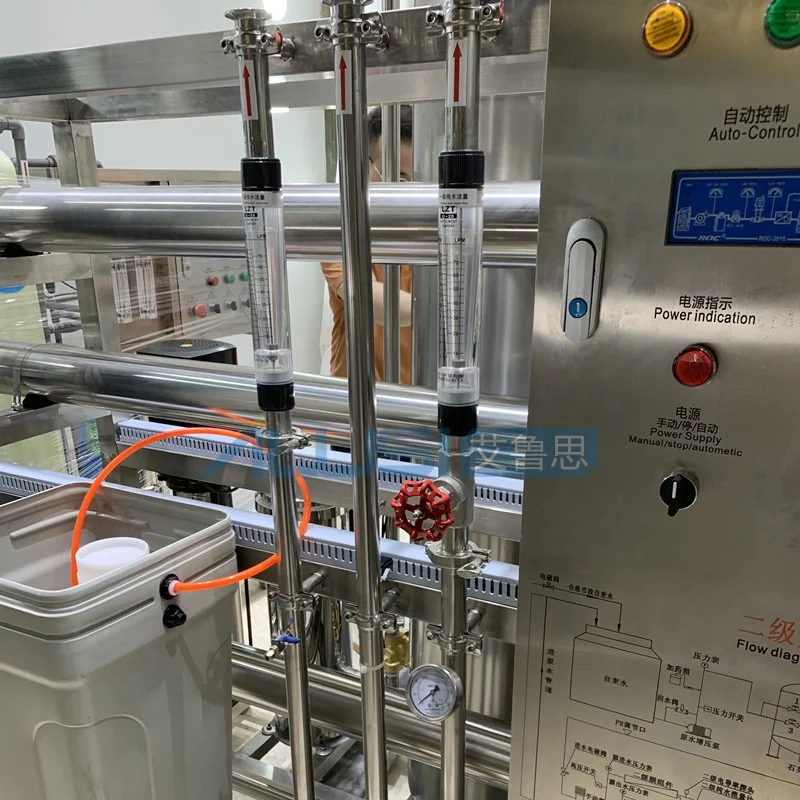

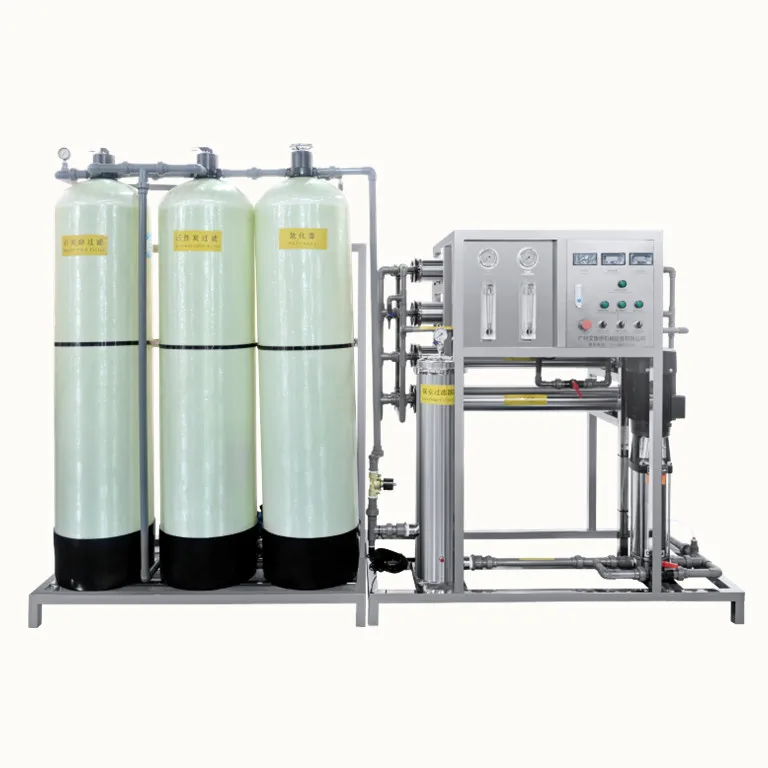

Reverse osmosis water filter system to purify tap water purification shampoo making water
- Category: >>>
- Supplier: Yangzhou Ailusi Chemical Machinery Factory
Share on (1600645826178):
Product Overview
Description
AILUSI Machinery
Manufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP Standard
Product Overview

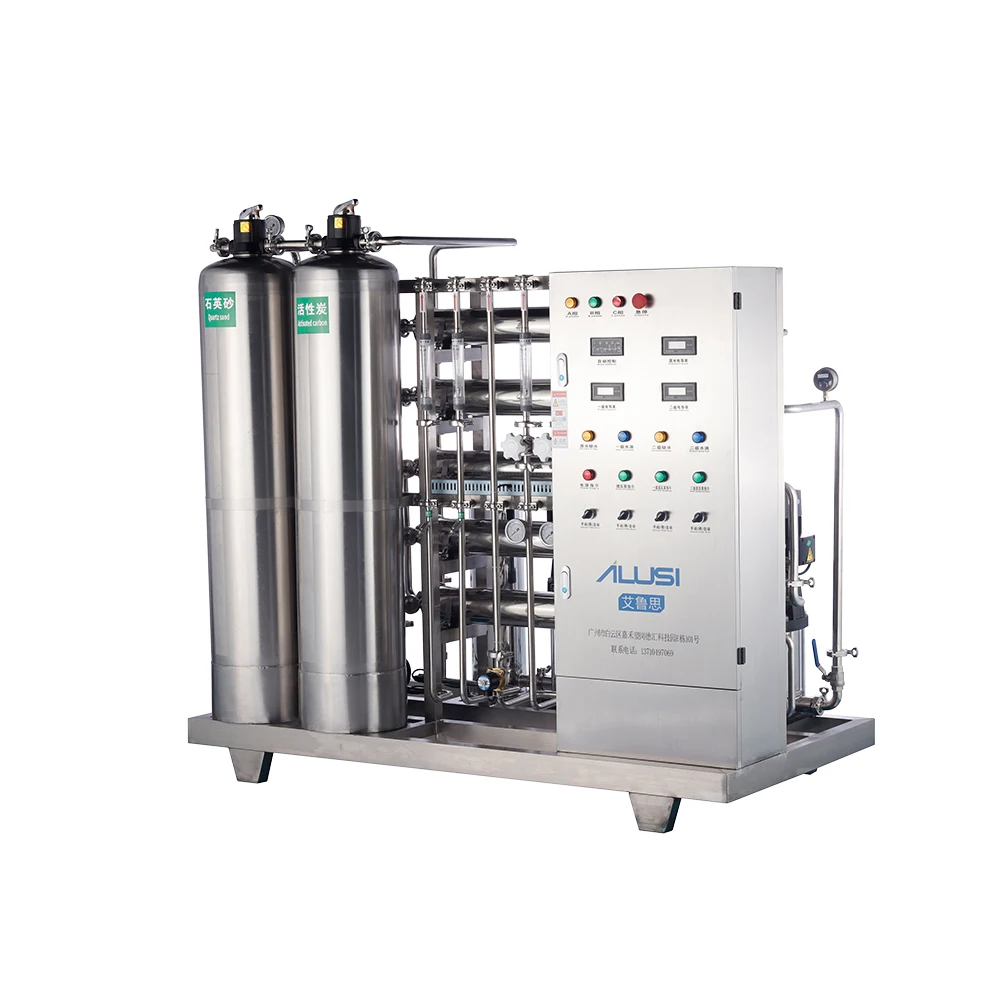

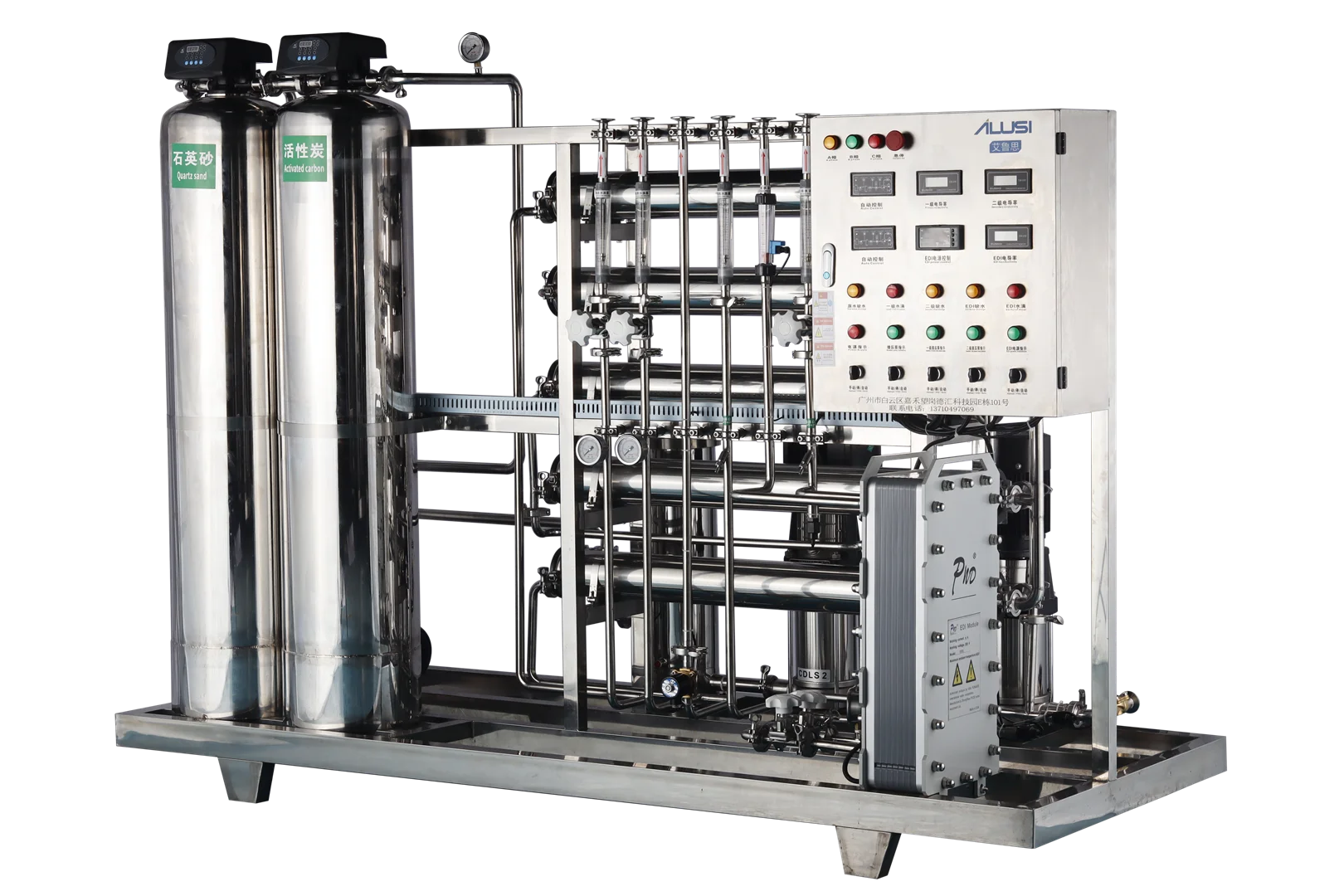

Summary of reverse osmosis
Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than osmosis pressure on the solution. As this process is reverse to the natural permeation direction, it is called reverse osmosis. According to different osmosis pressure of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purpose of separation, extraction, purification and concentration of a certain solution. It does not need heating and there is no phase changing process. Therefore, it saves more energy than traditional process.
Source water pump

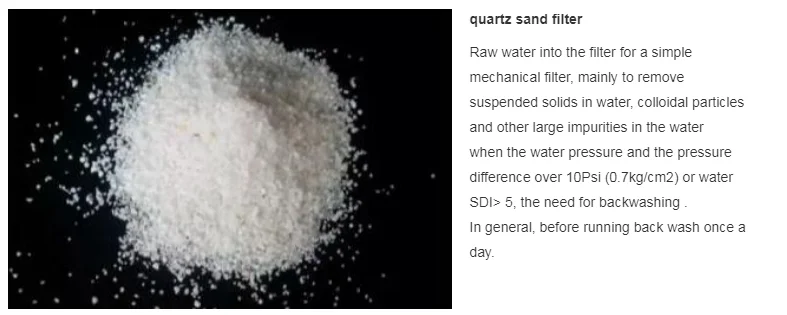

Sand filter
Carbon filter
Softner filter

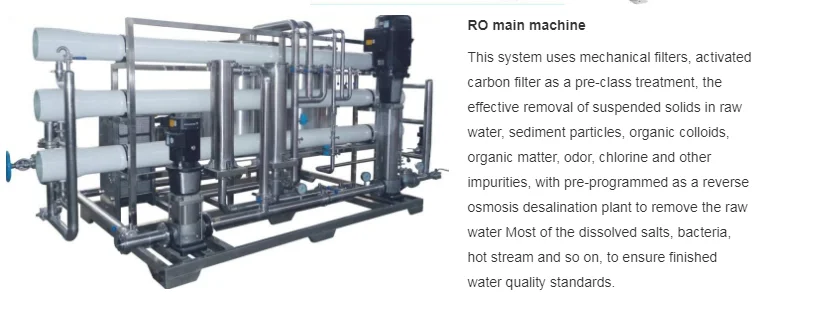

Reverse osmosis system
EDI system
Pipeline
UV device
Anti-Chlorine Tank
Antiscalant Tank
FEATURES AT A GLANCE
Performances and features
1. This system is occupy little space, easy to operate, wide application range.
2.. When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and alkali, and there is no secondary pollution. In addition, its operation cost is also low.
3. Reverse osmosis desalting rate>=99%, machine desalting >=97%. 98% of organic matters, colloids and bacteria can be removed.
4. Finished water under good electric conductivity, one stage<=10μs/cm, two stage around 2-3μs/cm, EDI<=0.5μs/cm (base on raw water<=300μs/cm)
5. High operation automation degree. It is unattended. The machine will automatically stop in case of water sufficiency and automatically start in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC microcomputer controller. Online display of raw water and pure water electric conductivity.
6. Imported parts account for over 90%.

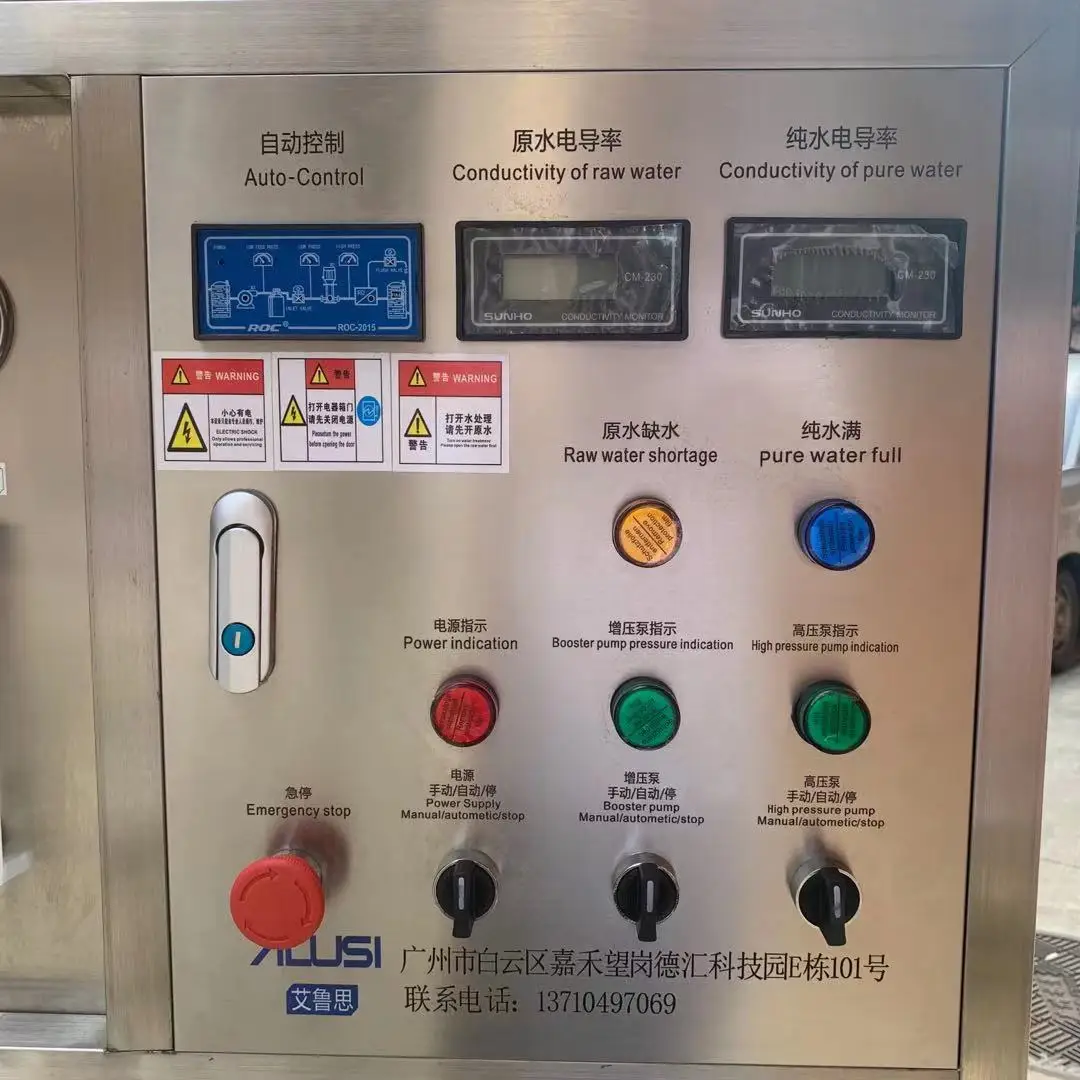

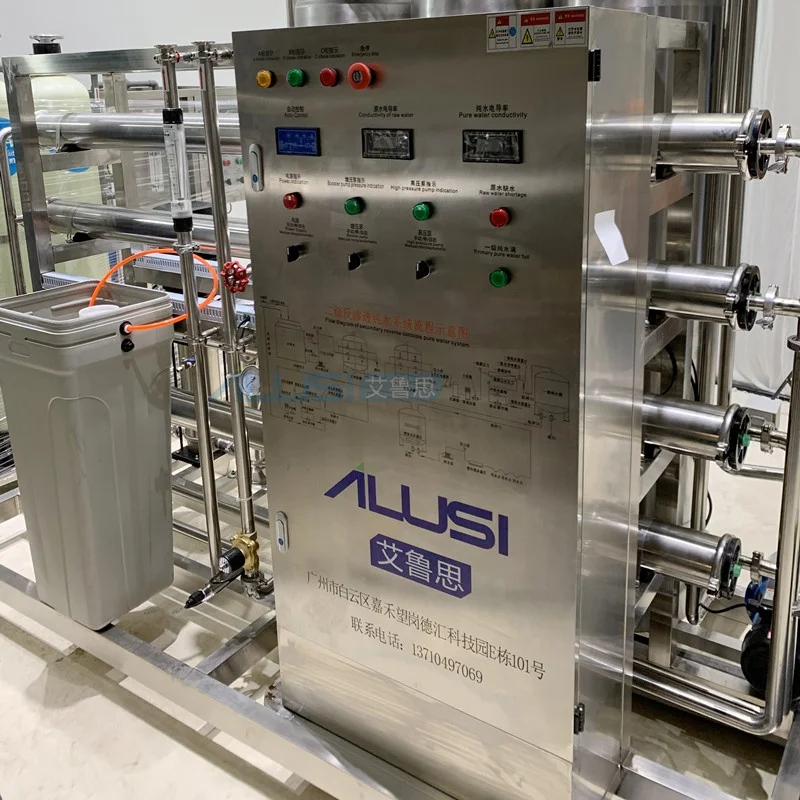

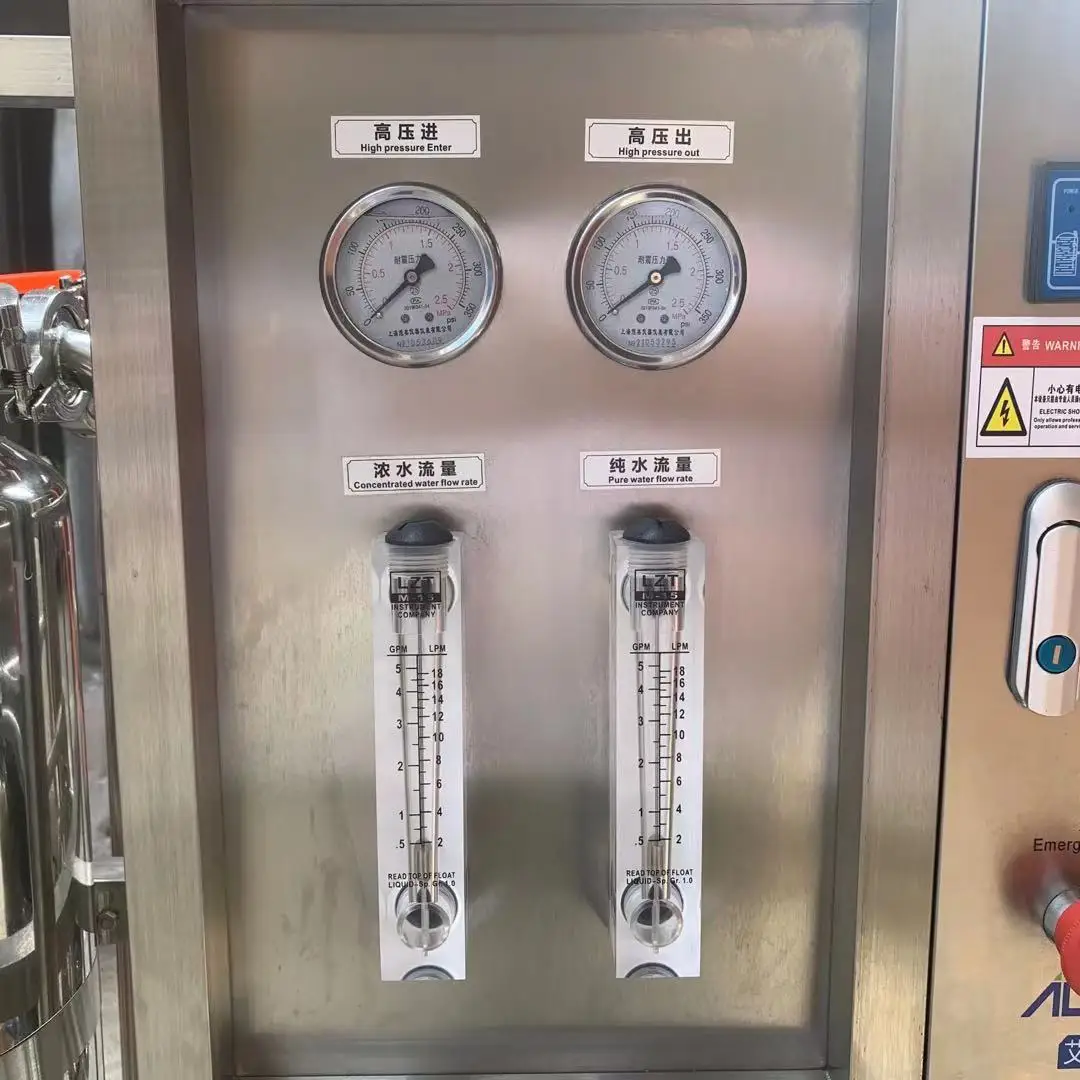

Electric Cabinet
The structure is simple and clear, all data is displayed on the electric box, and the inside of the electric box is also beautiful
and safe
and safe

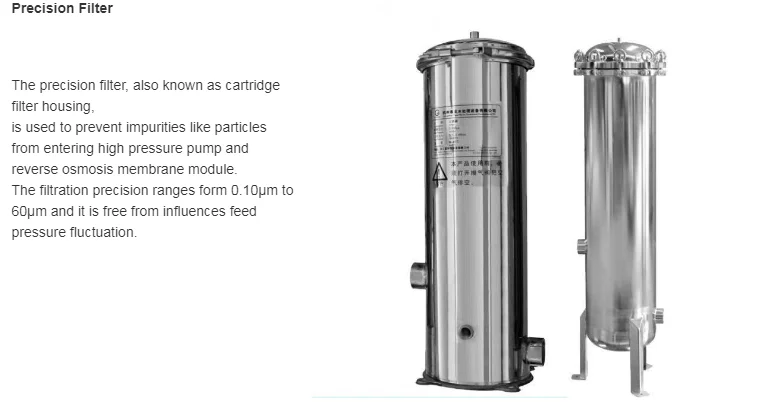

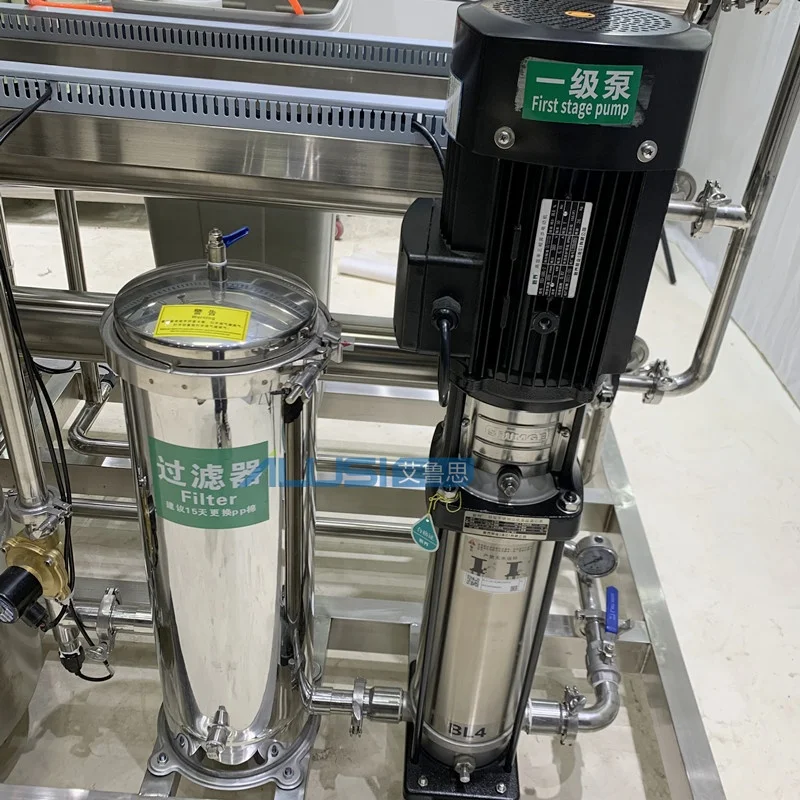

Security Filter
It is the last filtration system before entering the RO membrane to ensure that the water entering the RO membrane is clean and
clear, protect the reverse osmosis membrane, and extend the mission of use.
clear, protect the reverse osmosis membrane, and extend the mission of use.
Raw Water Pump
It is the sand filter, carbon filter and fine filter of reverse osmosis pure water equipment to provide pressurization guarantee, the inlet pressure is stable and sufficient, and it can be used for pressurization.
Low Voltage Protector
When there is water shortage or insufficient water supply pressure, the circuit will be automatically cut off and the machine will stop running to protect the water purifier from damage

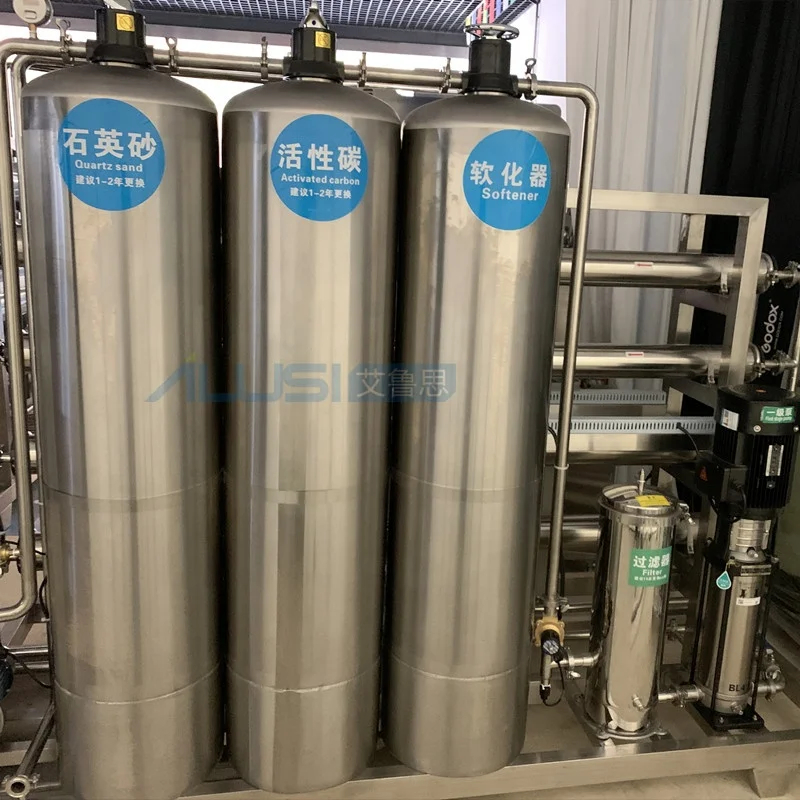

SUS Filter
Sand filter, carbon filter

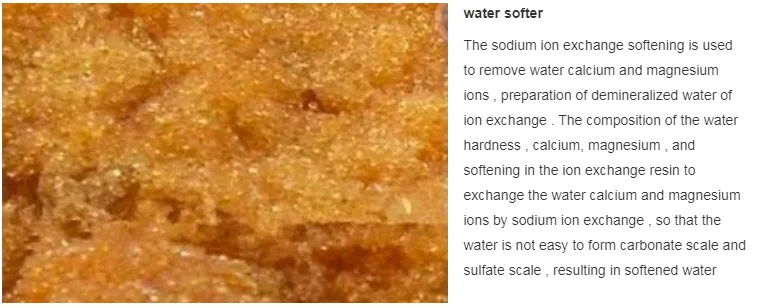

Softener: used to soften groundwater
Long service life
PVC Filter
Sand filter, carbon filter
Softener: used to soften groundwater
Softener: used to soften groundwater
Cheaper price
UV Sterilizer and Pump
Overcurrent
Install after the water outlet and before the water point. Further sterilization
Install after the water outlet and before the water point. Further sterilization
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Capacity | 500-5000L/H |
2 | Product advantages | Hangzhou South pressure pump, Anhydrous automatic stop, low pressure, automatic |
3 | Pure water pipe water automatic filling water and stopfull automatic functions | |
4 | Complete equipment adopts stainless steel material( PVC drainage pipe, Beautiful appearance and pressure resistance. | |
5 | High pressure pump is South Pump, imported Solenoid valve and DOW membrane. | |

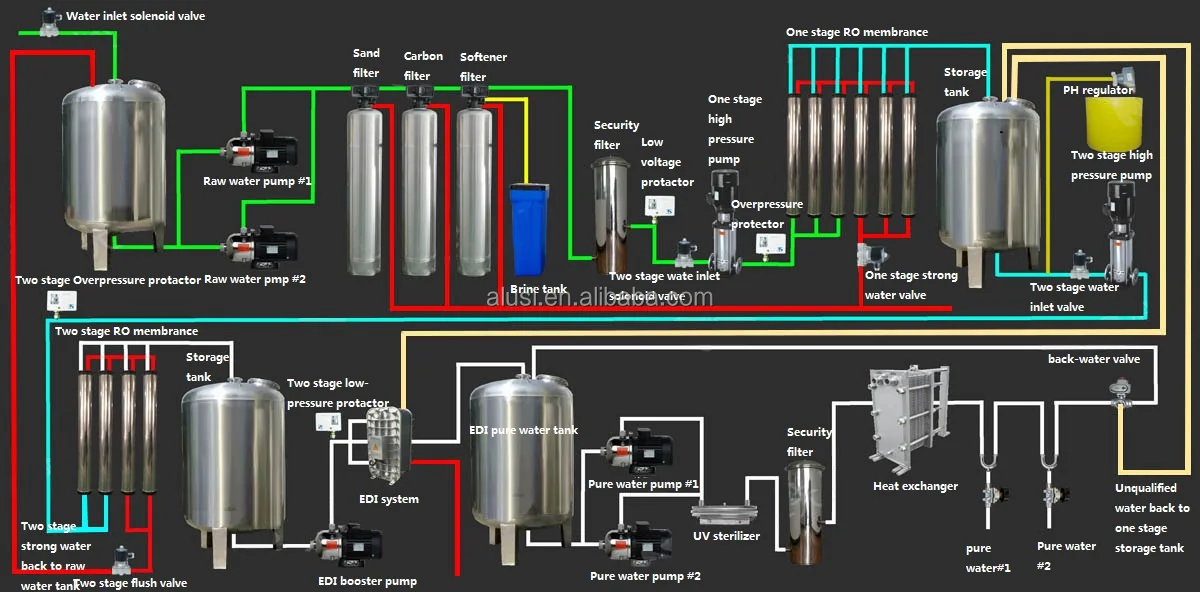

3 | Technology | Atom-PE tanks-raw water pump-quartz-sand filters-activated carbon filter-Security filter-reverse osmosis host-pure water tank-pure water pumps-UV sterilizer-liquid washing water introduced by host-Storage tank-EDI systems-high purity water tank-water consuming point |
4 | Reverse osmosis membrane | Domestic/CSM/DOW membrane |
5 | UV device | Over current UV sterilizer |
Packing & Delivery
Packing
In strong wooden case(s), suitable for long-distance ocean/parcel post/air freight or land transportation and to change of climate, well protected against moisture and shocks.
Certifications

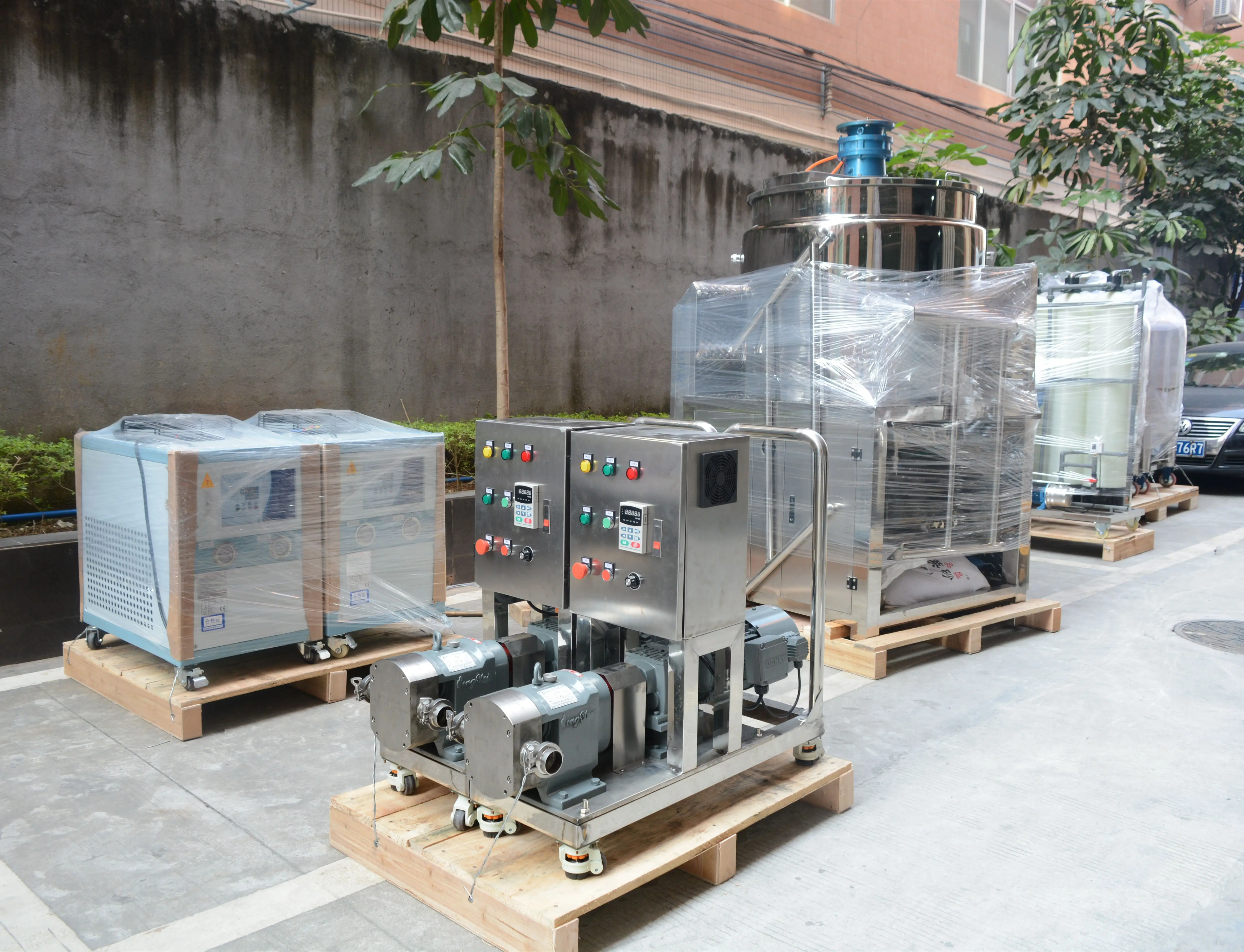

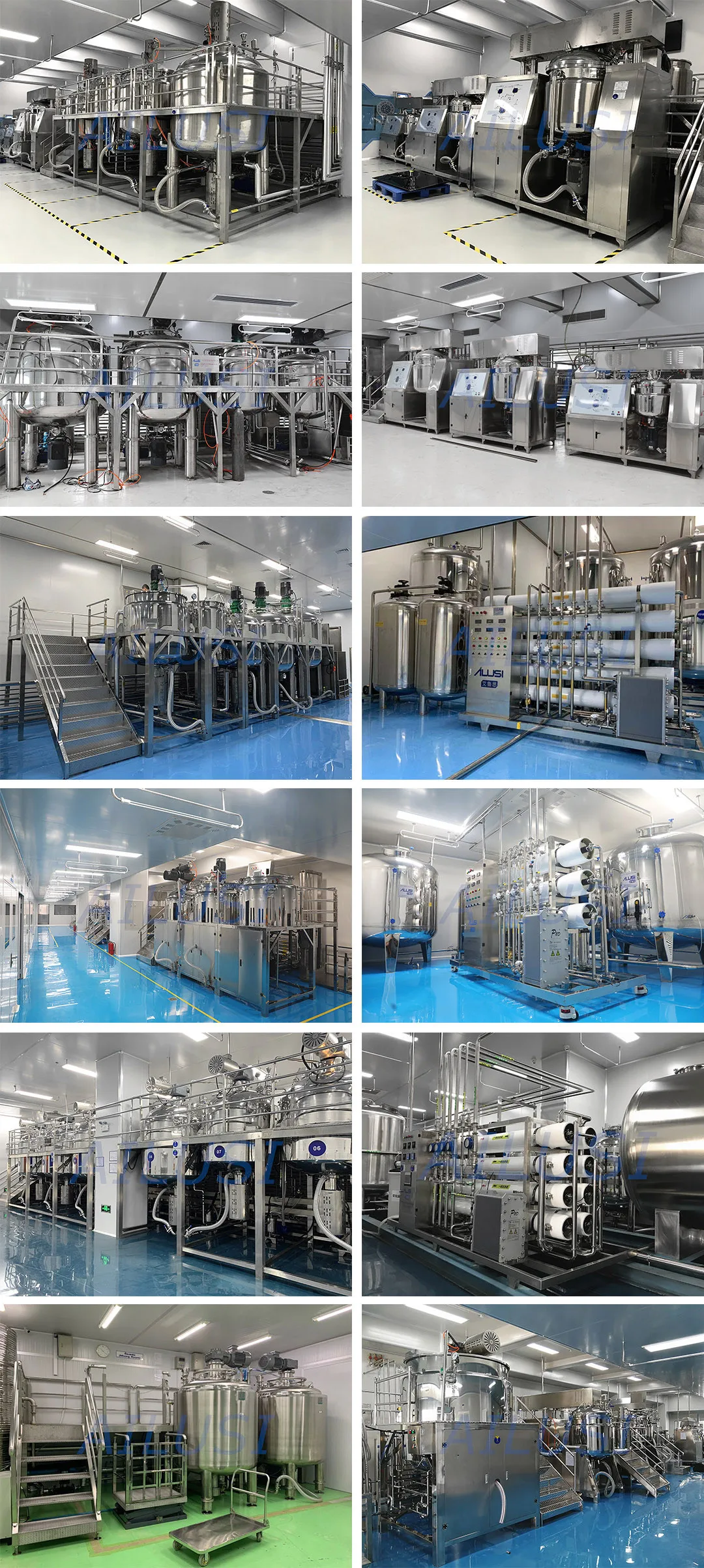

Project
Company Profile

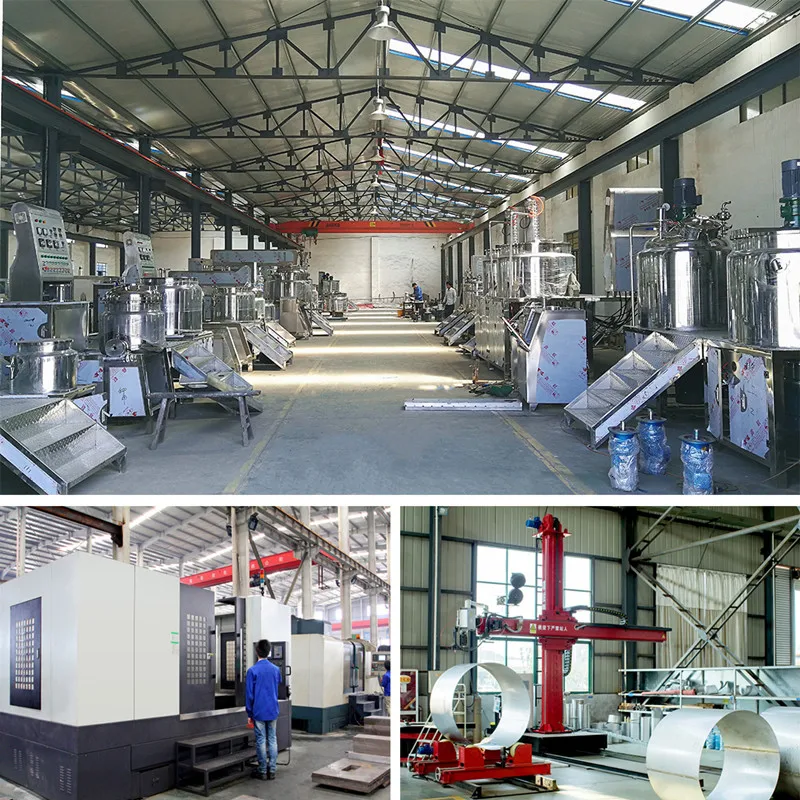

Yangzhou Ailusi Chemical Machinery factory is located in Gaoyou City, Jiangsu Province, China. We have more than 16 years of experience and 9800 square meters factory. Mainly apply to Cosmetic, Chemical, Food, Pharmaceutical industry etc., we could provide superior quality and customer trusted products to clients are based on advanced production equipment, perfect technical process, strong technology and strict quality control.
Our factory have been adhering to the business philosophy of "sincerity, quality and service" and strictly implementing the ISO9001 international quality management system. We regard quality as the life of our enterprise to be permanently vigorous, provide high-quality products and good services to customers at home and abroad.
